Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo for Drones Accessories

Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo for Drones Accessories
Part No.: MFE-M4112-460
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo for Drones Accessories

Product Details

Model:M4112
kv:460
Operating Rated Voltage:6S
No-load Current:1.1A/20V
Interphase Internal Resistance:113mΩ
Motor Weight:177g
Maximum Current:39A
Maximum Power:955W
Maximum Pull:4100g
Maximum Torque:1.2N*m
ESC Recommendation:50A
Propeller Recommendation:1555 Carbon Fiber Paddle
Slot-level Structure:12N14P
Stator Core:Imported Material/Surface Anti-rust
Motor Size:49.8×27mm
Enameled Wire Grade:Resistant to 180℃ high temps
Magnet Grade:Resistant to 180℃ high temps
Protection Grade:IP35
Wire Outlet Specification:100mm
Off-core Heat Dissipation Design:YES
Rotor Dynamic Balance Test:≤5 Mg
Wire Coil Withstand Voltage Test:500V AC
Propeller Mounting Hole Position:M3⊙12*4/M3⊙15*4
Motor Mounting Hole Position:M3⊙30*4

Item Packing

M4112 460KV Motor x1
Paddle Platen X1
Motor Installation M3*5mm x4
Paddle installation M3*10mm x2

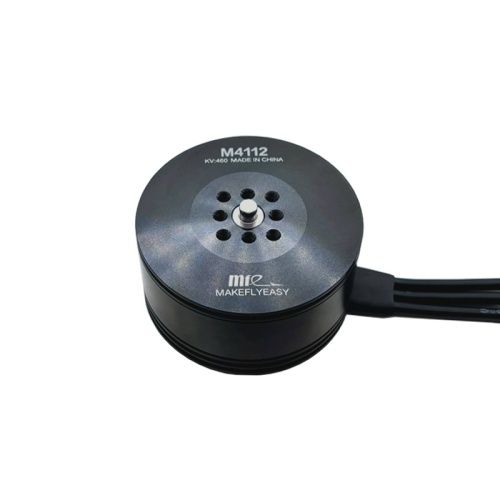

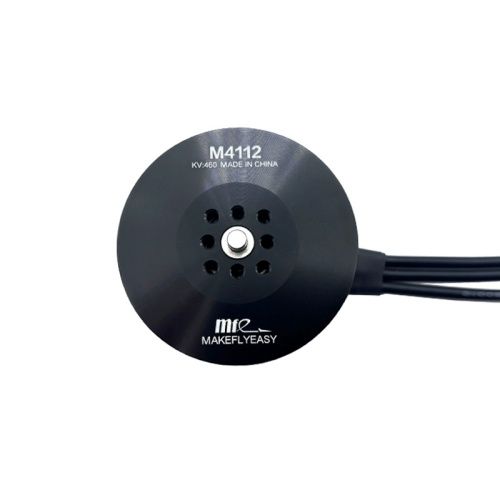

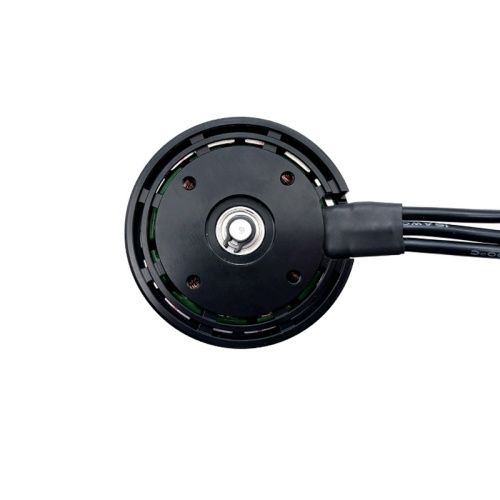

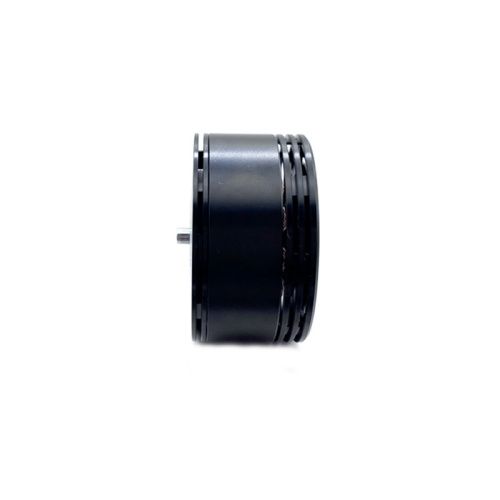

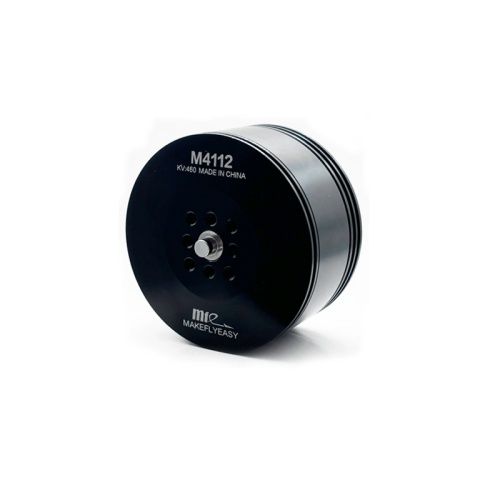

Detailed Images
