New Aomway Commander Goggles V2 3D 5.8G 64Ch 1080P 800*600 SVGA FPV Video Headset Support HDMI DVR FOV 45 For RC Model

New Aomway Commander Goggles V2 3D 5.8G 64Ch 1080P 800*600 SVGA FPV Video Headset Support HDMI DVR FOV 45 For RC Model
Part No.: CommanderV2
Manufacturer: Aomway

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Commander v2 version, The display resolution upgraded to 800 * 600 SVGA (FOV 45° ),and It with 1080P HDMI interface that compatible with 3D images(left and right format ).It was Upgraded to 64 analog signals with built-in digital video recorder ( DVR ).Pluggable and heel Headtracker module which to be purchased separately. Built - in high-performance mute fan for keep facial comfort and lens-Defogging function。

Product Details

1. FOV : 45°
2.Glass optics ( binocular 8p direct display optical engine )
3.Display: 800 * 600 ( SVGA ) LCD, LED backlight
Wireless Receiver:

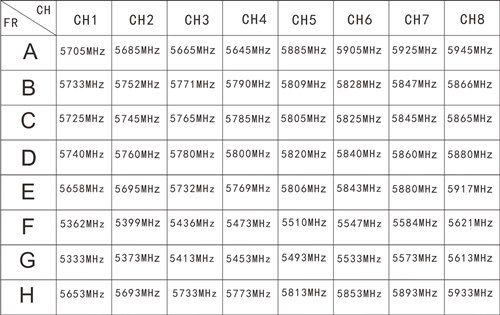

1.Built - in double 5.8G 64 CH high sensitivity auto receive modules.
2.Screen CH indication function for choice
3.High-Speed and One-Button for search
3D Display: ( left and right format 3d )
1. Video 3D
2. HDMI 3D
Head Tracker Modules( Purchased separately)
Pupil Distance Range:
59 - 72 mm (For adjustable )
Audio output: stereo
User Menu:
1:Menu adjustment
2.Brightness adjustment
3.Contrast adjustment
4.Channel adjustment
5.Display mode adjustment
6.Shortcut keys / Digital video / Headtracker switch / Cooling fan
Video :
NTSC / PAL (auto)
HDMI Signal Input:
720 p / 1080 p
Digital Video:
1.Integrated DVR ( RF and Avin Signals only ) Mini TF card
2.Support 32GB video compression format MJPG D1 720 * 480 / 720 * 576
Interface:
1. Headphone Iterface:3 level 3.5 mm interface
2.AVIN Interface: 4 level 3.5 mm audio / video interface
3. Headtacker Interface: PS2 terminal
4. TF card: Mini TF card
5. DCIN: standard 5.5 * 2.1 ( Postive inside and oppostive outside )
Weight:
198 g ( without antenna weight )
Operating Environment :0°C- 55°C
Packing Size: 230 * 165 * 77 mm
Power Supply: DC7 - 18v ( 2s - 4 s )Screen voltage indication function ( low voltage alarm )
Holding Reminder:If the Glass working for a long time, It with  idle reminder to protect the battery

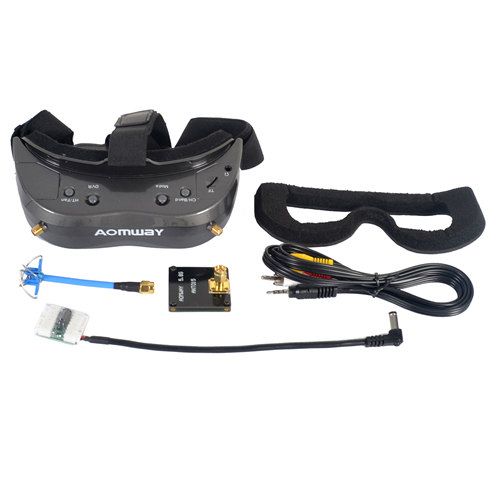

Item Packing

1 set x Aomway Commander V2 5.8G 64CH 3D FPV Goggles

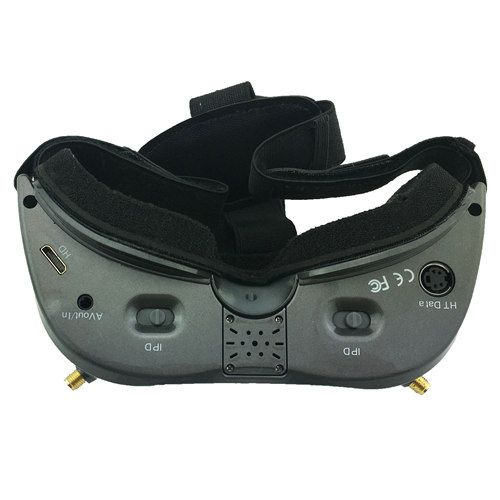

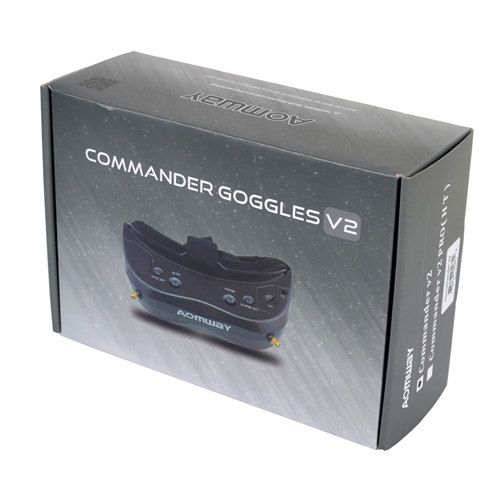

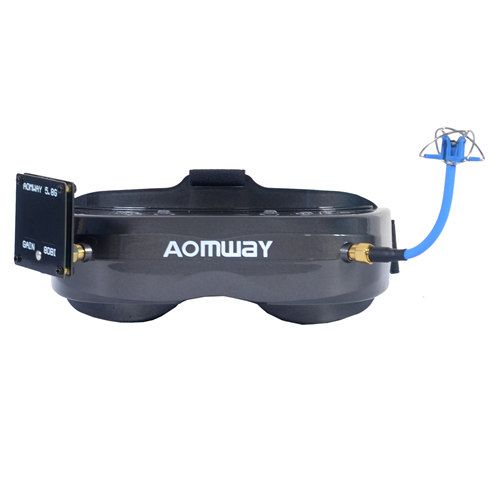

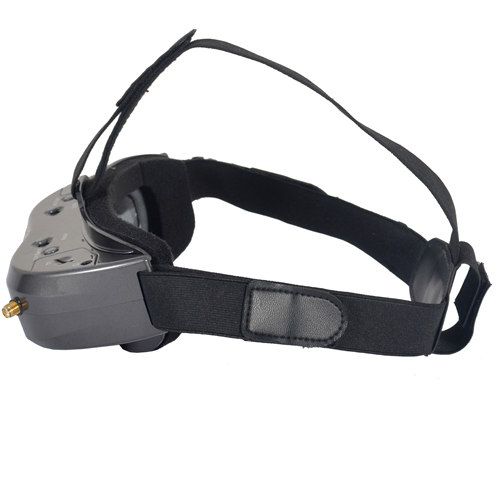

Detailed Images
