DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 4S 3400KV Brushless Motor for RC Airplane

DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 4S 3400KV Brushless Motor for RC Airplane
Part No.: 70EDF-3400KV
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

DoBoFo 70mm 12 Blades Ducted Fan EDF Unit with 4S 3400KV Brushless Motor for RC Airplane

Product Details

Item Name: EDF unit with brushless motor set
EDF Unit: 70mm 12 blades
Brushless Motor: 3400KV
Ducted Fan Weight: 108g
Total Weight: 178g

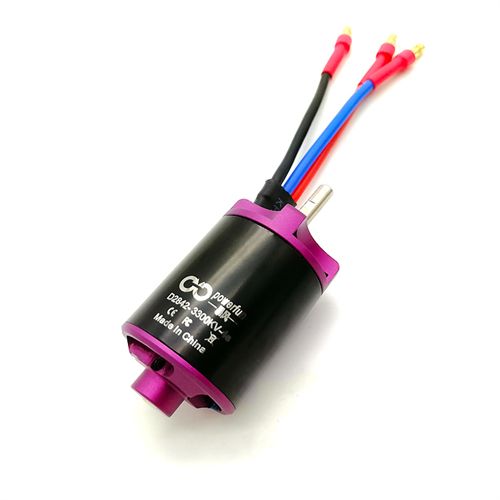

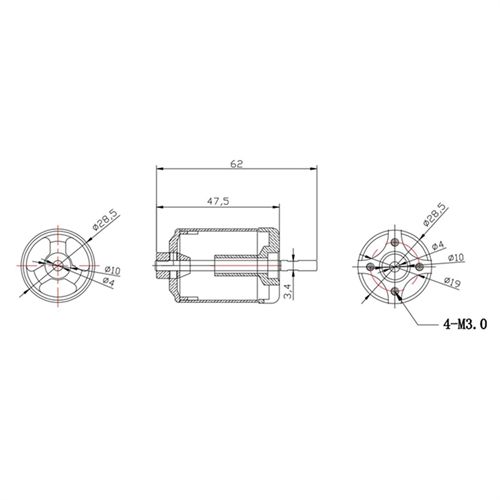

Motor Specifications
KV: 3300
No.of Cells(Lipo): 4S
Max. Voltage: 16.8V
Maximum Thrust :1640g
Max Continuons Current(A)/60s: 62A
Full Load Power: 1042W
Shaft Diameter: Φm
Banana Plug: Φ3.5mm
Weight: 108g
Recommended ESC: 70A(not included)
Recommended Battery: 4S 3500MAH 35C (not included)
Colour:black
Material:Plastic + metal

Item Packing

70mm 12 Blades Ducted Fan EDF Unit x 1

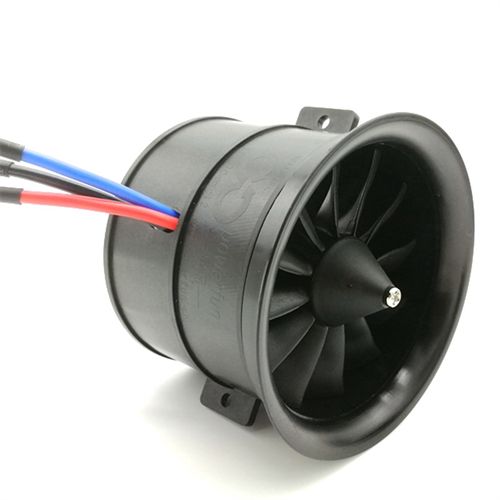

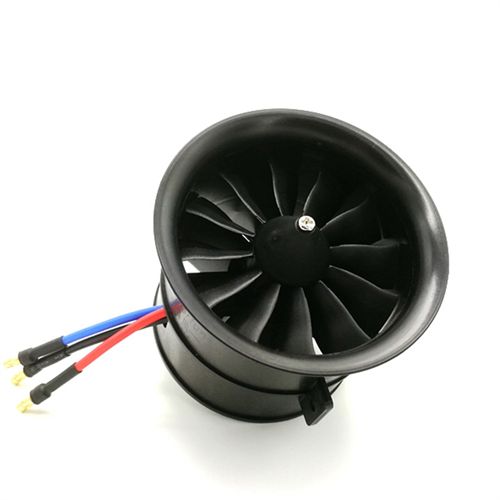

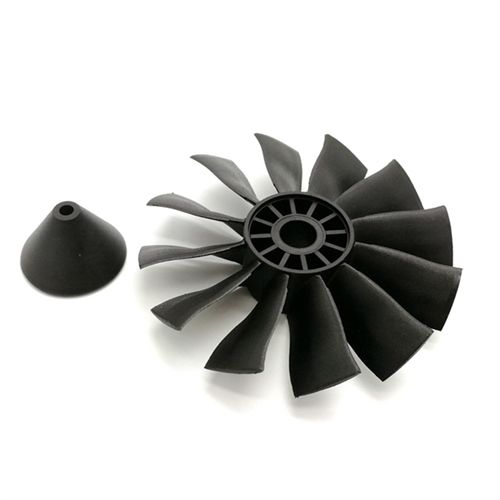

Detailed Images
