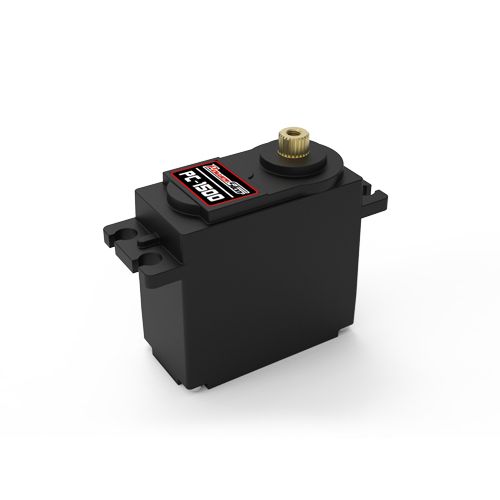

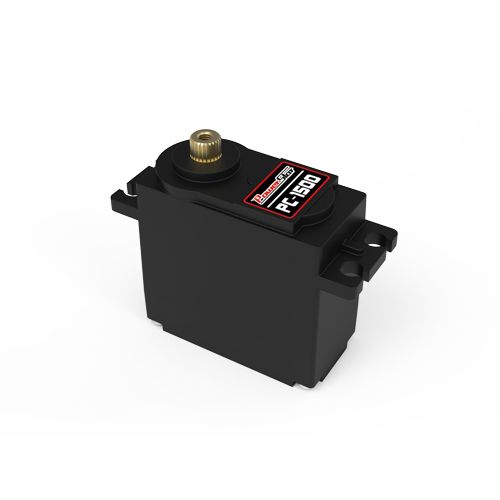

Power Star PC-1500 15kg New Waterproof HV DC Motor Digital Servo For RC Car RC boat RC plane Robot Helicopter

Power Star PC-1500 15kg New Waterproof HV DC Motor Digital Servo For RC Car RC boat RC plane Robot Helicopter
Part No.: PS-PC-1500
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

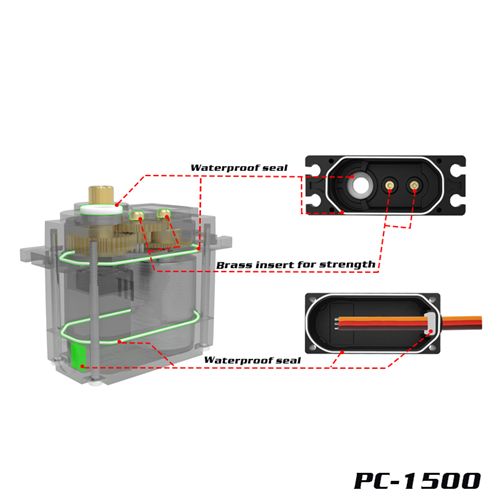

New Standard DC servo from Power Star is PC1500 New High quality servo,Certified by CE & RoHS. FET motor drive,Potentiometer Angel sensor,Plastic Case, High-torque, metal-gear Standard servo with spring-style servo saver Water-resistant, enclosed receiver box High-power DC motor speed control Application for RC Car, RC boat, RC plane,Robot, Helicopter.

Product Details

Torque(4.8V): 15.00 kg-cm /208 oz-in
Torque(6.0V): 18.0 kg-cm / 250 oz-in
Torque(7.4V):22.0kg-cm / 305 oz-in
Torque(8.4V):25.0 kg-cm /347 oz-in
Speed: 0.15 sec (4.8V) │0.14sec(6.0V)|0.13sec(7.4V)|0.12sec(8.4V)
Operating Voltage:4.8V ~ 8.4V
Weight: 63g ( no including accessory)
Bearing Type:Metal Bearing
Motor Type:DC
Gear Type:copper
Operating Temperature range:-20℃~60℃
Working frequency:1500μs / 333Hz
Size:40 x 20 x 40 mm

Item Packing

PC-2500 25kg Digital Servo x 1

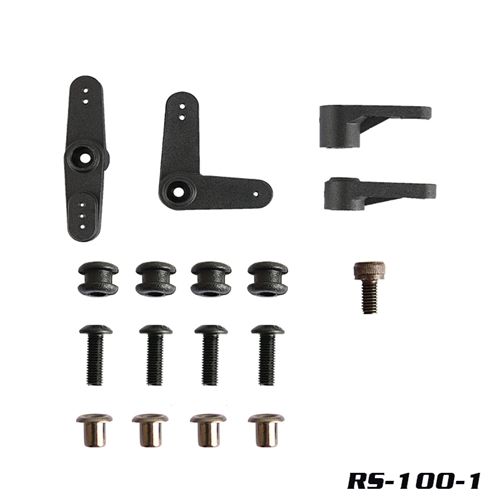

Accessories x 1

Detailed Images
