Mini F3 OSD Control de vuelo con 4 en 1 10A ESC para Racing Drone Quadcopter

Mini F3 OSD Control de vuelo con 4 en 1 10A ESC para Racing Drone Quadcopter
Part No.: MINIF3
Manufacturer: hymodel

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Mini F3 OSD Control de vuelo con 4 en 1 10A ESC para Racing Drone Quadcopter

Product Details

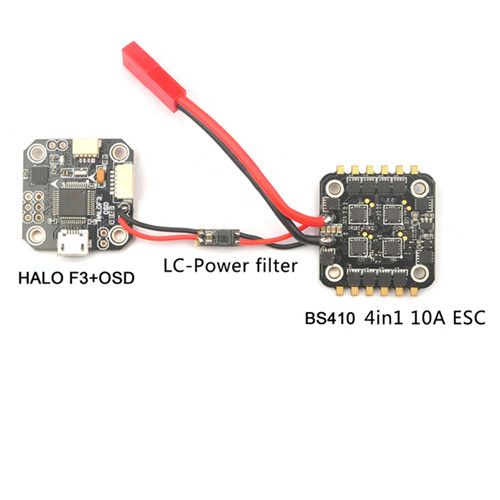

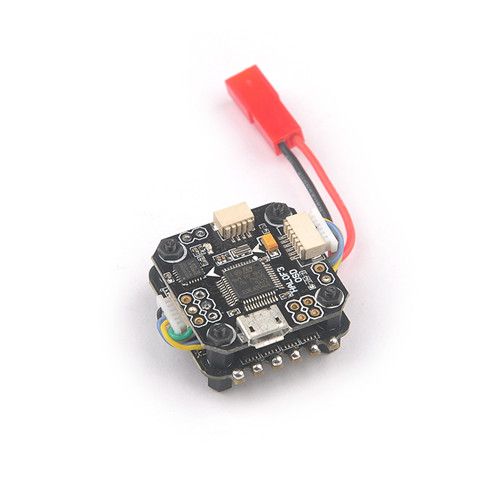

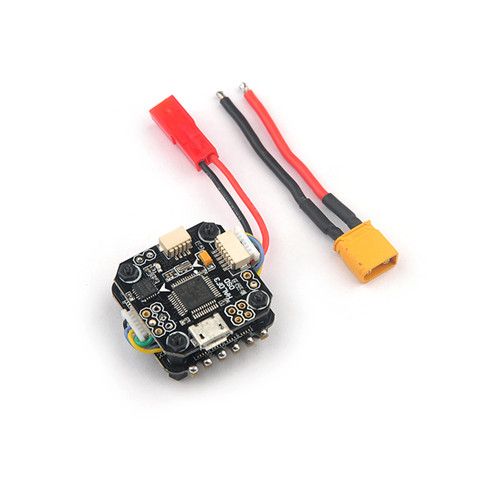

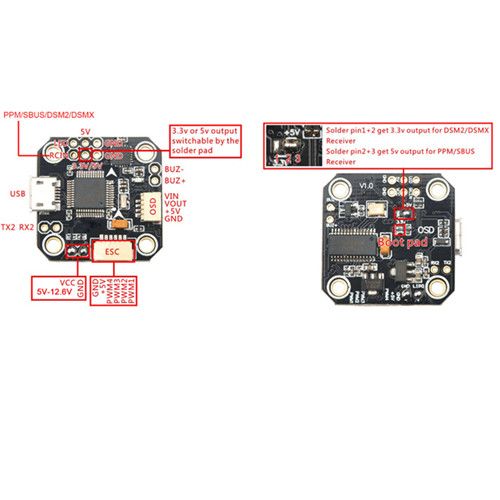

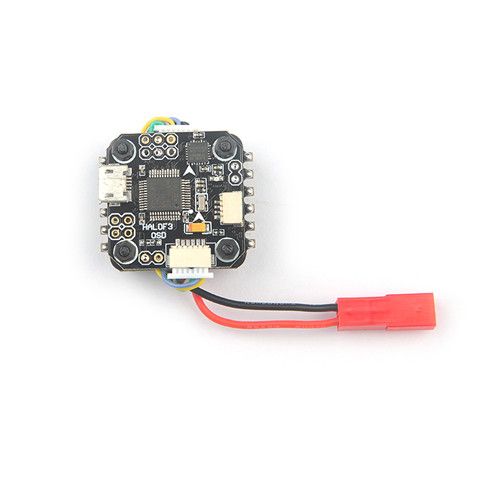

HALO F3 +OSD Flight controller
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Processor: STM32 F303 MCU
-Sensor: SPI Sensor MPU6000
-Built-in Betaflight OSD ( Batt voltage, RSSI , Artificial Horizon , Fly mode , -Flytime, Craft name etz.)
-Firmware version: Betaflight 3.2.0 Dshot ready
-Target:
Omni F3
-Power support : 5v~12v(2S-3S Lipo)

BS410 10A 4in1 ESC
-Size:27mm*27mm*5mm
-Mount hole: 20mm*20mm
-Firmware version: BLHELI_S 16.5
-Firmware target: F-H-40
- BB2, 48MHZ Chip
-Lipo Battery: 2S-3S
-Con. Current: 10A
-Peak Current: 15A (10S)
-BEC: 5V @0.1A
-Programming: YES
-Betaflight pass-trough ready
-Dshot600 ready(Default)

Item Packing

-Flight controller *1
-LC power filter *1
-M2*5+6 nylon hex column *8
-M2*5 nylon screw *4
-M2 nylon nut *4

Detailed Images
