FT953 5.8G 32CH 400mW Mini Transimitter TX FPV for RC Multicopter

FT953 5.8G 32CH 400mW Mini Transimitter TX FPV for RC Multicopter
Part No.: FPV-FT953
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

FT953 5.8G 32CH 400mW Mini Transimitter TX  FPV for RC Multicopter

Product Details

- Transmit power: 400mW
- Frequency:ISM5.6GHz-5.95GHz
-Working channel #: 32
- Power supply: 6-30V
- video input level: 1V + 0.2Vp-p/75.
- audio inputs: 0.5 ~ 2.0Vp-p/10K.
- Working current: 110mA±10mA12V
- Supported video formats: PAL/NTSC/SECAM (AUTO)
- Antenna connector: SMA
- Dimension:  30x20x8mm
- Weight: 10g

4PIN connecting wires:
- Red: VCC (+6 V ~ +30 V)
- Black: GND
- White: audio input / AAT
- Yellow: video in

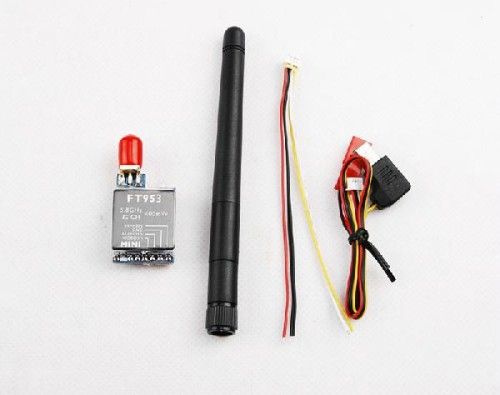

Item Packing

1 x transmitting unit (TX)
1 x antenna
1 x 4-pin cable
1 x Gopro cable

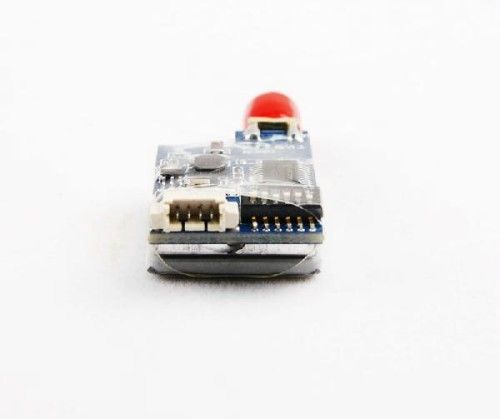

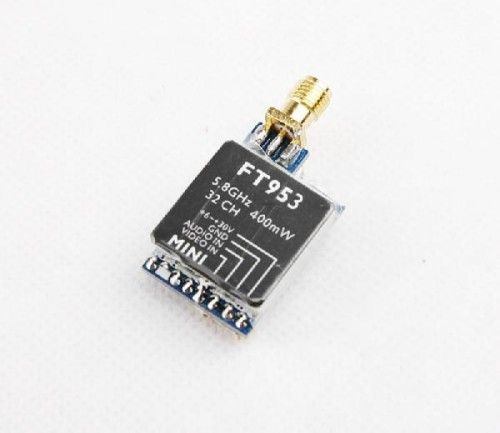

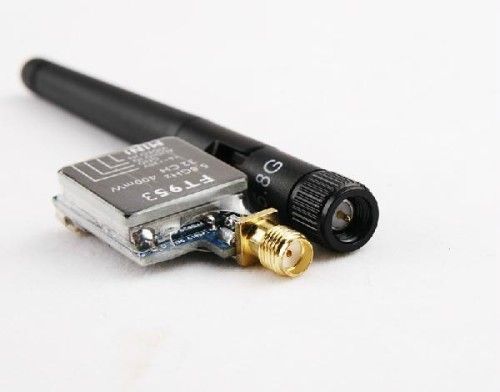

Detailed Images
