iFlight Nazgul Evoque F5D 5inch 4S Analog FPV Drone PNP with SucceX-D F722 45A Power Stack Quadcopter

iFlight Nazgul Evoque F5D 5inch 4S Analog FPV Drone PNP with SucceX-D F722 45A Power Stack Quadcopter
Part No.: IF-F5D-PNP
Manufacturer: IFlight

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

High-Performance Electronics - F7 45A Power Stack
Our SucceX Mini F7 flight control, modern USB type-C plug, 16MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new SucceX Mini 45A ESC packed with high performance Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise besides a pre-installed capacitor on the battery lead.

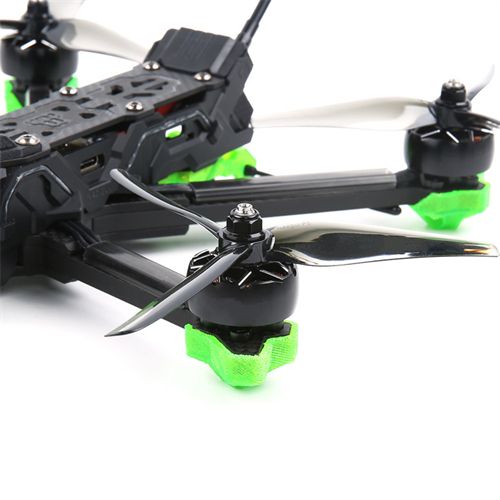

XING-E Pro Performance Motors
Aluminum unibell, 5mm steel alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency.

Illumination - Let It Be Green
360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.

SucceX Force 600mW - Analog Reliable Power

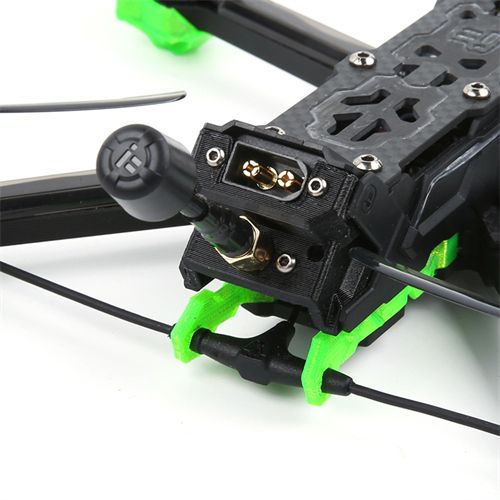

Equipped with our latest 600mW Mini VTX to go far. Stable power output and fast frequency lock without interfering with other pilots when powering up. VTX telemetry built-in as well as electrical interference filters for whatever noise that might get through and an MMCX antenna connector that doesn't hop off in wild crashes.

Product Details

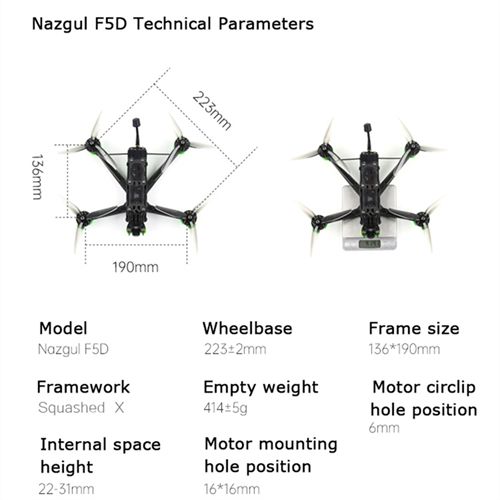

- Total Dimensions: 136*190mm (body dimension)
- Bottom to top distance: 28mm
- Arm Thickness: 6mm
- Bottom plate thickness: 2.5mm
- Top plate thickness: 2mm
- Upper(middle) plate thickness: 3mm
- FC // SucceX- E Mini F7
- ESC // SucceX Mini 45A BLHeli32
- XING-E Pro 2207 2750KV 4S
- Nazgul F5 propellers

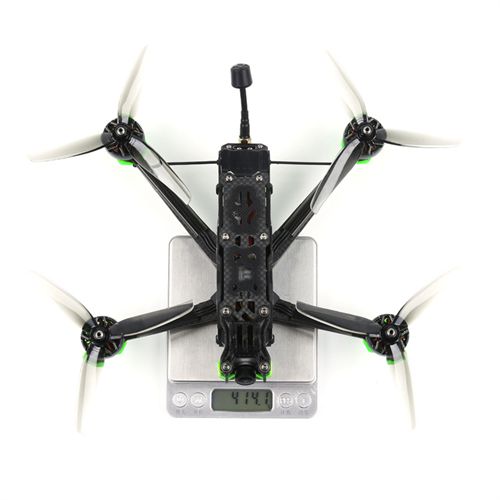

- Weight: 414.1g (without battery and GoPro mount)

FC // SucceX-E Mini F7
- MCU: STM32F22RET6 216 MHz
- Gyro: MPU6000
- Baro: DSP310
- OSD: IFLIGHT OSD (AT7456E)
- BEC: 5V 2.5A
- BlackBox: 16MB
- Uart: 4*UART(UART1、UART2、UART4、UART5)
- UART1 for VTX HD/Analog Telemetry
- UART2 for Receiver
- UART4 for GPS
- UART5 for ESC Telemetry
- 4×Dshot/PWM outputs
- Smartaudio & IRC Tramp VTX protocol supported
- WS2812 led Strip: Yes
- Bepper: Yes
- Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0
- Outer Size: 27*27mm / 20*20mm φ3 mounting
- Weight: 4.9g

ESC // SucceX-E Mini 45A
- Input: 2-6s LiPoly
- Constant: 45 Amps (per channel)
- Burst: 55 Amps (per channel)
- BEC: No
- BlHeli32 telemetry: Yes
- Dimensions: 31x29.5mm
- Mounting Holes: 20*20mm φ3mm with Grommets φ2mm
-  Weight: 6.7g (without motor wires)
- Target: iFlight-G071-4IN1

VTX // 5.8GHz SucceX Mini Micro 600mW VTX
- Power: PIT/25/200/400mW/600mW
- Antenna Interface: MMCX
- VTX protocol: IRC Tramp
- Output:  40 channels

Item Packing

- 1 x Nazgul Evoque F5D 4S Analog FPV Drone
- 4 x Nazgul F5 Props
- 2 sets of Battery pads
- 4 x Battery straps
- 1 Screw bag

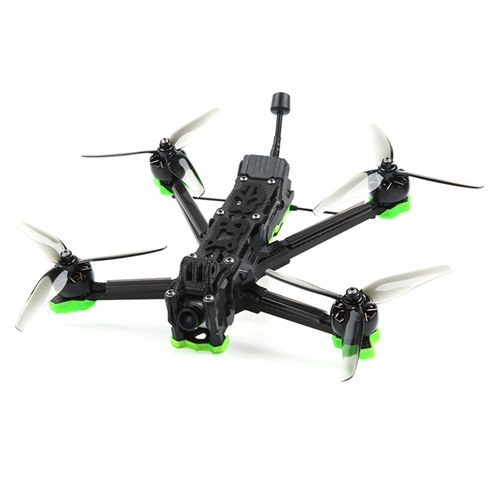

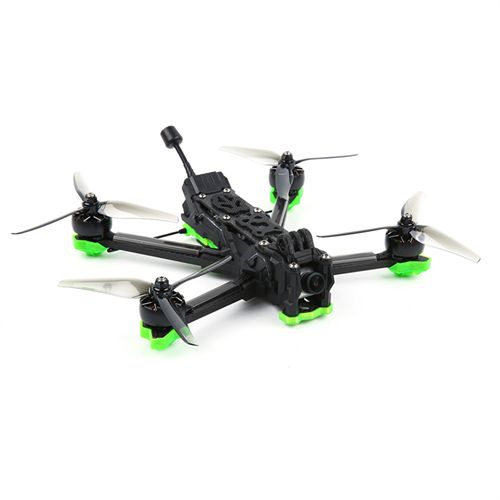

Detailed Images
