Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones

Sunnysky X125A PRO 3-8S  Brushless Electric Speed Controller for FPV Drones
Part No.: X125A-PRO-ESC
Manufacturer: SUNNYSKY

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Excellent quality starts from the core
Equipped with a high-performance 32-bit processor,running at a frequency of up to 170MHz, offering powerful computational capabilities and fast operation speeds. The power output components(MOSFET)utilize next-generation manufacturing technology, providing low heat generation, high instantaneous current handling capacity, and excellent reliability.

Product Details

Model:Sunnysky 125A PRO SBEC
Power Wire Specifications:10#150mm(red x1/black x1)
Motor Wire Specifications:10#150mm(black x3)
Connector:/
Ground Wire:/
Continuous Output Current:125A
Peak Output Current (Momentary):150A
Number of Cells:3-8S LiPo
CPU Frequency:170MHz
Telemetry Function:support
Speed Regulation Function:support
Software Upgrade Capability:support
Anti-spark Function:nothing
ESC Weight:Including fan:180g Excluding fan:170g
ESC Dimensions:Including fan:81x37x36.3mm Excluding fan:81x37x23.8mm
BEC Output:6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function:LCD programming card G2/Android&Apple APP
Signal Wire Specifications:60C 490mm black, red, yellow 3pin two JR Connector;60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications:30C 500mm yellow 1pin both ends JR Connector;30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector

Item Packing

Sunnysky 105A PRO ESC x1

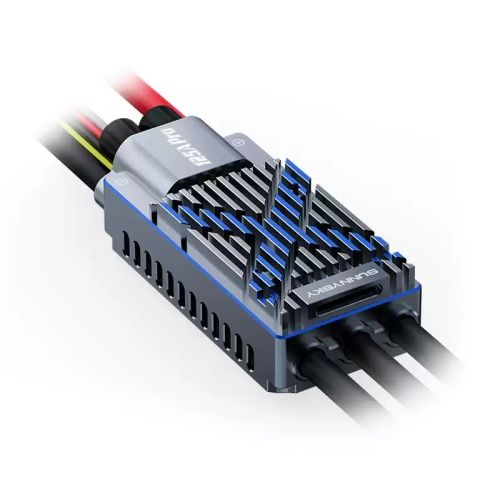

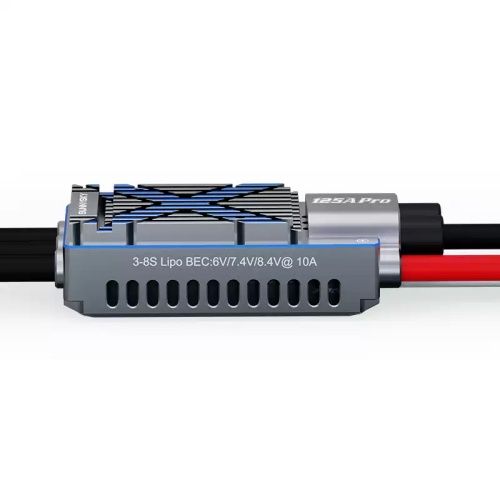

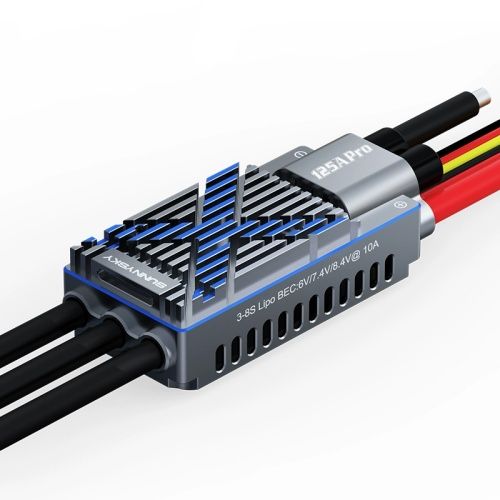

Detailed Images
