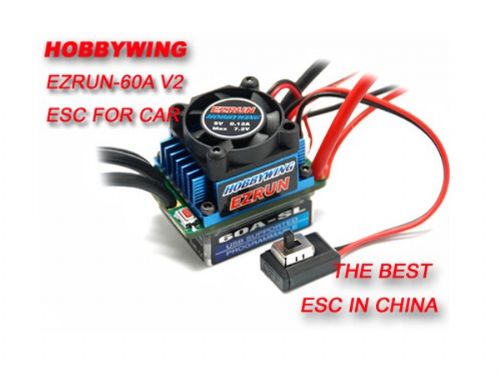

Hobbywing EZRUN-60A Brushless ESC for 1/10 Car

Hobbywing EZRUN-60A Brushless ESC for 1/10 Car
Part No.: Ezrun-ESC-60A
Manufacturer: Hobbywing

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

-Compatible with all sonsorless brushless motor.
-Use top quality electronic components to enhance the current endurance ability of the ESC.
- Excellent start-up, acceleration and linearity features.
-With 2 running modes (Racing mode and Forward/Backward mode).
-With 4 steps of maximum reverse force adjustment.
-Proportional ABS brake function with 4 steps of maximum brake force adjustment, 8 steps of drag-brake force adjustment and 4 steps of initial brake force adjustment.
- With 4 start modes (Also called "Punch" ) from "Soft" to "Very aggressive".
-Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
- With 8 steps of timing adjustment to get the best compatibility with various of motors.
- Easily program with only one button and compatible with pocket-sized program card.

Product Details

-Output: Continuous current 60A, burst current 380A.
-Input: 4-9 cells NiMh/NiCd or 2-3 cells LiPo.   Note1
-BEC Output: 6V/1.5A.
-Resistance: 0.00075 Ohm.
-Motor Supported: Sensorless Brushless Motor
-Suitable Brushless Motor: 5.5T and > 5.5T
-Suitable Car:  1/10 on-road or off-road cars / trucks for normal race or sportful race.
-Size: 31.5mm(L) * 27.5mm(W) * 24mm(H).
-Weight: 32g(Without wires)
Note1:
 For 4-6 Cell Ni-xx: You needn’t change the fan coming with the ESC;
 For 7-9 Cell Ni-xx: You must change the fan because it cannot work with such a high voltage, so please choose a high voltage fan or supply the fan from the receiver (+6V);

Item Packing

-EZRUN-60A-SL Brushless ESC for 1/12 and 1/10 Cars (Version 2.0) x 1

Detailed Images
