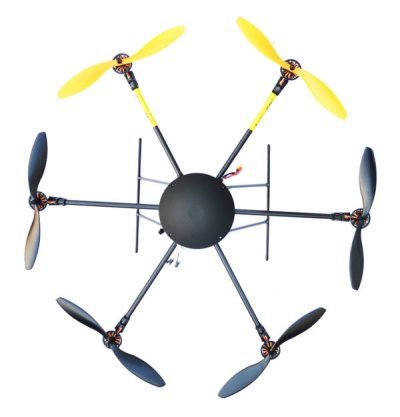

LOTUS RC UFO T700 Folding Hexacopter FPV Aircraft Multicopter Frame ARF with Landing Skid

LOTUS RC UFO T700 Folding Hexacopter FPV Aircraft Multicopter Frame ARF with Landing Skid
Part No.: LRT700ARF
Manufacturer: LOTUSRC
Quantity:out of stock

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- T700 is high-end model developed based on the T700 platform; it is targeted for professional aerial photo and video usage.
-  Safe: Flight control system running in parallel via Remote controller and ground station to avoid possibility of accident. Also included low voltage alarm and lost signal auto return home function.
-  Efficient: 17” Slow Fly propellers + disc brushless motor, maximum efficient unto 12.8g/W.
- Stable: 6 DOF, equipped with industrial grade high impact resistance and low drift MEMS sensors.
-  Simple: Pre-configured with remote controller, no setup required
-  Easy: Quick model setup, with two axis stabilized gimbals.
-  Operating temperature:-10~+60°C.

Functions and capabilities:
-  Auto take off (Ground station control)
- Altitude hold (via remote control)
-  Position hold (Remote or ground station control)
- Waypoint flight (ground station control)
- Auto return home and auto landing (Remote or ground station control)
- Camera Gimbals can be installed under the frame which allowed quick removal from the frame. The tilt and roll angle can be controlled via remote control. It uses the suspension mounting system which provides effective elimination of high and low frequency vibration.

Product Details

- Size::700 × 700 × 320mm
- Spread size::1010 × 1010 × 320mm

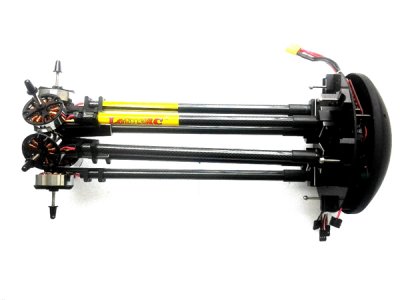

- Folding size::D160 × 560mm
- Wheelbase:700mm
- Propeller:Lotus 1260 ABS Propeller or 3K Carbon fiber Propeller
- BAttery:LiPo 4S 10000mAh 20C(purchase separatly)
- Weight:1610g
- Take off weight:4S 10000mAh 1P battery and receiver 2390g
- effctive dowanload:DV/ camera≤700 g
- Max lift capacity: 7000g (when use standard battery)
- Max effictive capacity:≤1200g(when use standard battery)
- Max flight weight:3000g(Standard battery)

Test data:
- Flying time:10-15 minutes( 4S 4250mAh 1P battery ,receiver)
- Flying time: 25-30 Minutes(4S 10000mAh 1p battery ,receiver)
- Wind resistance:<5 grade

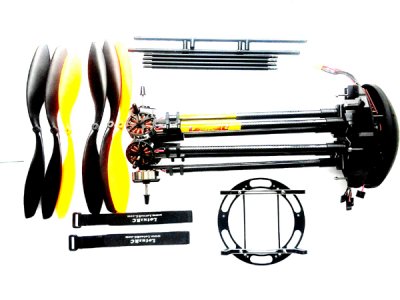

Item Packing

- 1 x  Lotus RC T700 Hexacopter
- 1x Landing Skid Set
- 1 x Lotus RC Flight Control board
- 6 x Lotus RC Motor
- 1 x Lotus RC ESC
- 6 x Propeller

Requires(not included):
- 1 x Remote controller
- 1 x Battery
- 1 x Battery charger

- 1x Lotus RC Camera PTZ

Detailed Images
