Foxeer Echo Patch 5.8G 8DBi RHCP FPV Antenna SMA Male White/Red for RC Drone

Foxeer Echo Patch 5.8G 8DBi RHCP FPV Antenna SMA Male White/Red for RC Drone
Part No.: QA660
Manufacturer: Foxeer

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Foxeer Echo Patch 5.8G 8DBi RHCP FPV Antenna SMA Male White/Red for RC Drone

Product Details

Shell material: Imported PC+ABS
Weight: 8g

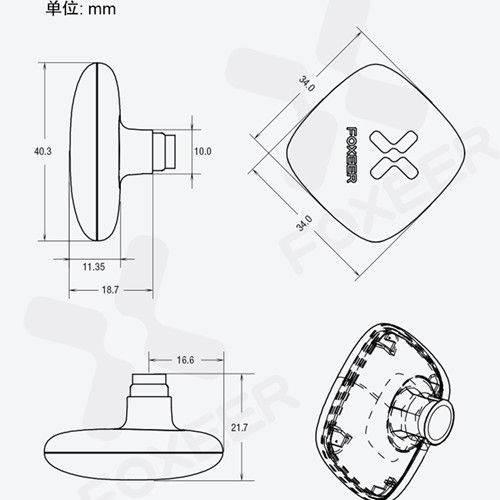

Antenna length: 21.7mm
Center frequency: 5.8 GHz
Gain : 8dBi
Radiation direction angle: 84.7 degree
Bandwidth: 500 MHz (5.5 – 6.0GHz)
Matching: VSWR < 1.25 (at center frequency)
Impedance: 50Ω
Axial ratio: < 3
Center frequency: 5600~5950MHz
Radiation efficiency: 98%
Polarization: RHCP/LHCP
Connector:SMA

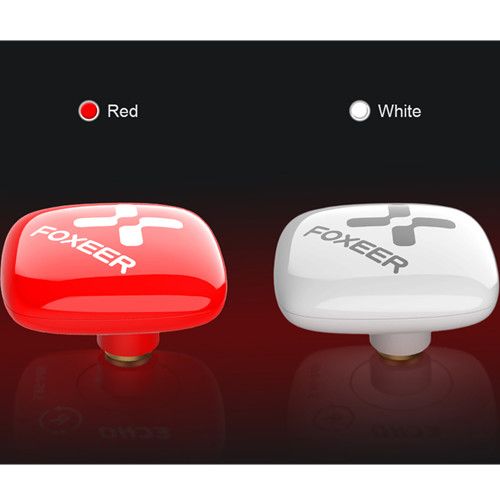

Color: White/Red

Item Packing

Foxeer Echo Patch 5.8G 8DBi RHCP FPV Antenna SMA Male White X 1

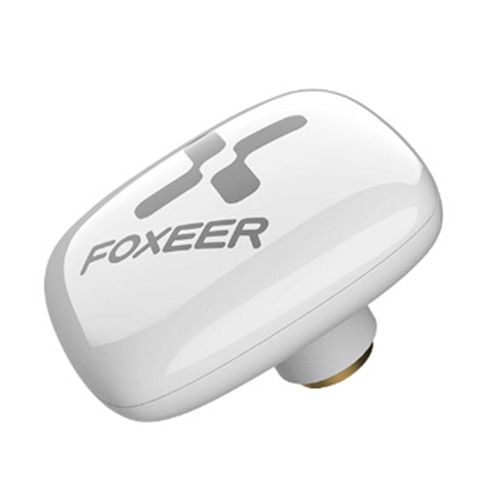

Detailed Images
