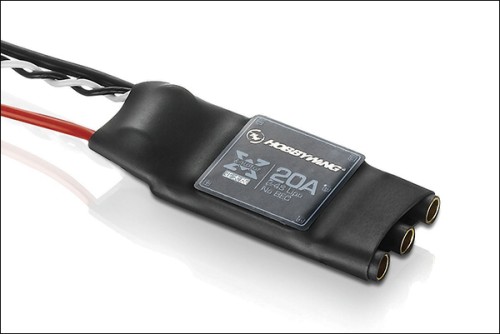

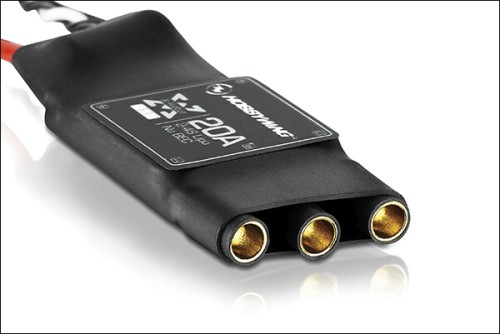

Hobbywing NEW Xrotor 20A Speed Controller for Multicopter

Part No.:	XRotor-20A
Manufacturer:	Hobbywing

Send to a friend

Features

1.1 rotor is special program, the throttle response speed, surpass all kinds of open source software;
1.2 firmware for disk motor optimization, have very good motor compatibility;
1.3 highly intelligent, adaptive ability, keeping only into the Angle set (Gao Jinjiao/into Angle), is extremely easy to use;
1.4 the throttle signal lines for twisted pair, effectively reduce the signal within the copper wire transmission of crosstalk, make flying is more stable;
1.5 up to support the refresh rate of up to 621 hz throttle signal, compatible with all kinds of flight control (note: more than 500 hz throttle signals are non standard throttle);
1.6 use special MOSFET driver chip, performance and stability than using discrete component of driving circuit;
1.7 low impedance MOSFET, strong resistance to flow ability.

Product Details

Input: 2-3 s lithium electricity
Sustained current: 10 a.
The instantaneous current: 15 a (10 seconds)
Size: 36.5 * 16.4 * 16.4 mm
Weight: 6.5 g
BEC output: no
Plug: 2.0 mm banana plugs
Programmable project: into the Angle: high/medium

Item Packing

-Hobbywing NEW Xrotor 20A X 1
