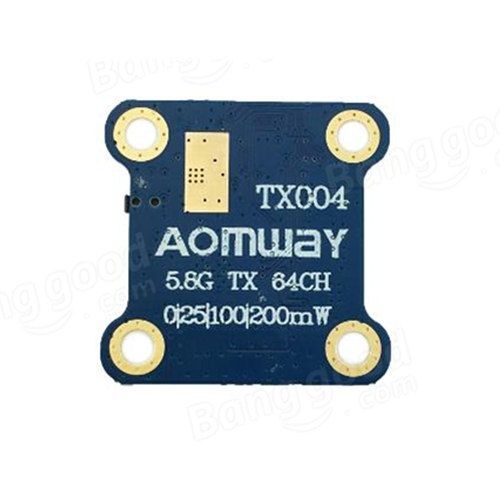

Aomway TX004 Mini 5.8G 64CH Raceband 0mw/25mw/100mw/200mw Switchable FPV Transmitter NTSC/PAL

Aomway TX004 Mini 5.8G 64CH Raceband 0mw/25mw/100mw/200mw Switchable FPV Transmitter NTSC/PAL
Part No.: QAAM-TX004
Manufacturer: Aomway

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

TX004 Transmitter is a 5.8G ISM band simulation diagram transmitter with a stable output power, long-distance transmission, powerful filter. Can guarantee the image of the maximum throttle no snow, no stripes and so on. TX004 transmitter also has the function of remote control the OSD interface and support for more than 8 peoples at the same time flying.

Product Details

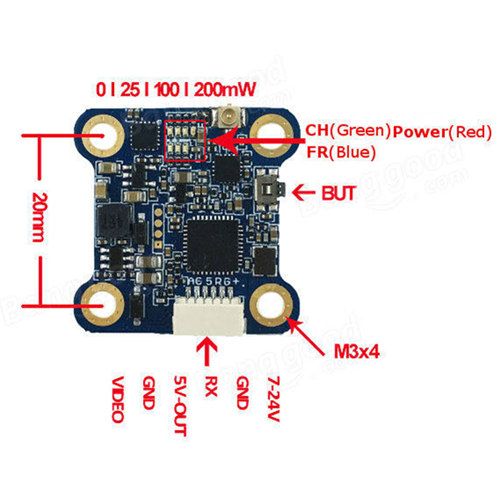

-Output power is stable, long-distance transmission: ≥0.5km@25mW, ≥0.8km@100mW, ≥1km@200mW (Original antenna)
-Transmit power 4 block switch: 0mW/25mW/100mW/200mW
-64 frequency output, has E group of eight competition frequency at the same time without interference
-Fast frequency lock
-With self-test output power
-Video format: NTSC /PAL
-Wide input voltage range, low power consumption: 7V~24V,+12V/170mA@200mW.
-Small volume: 27mm×27mm×4.5mm
-Light weight: ≤3g (Do not including the antenna
)

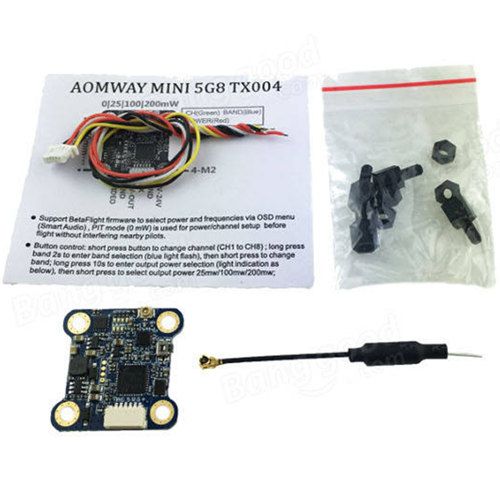

Item Packing

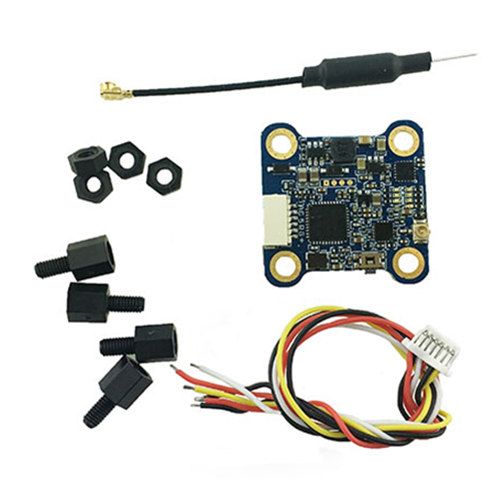

Package included:
Aomway TX004 Transmitt X 1
IPEX Antenna x 1
Cable x 1
Screw x 4
Manual x 1

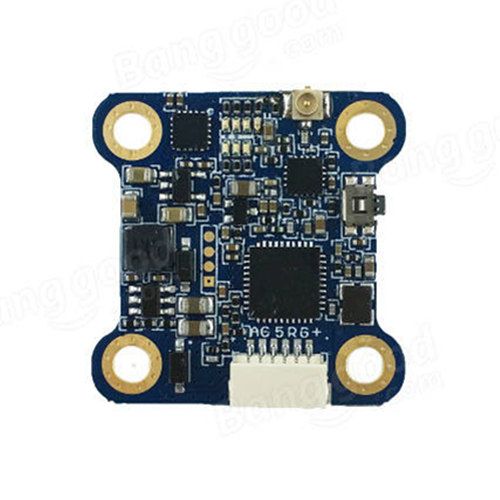

Detailed Images
