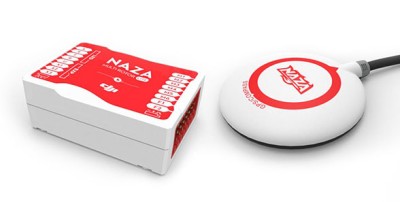

DJI NAZA-M LITE and GPS COMBO NAZALTCB

DJI NAZA-M LITE and GPS COMBO NAZALTCB
Part No.: NAZALITE-COMBO
Manufacturer: DJI

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

For entry-level enthusiasts, DJI now brings out the most cost-effective solution, the NAZA-M Lite flight control system. As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.

The advanced attitude stabilization algorithm not only inherits the outstanding flight stability of DJI products, but also provides excellent maneuverability. It is more flexible and stable, and gives the hobbyists a wonderful flight experience.

It offers three types of control modes: GPS Atti. Mode (with GPS module), Atti. Mode, Manual Mode. The pilot can switch between the three modes to achieve different flight characteristics. It also can adjust automatically within the flight environment and intelligently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure. .

Product Details

BASIC PERFORMANCE Supported Multi-rotor Supported ESC output Recommended Transmitter Working Voltage Range
Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6 400Hz refresh frequency PCM or 2.4GHz with minimum 4 channels MC:4.8V~5.5V
VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
Power Consumption Operating Temperature Assistant Software System Requirement
MAX1. 5W (0.3A@5V)
Normal:0.6W (0.12A@5V)
-10°C ~ 50°C Windows XP sp3 / Windows 7 / Windows 8
FLIGHT PERFORMANCE Hovering Accuracy
(GPS Mode)
Max Yaw Angular Velocity Max Tilt Angle Ascent / Descent
Vertical:±0.8m
Horizontal:±2.5m
200°/s 45° ±6m/s
HARDWARE Weight Dimensions Built-In Functions
MC:25g
VU:20g
GPS:21.3g

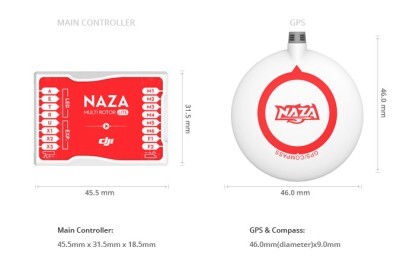

MC: 45.5mm x 31.5mm x 18.5mm
VU: 32.2mm x 21.1mm x 7.7mm
GPS & Compass 46mm(diameter)x9mm
Three Modes Autopilot
Enhanced Fail-safe
Low Voltage Protection
S-Bus Receiver Support
2-axle Gimbal Support

Item Packing

-NAZA -m Lite flight control X 1
-GPS X 1

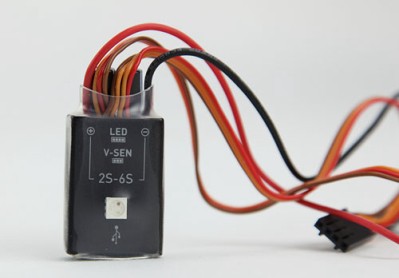

-Power supply module X 1

Detailed Images
