Makeflyeasy PDB Power Distribution Board Drone Open Source Flight Control Power Distributi for Striver mini Models
| Part No.: | MFE-PBD-SV |
| Manufacturer: | Feixiang |
Send to a friend
Features
Makeflyeasy PDB Power Distribution Board Drone Open Source Flight Control Power Distributi for Striver mini Models
Product Details
Model：PDB Striver mini
Working Voltage：12V-60V
Working Current：0-80 A
Voltage/Current Accuracy：±0.1V/±0.2A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Power1 Output Voltage Current：5V/5A
Power2 Output Voltage Current：5V/5A
Servo Power Supply Output Voltage Current：6V/5A
Load Supply Output Voltage Current：12V/5A
Operating Temp.：-20°C~+100°C
Max. external dimensions：101mm*41mm
Weight(with cable)：67g
Working Voltage：12V-60V
Working Current：0-80 A
Voltage/Current Accuracy：±0.1V/±0.2A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Power1 Output Voltage Current：5V/5A
Power2 Output Voltage Current：5V/5A
Servo Power Supply Output Voltage Current：6V/5A
Load Supply Output Voltage Current：12V/5A
Operating Temp.：-20°C~+100°C
Max. external dimensions：101mm*41mm
Weight(with cable)：67g
Item Packing
Power Management Module x1
14AWG Wing power cable x4
12AWG Battery power cable x2
XT90 male head x1
M2.5*6 screws x4
2.5-4 terminal block x2

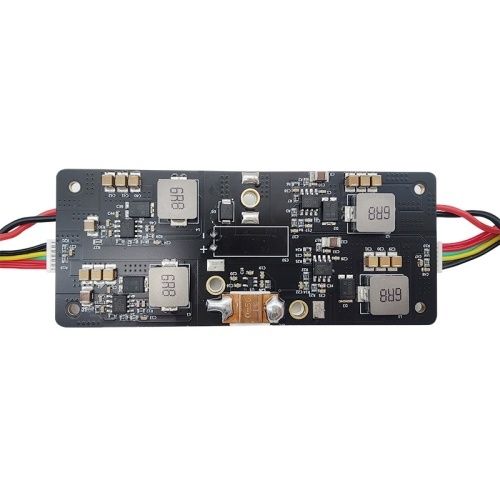

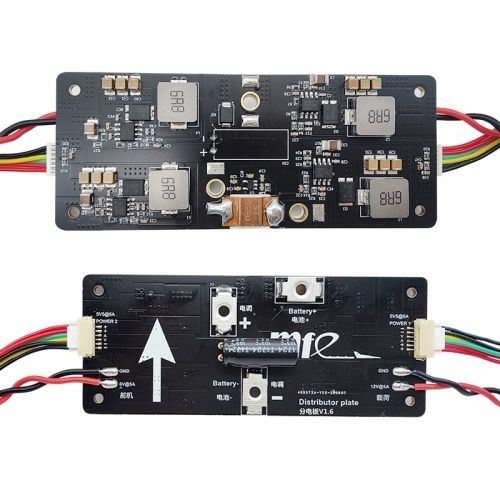

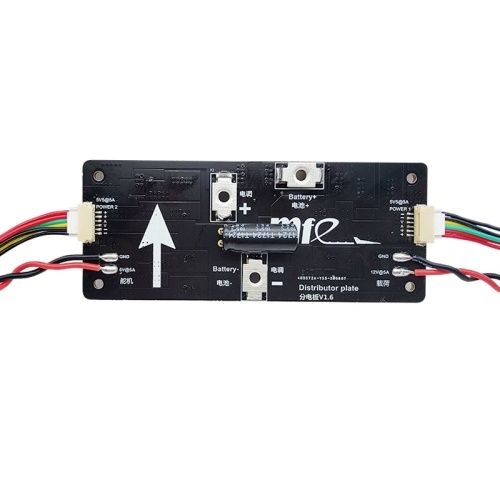

Detailed Images
