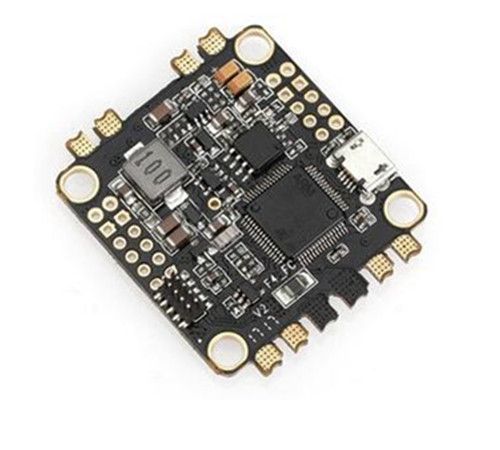

DYS 30.5x30.5mm Omni F4 Pro Flight Controller Integrated with OSD 5V 3.3V and Current Sensor

DYS 30.5x30.5mm Omni F4 Pro Flight Controller Integrated with OSD 5V 3.3V and Current Sensor
Part No.: DYSF4Pro
Manufacturer: DYS

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

- Master STM32F405 GRT6, refresh rate up to 8K
- PCB 3OZ copper enhance current stability and cooling fast
- 5V 3A BEC output
- Exposed pad for easy soldering
- Compatible with all ESCs, as well as DYS 4-in-1 esc without soldering
- Integrated OSD,  no need to flash firmware additionally,debug OSD via BF ground station.
- Integrated current meter to monitor the real-time power consumption
- Adjust the PID by OSD via remote control
- Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and the upcoming - DYS VTX.)
- DYS F4 flight control with 4 damping balls reduce the vibration to make it fly stably.
- 3.3 V Voltage output
- Include PPM VTX and RSSI VTX

Product Details

Brand Name: DYS
Model: F4 Pro
Item Name: F4 Pro Flight Control Board AIO OSD BEC and Current Sensor
MCU: STM32F405
 Gyro: MPU6000
Lipo: 2-6S
BEC Output: 5V@3A
- Also have 3.3V Voltage Output
-Inlcude PPM VTX and RSSI VTX

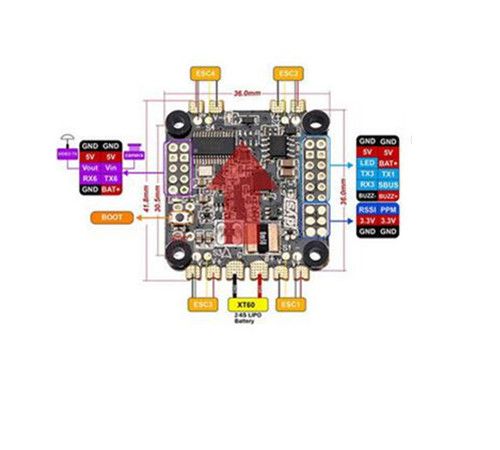

Size: 42 (L)X36(W) mm
Hole Distance: 30.5x30.5mm

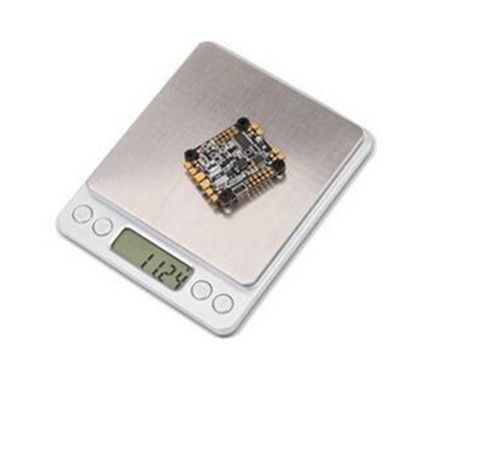

Net Weight: 11.24g (not including cable)

Item Packing

1x DYS F4 Pro Flight Controll Board

Detailed Images
