FX796T 5.8G 600mW 40CH Audio Video AV Transmitter Tx for FPV Multicopter

FX796T 5.8G 600mW 40CH Audio Video AV Transmitter Tx for FPV Multicopter
Part No.: FX796T
Manufacturer: Feixiang

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

FX796T 5.8G 600mW 40CH Audio Video AV Transmitter Tx for FPV Multicopter

Product Details

1. Super small, lightweight and durable.
2. 40 channels ,Cover A, B, E ,F band and Race band (5658MHz-5917MHz)
3. Vertical antenna connector
4. Compatible with various FPV racing quad.
5. Power off memory:replay the very last frequency band and channel
6. On-board microphone to transmit audio to receiver
7. 5V (or 12V) output power to FPV camera

Modulate

Wideband FM Modulate

Video Format

NTSC/PAL

Output Impedance

50 Ohm

Output Power

26dBm(25-27dBm)

Channel

40 CH

Operating Voltage

12V (7V-20V)

Current consumption

260mA

Operating Temperature

-10~85°C

Video Band Width

0~8.0 MHz

Audio Carrier Frequency

6.5 MHz

Video Input Level

0.8~1.2 Vp-p

Video Input Impedance

75 Ohm

Audio Input Level

0.5~2.0 Vp-p

Audio Input Impedance

10K Ohm

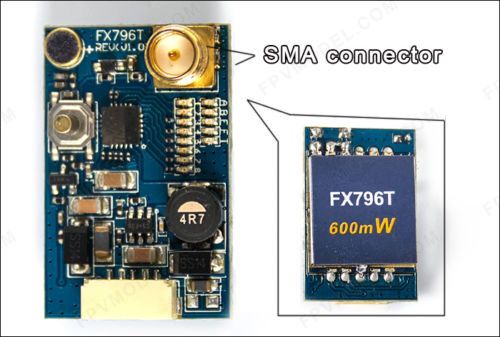

Connector

SMA Female (outer hole)/RP-SMA Female (outer needle)

Antenna Connector

SMA Male (Inner needle)/ RP-SMA Male (Inner hole)

Dimension

31mm x 20mm x 10mm

Weight

7.5 grams

           CH

 FR

                                                 CH

   CH1

   CH2

   CH3

   CH4

   CH5

   CH6

    CH7

   CH8







FR

  FR1(F)

  5740

   5760

   5780

   5800

   5820

   5840

   5860

  5880

  FR2(E)

  5705

   5685

   5665

   5645

   5885

   5905

   5925

  5945

  FR3(A)

  5865

   5845

   5825

   5805

   5785

   5765

   5745

  5725

  FR4(R)

  5658

   5695

   5732

   5769

   5806

   5843

   5880

  5917

  FR5(B)

  5733

   5752

   5771

   5790

   5809

   5828

   5847

  5866

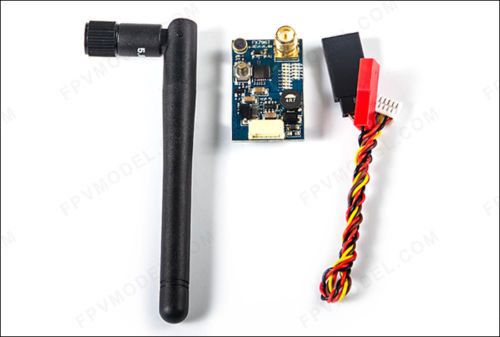

Item Packing

- 1* FX796T 600mW transmitter
- 1* Antenna
- 1* Cable

Detailed Images
