LD-Power MT2213 920KV Brushless Motor CW/CCW 2-Pair for RC Multicopters

LD-Power MT2213 920KV Brushless Motor CW/CCW 2-Pair for RC Multicopters
Part No.: LD-MT2213
Manufacturer: LD-POWER MOTOR

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

LD-Power MT2213 920KV Brushless Motor CW/CCW 2-Pair for RC Multicopters

Product Details

- Item No: MT2213
- KV: 920KV
- Motor Diameter: Ф27.8mm
- Motor Length: 26.7mm
- Stator Diameter: Ф22mm
- Stator Length: 13mm
- Shalf: Ф4mm   M6 12mm
- Weight: 53g
- Voltage: 8.2
- No load current: 0.3A
- Top mount size: 2*12M3
- Bottom mount size: 2*16M3

Test datasheet               MT2213-920KV
Voltage(V) Prop
(Inch)
Throttle Load Current (A) Watts(W) Thrust(G) RPM Efficiency (G/W)
7.4 10*3.3 25% 1.45 10.73 100 3236 9.32
50% 4.15 30.71 250 4760 8.14
100% 5.8 42.92 327 5461 7.62
11*3.7 25% 1.8 13.32 100 3267 7.51
50% 4.65 34.41 260 4781 7.56
100% 6.1 45.14 336 5200 7.44
12*4 25% 1.3 9.62 104 2463 10.81
50% 3.55 26.27 254 3687 9.67
100% 7.6 56.24 453 4915 8.05
11.1 10*3.3 25% 1.1 12.21 102 3093 8.35
50% 4.75 52.725 352 5632 6.68
100% 10.2 113.22 624 7435 5.51
11*3.7 25% 1.45 16.095 250 3341 15.53
50% 5.05 56.055 355 5433 6.33
100% 11.3 125.43 695 7194 5.54
12*4 25% 2.7 29.97 250 2433 8.34
50% 4.15 46.065 359 4363 7.79
100% 13.1 145.41 865 6554 5.95
14.8 10*3.3 25% 2.5 37 250 4768 6.76
50% 3.75 55.5 346 5596 6.23
100% 14.7 217.56 951 9085 4.37
11*3.7 25% 2.9 42.92 250 4840 5.82
50% 4.1 60.68 352 5490 5.80
100% 9.65 142.82 715 7313 5.01
12*4 25% 3.3 48.84 357 4329 7.31
50% 8.15 120.62 703 5962 5.83
100% 18.1 267.88 1190 7746 4.44

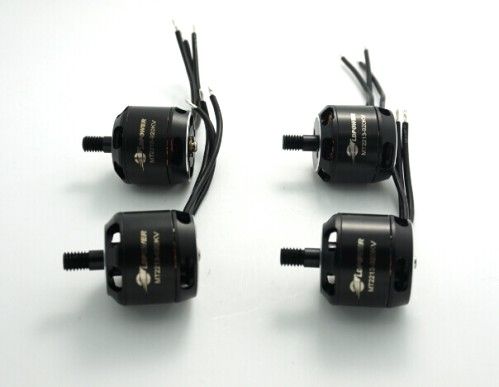

Item Packing

-CW MT2213 920KV  X 2
-CCW MT2213 920KV X 2

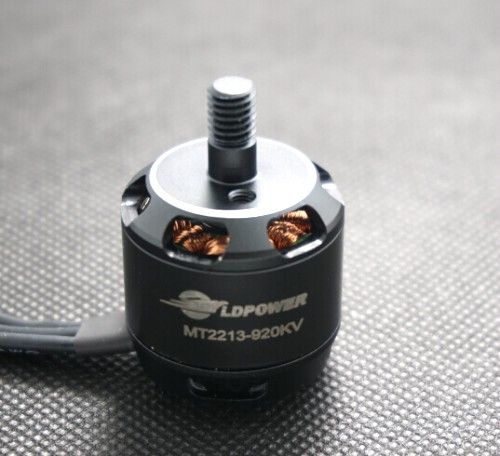

Detailed Images
