Matek Systems F411-WING STM32F411 Flight Controller Control With INAVOSD MPU6000 for Fly Wing Fixed Wing RC Airplane

Matek Systems F411-WING STM32F411 Flight Controller Control With INAVOSD MPU6000 for Fly Wing Fixed Wing RC Airplane
Part No.: F411-WING
Manufacturer: Matek

Send to a friend

Your name:
Your e-mail:
Recipient's email:

Features

Matek Systems F411-WING STM32F411 Flight Controller Control With INAVOSD MPU6000 for Fly Wing Fixed Wing RC Airplane

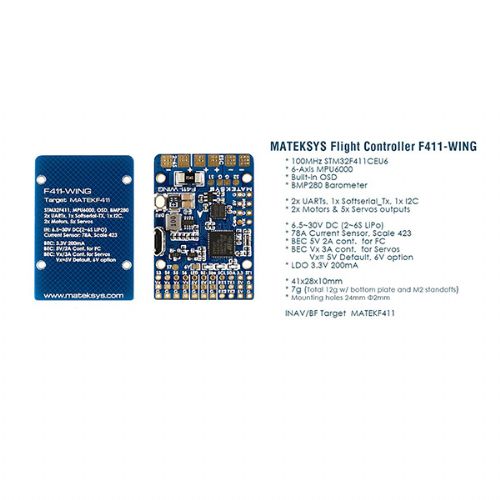

Product Details

MCU: 100MHz STM32F411

IMU: MPU6000 accelerometer/gyro (SPI)

Baro: BMP280 (I2C)

OSD: INAV OSD w/ AT7456E chip

Blackbox: No

VCP & 2x UARTs

2x Motors, 5x Servos outputs

1x I2C

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

Built in inverter for SBUS input (UART1-RX)

SoftSerial_Tx1: ST1 pad by default

PPM: ST1 pad with softserial disabled

Battery Voltage Sensor: 1:10 (Scale 1100)

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: No



FC Firmware

INAV Flight

Target: MATEKF411



PDB

Input voltage range: 6.5~30V (2~6S LiPo) w/TVS protection

2x ESC power pads

Current Senor: 78A,  3.3V ADC,  Scale 423

BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

Continuous current: 2 Amps

BEC Vx output

Designed for Servos

Voltage adjustable, 5V Default, 6V via jumper

Continuous current: 3 Amps

BEC 3.3V output

Designed for Baro / Compass module/ OLED and Spektrum RX

Linear Regulator

Continuous current: 200mA



Physical

Mounting: 24 x 24mm, Φ2mm

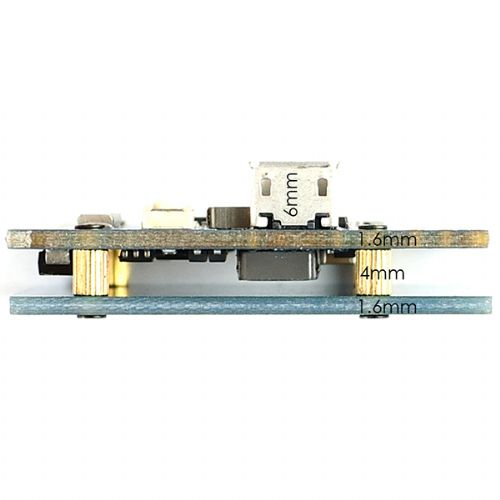

Dimensions: 41 x 28 x 10mm

Weight: 7g (Total 12g w/ bottom plate and M2 standoffs)

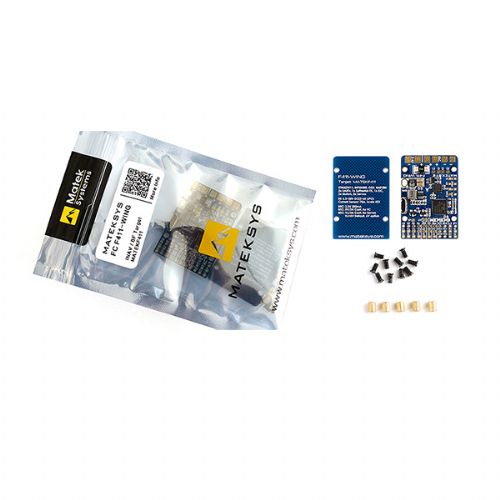

Item Packing

Matek Systems F411-WING STM32F411 Flight Controller Controller x 1

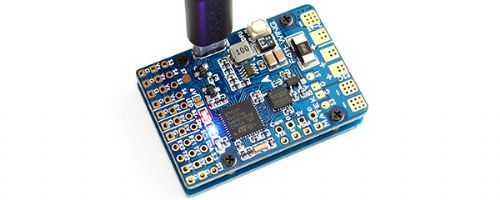

Detailed Images
