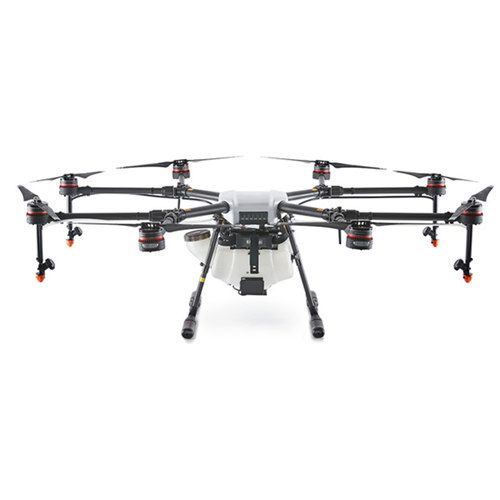

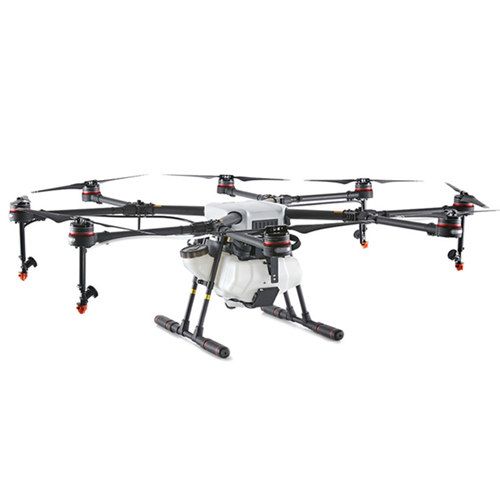

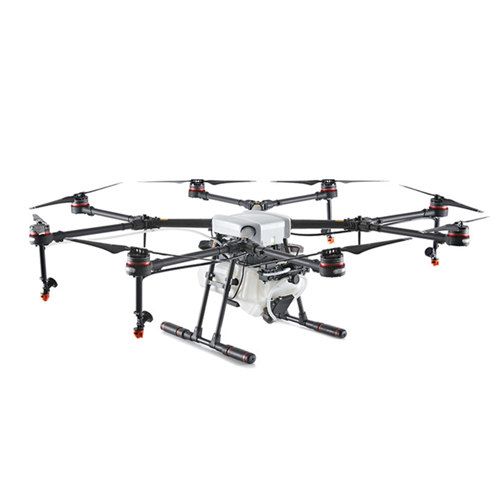

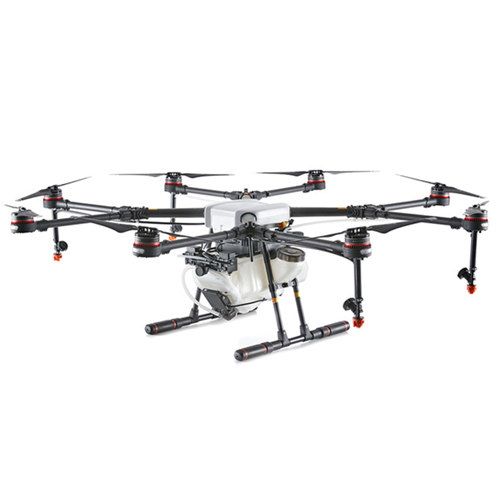

AGRAS MG-1S

The Agras MG-1S integrates a number of cutting-edge DJI technologies, including the new
A3 Flight Controller, and a Radar Sensing System that provides additional reliability during
flight. The spraying system and flow sensor ensure accurate operations. When used with
the MG Intelligent Operation Planning System and the DJI Agriculture Management Platform,
a user can plan operations, manage flights in real-time, and closely monitor aircraft operating
status. The MG-1S is a high performance aircraft capable of offering comprehensive solutions
for agricultural care.

A3 FLIGHT CONTROLLER

Equipped with DJI's advanced A3 Flight Controller, the MG-1S is capable of high levels of reliability. Its algorithm has been optimized for agricultural utilizations,
ensuring stable flight even with sloshing liquids. In addition, the redundant design of the A3 includes dual barometers and dual compasses.
If an error occurs in one sensor, the system will automatically switch to the other sensor to continue safe, reliable flight.

RADAR SENSING

Three high-precision, millimeter wave radars are placed on the front
slope, rear slope and the bottom of the spray tank. Radars on front and
rear slopes detect the terrain, allowing the aircraft to adjust its height approximately. The downward radar then provides high-precision height. As the radars scan, the MG-1S is able to perceive the change of terrain, adjust its altitude and maintain its altitude above the crops.

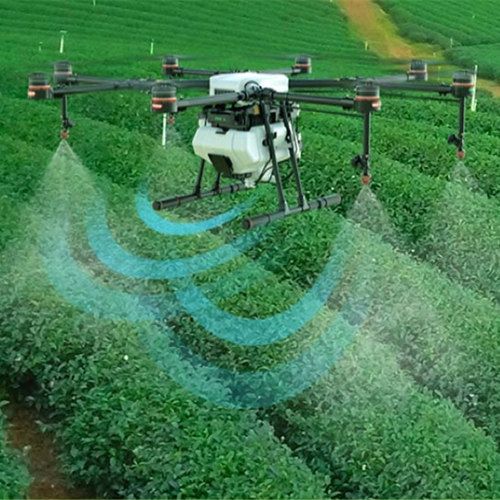

PRECISION SPRAYING

A new spraying system enables more accurate spraying. With two compatible pumps controlling the front pair and rear pair of nozzles separately,
there are now three spraying modes available: forward spraying, backward spraying and full spraying. A new pressure sensor and flow sensor monitors
the spraying rate in real-time, realizing dynamic control over spray speed and amount during operation. Nozzles with extended spray booms have been
used to make better use of downward airflows. This spaying system now responds more accurately to commands,
adding accuracy and effectiveness to spraying operations.

MG INTELLIGENT OPERATION PLANNING SYSTEM

Plan and edit flight paths intelligently with the MG-1S. When you set the liquid amount for per area, the aircraft will calculate the remaining parameters for you, enhancing convenience. You can also choose between Efficient Mode and Intensive Spraying Mode for different operation needs.

PROFESSIONAL CONTROLLER

The MG-1S controller includes a bright 5.5 inch/1080p display that is visible even under strong sunlight. With a built-in operation planning system, users can use the controller to increase working efficiency. The battery of controller supports a working time up to 5 hours, enabling long-time outdoor operations.
* Data shown in the picture beside is for reference only. Data shown in real operation shall prevail.

DJI AGRICULTURE MANAGEMENT PLATFORM

DJI provides a comprehensive spraying management platform along with the MG-1S. Use the platform to supervise the flight status of every aircraft,
master spraying status and manage your spraying team to improve working efficiency. You can also assign fields to each operator and check deployed fields.
By sharing intelligent planning to operators, management for spraying operations will be more efficient and economic, as operators can avoid repetitive spraying.
Platform: ag.dji.com

*The availability of the features to your region is subject to local laws and regulations and your choice.
Data shown in the picture above is for reference only. Data shown in real operation shall prevail.

AGRICULTURE SOLUTION PACKAGE

From flight controller to propulsion system, the Agriculture Solution Package is a comprehensive drone solution for manufacturers building aircraft for agriculture. The Agriculture Solution Package consists of the A3-AG/N3-AG Flight Controller, Agricultural Management Unit (AMU), delivery pump, FM continuous-wave radar, RTK, customized industrial controller, propulsion system, Agriculture app, and DJI’s Agriculture Management Platform. The Agriculture Solution Package empowers manufacturers to develop dedicated and customizable flying platforms, adaptable to different needs, environments, and demands.

DJI Agras MG-1S Agriculture Spraying Drone - China Edition

AIRCRAFT FRAME

Diagonal Wheelbase 1515 mm
Frame Arm Length 625 mm
1471 mm×1471 mm×482 mm（arm unfolded, without propellers）
Dimensions 1471 mm×1471 mm×482 mm（arm unfolded, without propellers）
780 mm×780 mm×482 mm（arm folded）
SPRAY SYSTEM

LIQUID TANK

Volume 10 L
Standard Operating Payload 10 kg
Max Battery Size 151 mm×195 mm×70 mm
NOZZLE

Model XR11001VS（0.379L/min）
Recommend Model XR110015VS（0.591L/min）
TK-VK6 （0.393L/min）
TK-VK8（0.525L/min）
Quantity 4
Droplet Size XR11001VS：130 - 250 μm（subject to working environment and spraying speed）
FLIGHT PARAMETERS

Total Weight 10 kg (without battery)
Standard Takeoff Weight 23.8 kg
Max Takeoff Weight 24.8 kg (at sea level)
Max Thrust-Weight Ratio 1.71 (with 23.8 kg takeoff weight)
Power Battery DJI Designated Battery (MG-12000S)
Max Power Consumption 6400 W
Hovering Power Consumption 3800 W（@with 23.8 kg takeoff weight）
Hovering Time* 22 min（@12000 mAh & 13.8 kg takeoff weight）
10 min（@12000 mAh & 23.8 kg takeoff weight）
*Hovering time acquired at sea level, with wind speeds lower than 3m/s.
Max Operating Speed 7 m/s
Max Flying Speed 12 m/s（P & F Mode，with GPS）；15 m/s （A Mode）
Max Service Ceiling Above Sea Level 2000 m
Recommended Operating Temperature 0 ℃ to 40 ℃
REMOTE CONTROLLER

Model DLG60A
Operating Frequency 2.400 GHz to 2.483 GHz
Max Transmission Range 1 km (unobstructed, free of interference)
EIRP ≤20 dBm
Built-in Battery 9000 mAh，2S LiPo
Output Power 7 W
Operating Temperature Range -10 ℃ to 40 ℃
Storage Temperature Range Less than 3 months: -20 to 45℃
More than 3 months: 22 to 28℃
Charge Temperature Range 5 ℃ to 40 ℃
RADAR MODULE

Detection Range 1- 5 m
Working Range 1.5 - 3.5 m
Precision < 10 cm
PEMOTE CONTROLLER CHARGER

Model A14-057N1A
Voltage 17.4 V
Rated Power 57 W
PROPULSION SYSTEM

MOTOR

Stator Size 60×10 mm
KV 130 rpm/V
Max Thrust 5.1 kg/rotor
Max Power 770 W
Weight 280g (with cooling fan)
FOLDABLE PROPELLER

Material High-performance engineered plastics
Diameter/Pitch 21×7 inch
Weight 58 g
ESC

Max Allowable Current (Continuous) 25 A
Operating Voltage 50.4 V（12S LiPo）
Drive PWM Frequency 12 kHz
