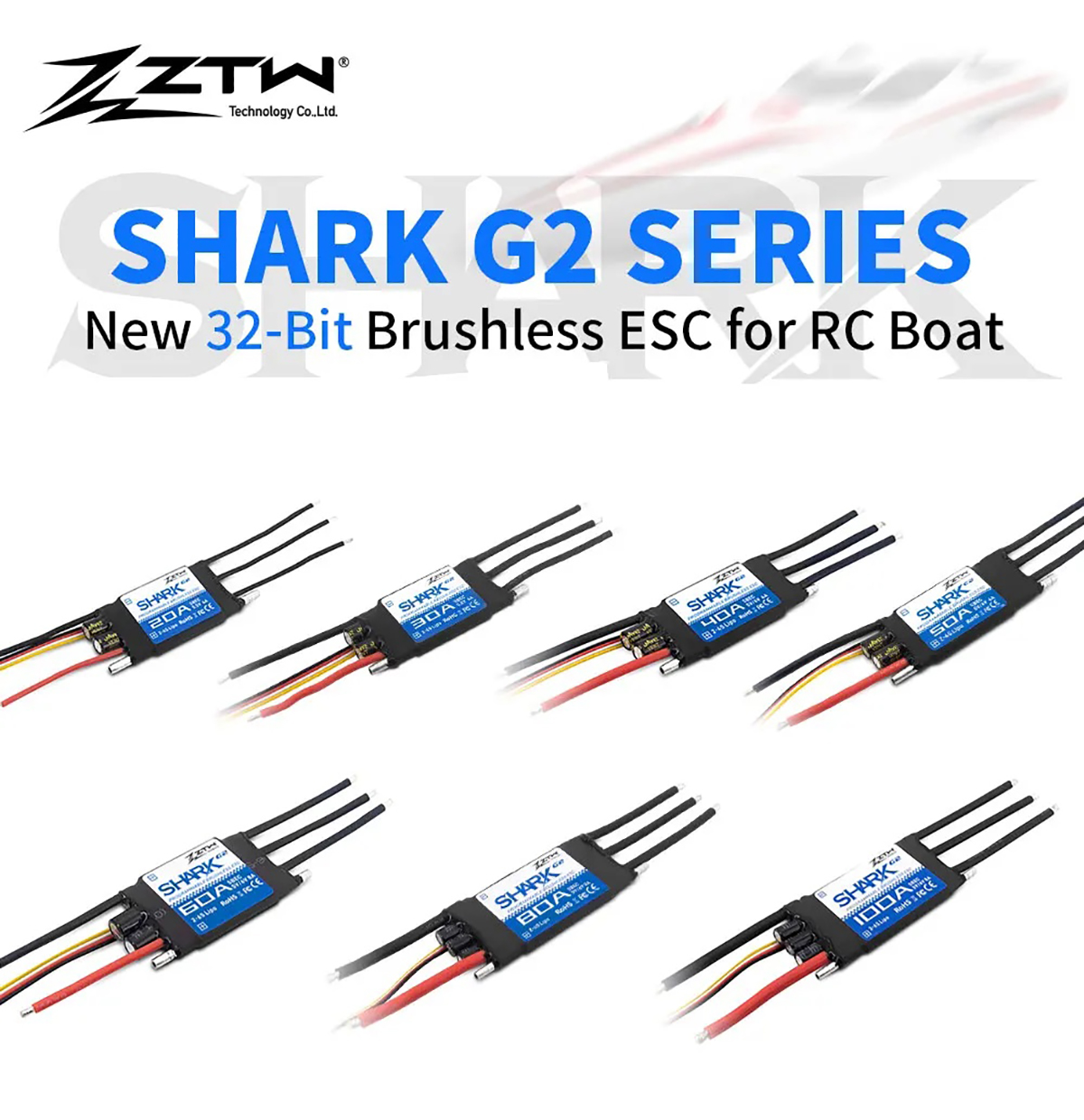

ZTW Shark G2 20A/30A/40A/50A/60A/80A/100A/120A ESC with BEC 32-Bit Bidirectional Brushless ESC for RC Boat

SKU N/A Category RC Boat ESC Tag ESC Brand: ZTW ESC

ZTW Shark G2 20A/30A/40A/50A/60A/80A/100A/120A ESC with BEC 32-Bit Bidirectional Brushless ESC for RC Boat

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

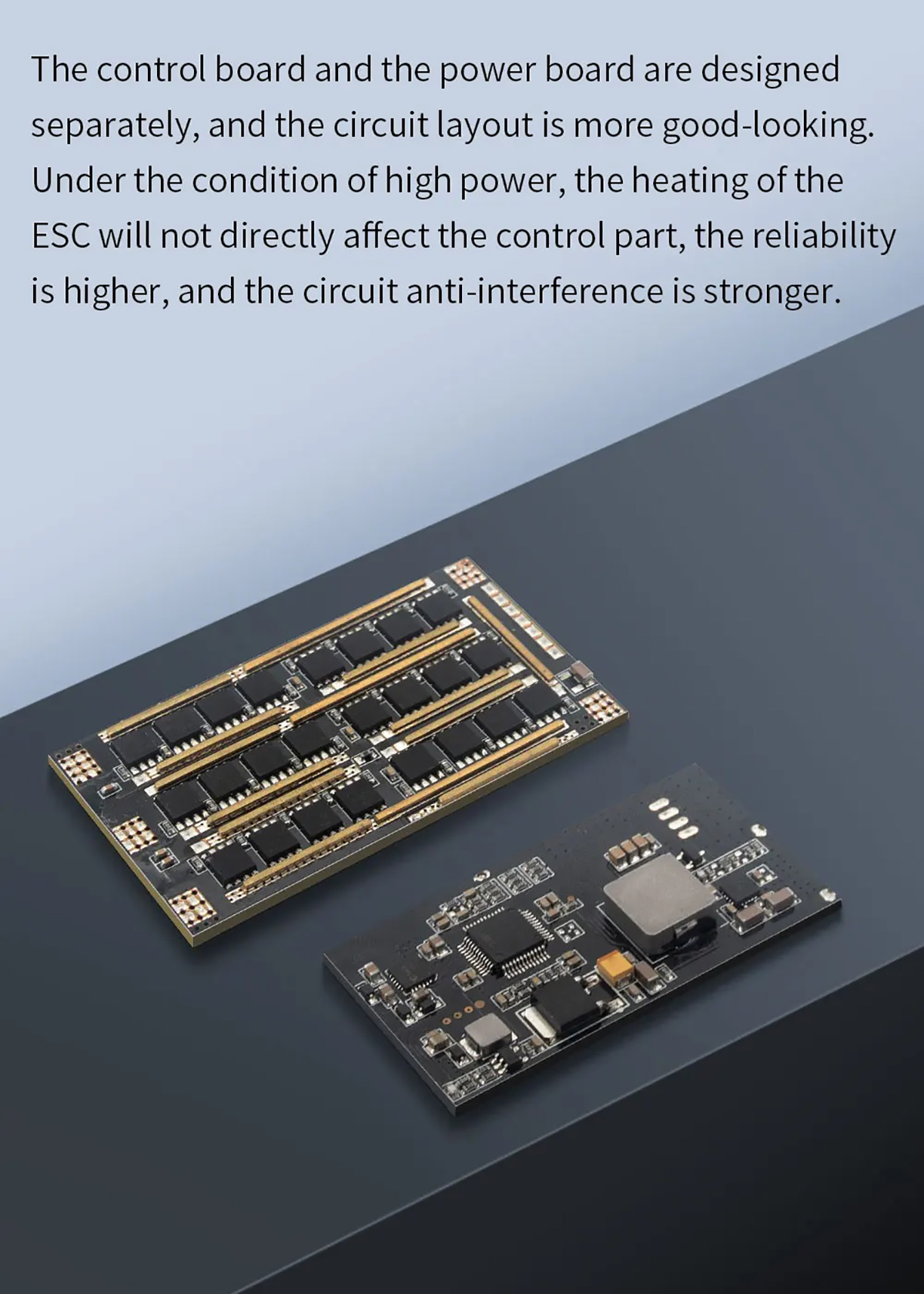

Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
The ESC is waterproof and glued, and the flat water-cooling design ensures efficient heat dissipation.
Super smooth start-up and accurate throttle linearity make the ESC suitable for all kinds of RC boat models.
The ESC has two running modes for different applications:“Forward Only” and “Forward and Backward”.

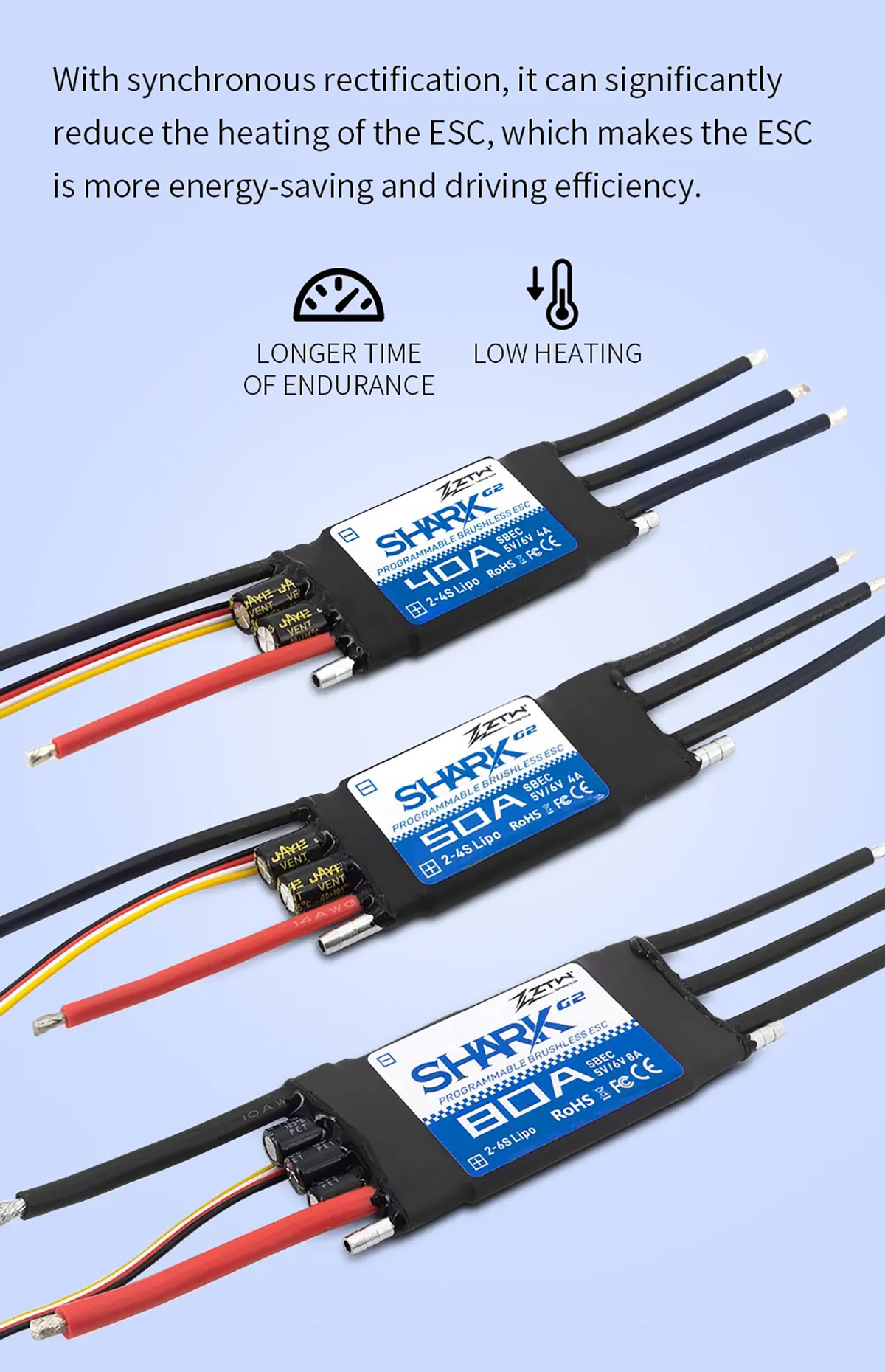

Higher driving efficiency and more energy-saving.
Adjustable SBEC 5V/6V output voltage provides more powerful power to the servo.

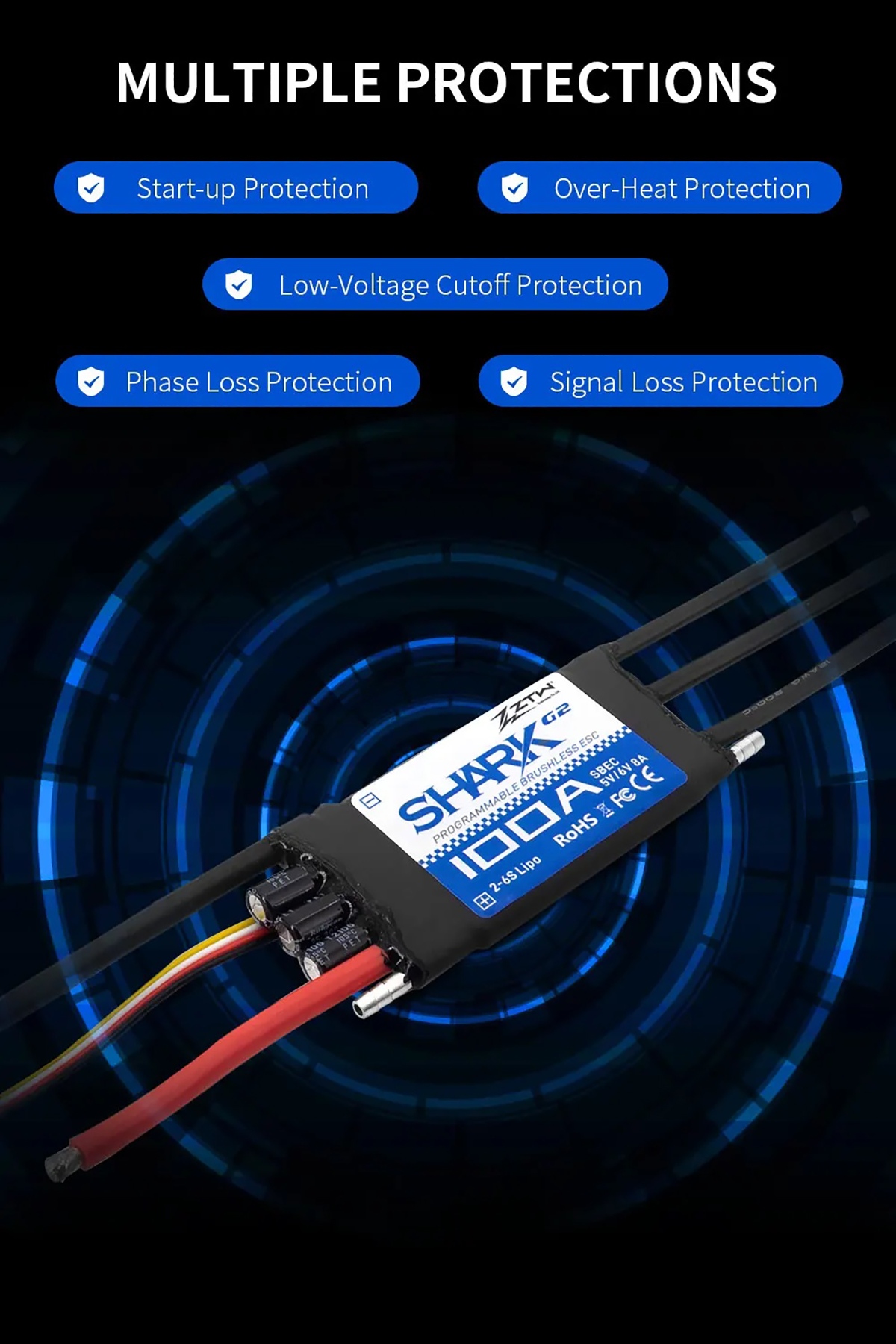

Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss.
Support high RPM motors, and compatible with most motors in the market.

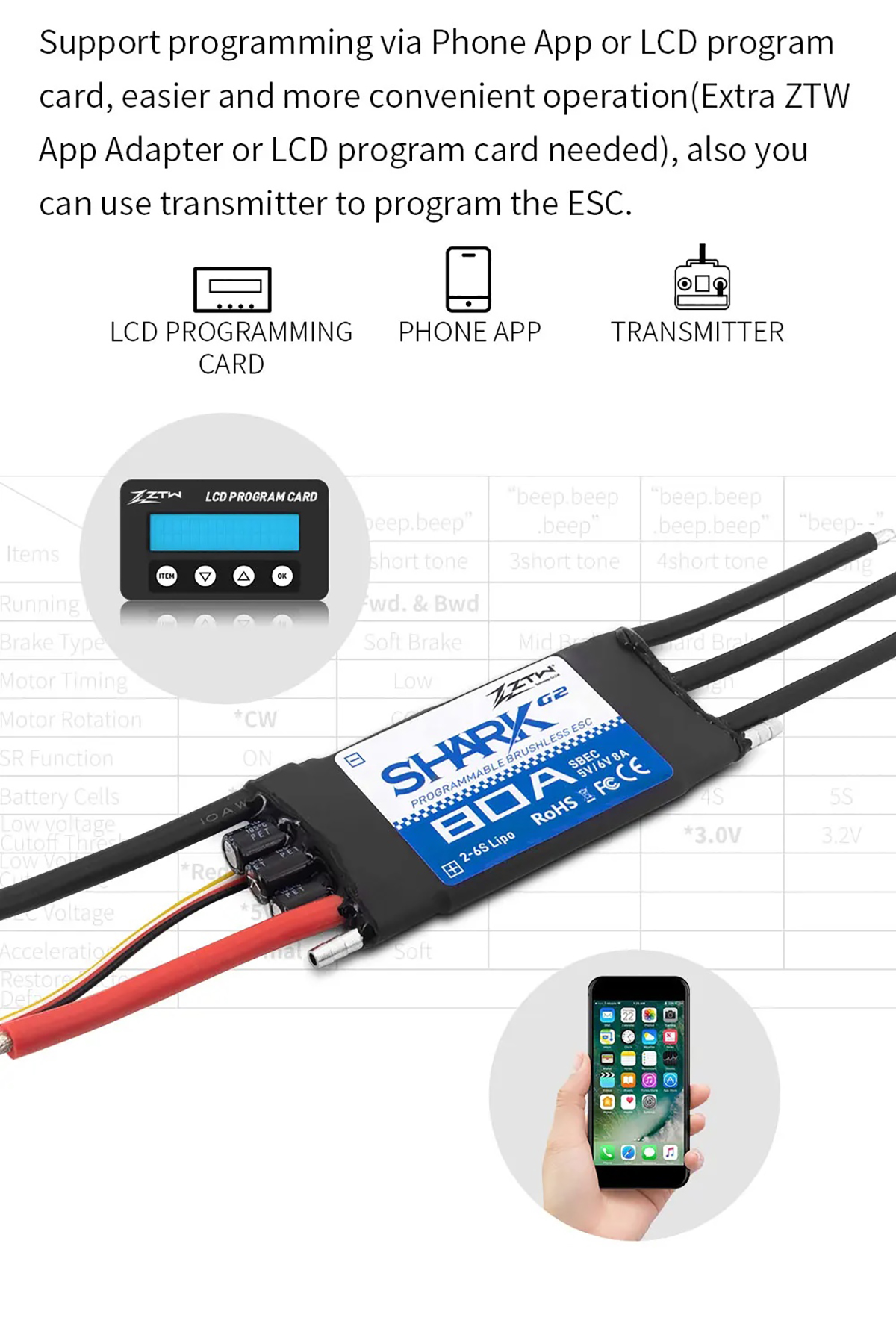

Support programming via Phone App or LCD program card, easier and more convenient operation(Extra ZTW Blueth Module or LCD program card G2 needed).

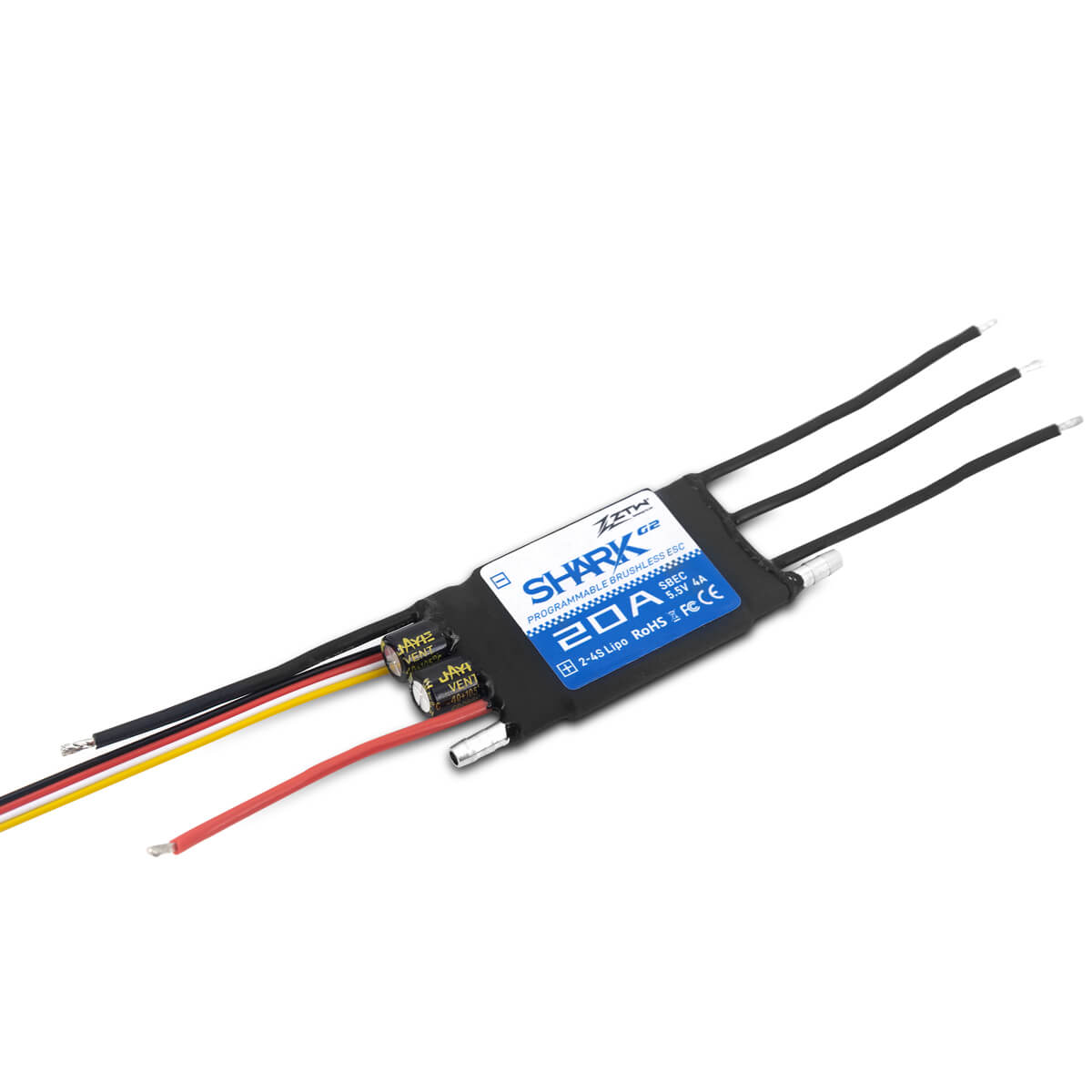

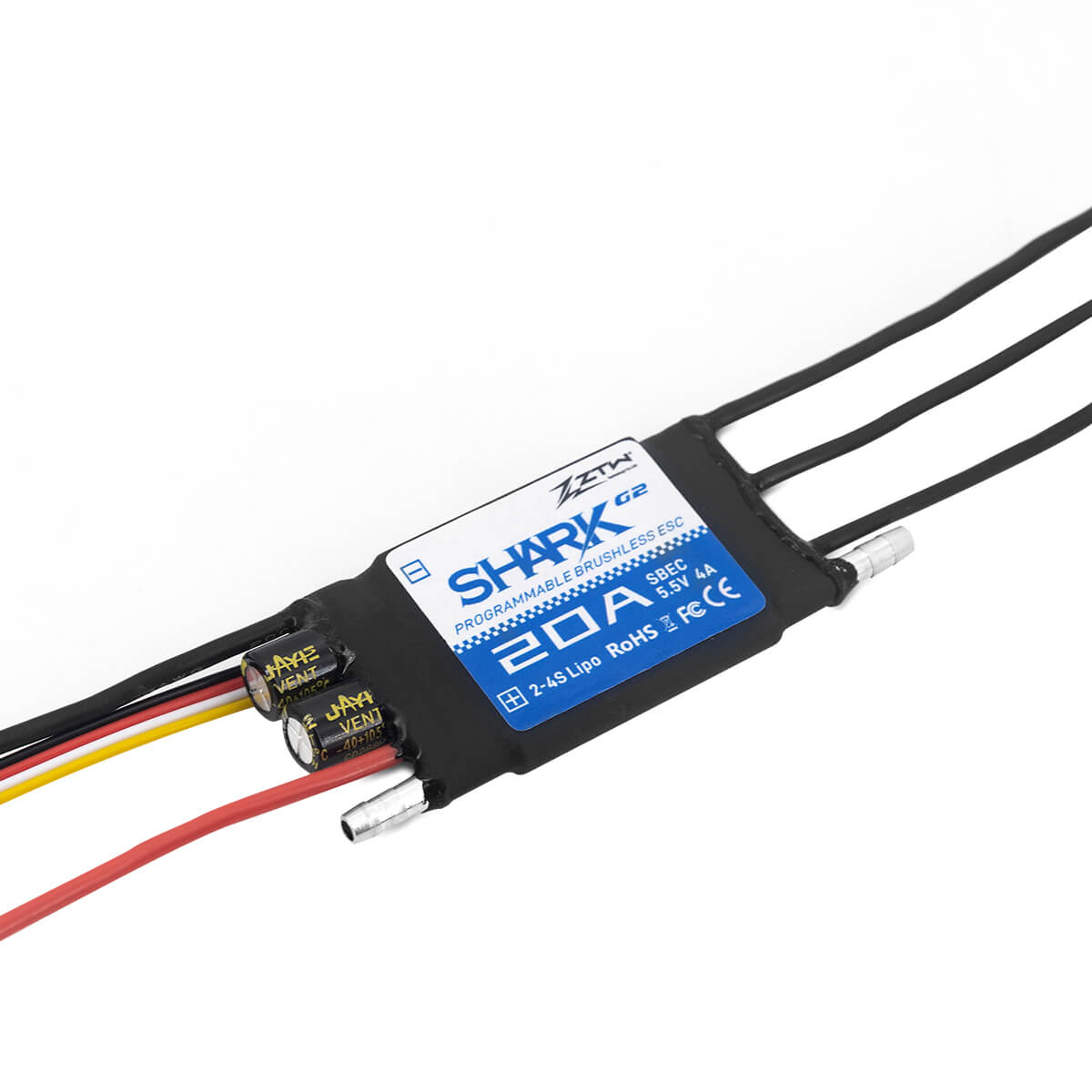

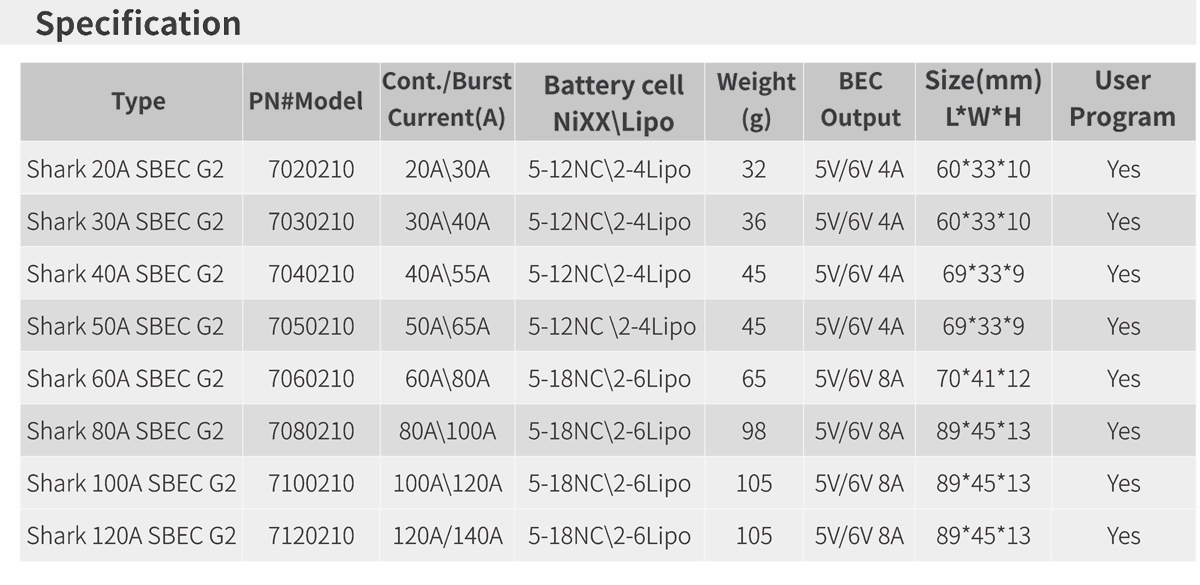

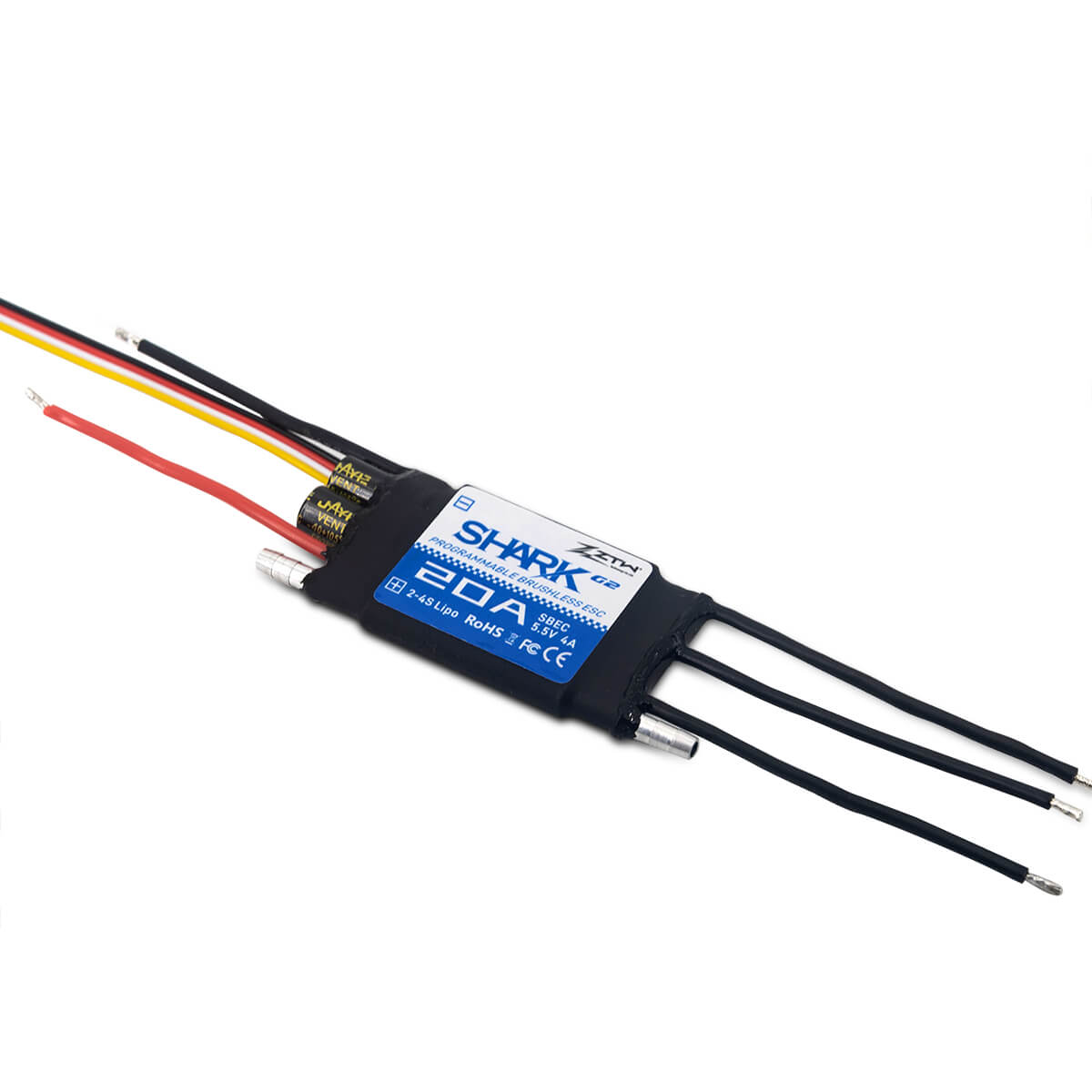

Model: Shark 20A SBEC G2
Cont./Burst Current(A): 20A\30A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 60*33*10mm
Weight: 32g

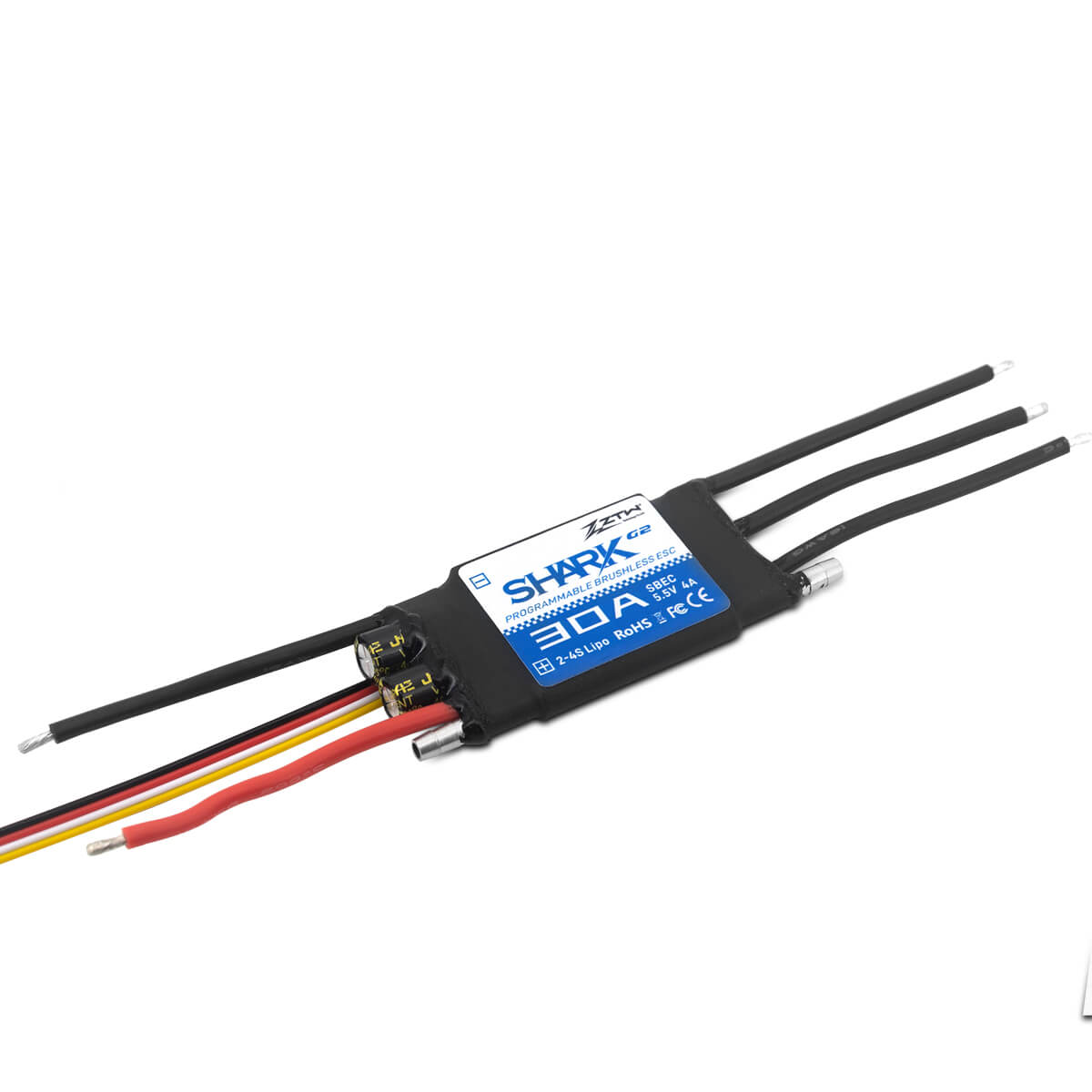

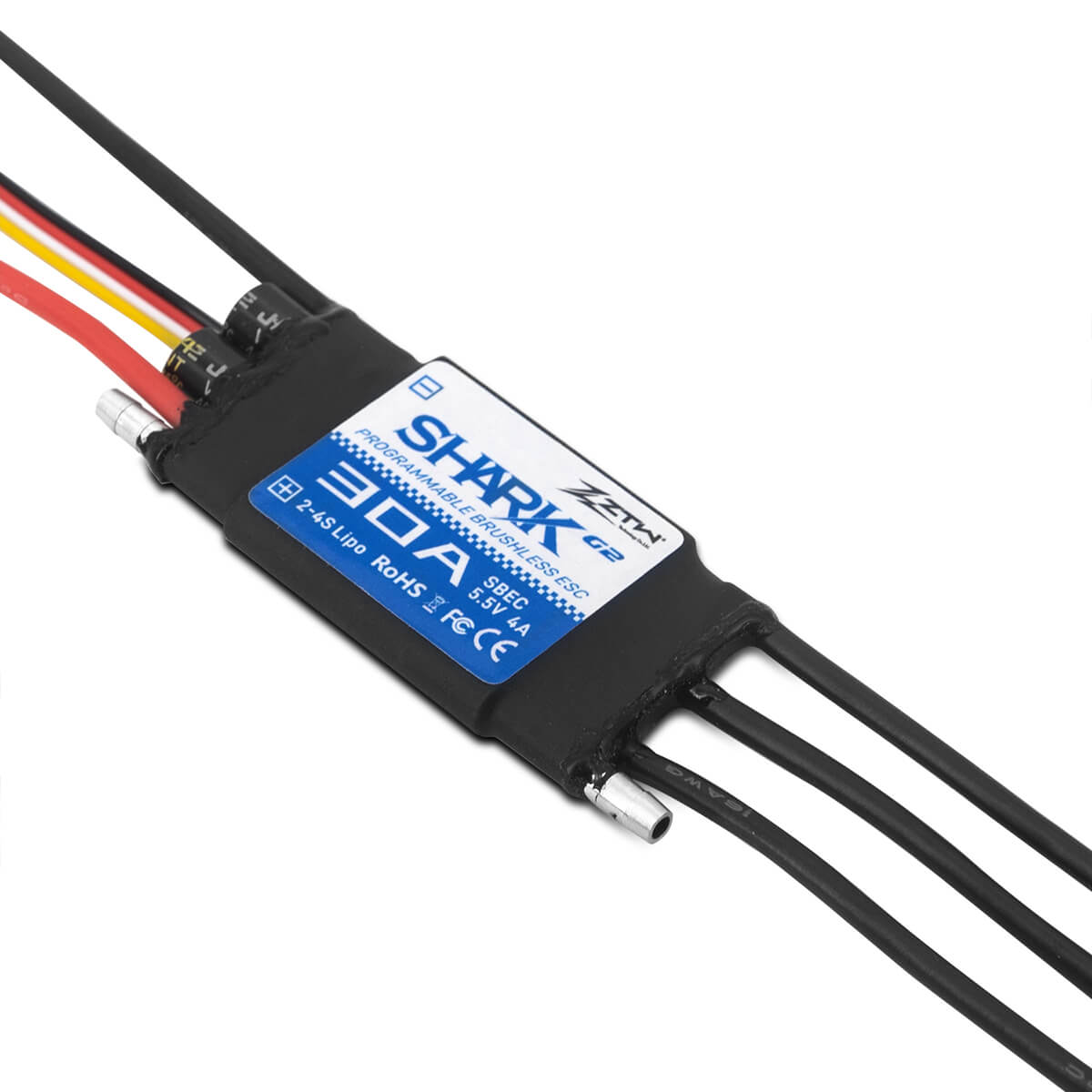

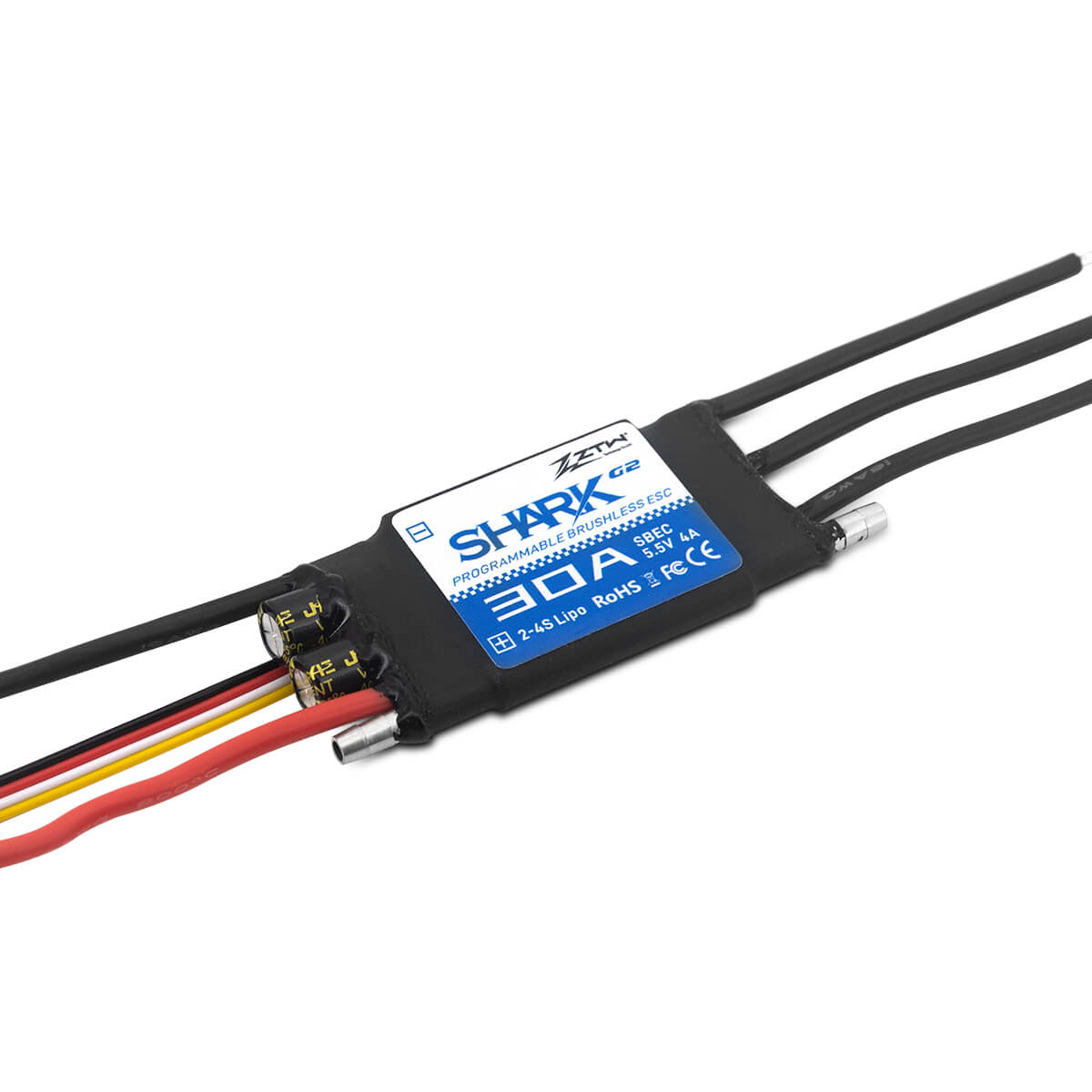

Model: Shark 30A SBEC G2
Cont./Burst Current(A): 30A\40A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 60*33*10mm
Weight: 36g

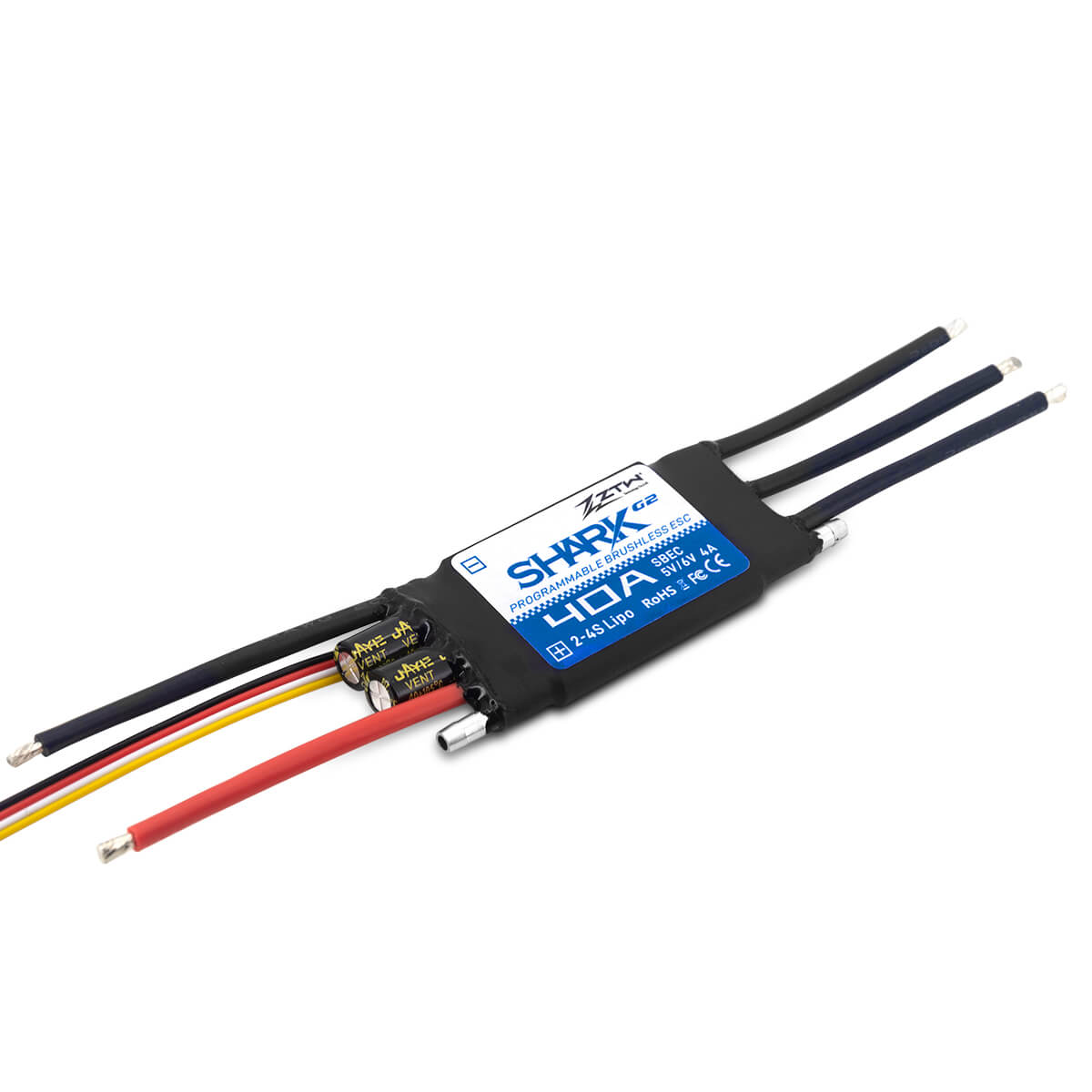

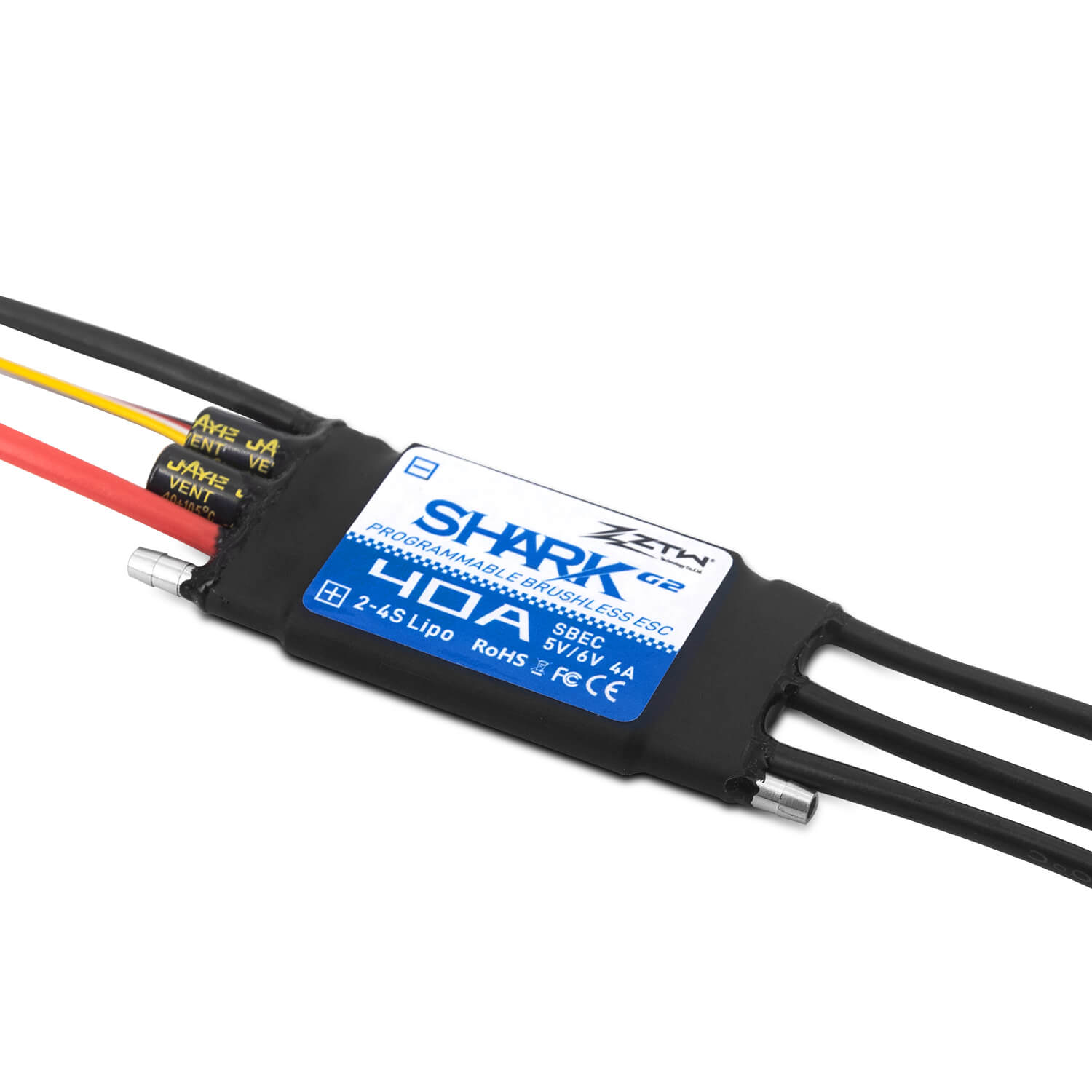

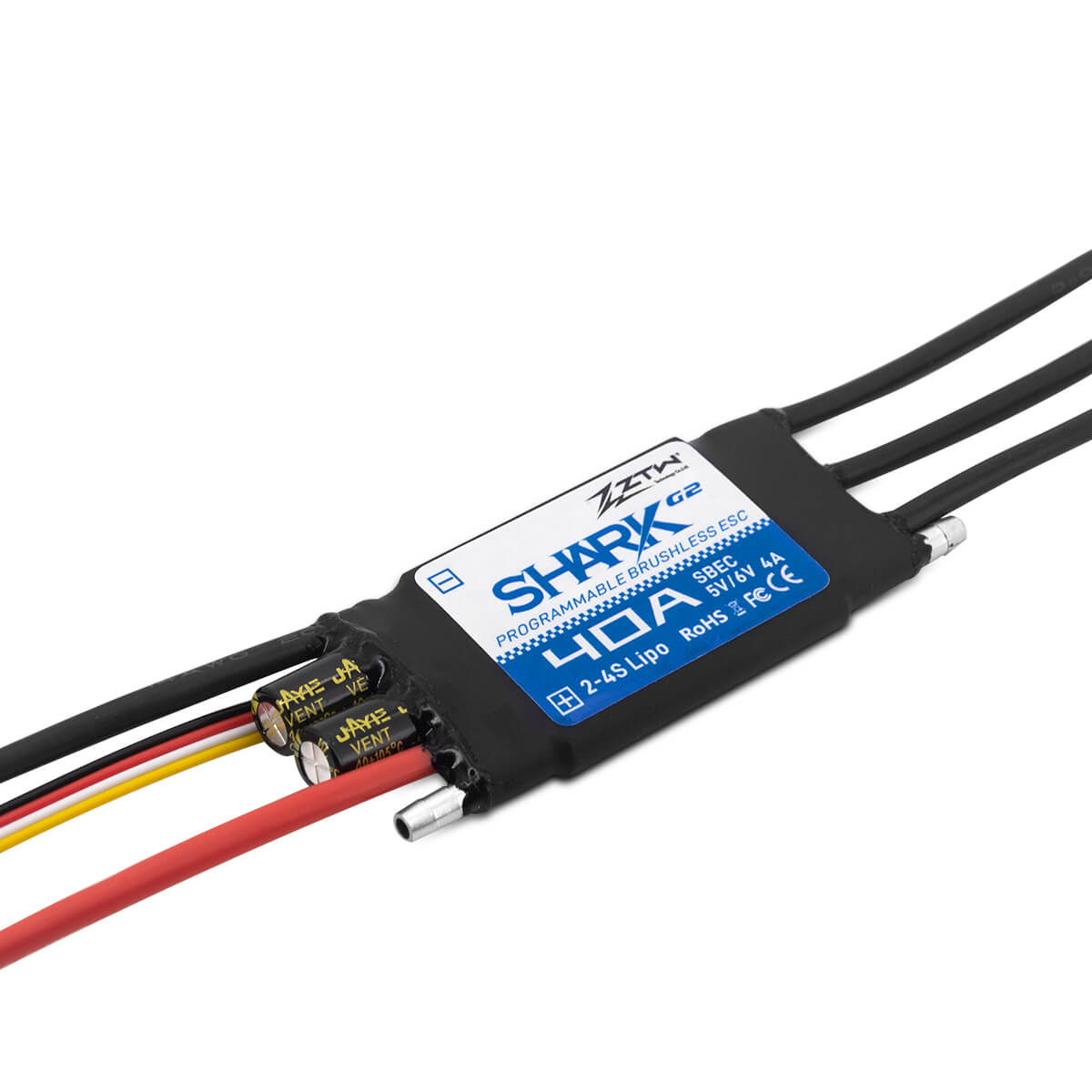

Model: Shark 40A SBEC G2
Cont./Burst Current(A): 40A\55A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 69*33*9mm
Weight: 45g

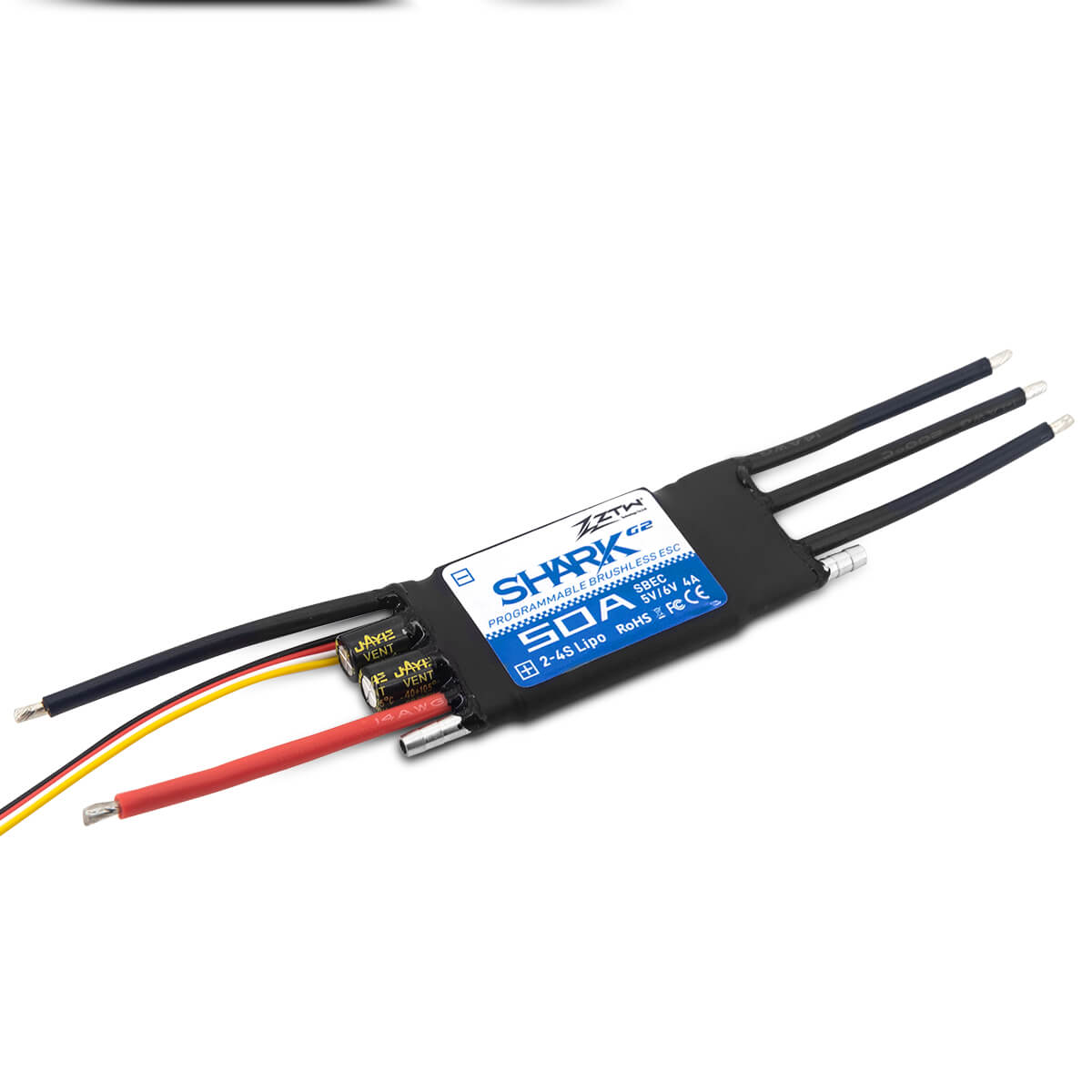

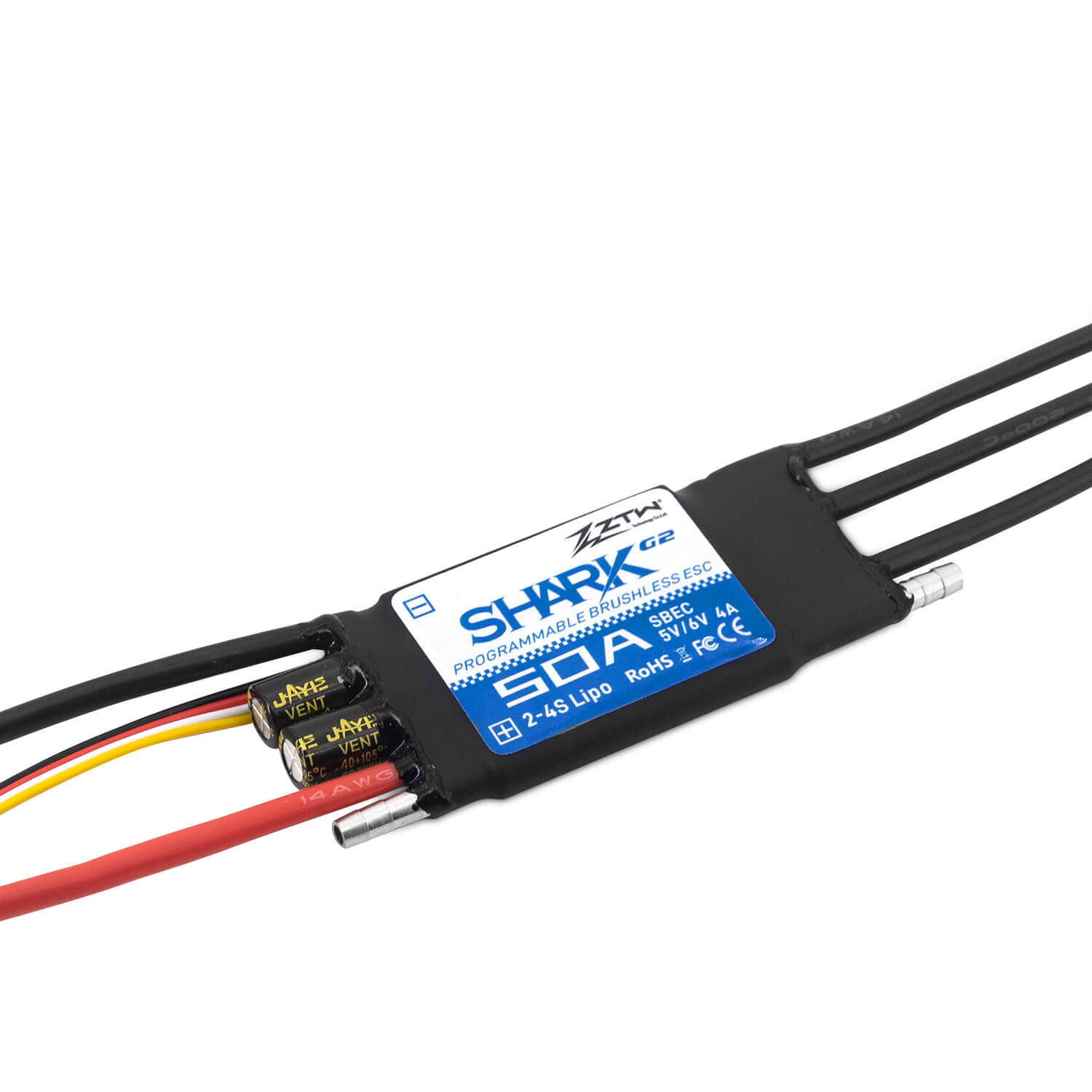

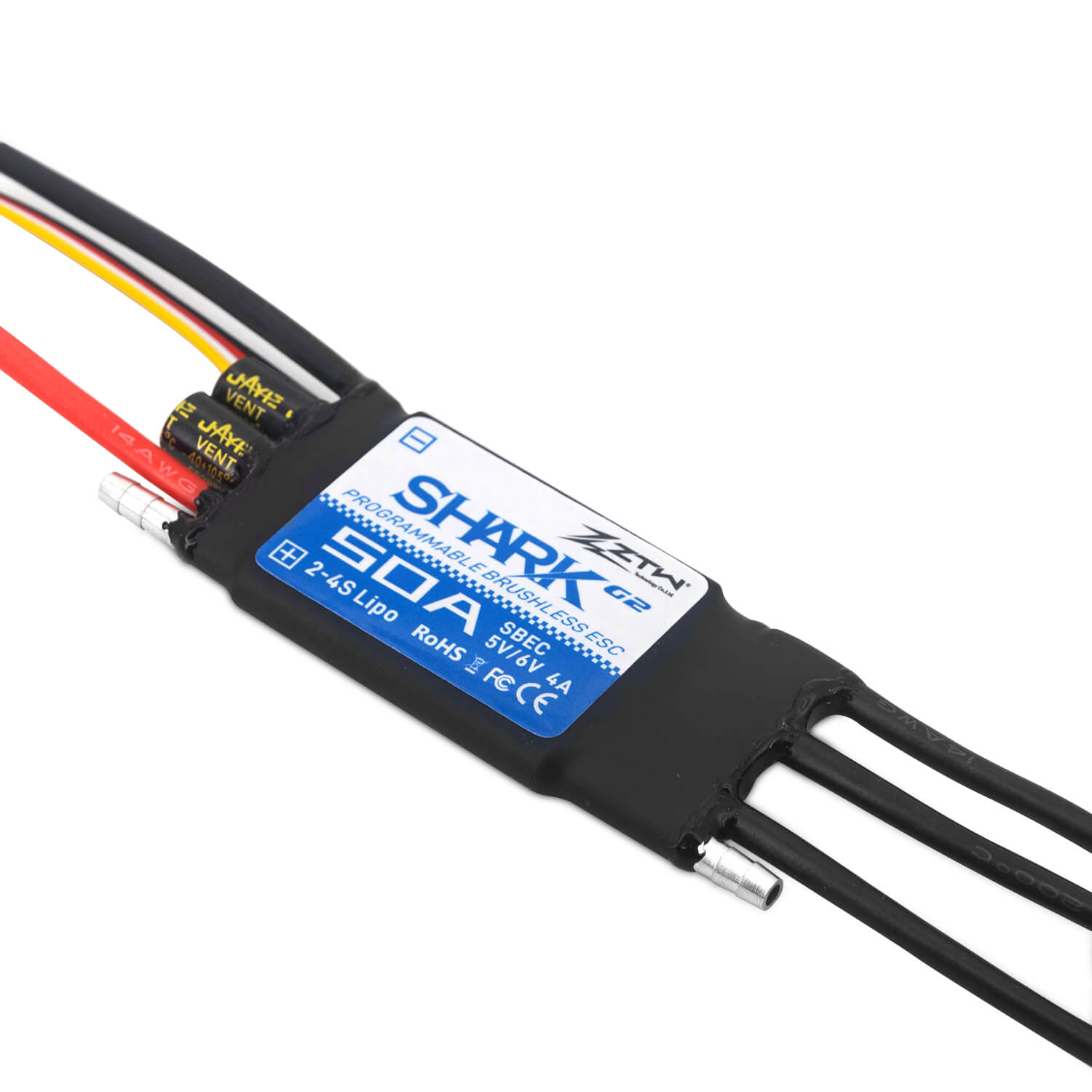

Model: Shark 50A SBEC G2
Cont./Burst Current(A): 50A\65A
Battery cell NiXX\Lipo: 5-12NC\2-4Lipo
BEC Output: 5V/6V 4A
Size(L*W*H): 69*33*9mm
Weight: 45g

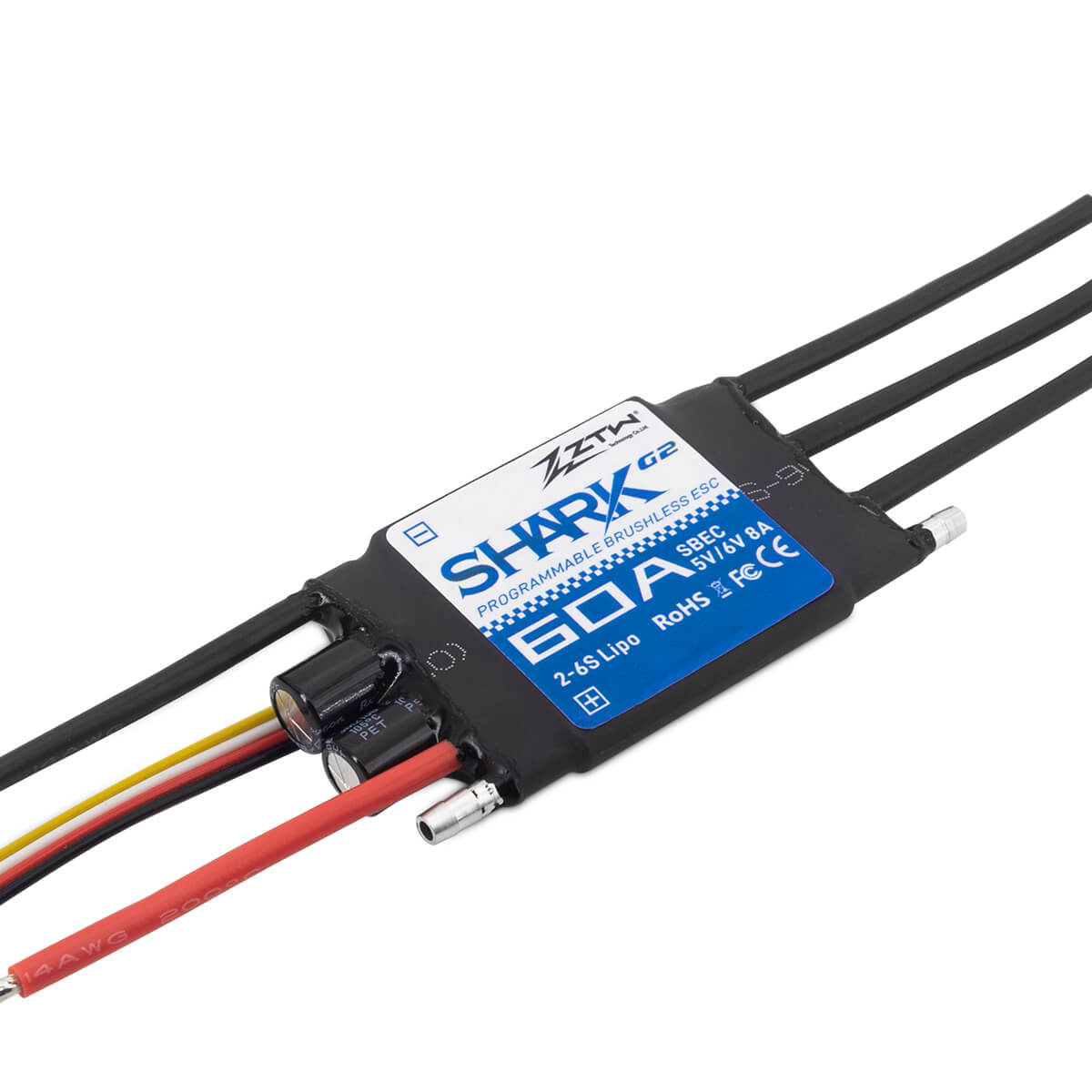

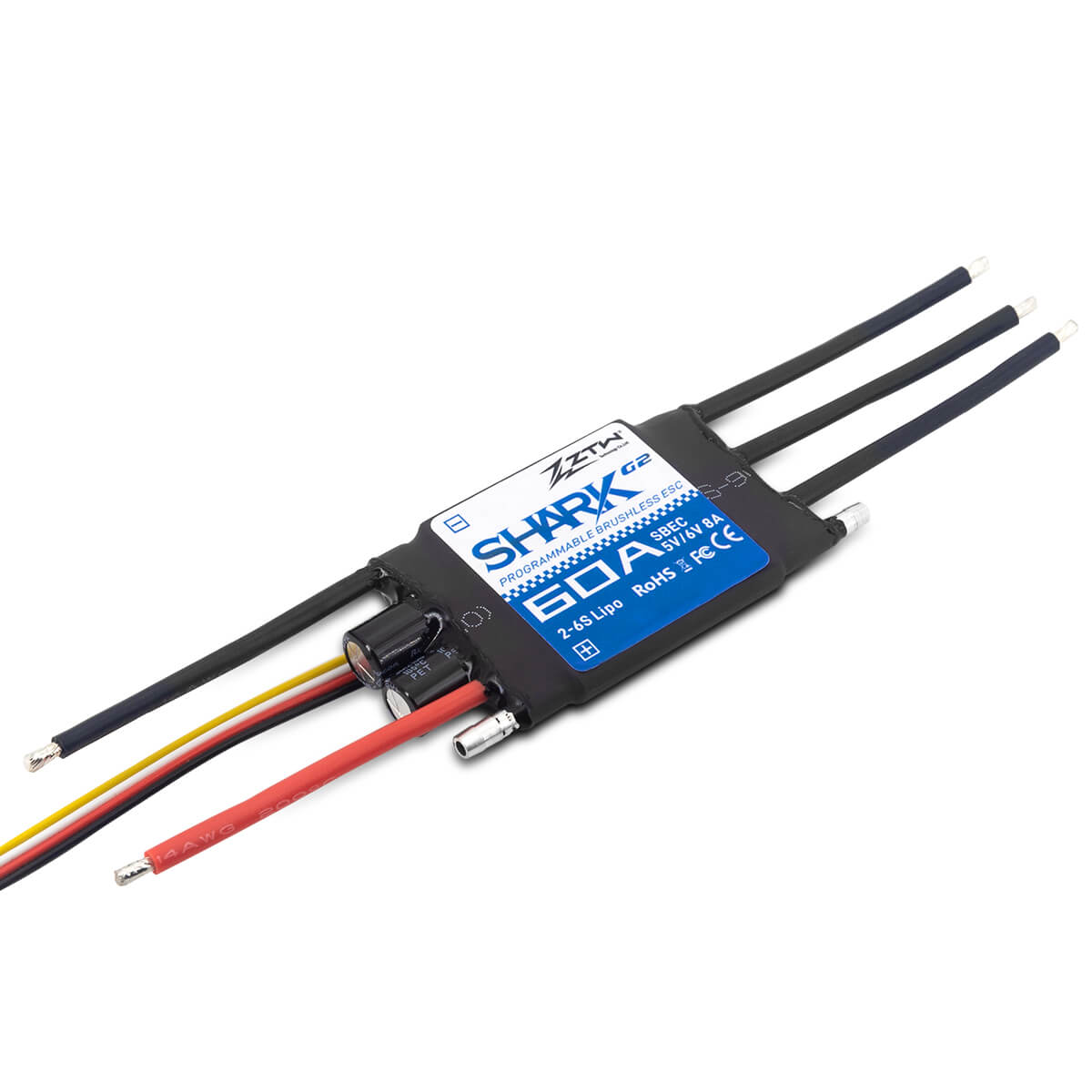

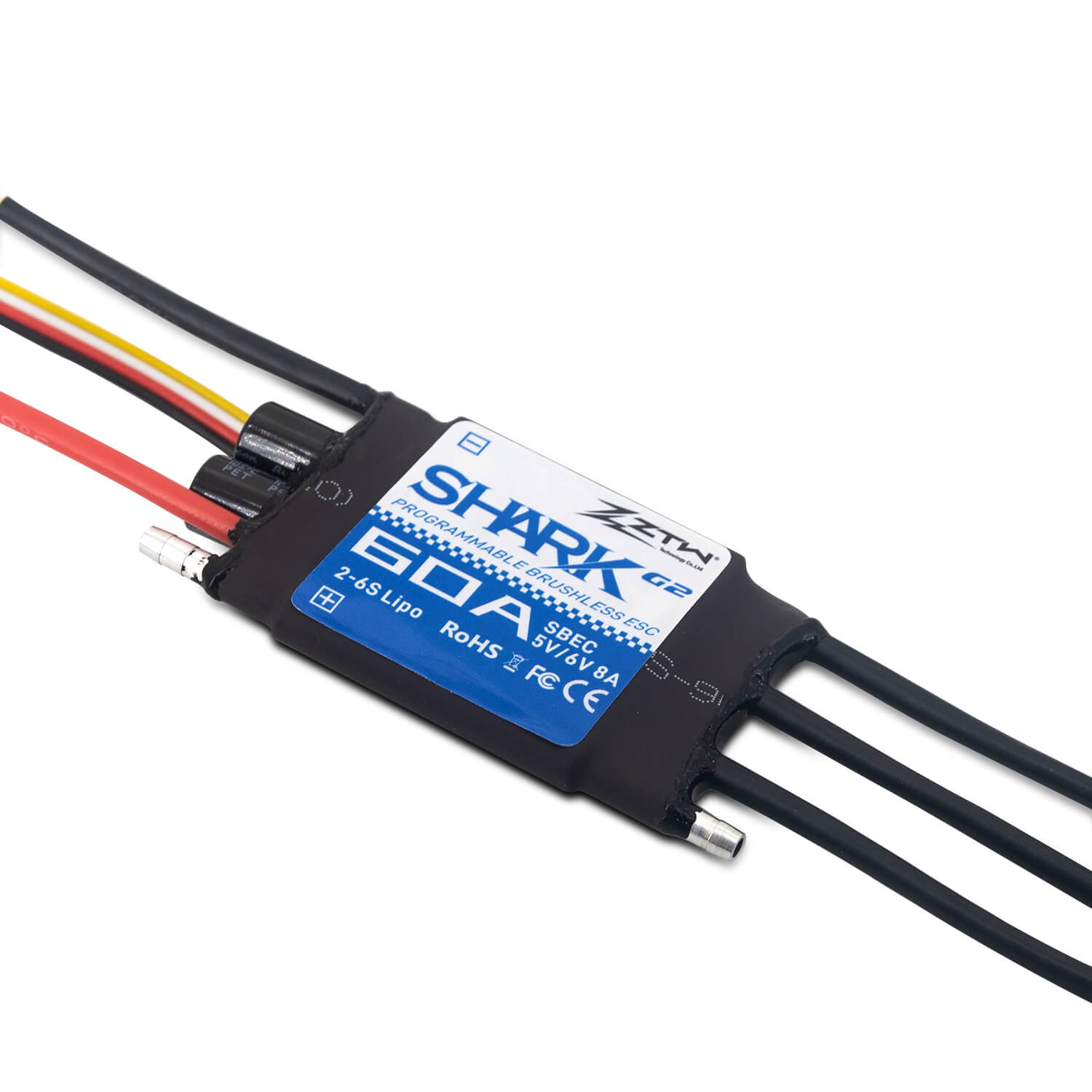

Model: Shark 60A SBEC G2
Cont./Burst Current(A): 60A\80A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 70*41*12mm
Weight: 65g

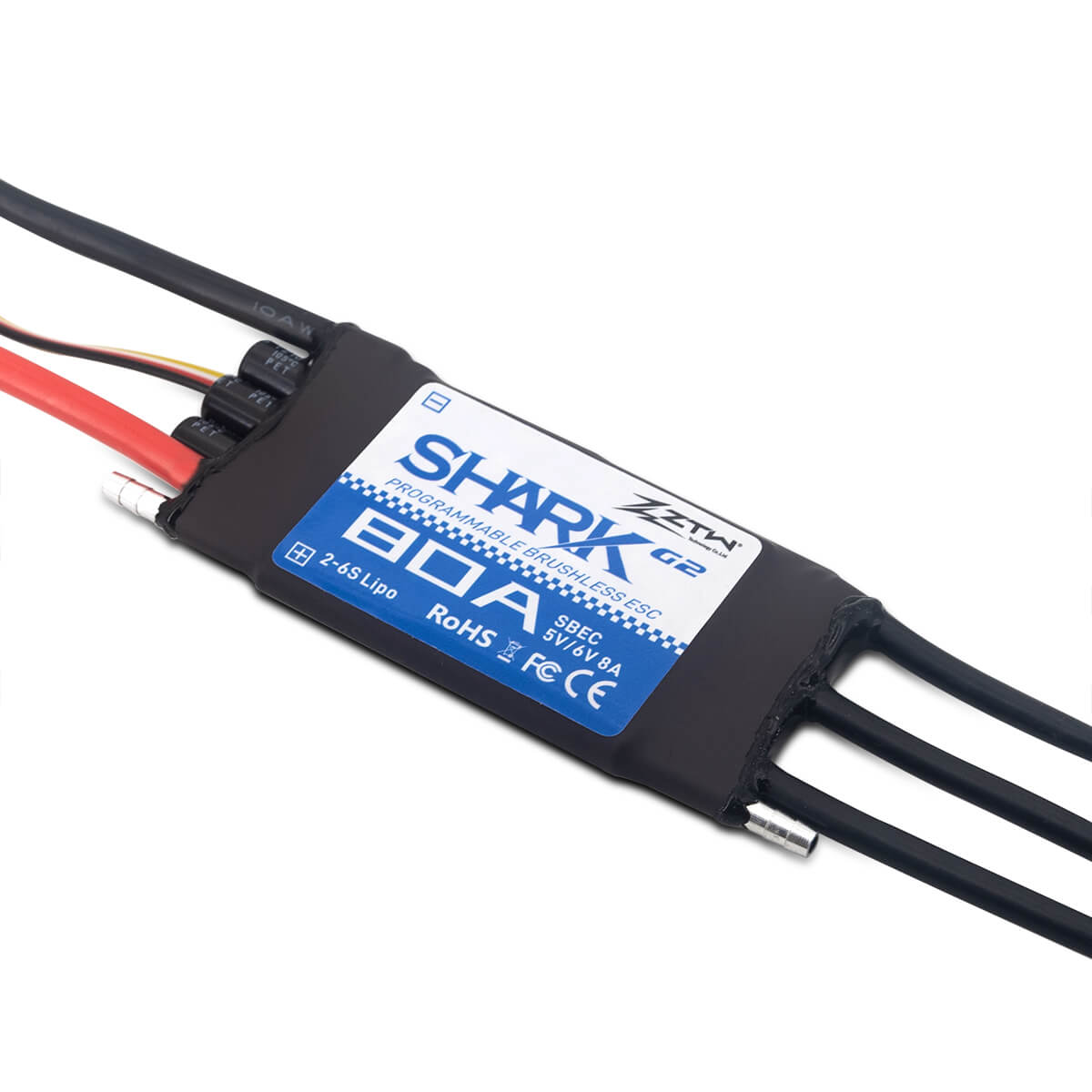

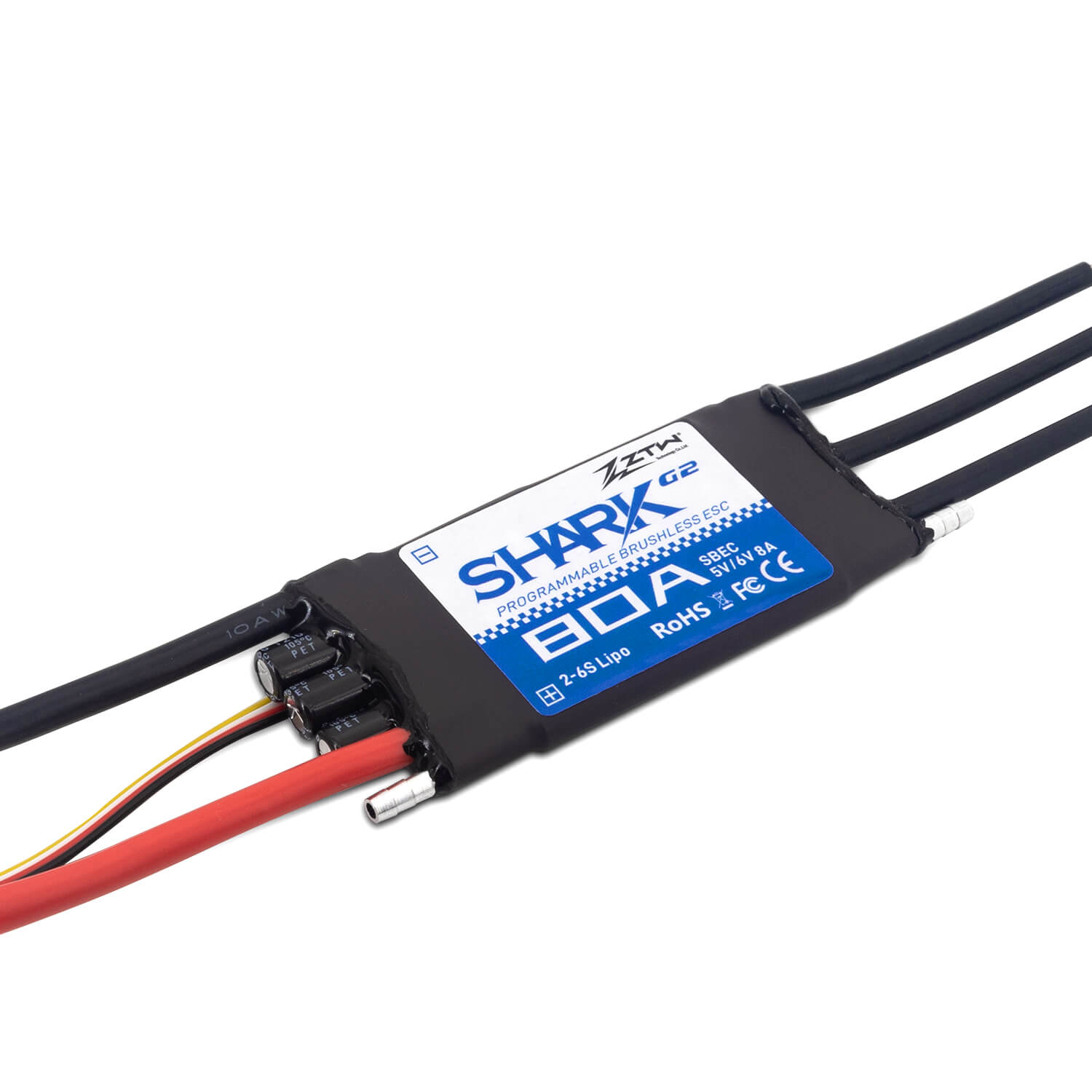

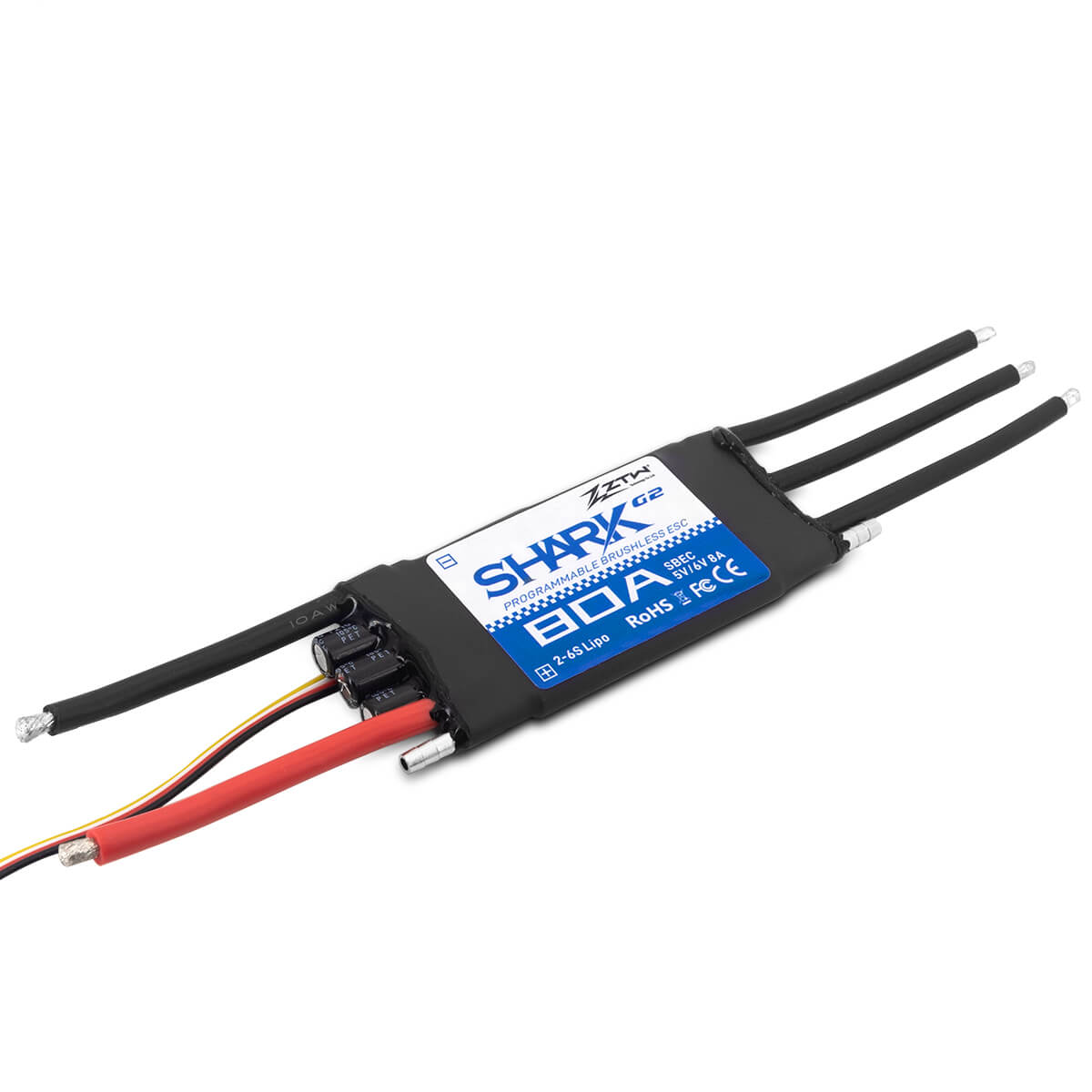

Model: Shark 80A SBEC G2
Cont./Burst Current(A): 80A\100A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 89*45*13mm
Weight: 98g

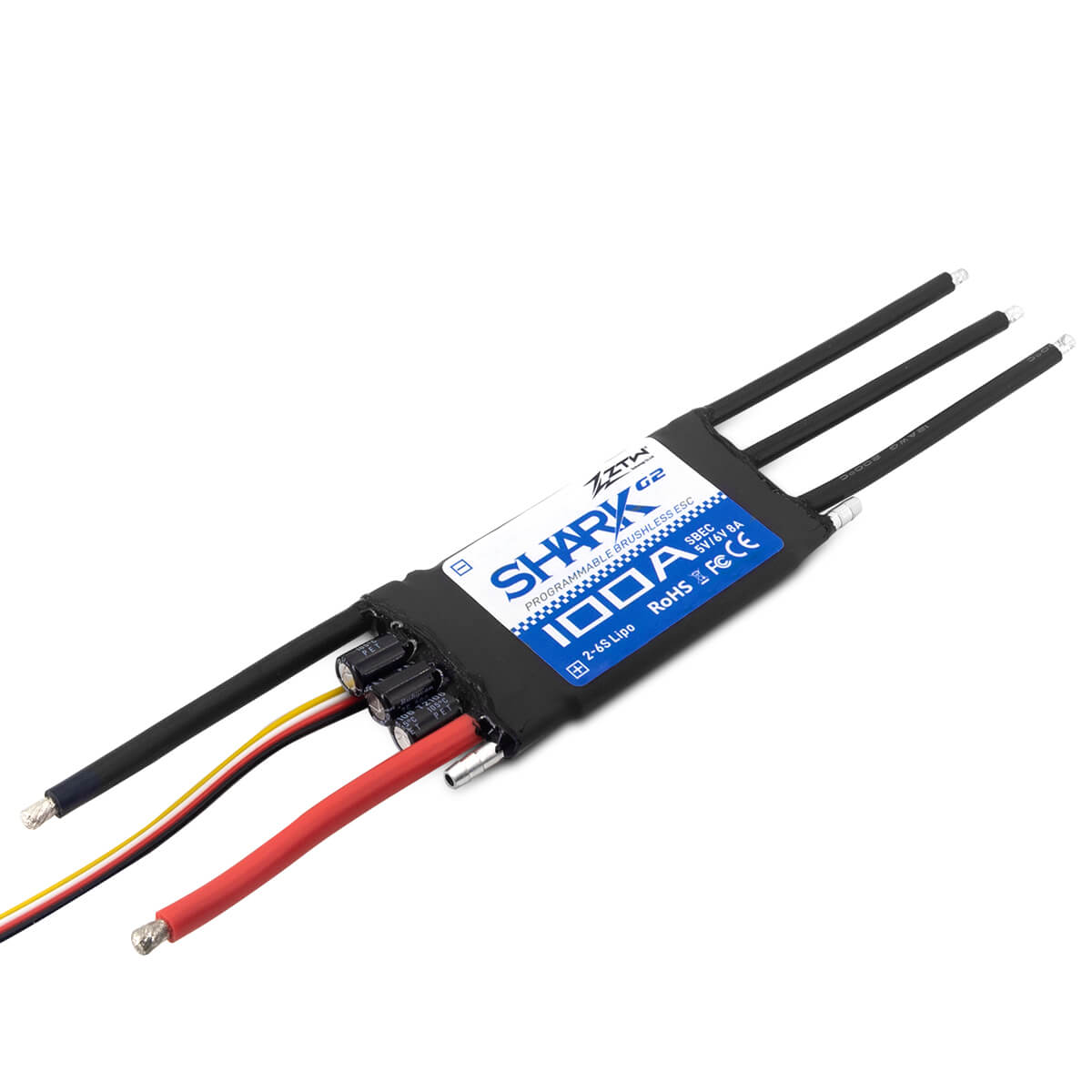

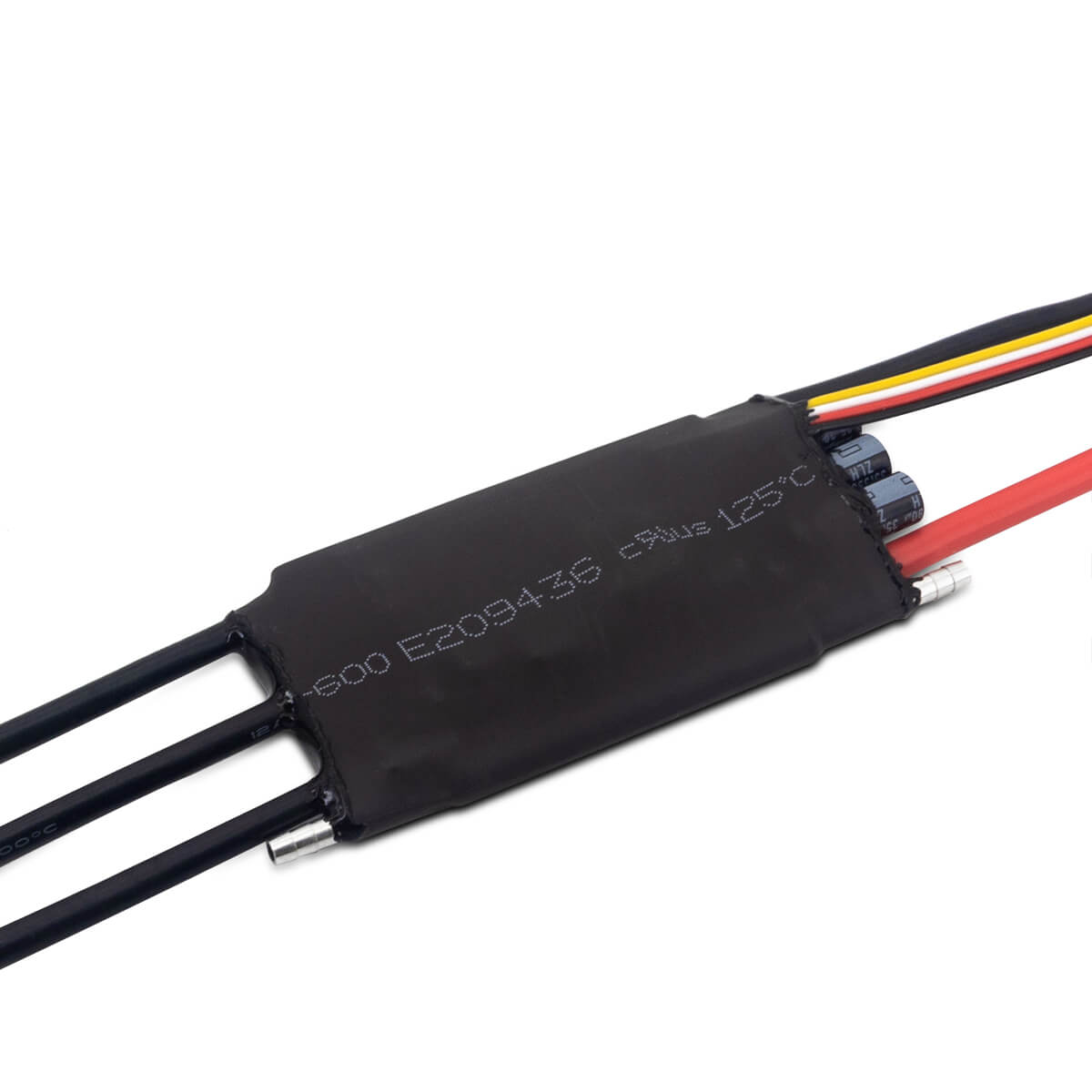

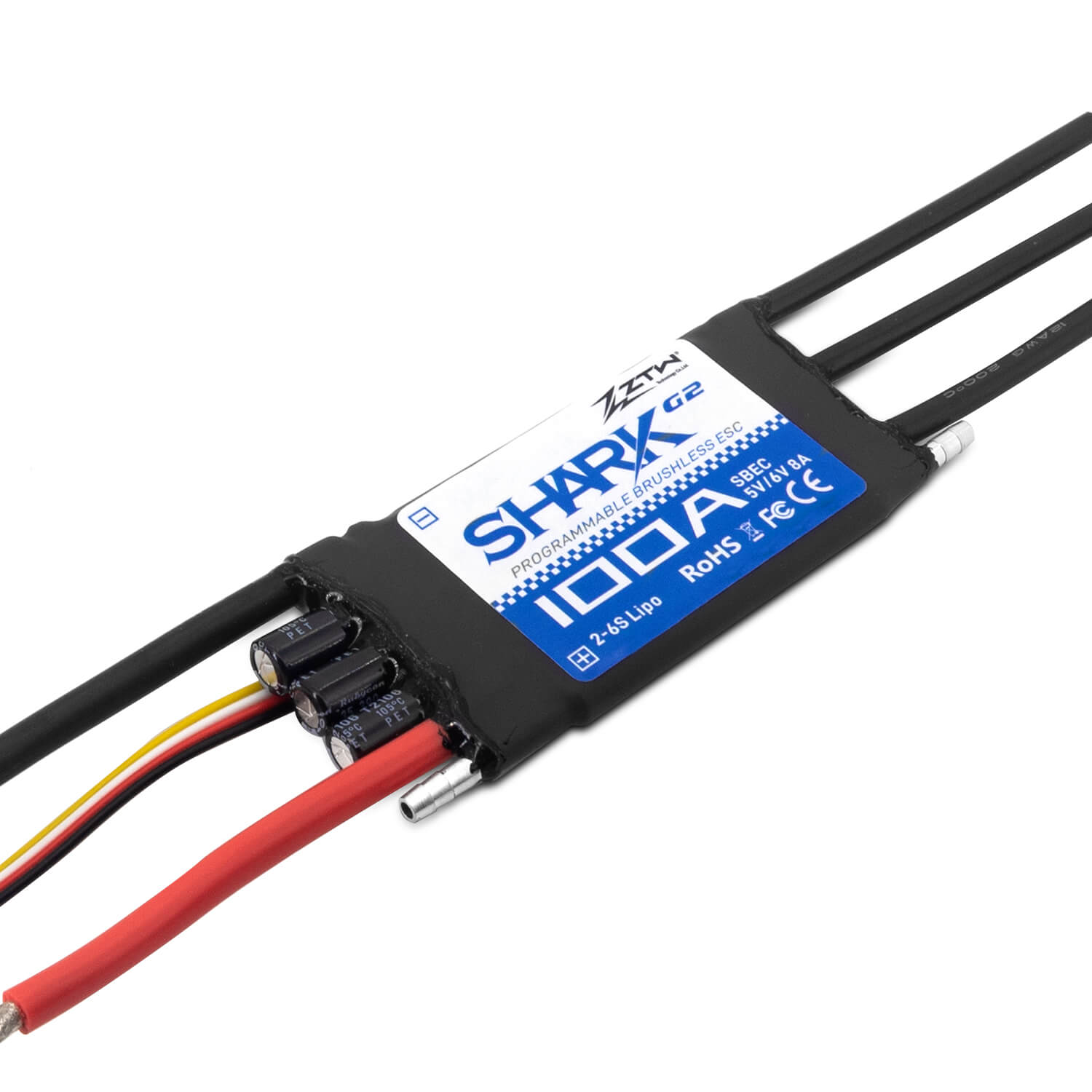

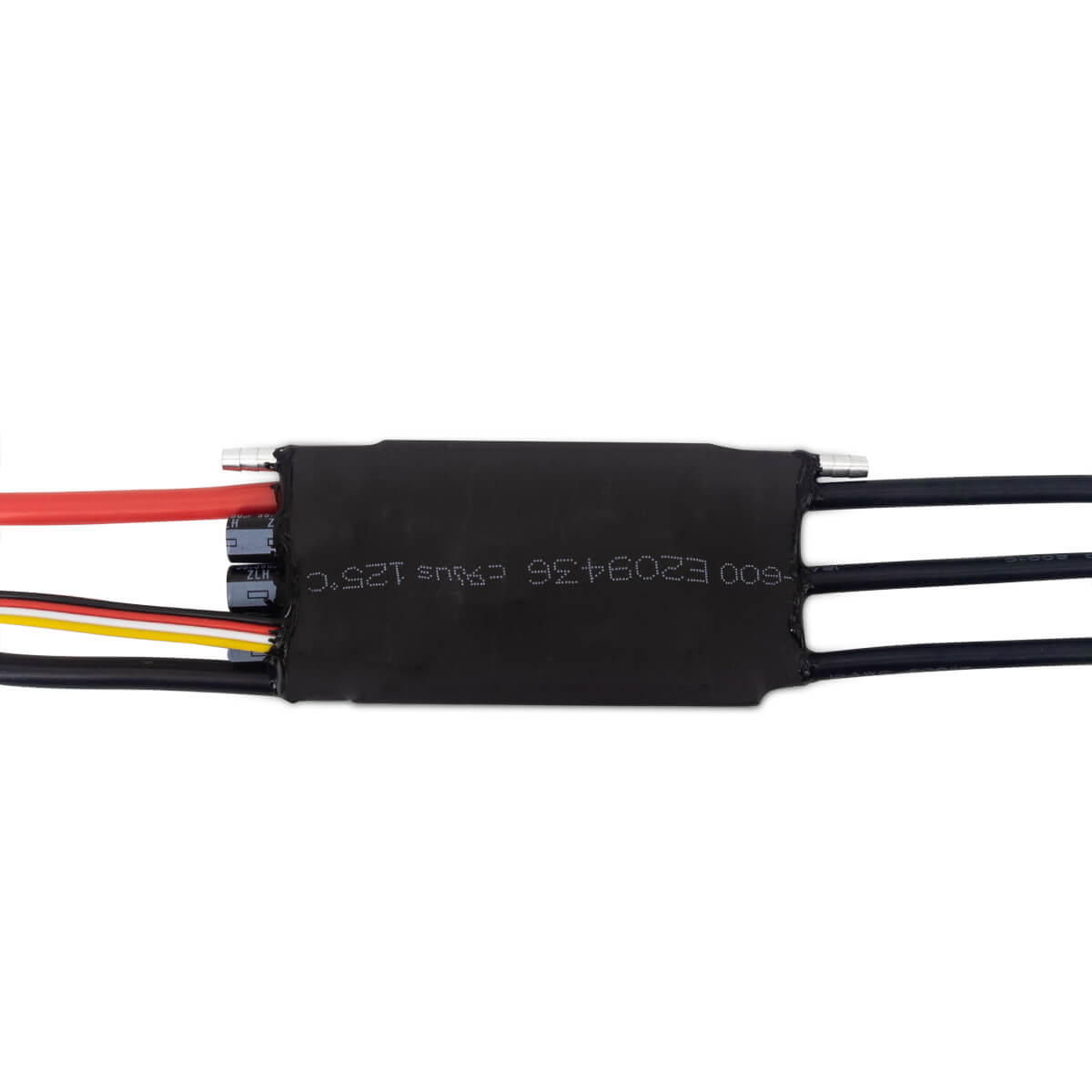

Model: Shark 100A SBEC G2
Cont./Burst Current(A): 100A\120A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 89*45*13mm
Weight: 105g

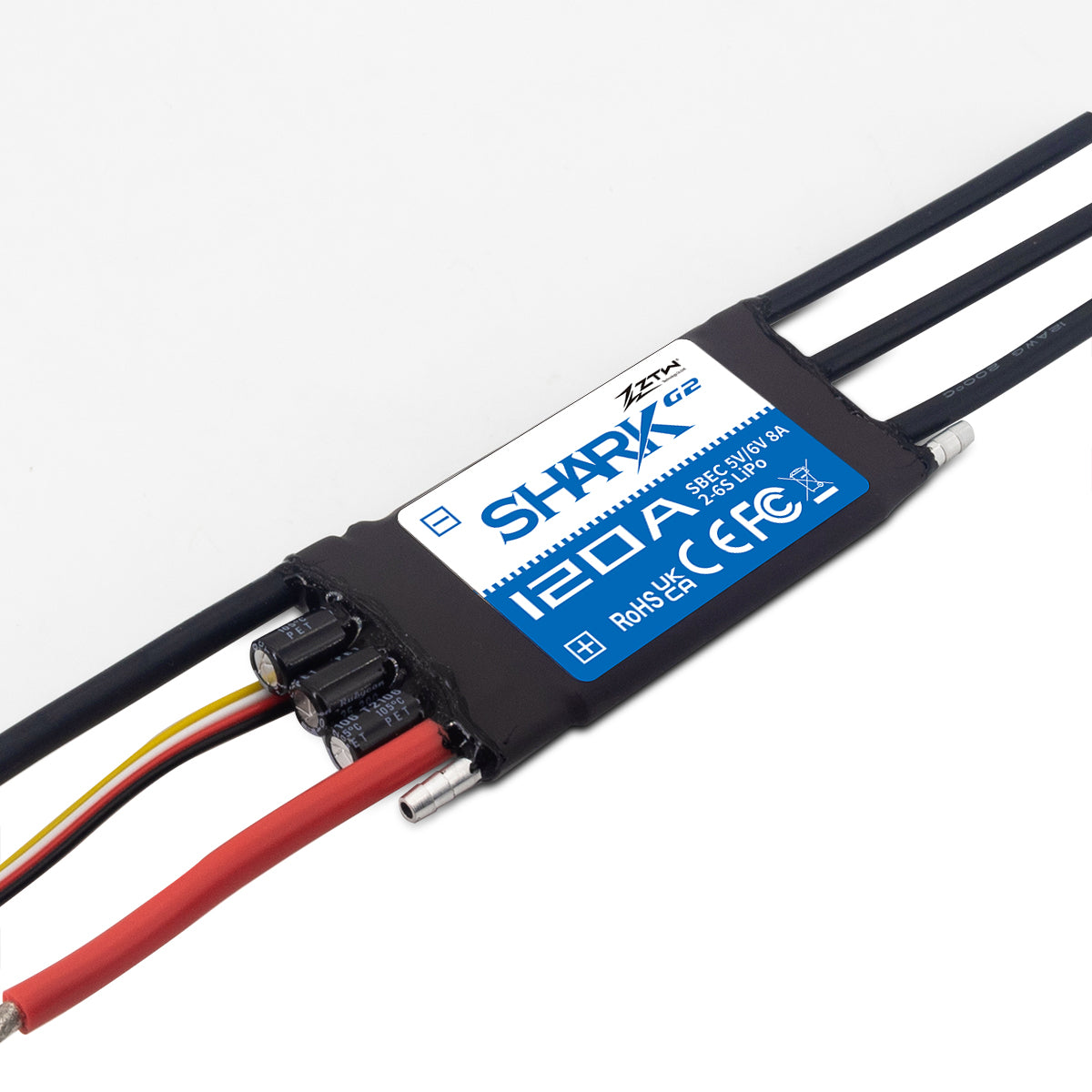

Model: Shark 120A SBEC G2
Cont./Burst Current(A): 120A\140A
Battery cell NiXX\Lipo: 5-18NC\2-6Lipo
BEC Output: 5V/6V 8A
Size(L*W*H): 89*45*13mm
Weight: 105g
