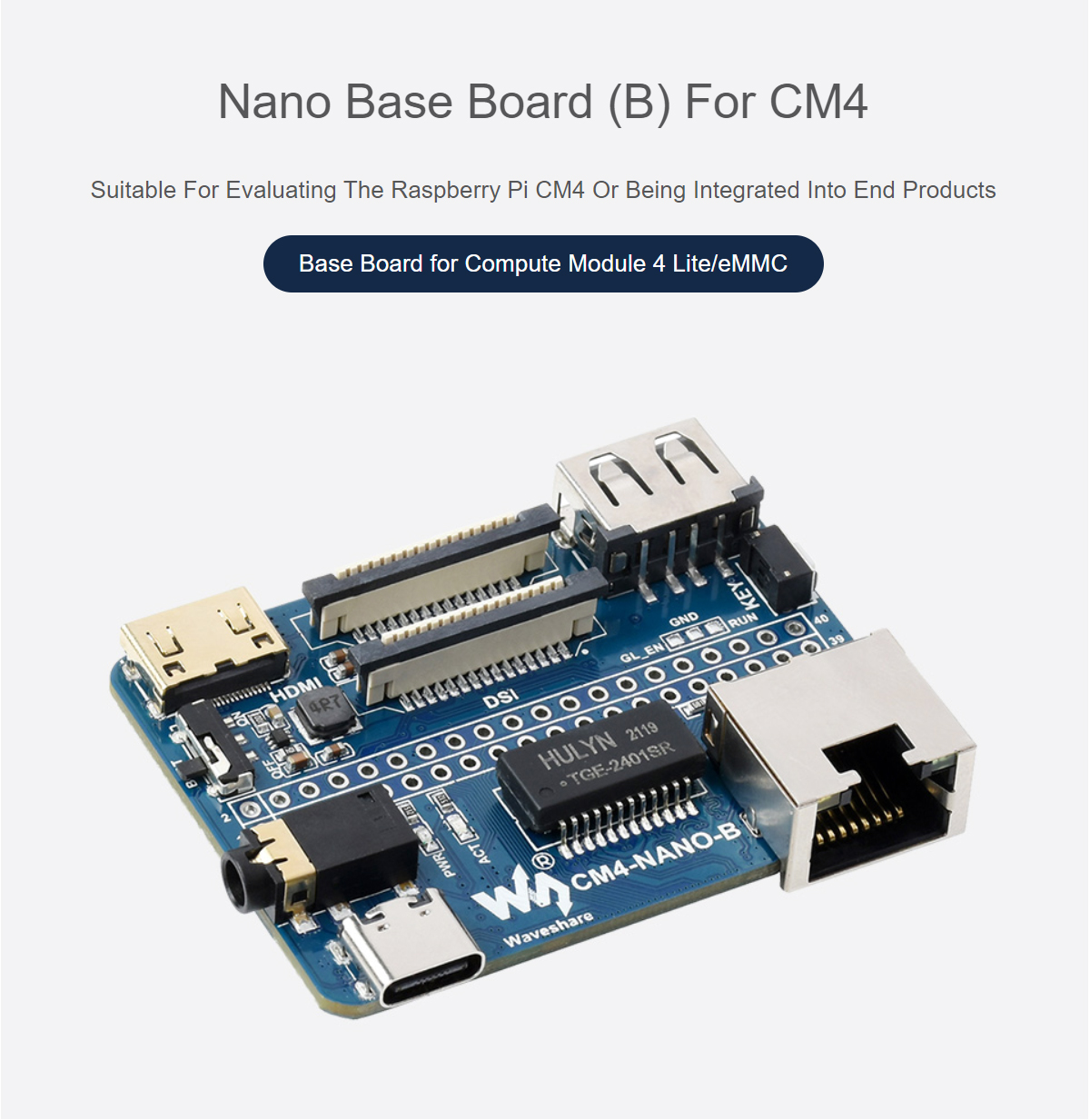

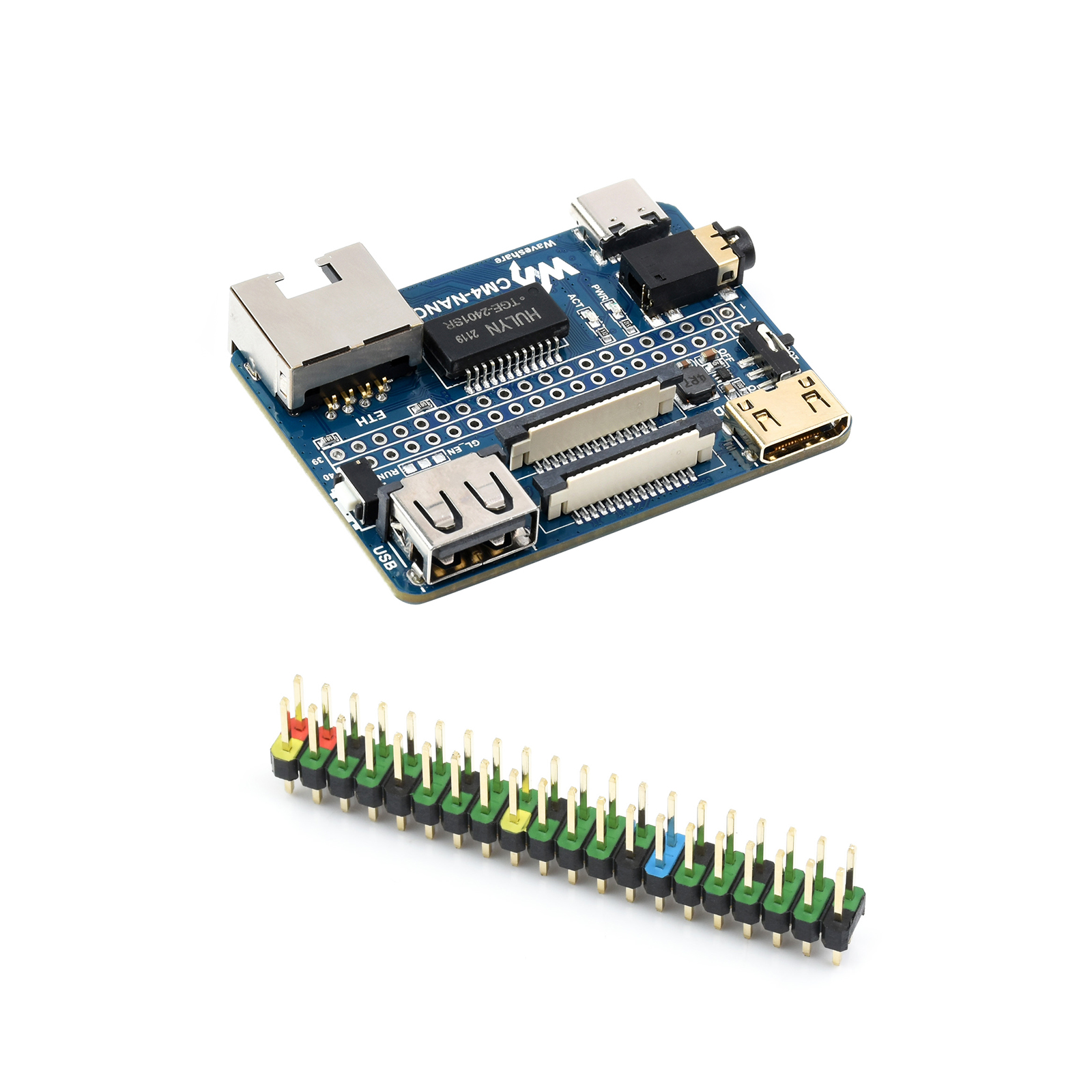

Model: CM4-NANO-B
SKU: 21726
Weight: 19g

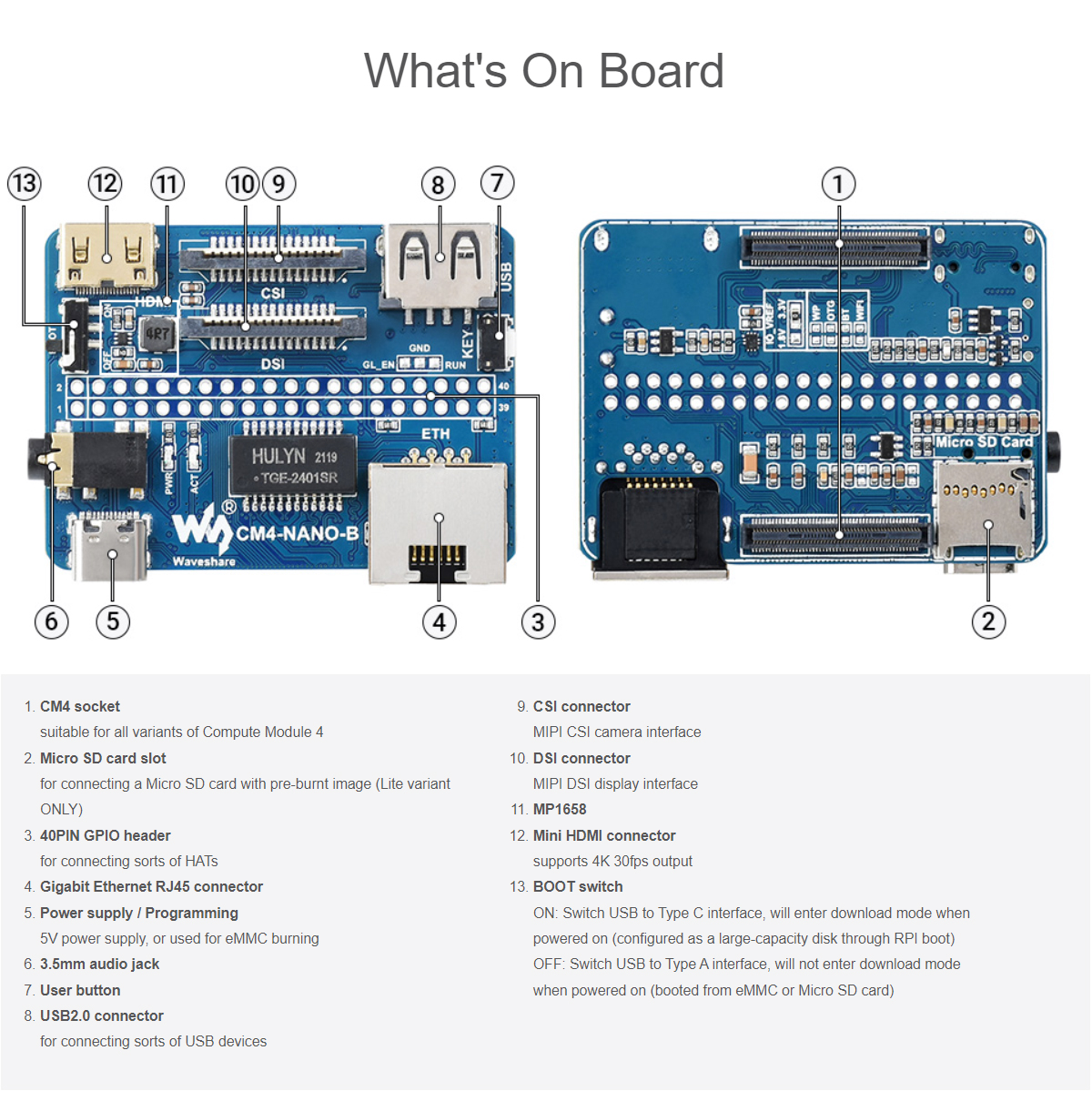

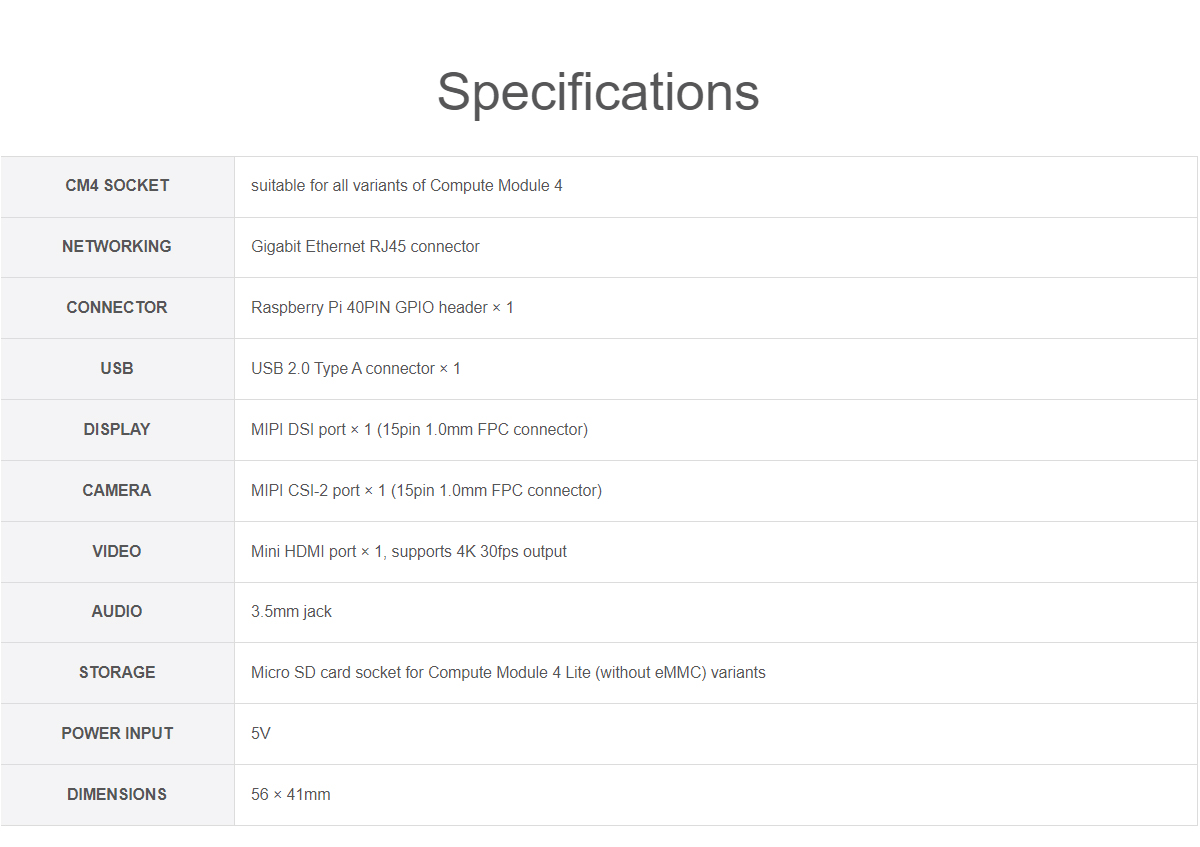

CM4 Socket: suitable for all variants of Compute Module 4
Networking: Gigabit Ethernet RJ45 connector
Connector: Raspberry Pi 40PIN GPIO header×1
USB: USB 2.0 Type A connector × 1
Display: MIPI DSI port×1 (15pin 1.0mm FPC connector)
Camera: MIPI CSI-2 port×1 (15pin 1.0mm FPC connector)
Video: Mini HDMI port×1, supports 4K 30fps output
Audio: 3.5mm jack
Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
Power Input: 5V

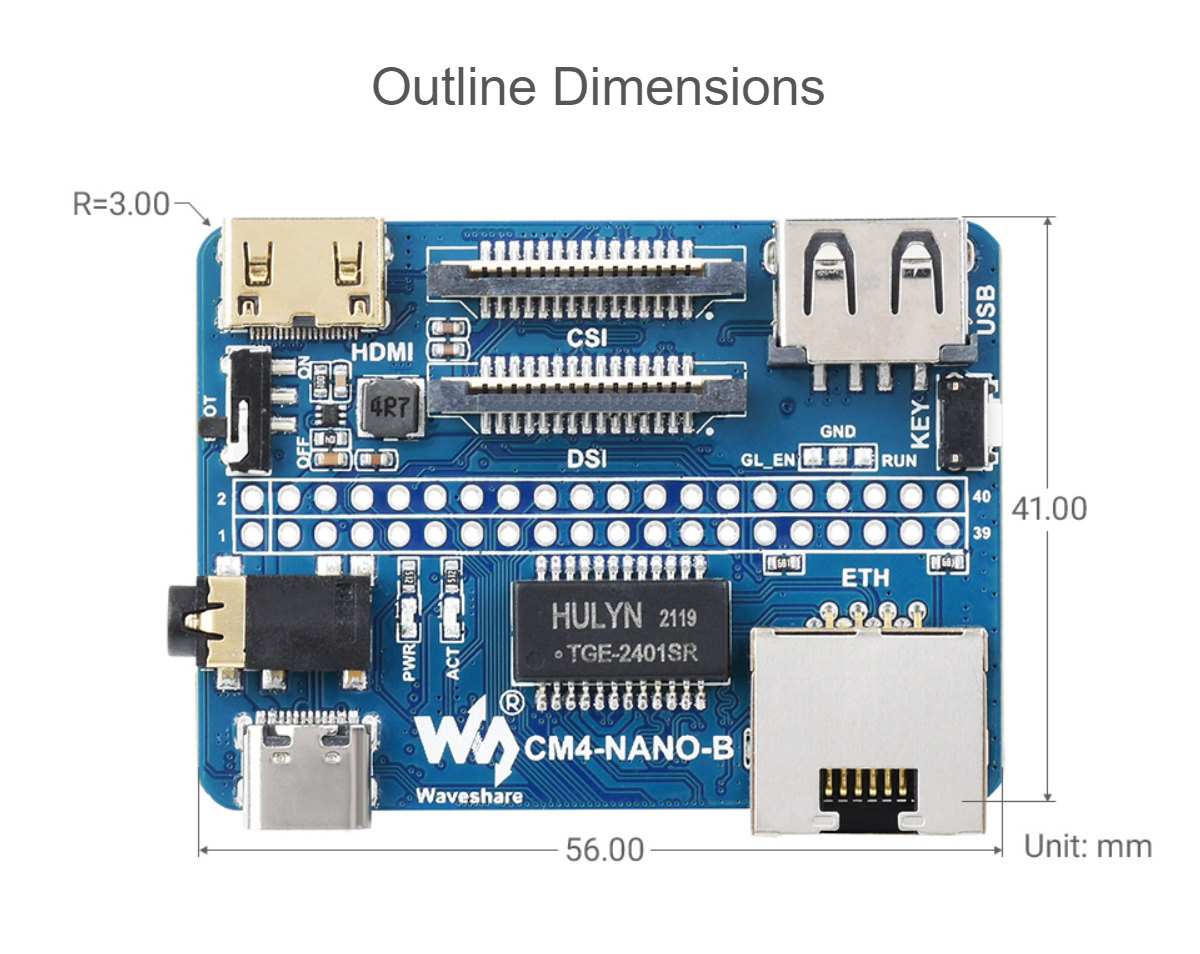

Dimensions: 56×41mm
