Waterproof F540 3300KV 4370KV Brushless Motor w/ 60A ESC Combo Set For 1/10 1/12 RC Crawler Off Road Car
Waterproof F540 3300KV 4370KV Brushless Motor w/ 60A ESC Combo Set For 1/10 1/12 RC Crawler Off Road Car
– 4 poles with 12 slots design provides high torque and efficiency.
– High quality material is durable and eco-friendly.
– Precision engineered for maximum power conversion.
– Precision balanced rotor has high smoothness for best reliability and maximum RPM.
– Copper windings with high purity can maximizes efficiency.
– Compatible with 1 / 12 series models of most brands in the market and some 1 / 10 lightweight vehicles

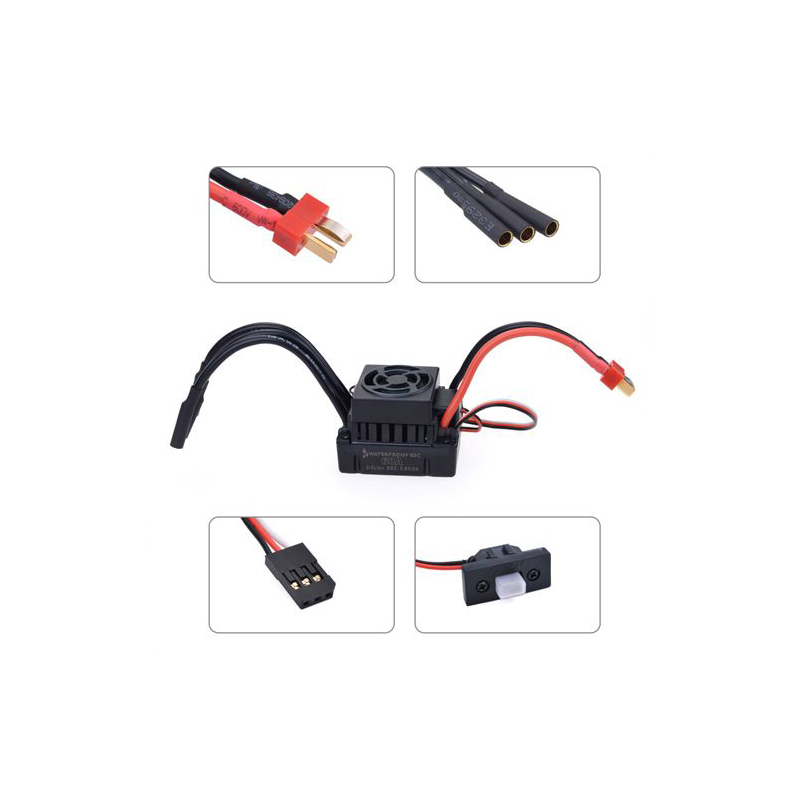

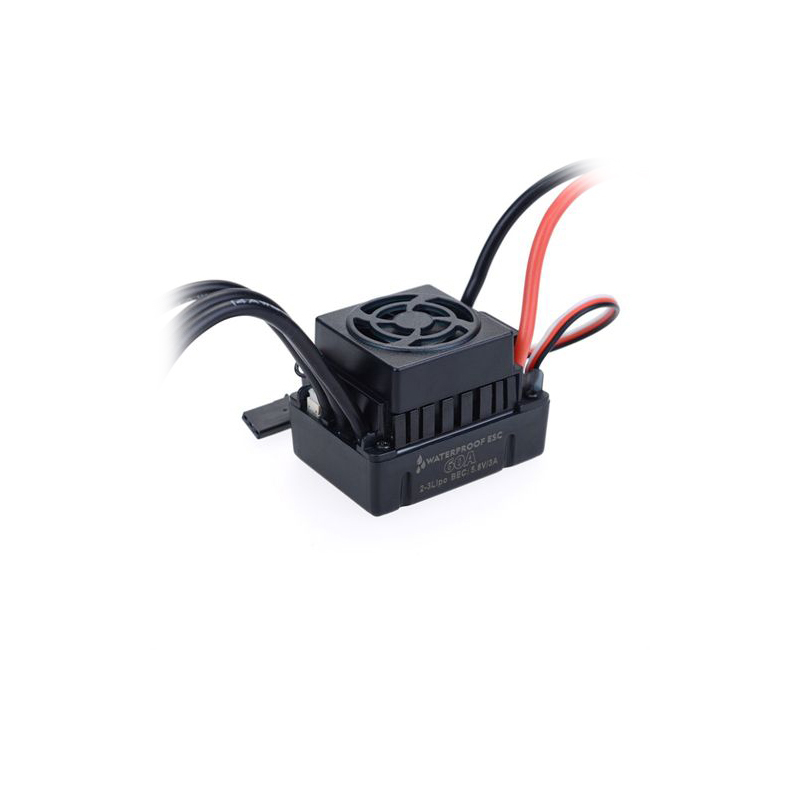

60A ESC
Item name: waterproof ESC
Continue current: 60A
Burst current: 360A
Motor Type
Sensorless Brushless Motor For 2S Lipo or 6 cells NIMH :
1.on-foad : 3660-size or smaller motor with the KV < 4300
2 . Off-road / Buggy / Monster : 3660-size or smaller motor with the KV < 3300
For 3S Lipo or 9 cells NIMH :
1 . On-road : 3660-size or smaller motor with the KV < 3300
2 . Off-road / Buggy / Monster : 3660-size or smaller motor with the KV < 2600.
Resistance: 0 . 0007ohm
Battery: 2~3 cells Lipo / 4-9 cells NIMH
BEC Output: 5.8V/3A ( switch mode )
Dimensions: 51.5×38.5×38.5mm
Weight: 76g

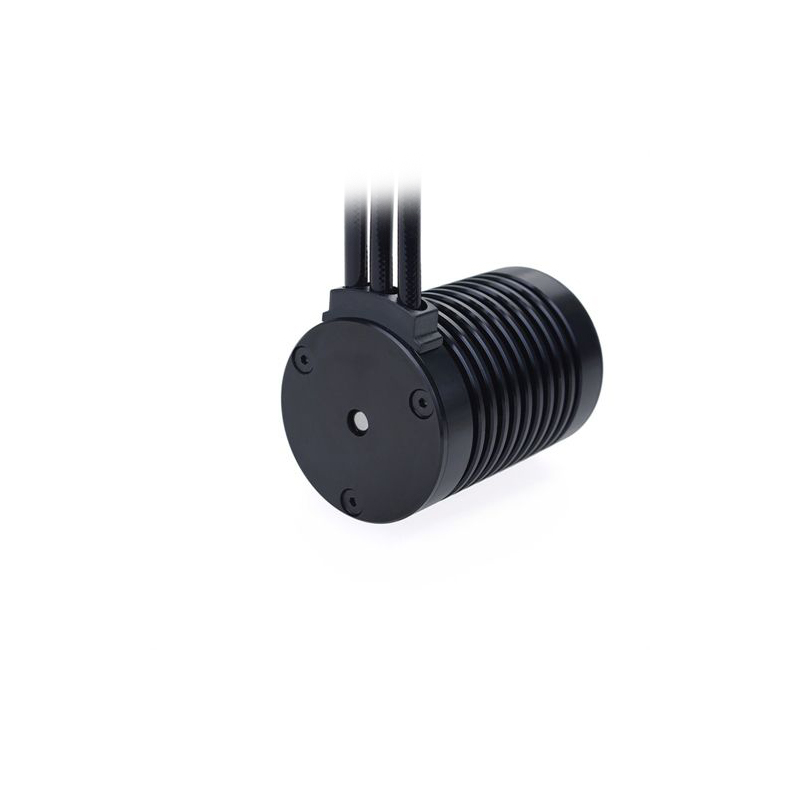

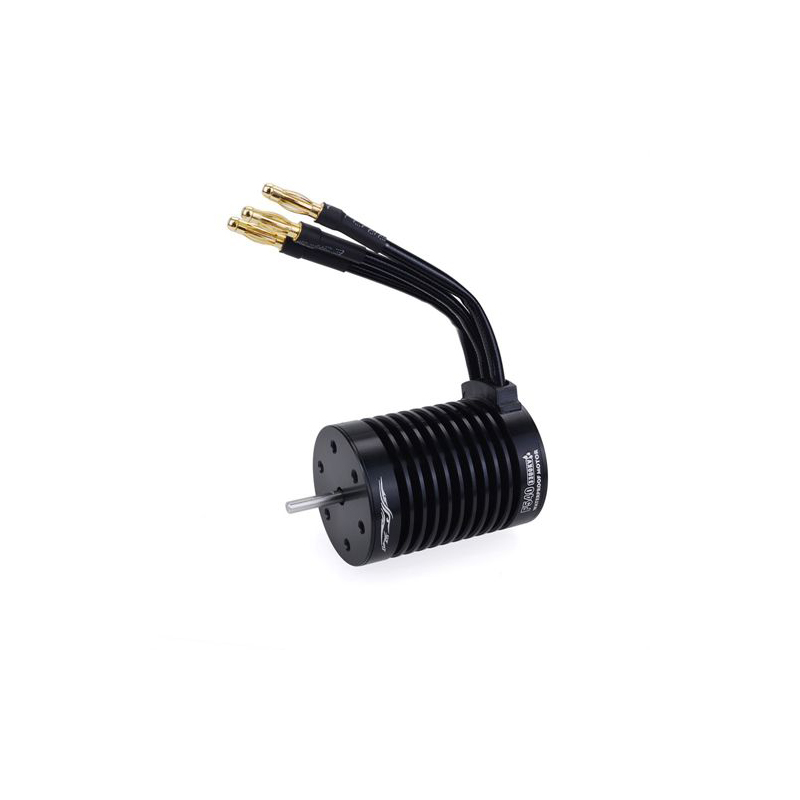

F540 3300KV Motor
Material: Metal
KV(RPM/Volt):3300KV
Watts: 800W
Max voltage: <17V
Max Amps: 47A
Rotor Poles:4
IO: 1.9A
Resistance: 0.0285
Max RPM: 50000
Length: 50mm
Diameter: 36mm with fins
Weight: 147g
Shaft diameter: 3.175mm
Length of extend shaft:15mm
Plug type: 4mm golden banana plug

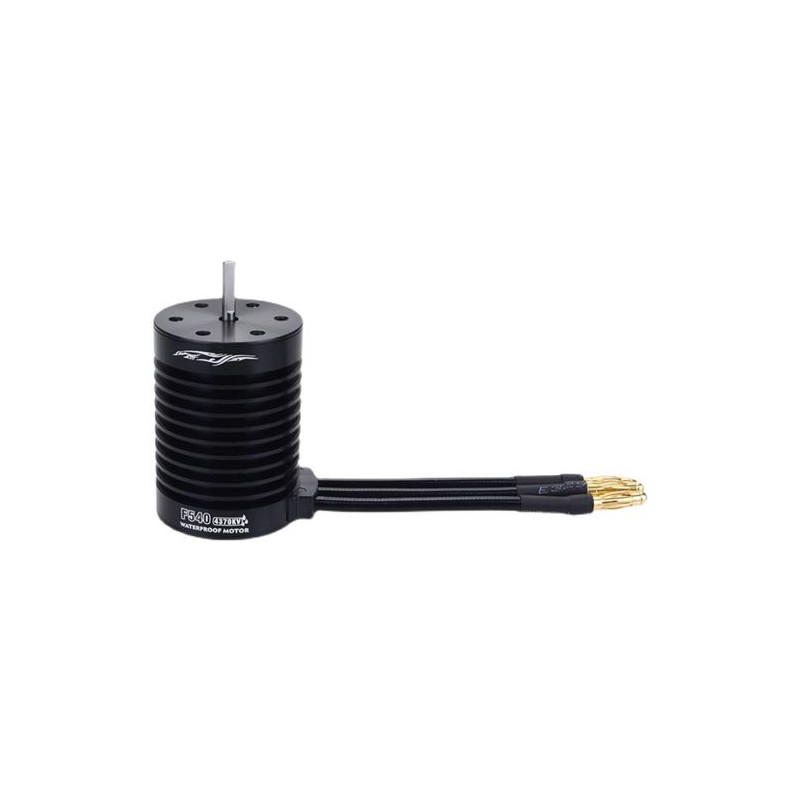

F540 4370KV Motor
Material: Metal
KV(RPM/Volt):4370KV
Watts: 800W
Max voltage: <12V
Max Amps: 66A
Rotor Poles:4
IO: 3.2A
Resistance: 0.0185
Max RPM: 50000
Length: 50mm
Diameter: 36mm with fins
Weight: 147g
Shaft diameter: 3.175mm
Length of extend shaft:15mm
Plug type: 4mm golden banana plug

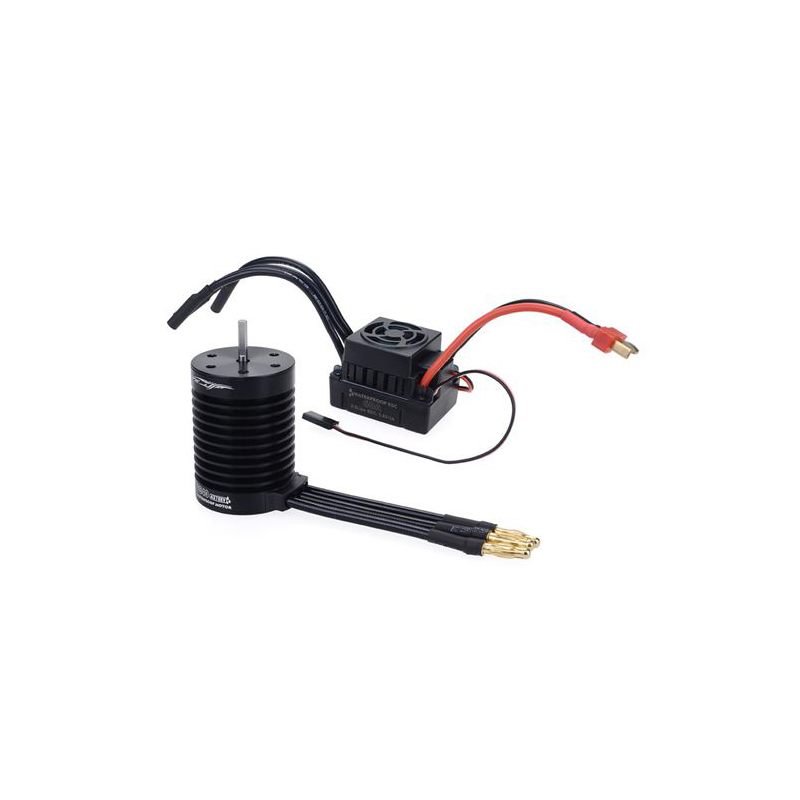

F540 Brushless Motor + 60A ESC Combo x 1Set
