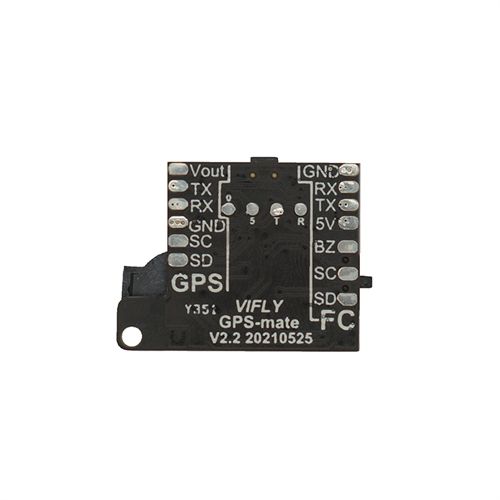

VIFLY GPS-Mate 3.7V 50mAh LIPO Exclusive Power Module with Built-in Lost Drone Alarm for GPS BN180 BN220 BN880 BN280






VIFLY GPS-Mate 3.7V 50mAh LIPO Exclusive Power Module with Built-in Lost Drone Alarm for GPS BN180 BN220 BN880 BN280
Why do we design GPS-mate?
Most drone pilots have a problem when using the GPS on their drones. GPS modules are slow, and get interference. To get a fix, a pilot must wait many minutes for a GPS fix. To do this, everything must be powered, which drains the battery and causes extra interference. It also has potential risk to cause overheating issues to your quad components. In addition, when you finish a flight cycle and change the quad battery, the GPS needs to get a hot-start fix as the quad battery disconnected. We want to fix the pain, so we design and produce GPS-mate, the external power module just for GPS.
What can GPS-mate do?
VIFLY GPS-mate is an external power module just for GPS, there is a switch to turn on and off the unit. With this device, once the pilot wants to fly, he flips the switch and only the GPS gets powered. When the GPS fix finished, the pilot connects the drone LiPo. The drone LiPo powers the drone, and recharges the GPS battery. The GPS never loses power until the switch is turned off, so the pilot never needs to get another fix for the whole session.
We also embed VIFLY Finder 2 function into this device, it can work as a standard buzzer that controlled via your radio when the quad battery is connected, it also can work as a standalone buzzer that help you find the lost drone when the main battery has been ejected.
Weight: 3.5g
Size: 26 X 20 X 8 mm
LiPo Voltage: 3.7V
LiPo Size 50mAh
Buzzer Working Time: Up to 4 hours
Input Voltage: 4.5-5.5V
Charging Time: 1.5 Hours
Output Current: Up to 80mA
Buzzer Volume: Up to 90dB


GPS-mate x1pc
4pin Cable x1pc
5pin Cable x1pc
Cable Tie x1pc
Manual x 1
Related products
-
RC Control version
Aocoda-RC F4100 Stack F405 V4 Flight Controller 100A ESC 32-bit 8S for FPV Racing Drone
Rated 0 out of 5 -
RC Control version
Aocoda-RC F475S V4 Stack F405 V4 FC+75A ESC for FPV Racing Drone DIY Accessories
Rated 0 out of 5 -
RC Control version
HGLRC M80 PRO GPS QMC5883 Compass 5V Power for FPV Drones Fixed-wing
Rated 0 out of 5 -
RC Control version

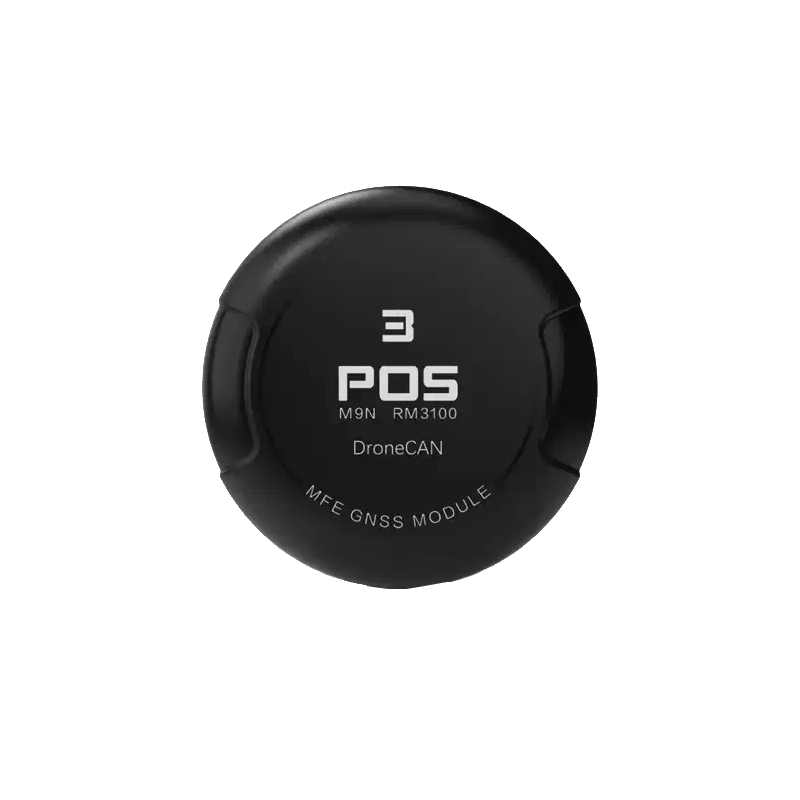

Makeflyeasy POS3 DroneCAN Navigation Module GPS M9N & RM3100 for Fixed Wing UAVs
