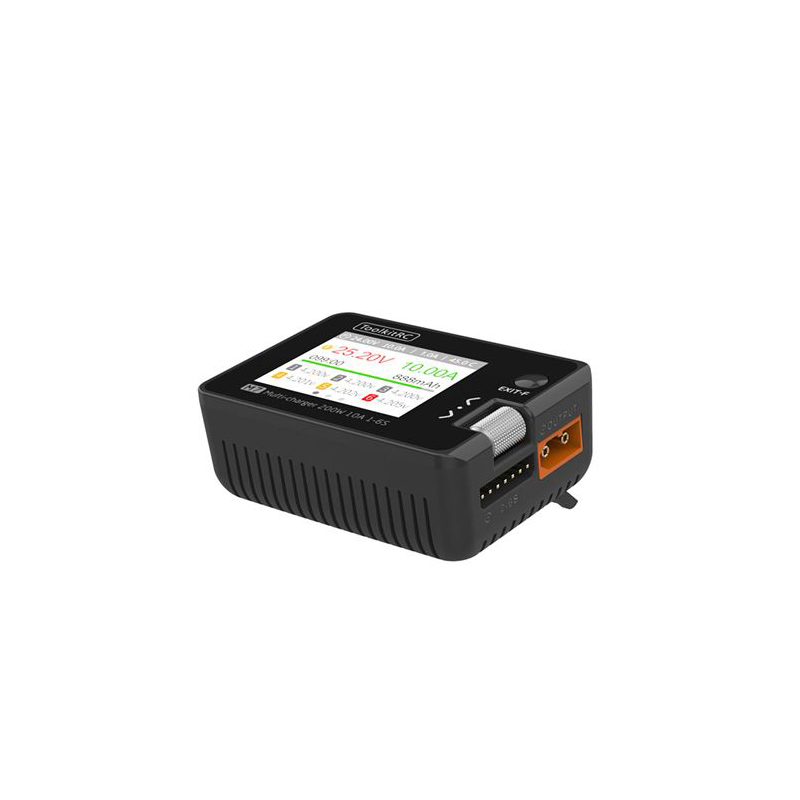

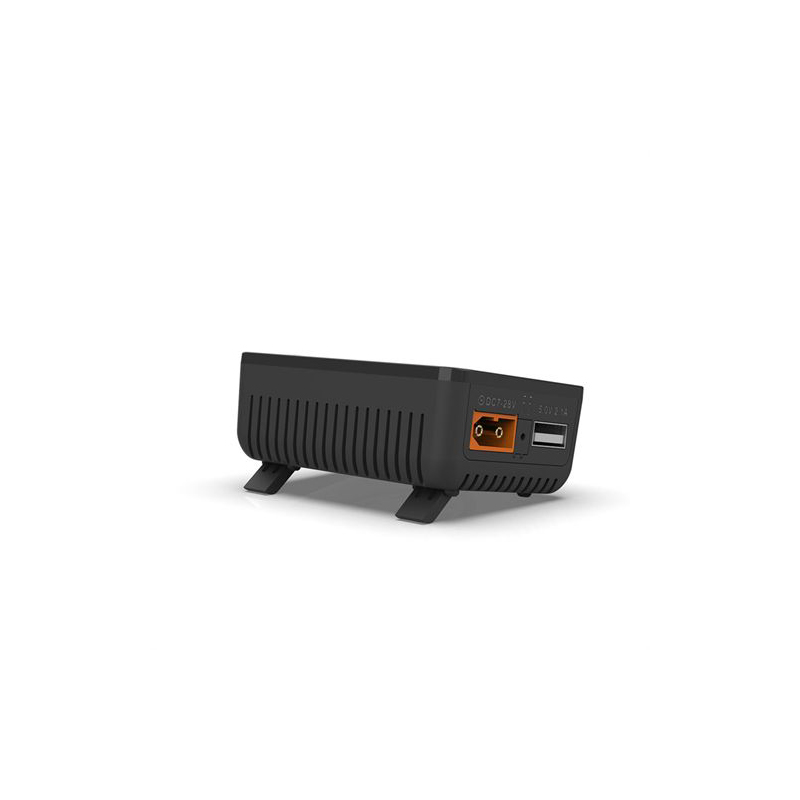

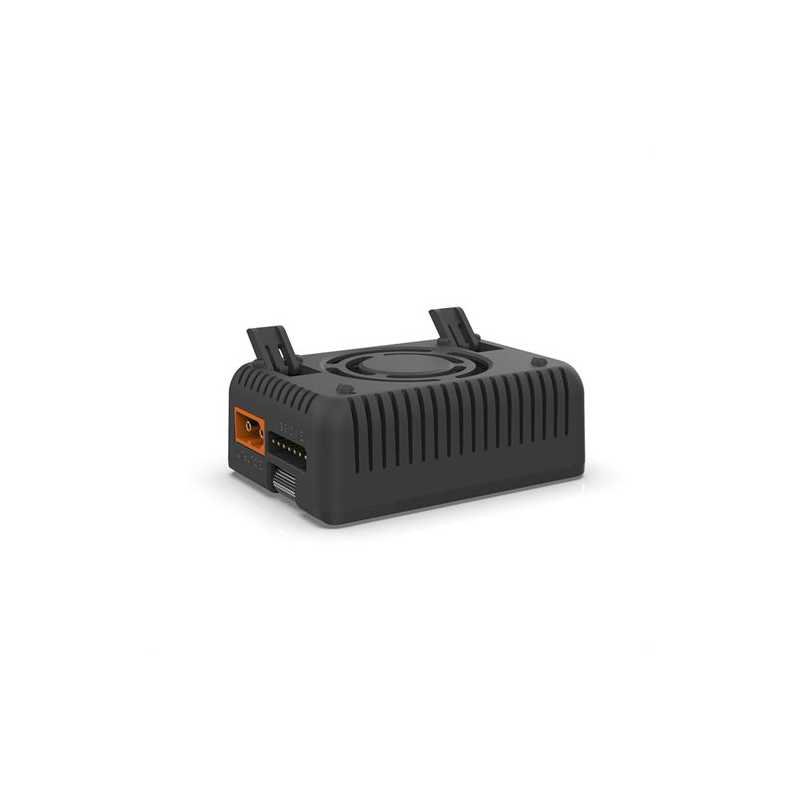

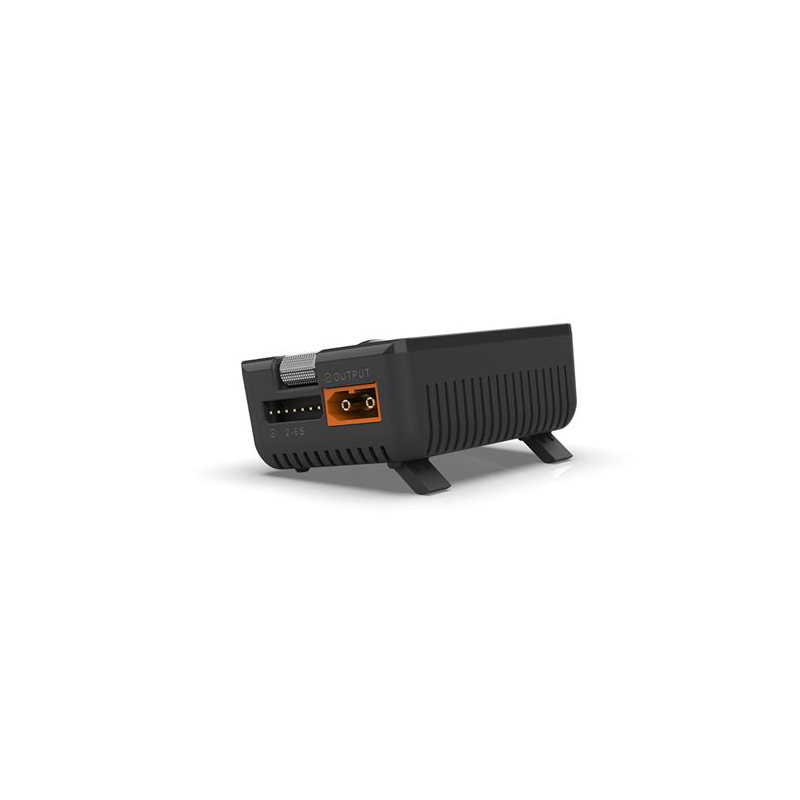

ToolkitRC M7 200W 10A DC Balance Charger Discharger With Voltage Servo Checker Signal Tester for 1-6S Lipo Battery
ToolkitRC M7 200W 10A DC Balance Charger Discharger With Voltage Servo Checker Signal Tester for 1-6S Lipo Battery
ToolkitRC M7 200W 10A DC Balance Charger Discharger With Voltage Servo Checker Signal Tester for 1-6S Lipo Battery
Product size: 73*51*27 mm
Product weight: 90g
Pack size: 84*79*39 mm
Pack weight: 150g

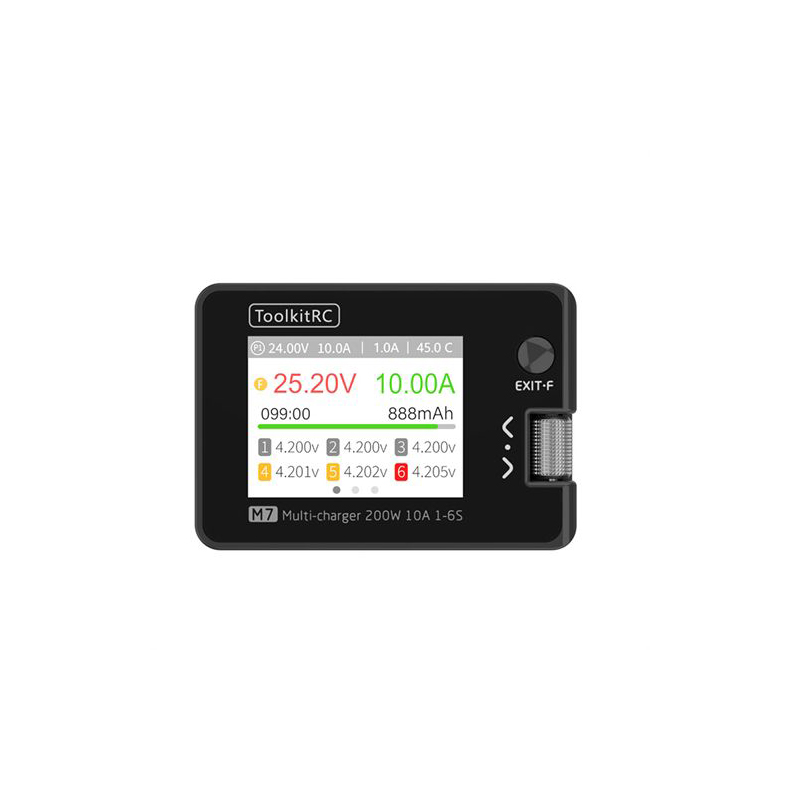

LCD: IPS 2.0inch LCD 320*240 Pixel
Charger
Input voltage: 7-28V@MAX12A
Type of battery: Lipo Lihv Life Lion @1-6S
Nimh 1-16S Pb @1-10S
Charging power: 0.1-10A @ 200W
Discharge power: 0.1-10A @ 200W Recyling mode
0.1-3A @10W Normal mode
USB: 2.1A @ 5.0V
Measurer
PWM: 880us-2200us@20-400Hz
PPM: 880us-2200us * 8CH @ 20-50hz
SBUS: 880us-2200us * 16CH @20-100Hz
Voltage: 1.0V-5.0V @ 1-6S
Internal resistance: 1-99mR @1-6S
Output
PWM: 500us-2500us @20-1000Hz
PPM: 880us-2200us * 8CH @ 50hz
SBUS: 880us-2200us * 16CH @ 74Hz
Power: 1-10A@1-28V mode: CC + CV

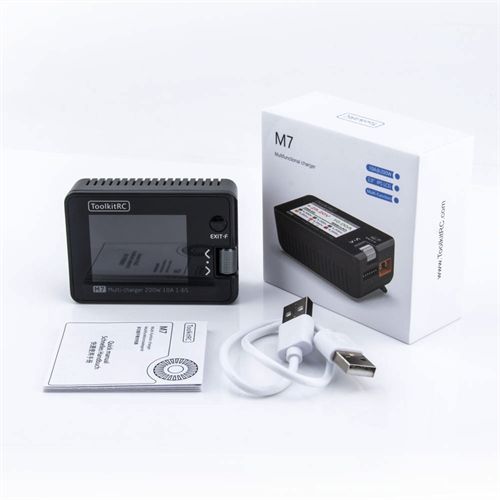

1 x ToolkitRC M7 Charger
Reviews
There are no reviews yet.
