TBS CROSSFIRE SIXTY9 Video transmitter Receiver 915Mhz Reception Integration AIO
What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing, nothing at all.
Introducing the TBS Tracer Sixty9, sporting a race-friendly, long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20×20, but we do incldue adapters for your 30×30 stacks, and a plastic case for mounting the unit to your frame – without any stacking necessity.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
Weight: 4.1g (board only)
Antenna ports: 1x video transmitter, 1x R/C receiver
Size: 24mm x 24mm
Requires: Firmware V5.62 and above
CRSF V3 ready

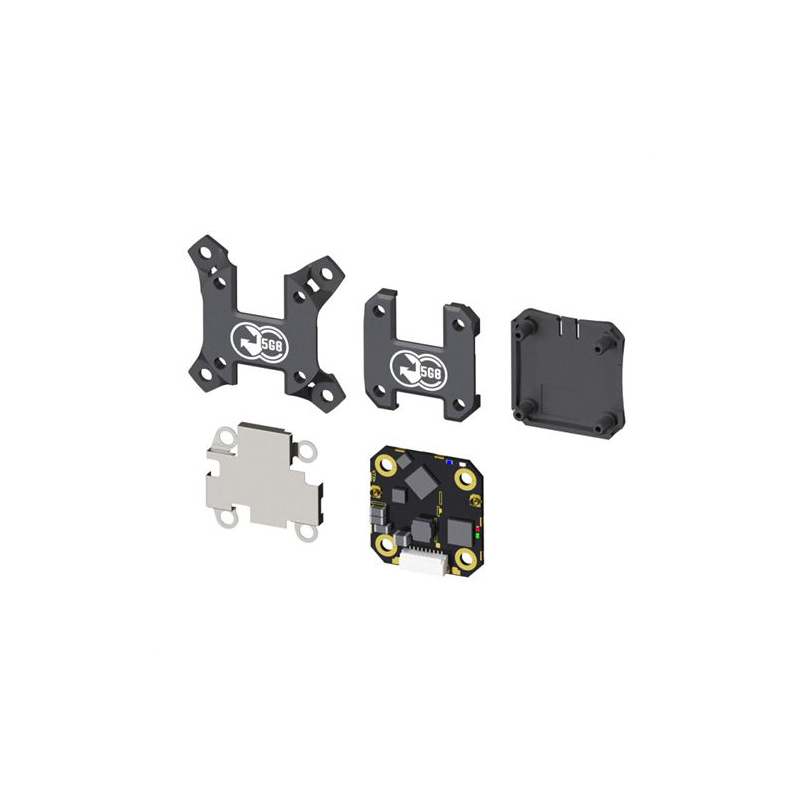

1x TBS Crossfire Sixty9
1x TBS Crossfire Immortal-T antenna
1x u.FL to SMA mount (for VTx)

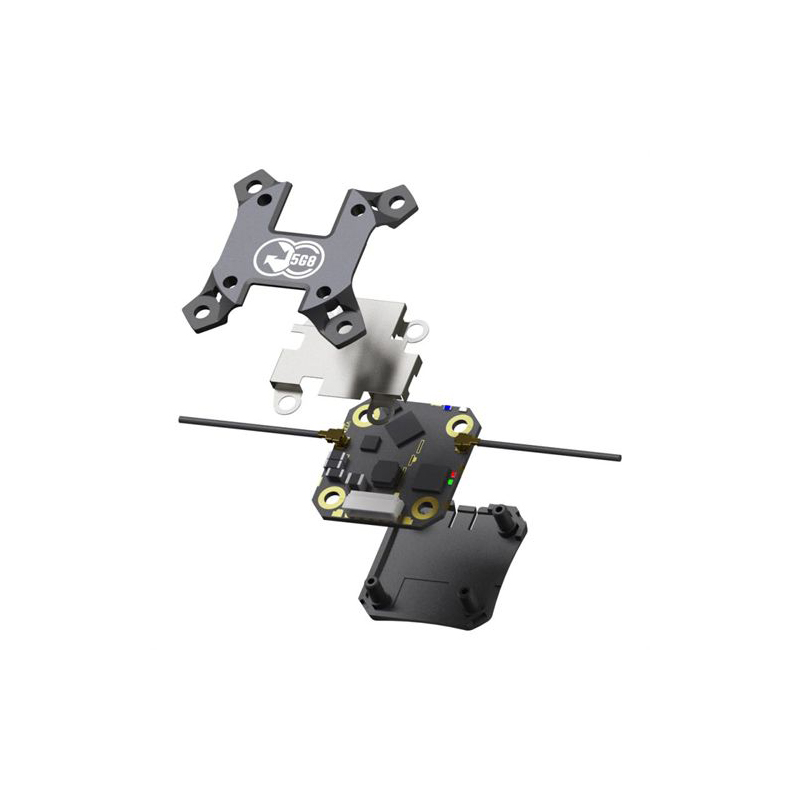

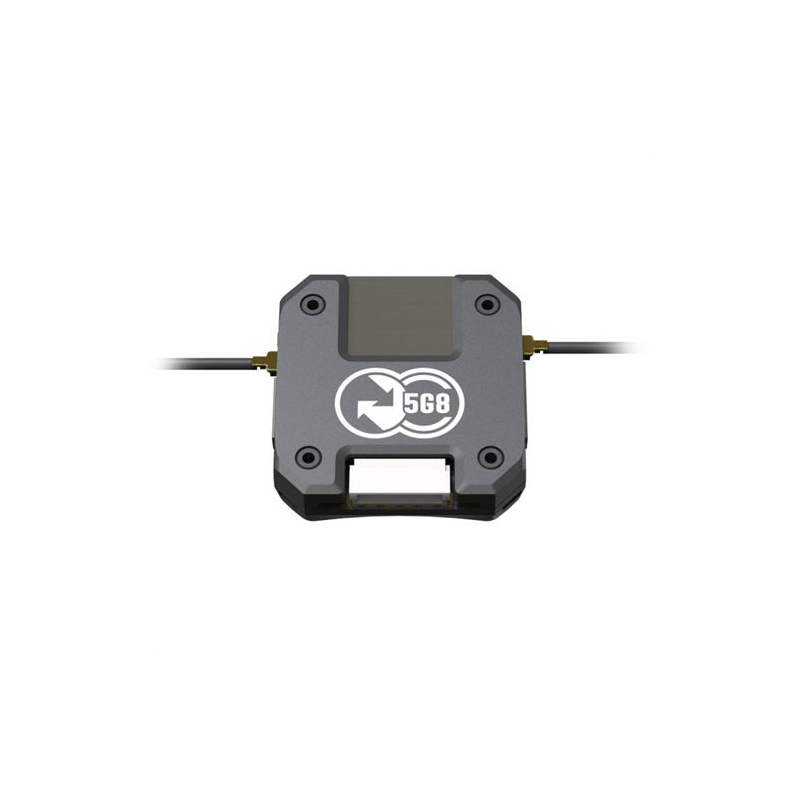

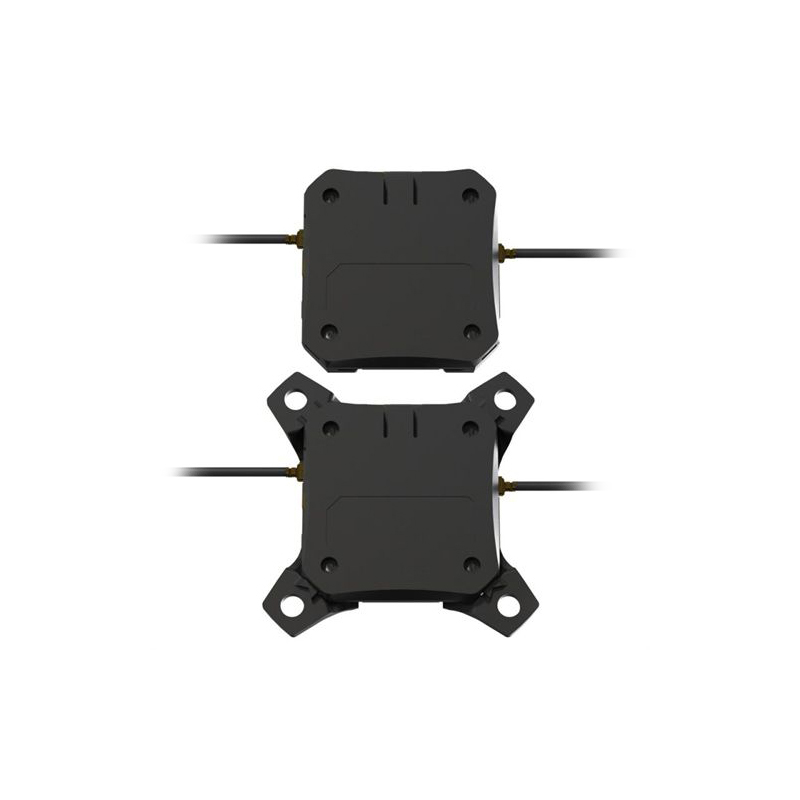

1x 30×30 heatsink / case

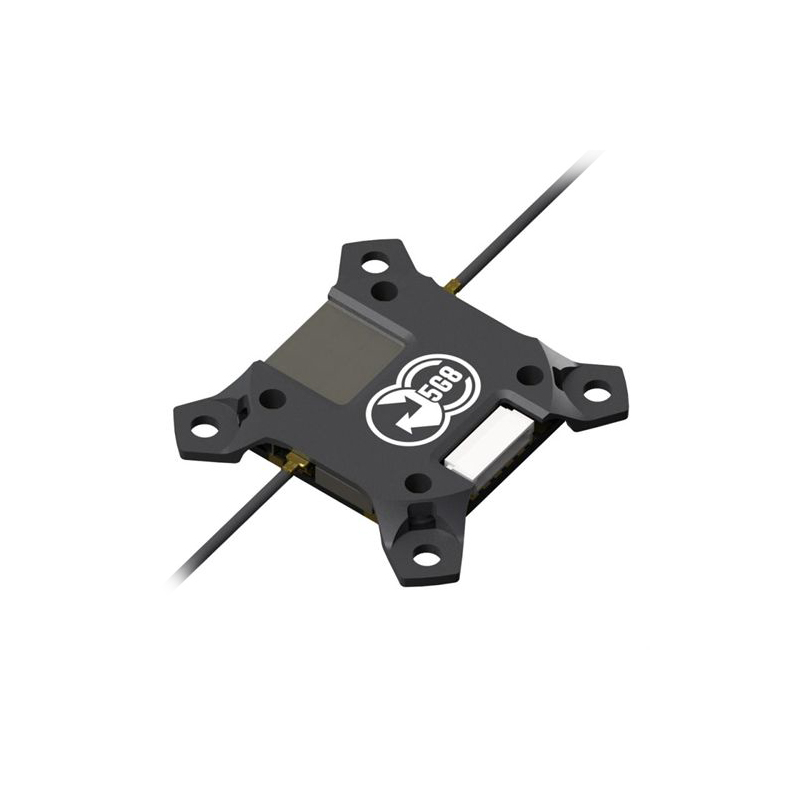

1x 20×20 heatsink / case
1x optional tin-shield (for added low-noise tolerance)
1x JST-SH x 9 connector
