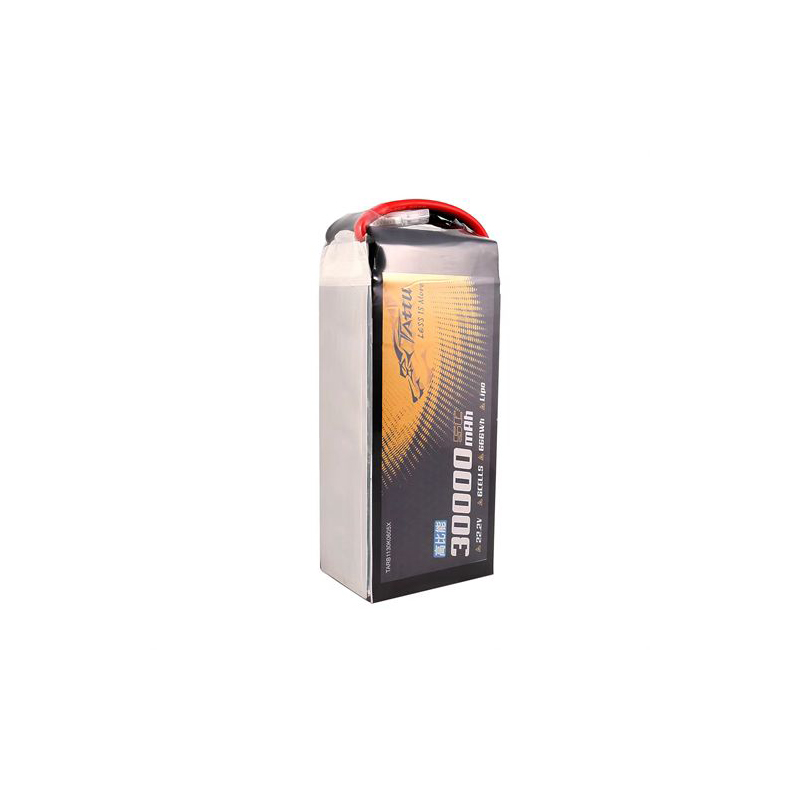

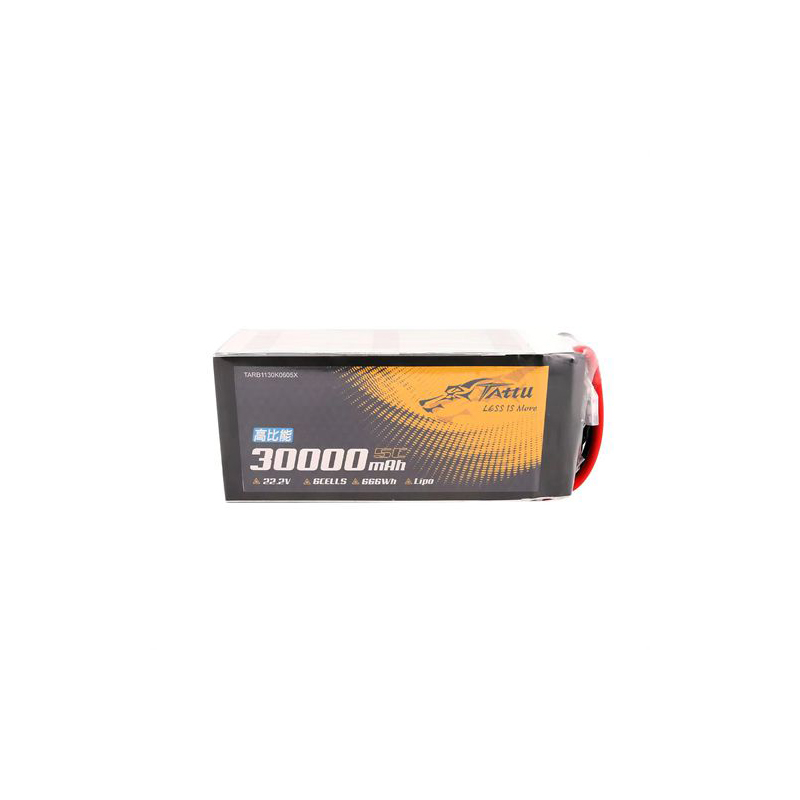

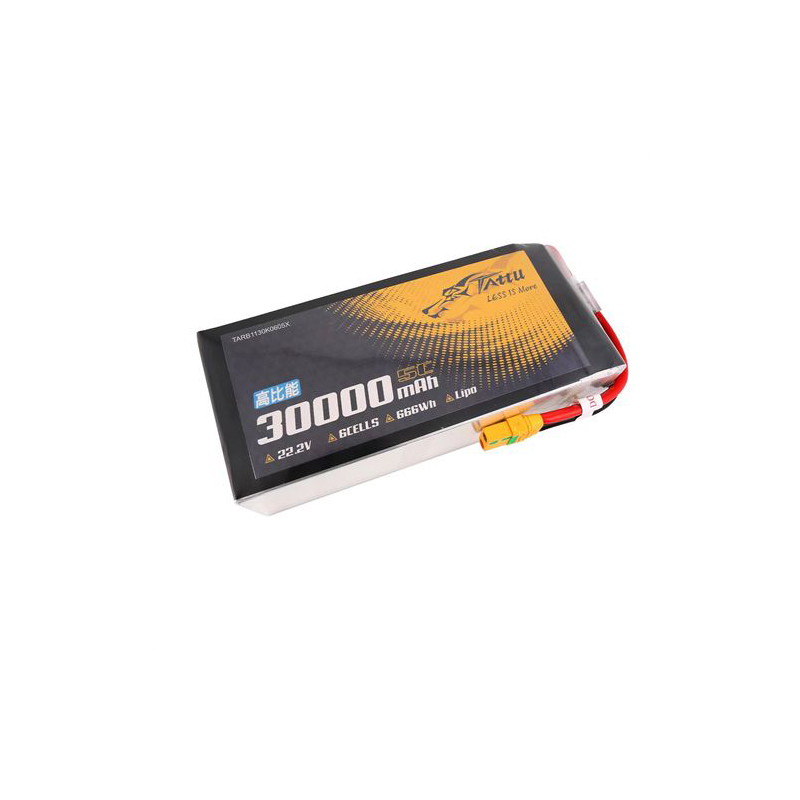

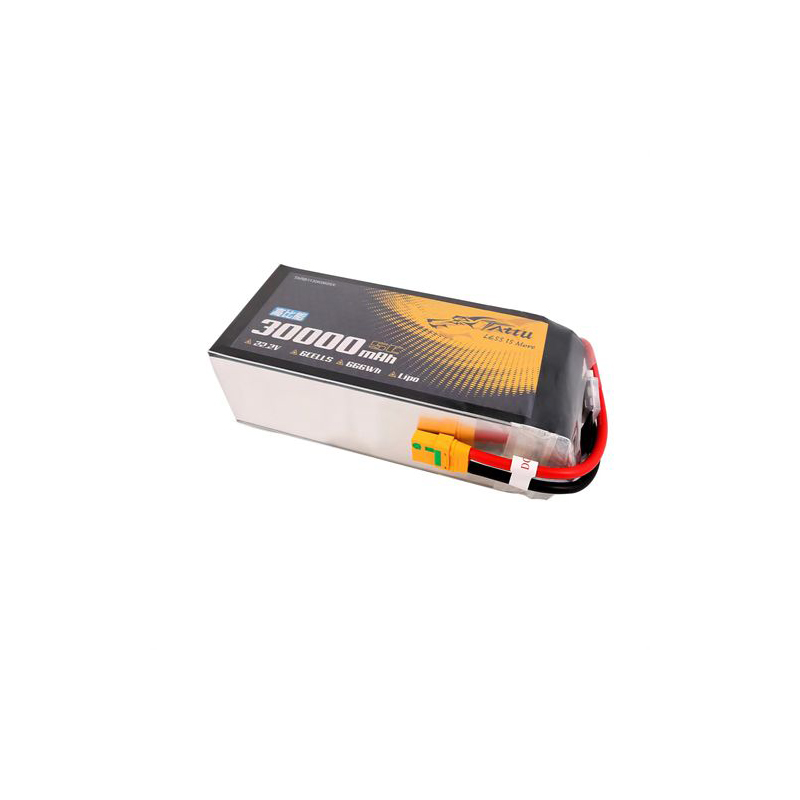

Tattu ACE 30000mAh 6S 22.2V 5C Semi-solid State Lipo Battery For RC Airplane Multi-rotor Quadcopter Drone
Tattu ACE 30000mAh 6S 22.2V 5C Semi-solid State Lipo Battery For RC Airplane Multi-rotor Quadcopter Drone
Tattu ACE 30000mAh 6S 22.2V 5C Semi-solid State Lipo Battery For RC Airplane Multi-rotor Quadcopter Drone
Connecting mode：6S1P
Nominal capacity：30000mAh @ 0.5C Discharge
Minimum capacity：28800mAh @ 0.5C Discharge
Nominal voltage：22.2V（Cell 3.7V）
Pack shipment Voltage：22.5~23.1V（Cell 3.75~3.85V）
Internal Impedance：7.76±1.5mΩ
Dimensions：MAX（T*W*H）66.5* 92.5 *209mm
Pack weight：2480±100g (APPROX)
Standard Charge：6.0A CC（ constant current ）charge to 25.2V,then CV(constant voltage 25.2V)charge till charge current decline to ≤0.02C；
Rapid Charge：Constant Current：15A，Constant Voltage：25.2V，0.02C cut-off；
Charging time：Standard Charging：7.5 hours(Ref.) ；Rapid charge：3.0hours(Ref.)
Max Constant Discharge current：6000mA(0.2C): -20~0℃ ; 15000mA(0.5C): -0~10℃/45~60℃ ; 60000mA(2C): 10~45℃ ; Discharge Cut-off voltage: 17.1V
Max Discharge Peak current：Peak current：100A，Continue time：≤3S；
High Rate Discharge：≥27.0min Standard Charge/rest 5min discharge at 60A to 17.1V
30000mAh 6S 22.2V 5C Semi-solid State Lipo Battery x 1
