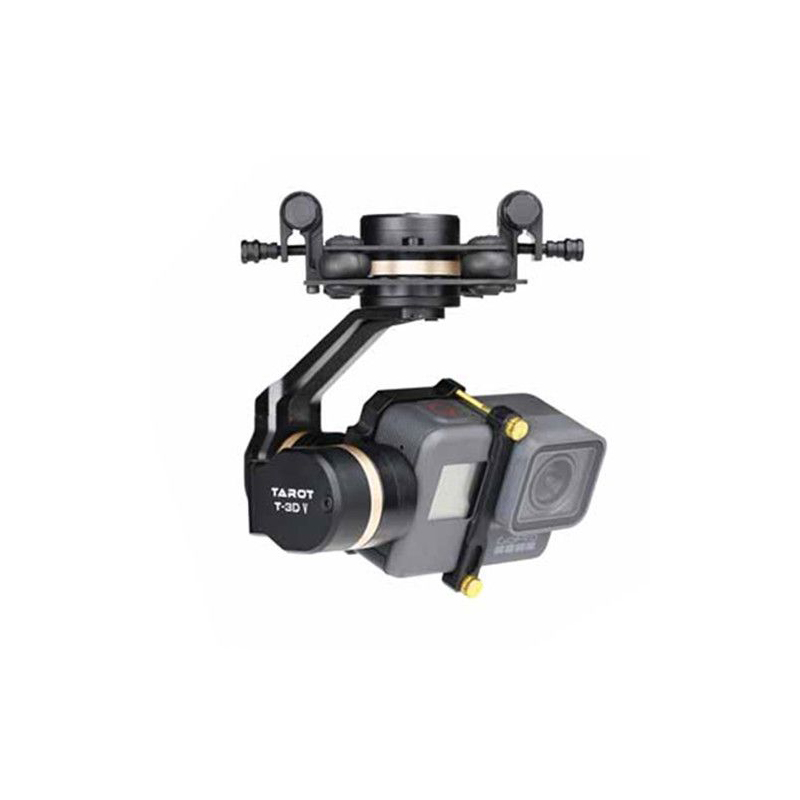

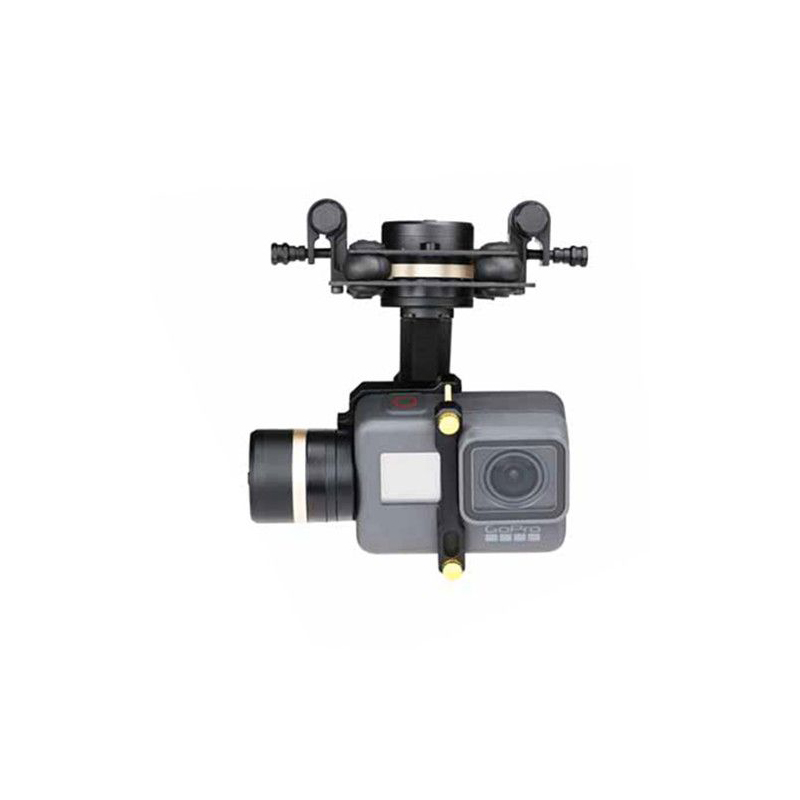

Tarot GOPRO 3D V Metal 3axis gimbal TL3T05 for Gopro Hero 5 Camera
Tarot GOPRO 3D V metal three-axis PTZ designed for Canon GOPRO HERO 5 camera custom, integrated TAROT series of all the high-end technology, using the whole CNC integral with the wall structure of industrial design, to bring light and the strongest stability Sex. Even in harsh extreme environments, can also accurately lock the camera to maintain a high degree of stability, the output of the ultimate experience of the delicate picture. Tarot GOPRO 3D Ⅲ metal three-axis PTZ with excellent computing ability PTZ control system, built-in independent IMU precise control PTZ posture, integrated PTZ and servo drive module to support the attitude lock, point to follow and the first corner of the three modes of work The
Mechanical / electronic characteristics
Applicable Camera Type: GOPRO HERO 5
Input power: 3S-6S Li (11V-26V)
Operating current: 30mA (@ 25V) / 50mA (@ 12V)
Stall current: 350mA (@ 25V) / 700mA (@ 12V)
Attitude control accuracy: ± 0.02 degrees
Maximum controllable speed
Rotation direction (PAN): ± 200 ° / s
Tilt direction (TILT): ± 200 ° / s
Rolling direction (ROLL): ± 200 ° / s
Controllable rotation range
Rotation direction (PAN): ± 330 °
Tilt direction (TILT): -135 ° to + 45 °
Rolling direction (ROLL): ± 48 °
S-Bus / PPM / DSM receiver support
Working environment temperature: -20 ℃ ~ +50 ℃
Maximum dimensions (LWH): 60 mm * 75 mm * 100mm
Adjust the software installation requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Metal triple axle 160k × 1
PTZ master module (36 × 25 × 11MM) × 1
8P PTZ control and PTZ main cable × 1
5V output, receiver and video cable × 1
USB module (27 × 21 × 7MM) × 1
Flight control cable × 1
Manual x 1
Packing box × 1
