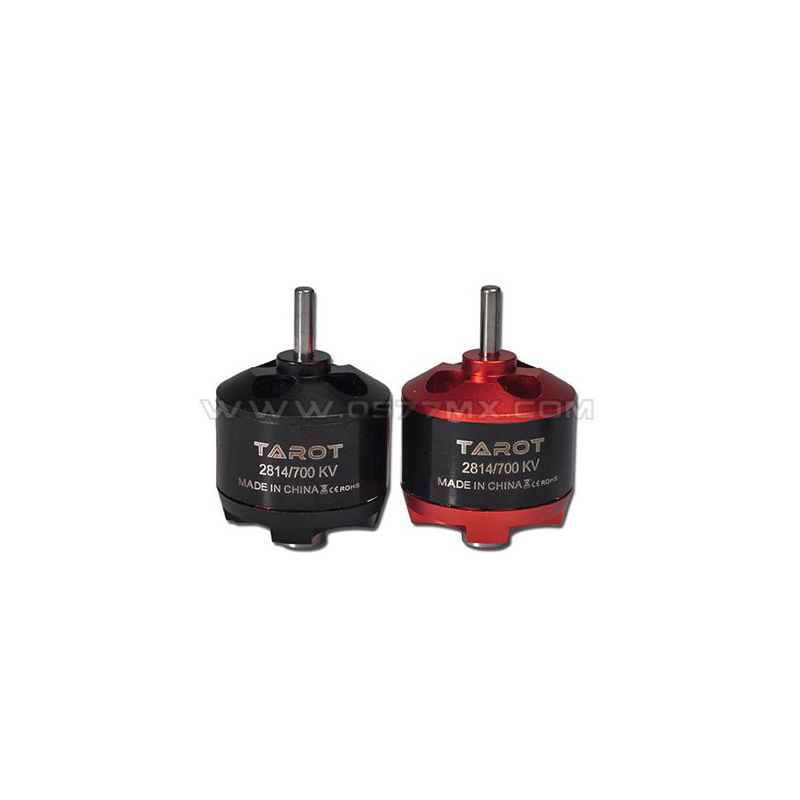

Tarot 700KV motor TL68B17 Multi-axis Brushless 2814 Motor Black Tarot Multirotor Spare Parts

SKU TL68B17 Category Tag Brand:

Tarot 700KV motor TL68B17 Multi-axis Brushless 2814 Motor Black Tarot Multirotor Spare Parts

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Tarot 700KV motor, a 2814/700KV efficient multi-axis brushless Tarot Motor, designed for multi-rotor aircraft such as  TL65B01/TL65B02/TL68B01/TL68B02/TL2778/TL2749D. It adopts Full CNC machined rotor high-magnetic material NdFeB refined, 12-pole stator with high strength epoxypressure reinforce the protection of high-temperature, high-speed alloy steel motor shaft. Upper and lower cover of motor using a high-speed precision bearings for large size, long life, highefficiency, low power consumption, low noise, and stability control superior characteristics.

Tarot 700KV motor Product parameters:
Motor peripheral diameter: 35.00mm
Stator diameter: 28.0 mm
Stator end thickness: 14.0 mm
Per volt speed: 700 RPM / Volt
Motor Weight: 102 G
Gear shaft mounting diameter: Dia 4.0 mm
Motor shaft total length: 53.5 mm
No-load current: 0.8A
Installation diameter: Dia 19MM, Dia 25MM

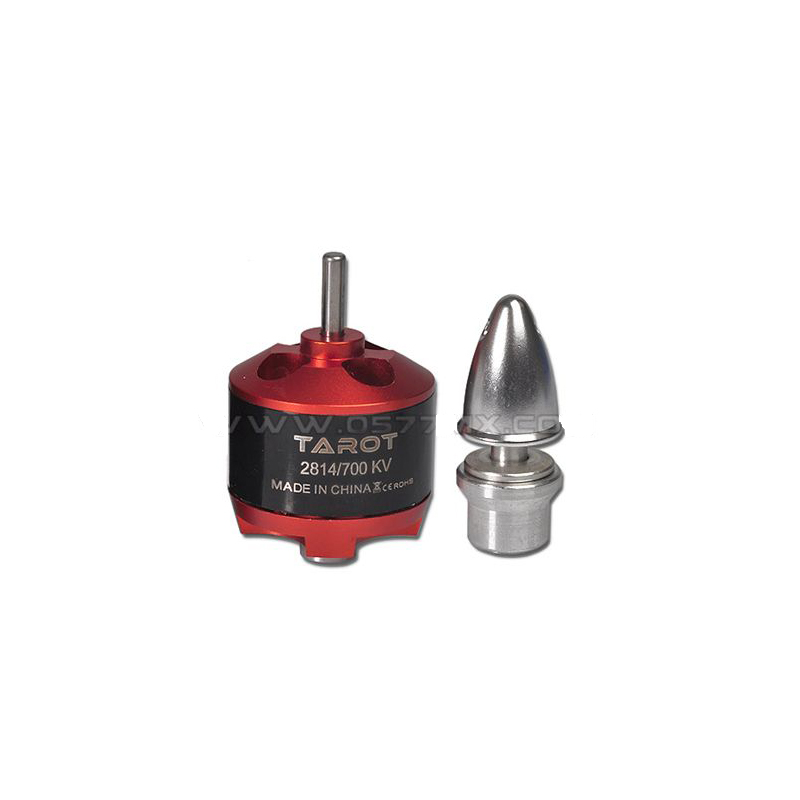

2814/700KV multi-axis brushless motor x 1
3.5 banana plug x 3
The metal paddle folder x 1 group
