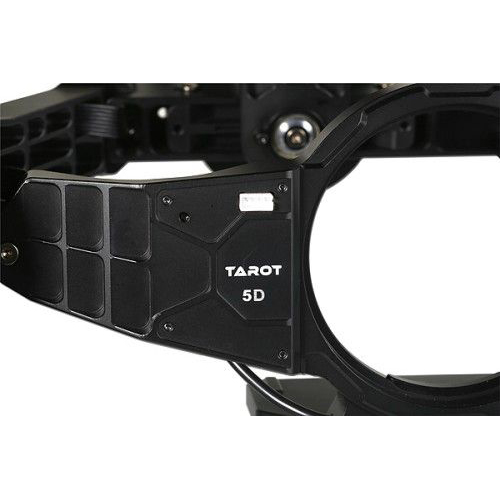

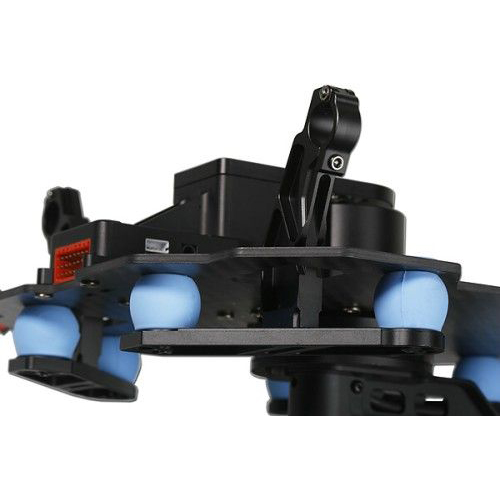

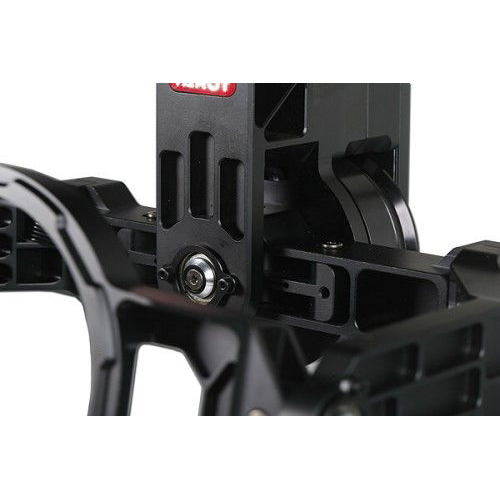

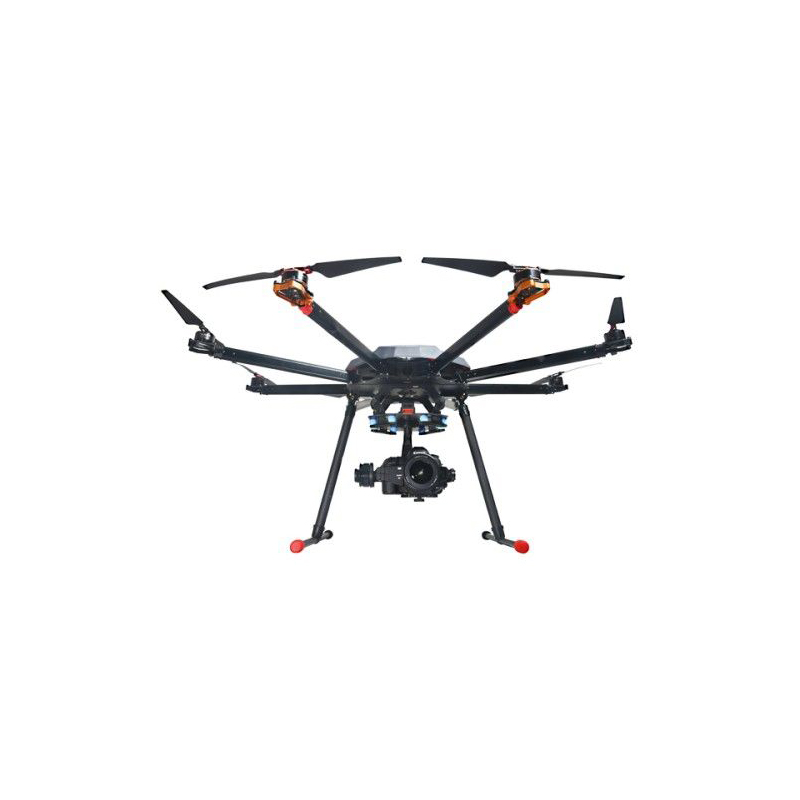

The Tarot 5D3 3-Axis self-stabilizing gimbal is specifically designed to carry the Canon 5D Mark III and 5D Mark II camera and perfectly match with Tarot X6 Hexacopter. Its CNC processing with thin-walled structure gives you a stable footage and precise control even in the most difficult flight conditions.

The Tarot 5D3 is based on gimbal system with optimal algorithm. Built-in independent IMU module gives you precise and effortless control. Three working modes are supported, orientation locked, Non orientation locked and FPV. Built-in slip ring simplifies the cabling. The command stick controls gimbal rotation velocity.

Tarot 5D3 3-Axis self-stabilizing gimbal can be converted into handheld gimbal with quick release handle (the handle needs to be purchased additionally). Tarot 5D3 3-Axis self-stabilizing gimbal is your best choice.

Features:
1.Working modes
-Orientation-locked control
-Non orientation-locked control
-FPV mode
2.Bulit-in independent IMU module
3.Tarot gimbal special servos drive module

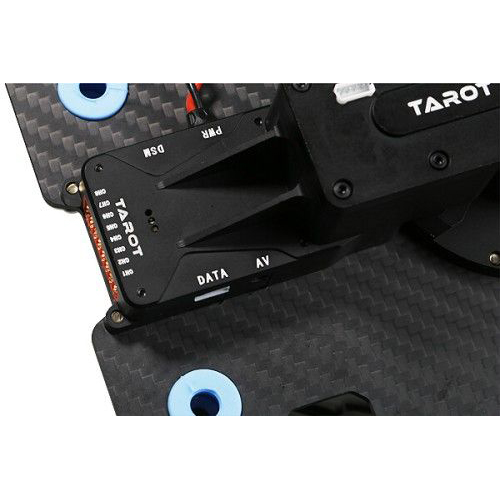

4.AV output port
5.Camera shutter control supported
6.Wide range voltage input supported
7.S-Bus/PPM/DSM receiver supported
Peripheral

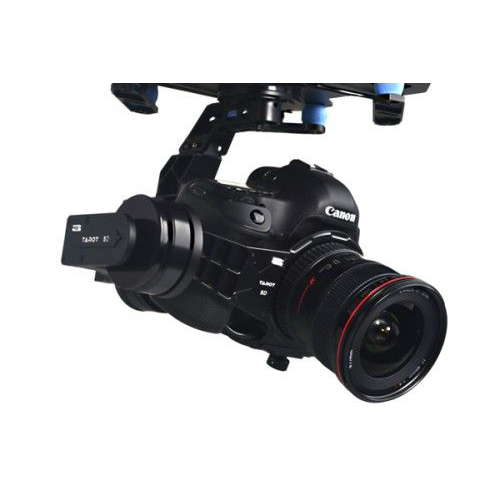

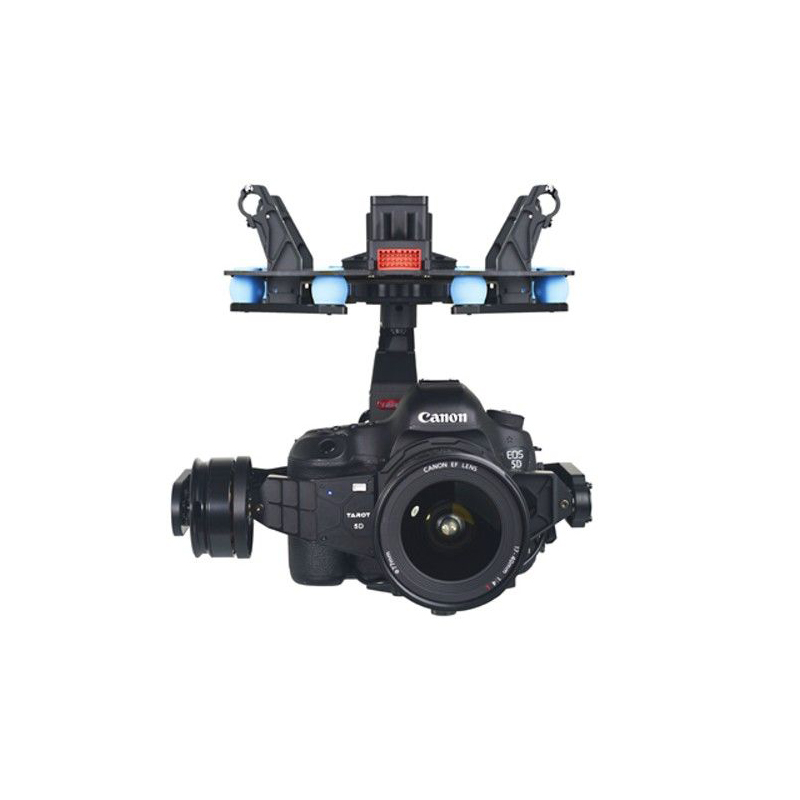

Supported Camera: CANON EOS 5D MARK III & 5D Mark II only
Supported Lens Currently: CANON EF 17-40mm f/4L USM
GCU Input Power: 3S~6S LiPo
Control Requirement: At least four spare receiver channels
Assistant Software System Requirement: Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)

Mechanical & Electrical Characteristics
Working Current: 120mA (@25V) 180mA 3S-6S Li (11V-26V)
Operating Temperature: -20°C ~ 50°C
Weight: 1.51KG
Dimensions: 215mm*240mm*246mm

Working Performance
Controlled Angle Accuracy: ±0.02°
Maximum Controlled Rotation Speed:
Pan axis: ±200°/s
Tilt axis: ±200°/s
Roll aixs: ±200°/s
Rotation:
Pan axis control: ±360° continuous rotation
Tilt axis control: -135°-+45°
Roll axis control: ±48°
