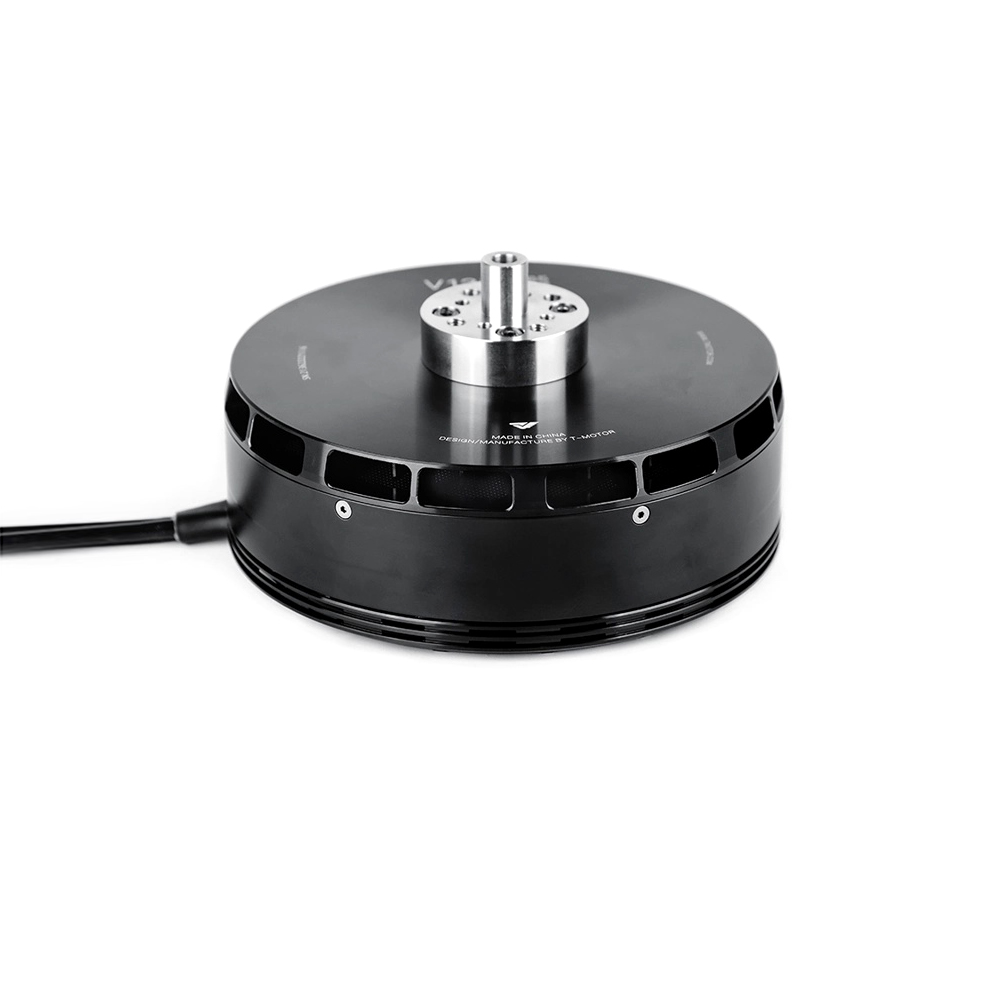

T-MOTOR V13L 650KV 24S Brushless Motor for VTOL Drone

SKU TM-V13L-65KV Category Brushless Motor Tag Brushless Motor Brand: T-MOTOR

T-MOTOR V13L 650KV 24S Brushless Motor for VTOL Drone

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

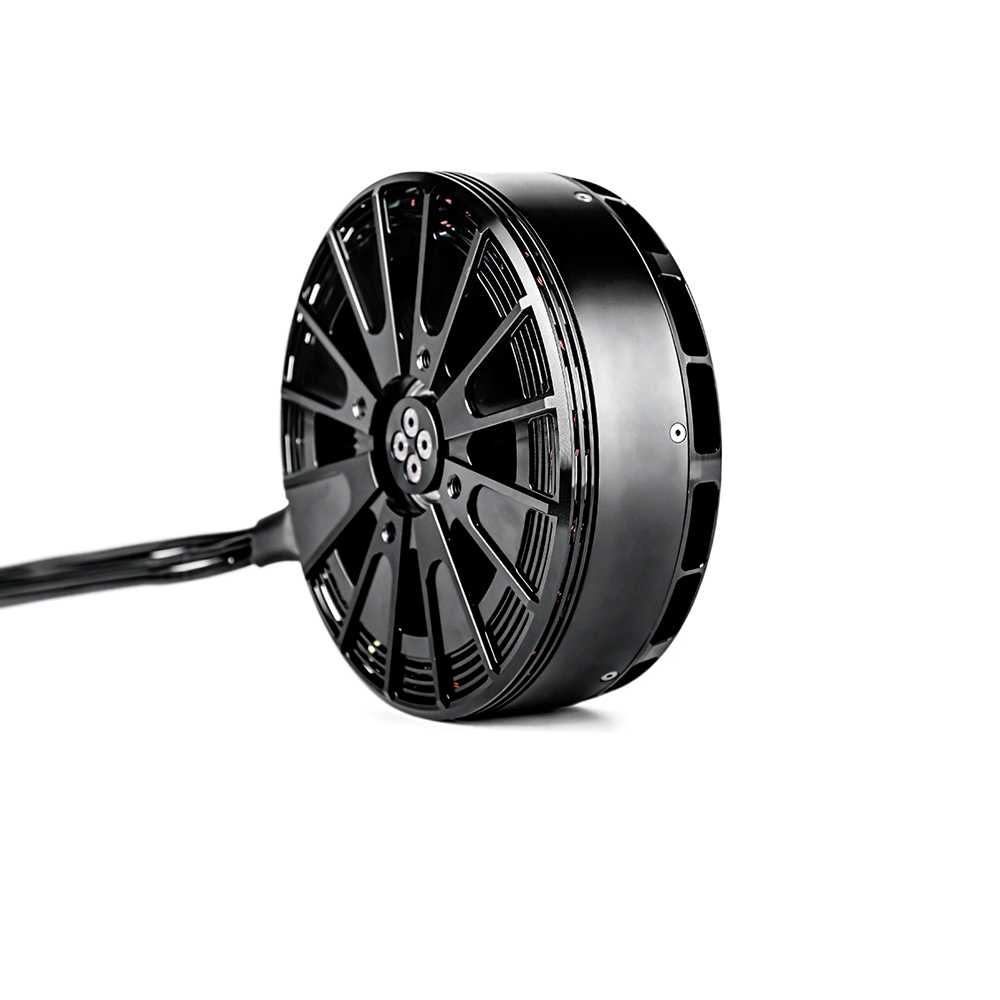

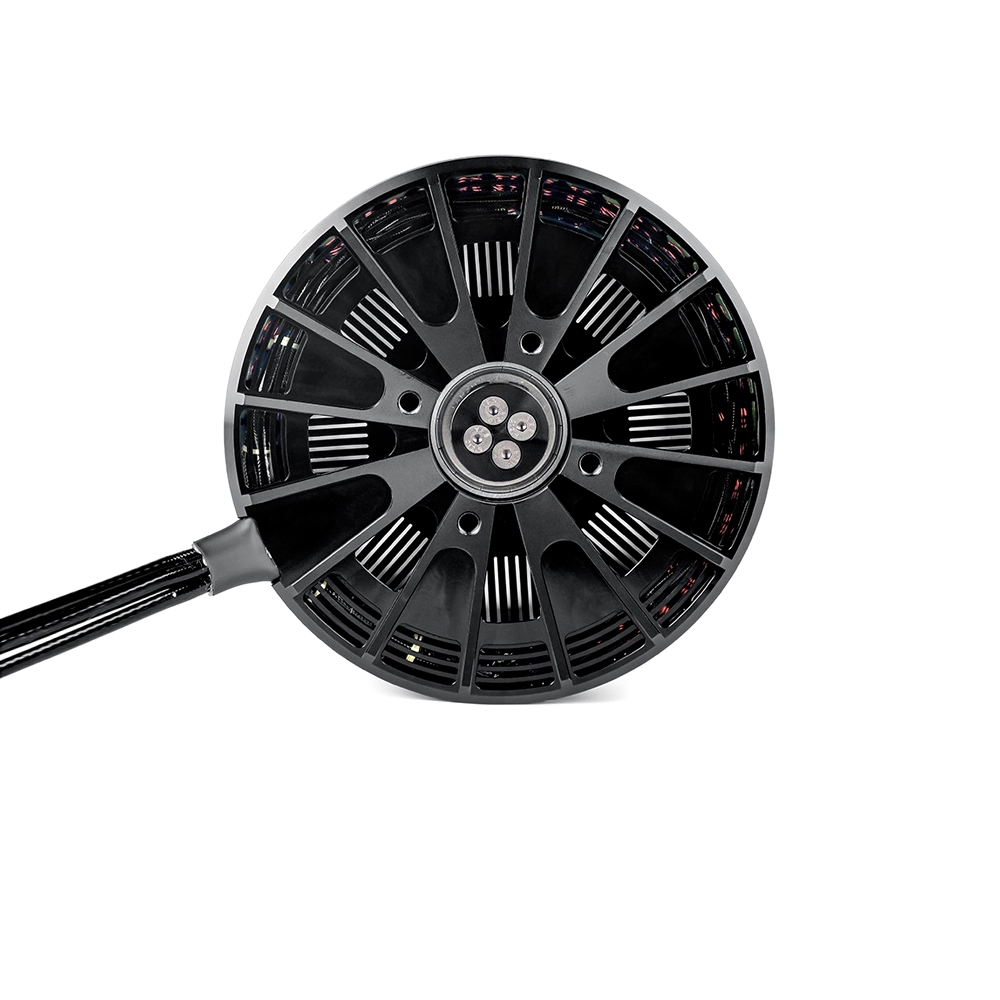

T-MOTOR V13L 650KV 24S Brushless Motor for VTOL Drone

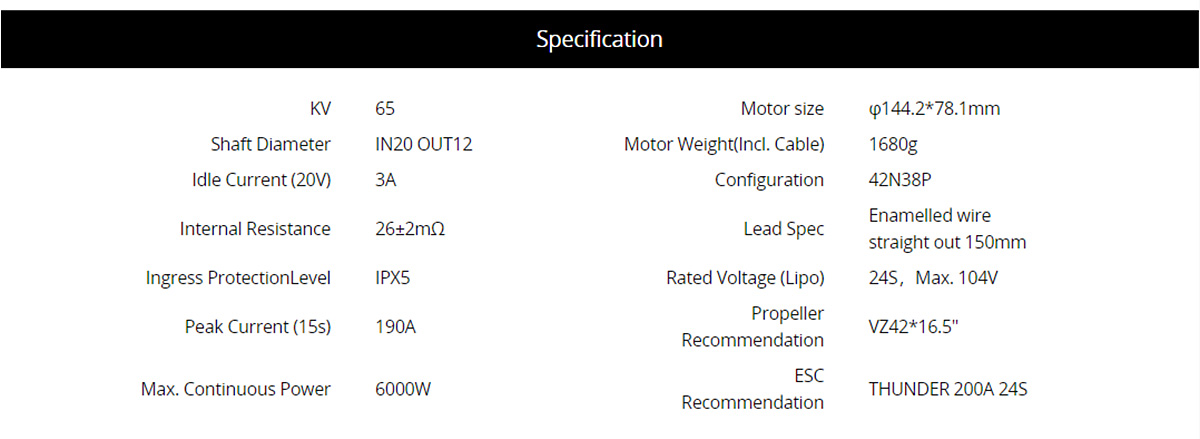

Model: V13L
KV: 65

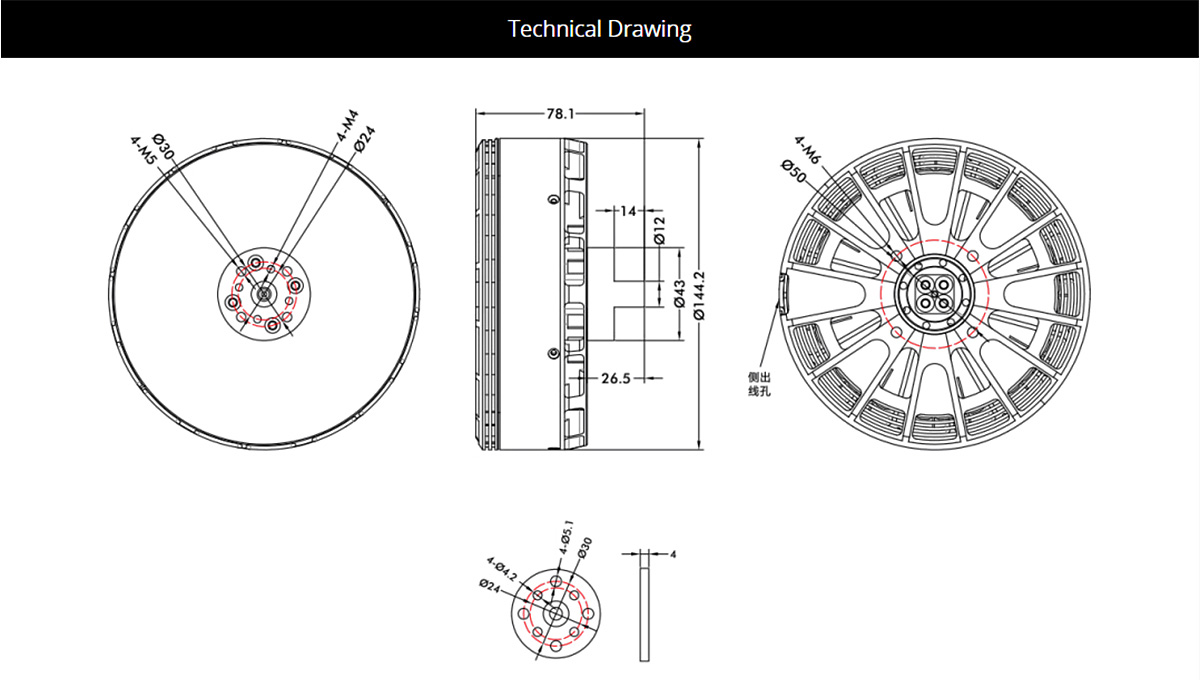

Motor size: φ144.2*78.1mm
Shaft Diameter: IN20 OUT12

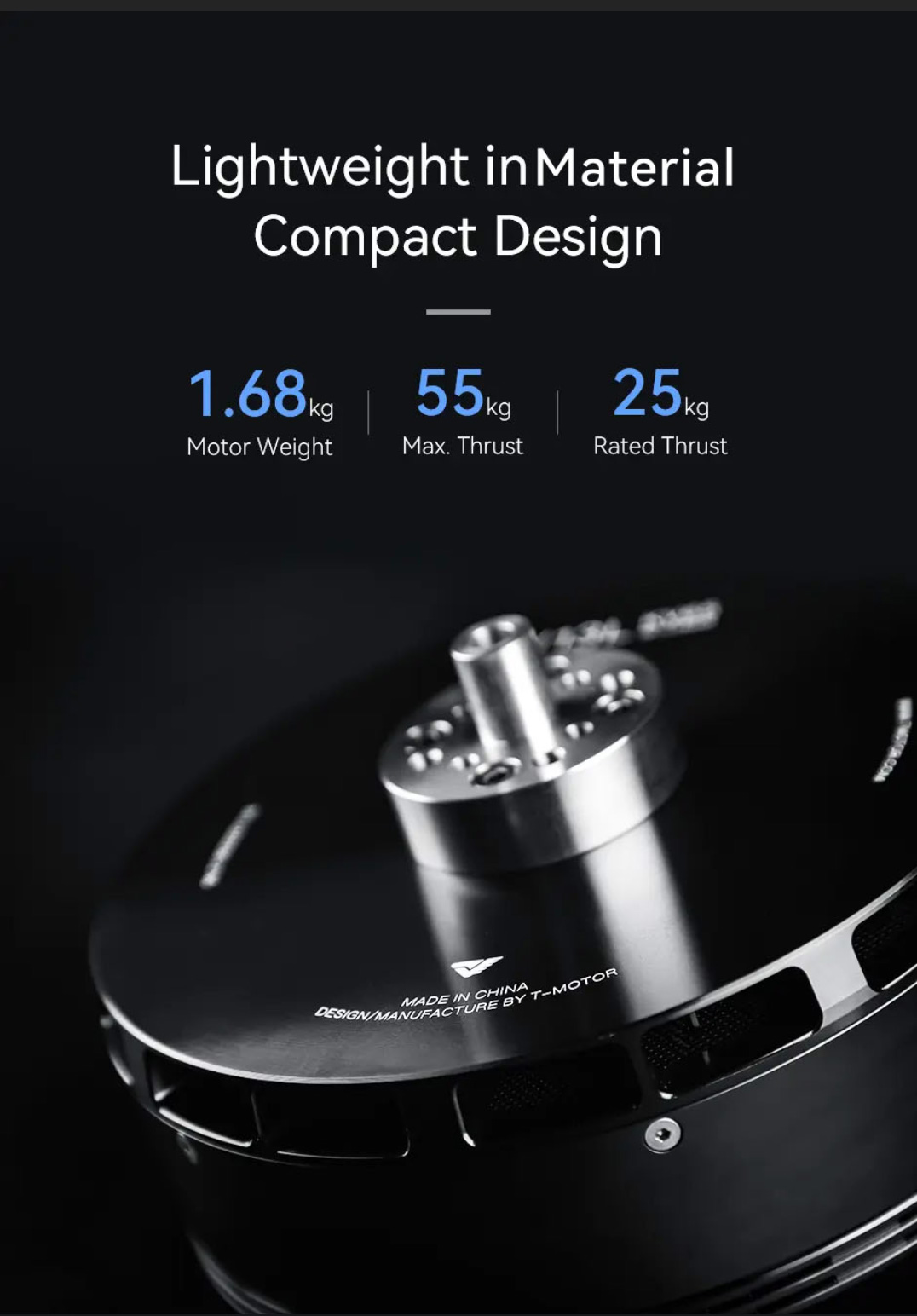

Motor Weight(Incl. Cable): 1680g
Idle Current (20V): 3A
Configuration: 42N38P
Internal Resistance: 26±2mΩ

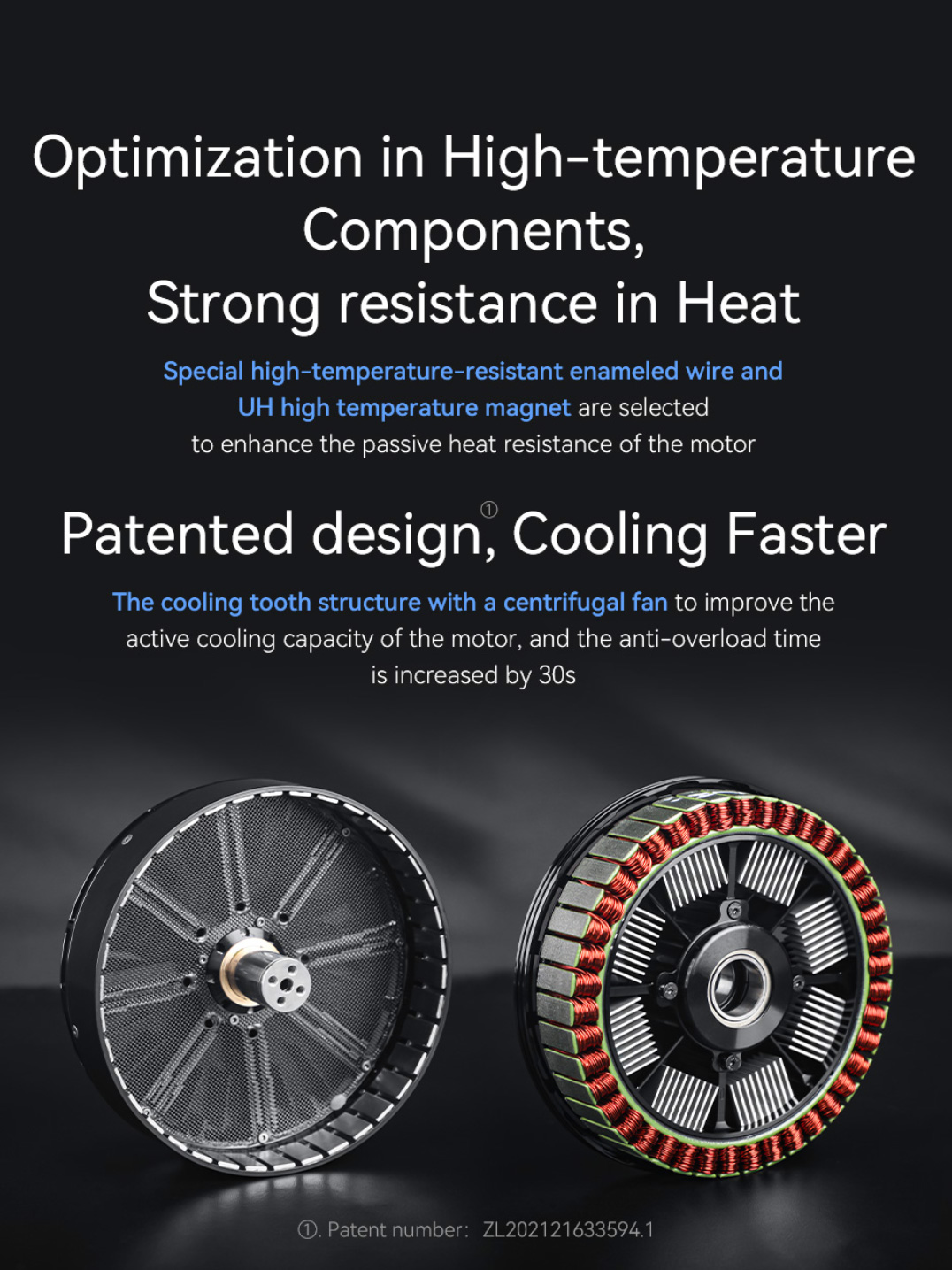

Lead Spec: Enamelled wire straight out 150mm
Ingress ProtectionLevel: IPX5
Rated Voltage (Lipo): 24S，Max. 104V
Peak Current (15s): 190A
Propeller Recommendation: VZ42*16.5″
Max. Continuous Power: 6000W
ESC Recommendation: THUNDER 200A 24S

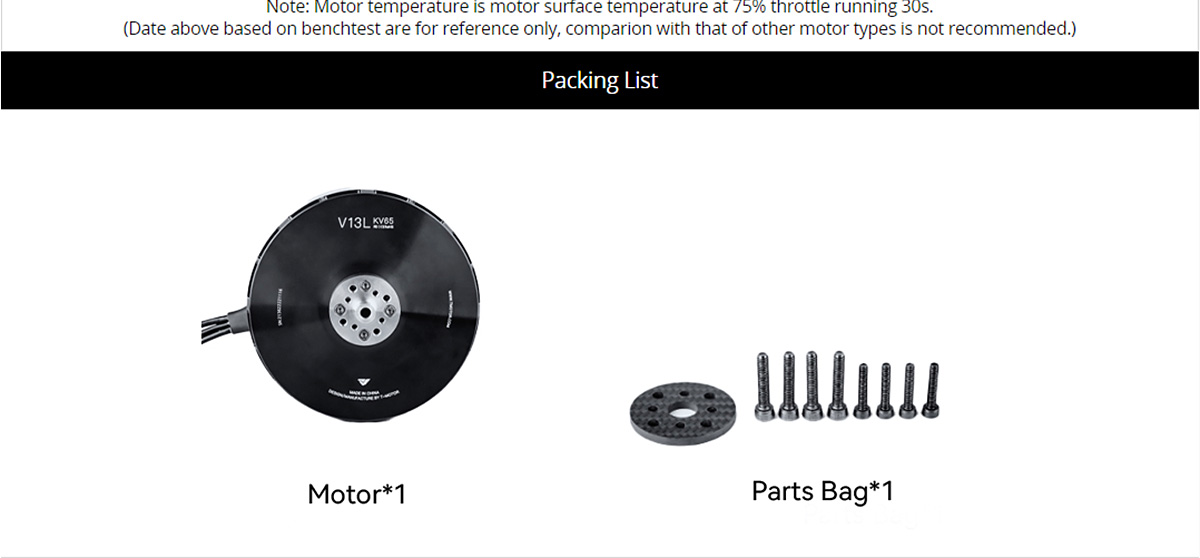

V13L Motor x1

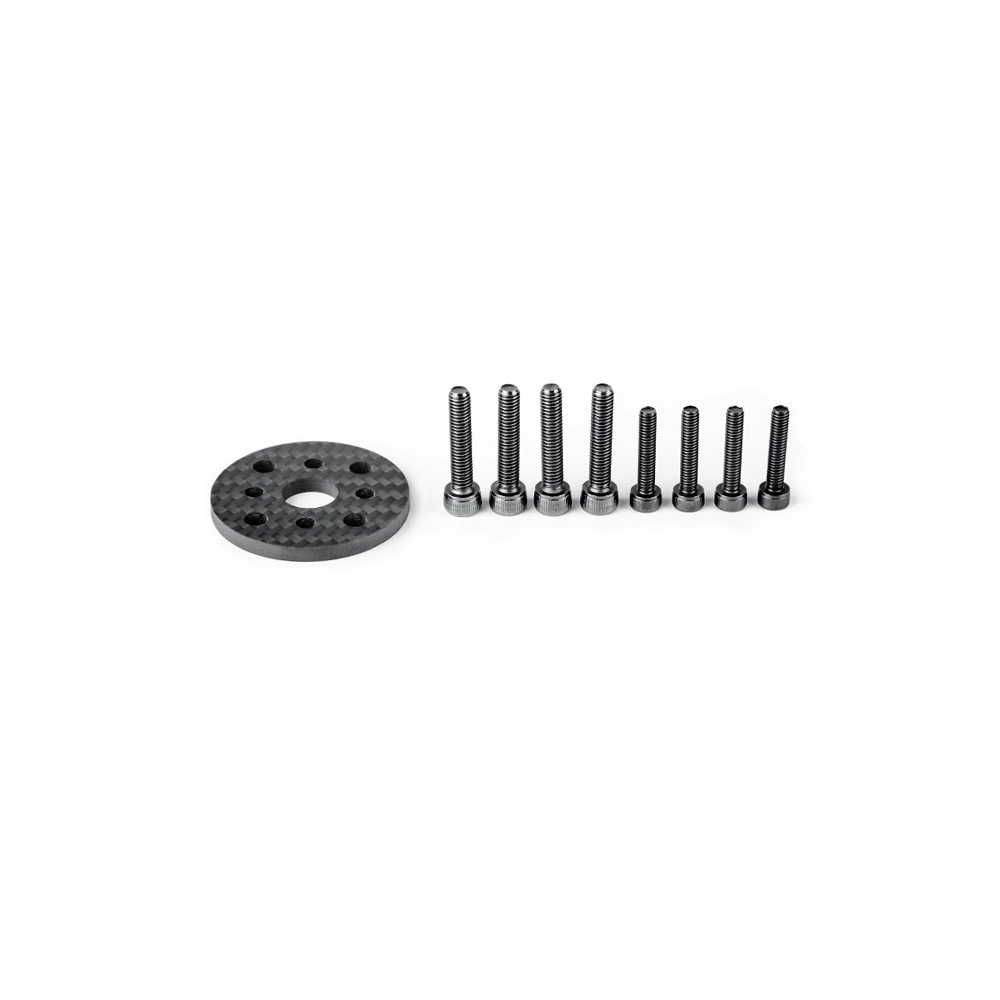

Parts Bag x1
