T-MOTOR MN6007 II 160KV 320KVBrushless Motor Max Thrust 5.5kg Long Flight Time Super Light Efficient Drone More Shaft Rotor Motor
T-MOTOR MN6007 II 160KV 320KVBrushless Motor Max Thrust 5.5kg Long Flight Time Super Light Efficient Drone More Shaft Rotor Motor
T-MOTOR MN6007 II 160KV 320KVBrushless Motor Max Thrust 5.5kg Long Flight Time Super Light Efficient Drone More Shaft Rotor Motor
Test Item：KV160

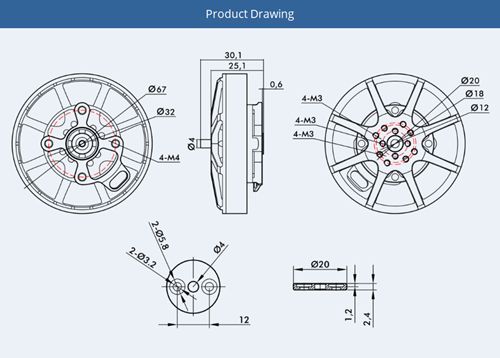

Motor Dimensions：Φ67 * 30.1mm
Lead：Enameled Wire 60mm
Shaft Diameter：6mm
Idle Current (22v)：0.5A
Max Power (180s)：864W
Weight ( Incl.Cable): 180g
Internal Resistance: 227mΩ
Configuration: 18N22P
Rated Voltage (Lipo): 6-12S
Peak Current (180s): 18A
Test Item: KV320
Motor Dimensions: Φ67 * 30.1mm
Lead: Enameled Wire 60mm
Shaft Diameter: 6mm
Idle Current (22v): 1.4A
Max Power (180s): 936W
Weight ( Incl.Cable): 180g
Internal Resistance: 50mΩ
Configuration: 18N22P
Rated Voltage (Lipo): 6S
Peak Current (180s): 39A
Motor x1
Parts Bag x1
