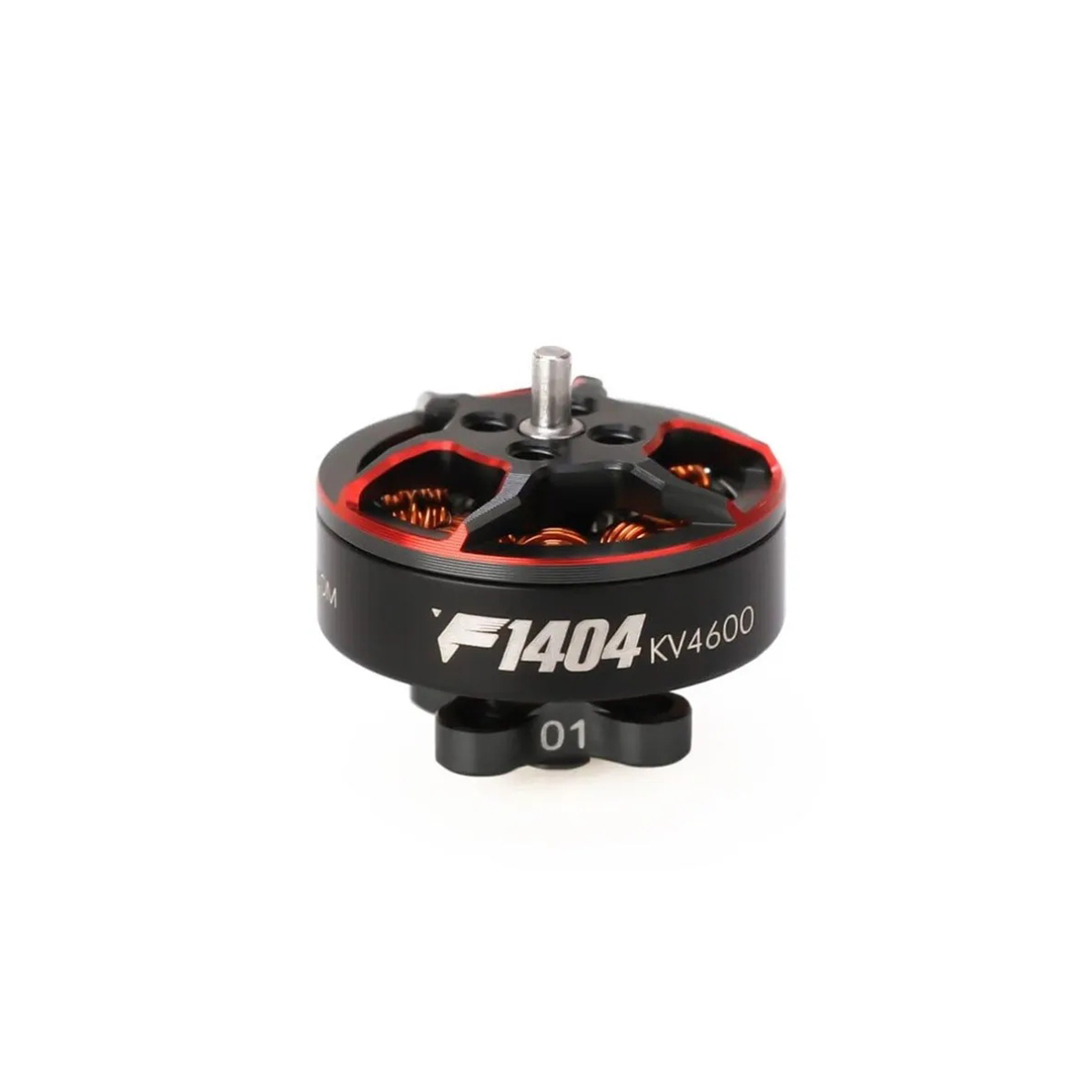

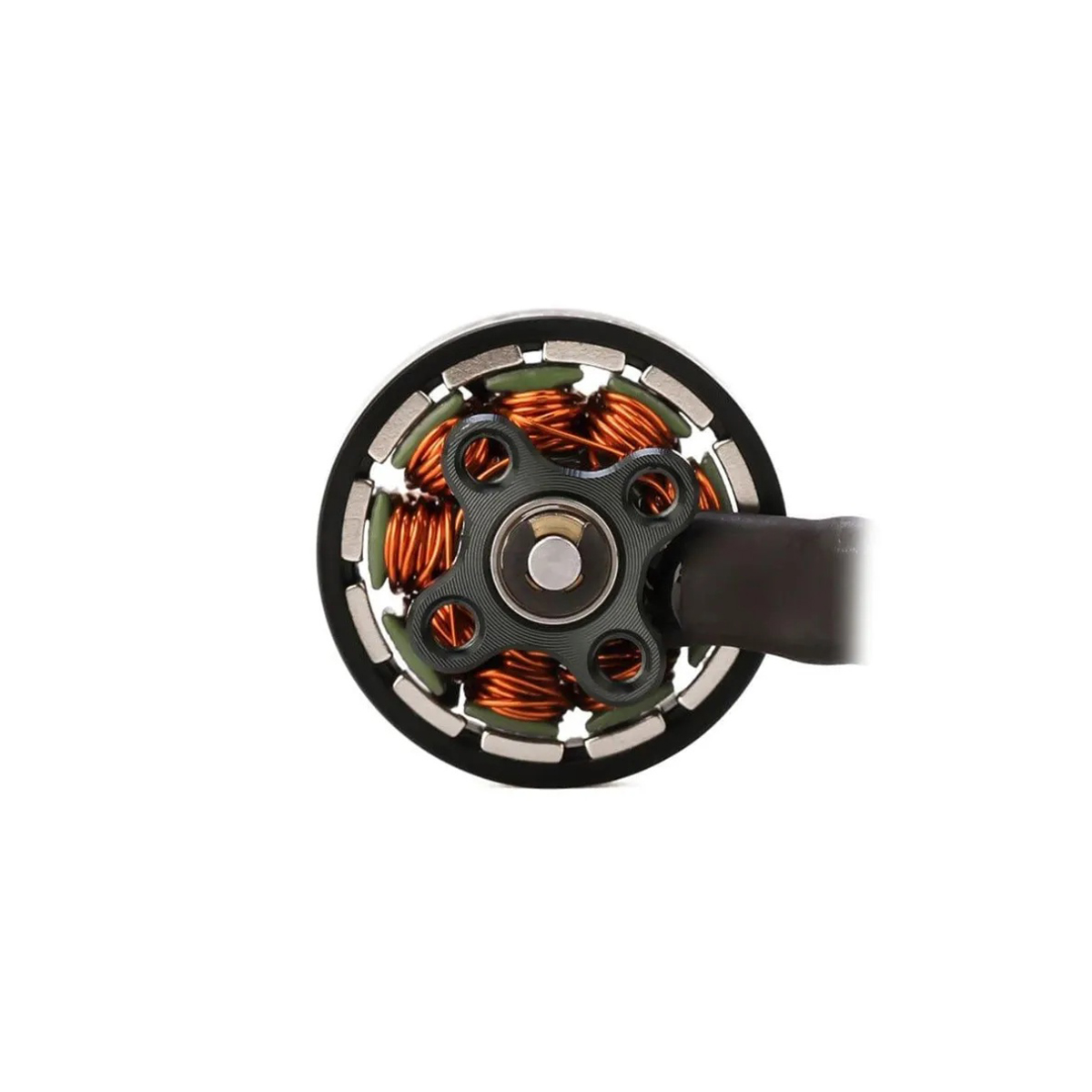

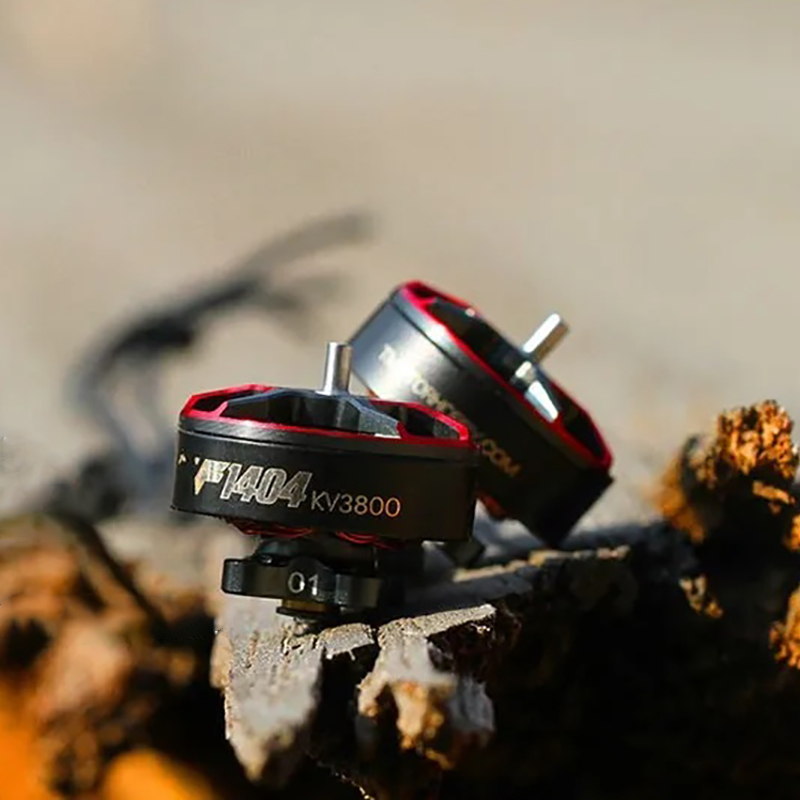

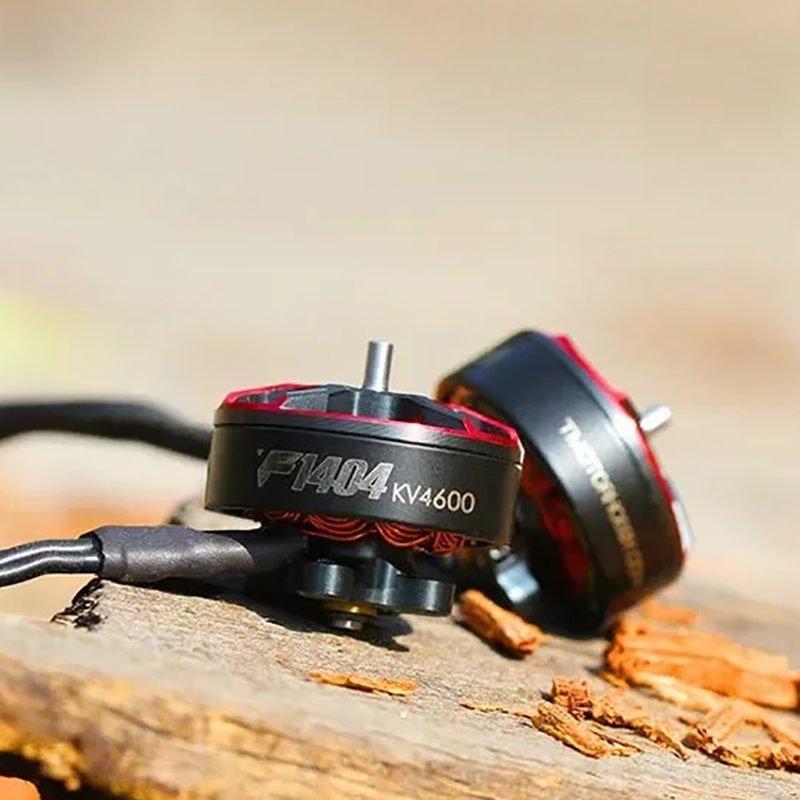

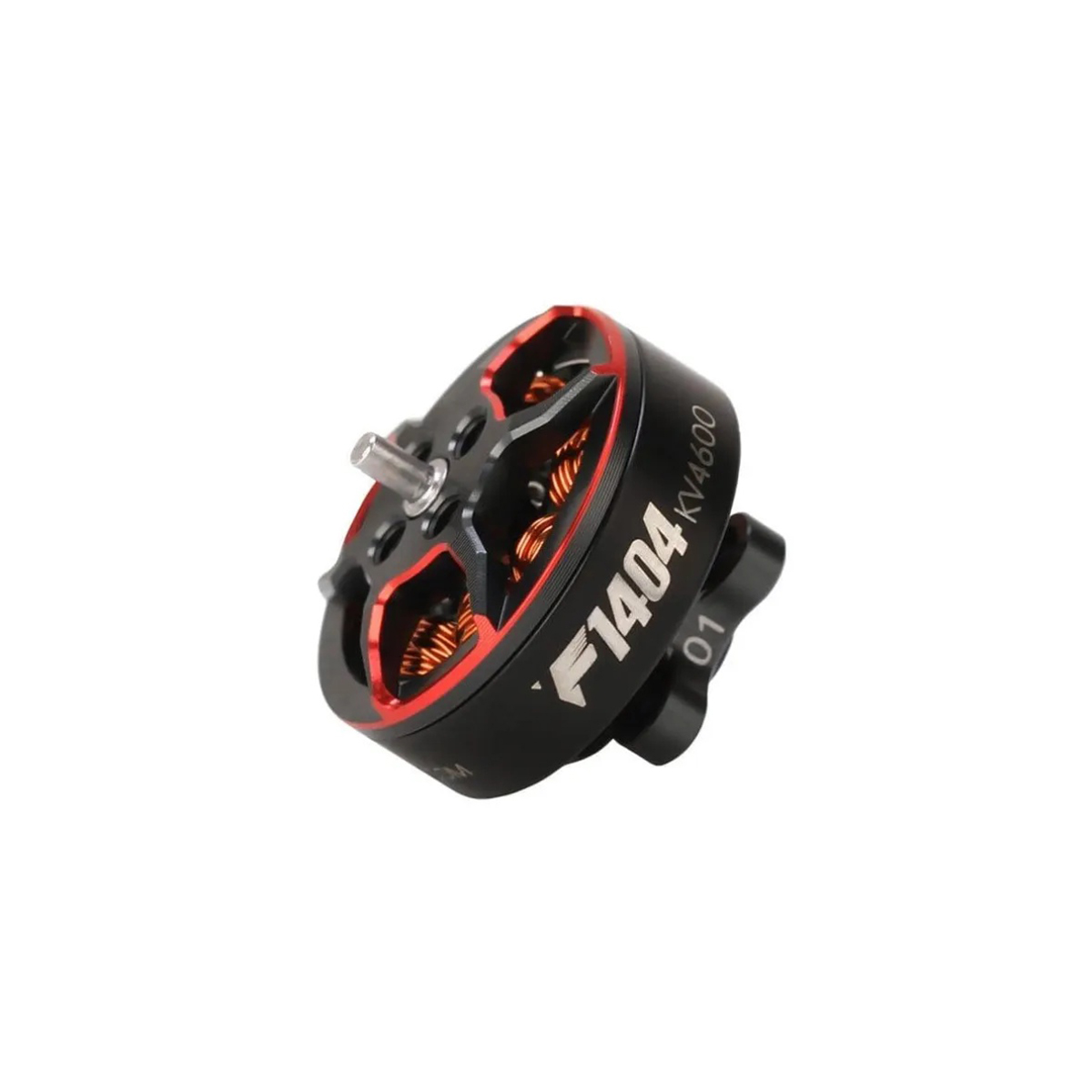

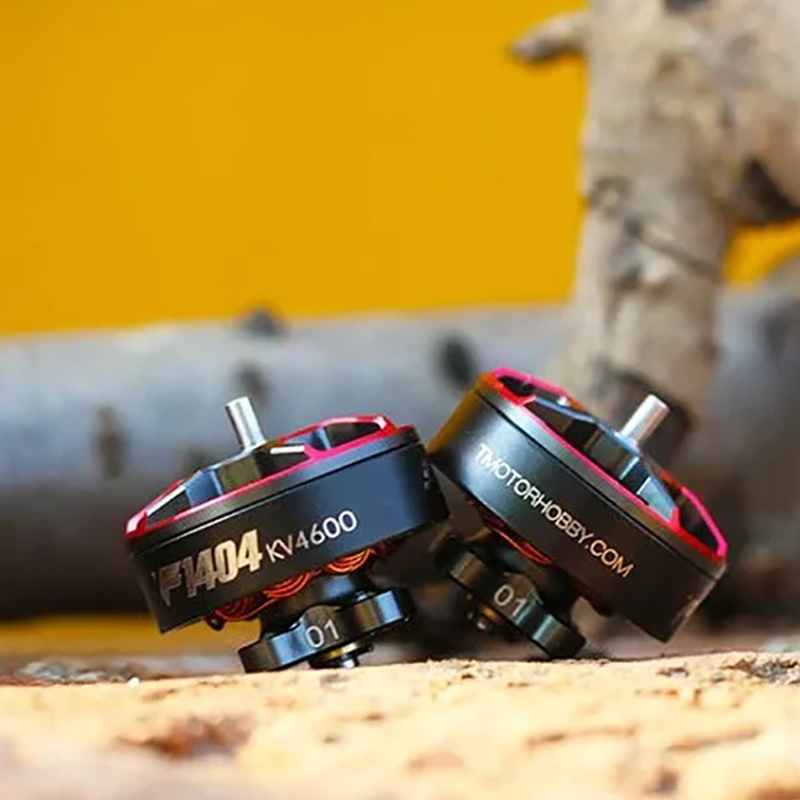

About T-MOTOR F1404 Micro Long-range Motor
Get micro long-range motor with the T-Motor F1404 2900KV/3800KV/4600KV Motor!
The F1404 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for 2.5-4 inch fpv builds!
F1404 Hightlight:
F1404 is a micro long-range motor with two KV options of 3800KV/4600KV. The 4600KV is specially designed for racing training and has stable power output.
With an ultra-light design, the 3800KV is suitable for 3-inch long-range freestyle and has a higher efficiency ratio.
The motor features a new sleek design and is made with high-quality components, making it ideal for 2.5-4 inch frames.
Model：F1404
KV: 2900
Motor Dimensions: Φ17.9*16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 2mm
Idle Current(10V): 0.4A
Max. Power(60s): 262W
Weight(Incl. Cable): 9.34g
Internal Resistance: 310mΩ
Configuration: 9N12P
Rated Voltage(Lipo): 4-6S
Peak Current(60s): 10.45A
KV: 3800
Motor Dimensions: Φ17.9*16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 2mm
Idle Current(10V): 0.5A
Max. Power(60s): 304W
Weight(Incl. Cable): 9.34g
Internal Resistance: 195mΩ
Configuration: 9N12P
Rated Voltage(Lipo): 3-4S
Peak Current(60s): 19A
KV: 4600
Motor Dimensions: Φ17.9*16.6mm
Lead: 24#AWG 150mm
Shaft Diameter: 2mm
Idle Current (10V): 0.6A
Max. Power(60s): 316W
Weight (Incl. Cable): 9.34g
Internal Resistance: 138mΩ
Configuration: 9N12P
Rated Voltage (Lipo): 3-4S
Peak Current (60s): 20A
F1404 Motor x1
Parts Bag x1
