*Keep monitoring motor speed in real time. TTO3 is compatible with the magnetic encoder system to ensure flight safety.

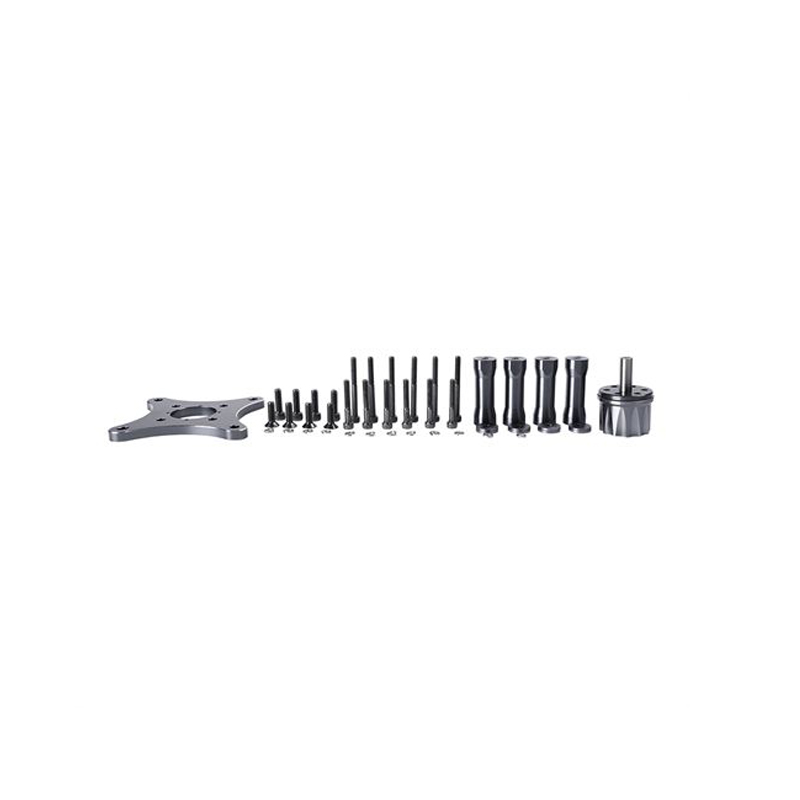

*Removable propeller hub for multiple applications. TTo adapts to the installation of fixed-wing one-piece propellers, folding propellers and other propellers. Provide a convenient and safe way of locking the propeller.

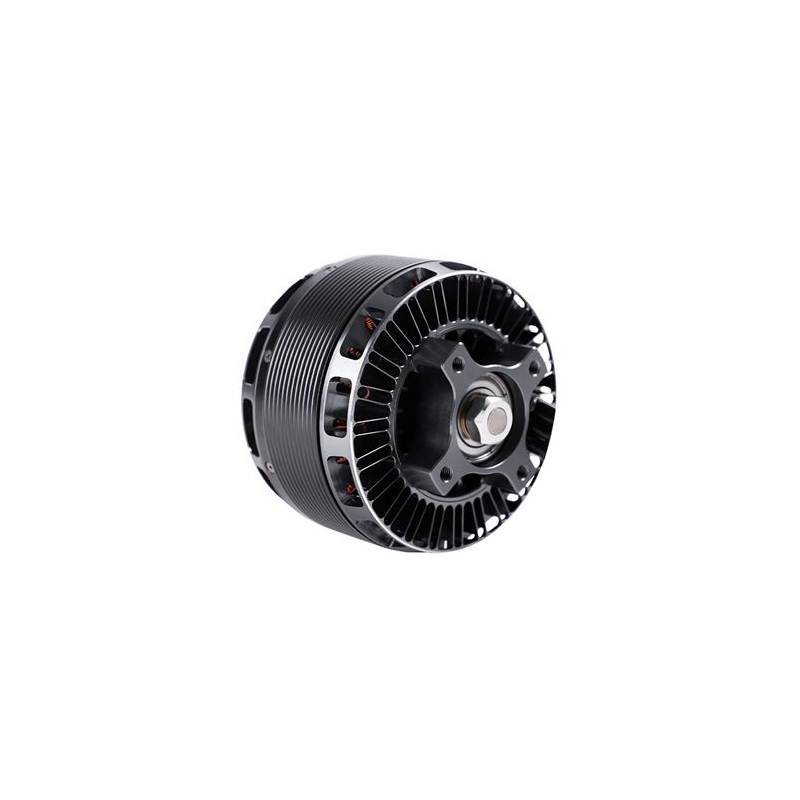

*High efficiency and heat dissipation for longer service life. TT02 with bottom-mounted heat sink.

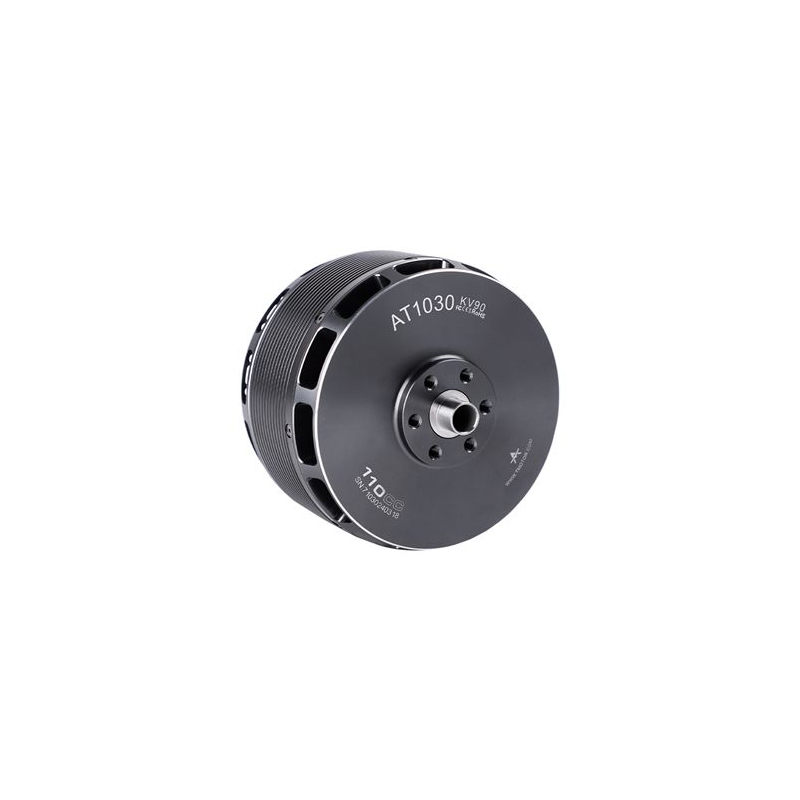

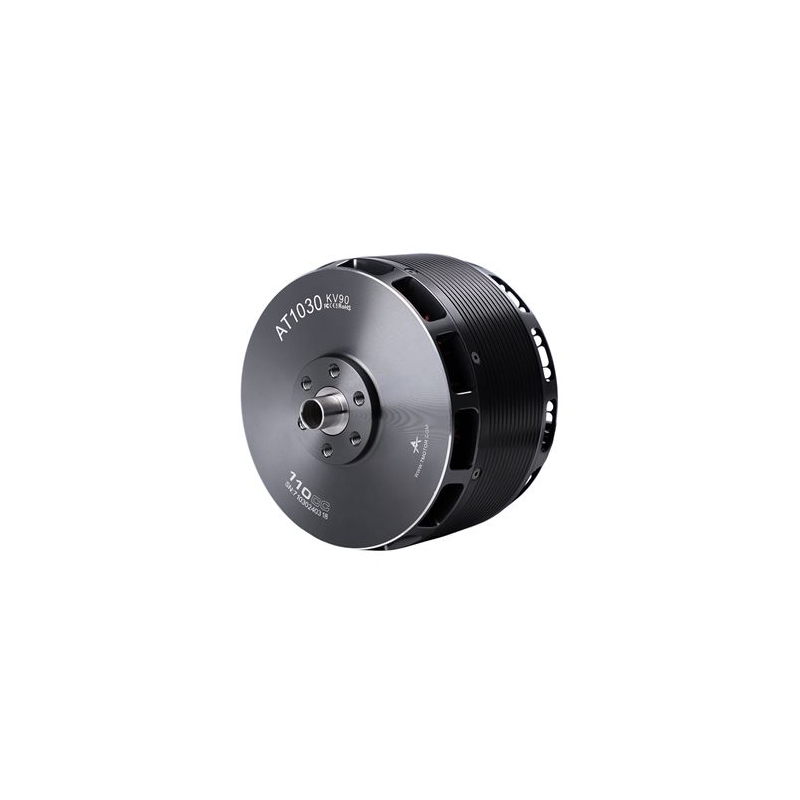

Type: AT1030.
Magnet temperature resistance grade: 180°C.
Motor dimension: 110.6 * 99.8mm.
Lead x Length: Enameled wire 100mm.
Stator technology: 150°C high temperature-resisting coatings. Temperature resistance of enameled wires: 220°C.
Configuration: 24N28P.
Coil pressure-resistant: 1000V/5s.
Shaft diameter: IN: 15mm, OUT: 12mm.
Dynamic balance requirements standards: ≤30mg.
KV: 90.
Idle Current (15V): 3.6A.
Max.Continuous Power: 4000W.
Peak Current: 93A.
Rated Voltage (LiPo): 24S.
Internal Resistance: 12mΩ.
Max Thrust: 28kg.
Weight (Incl.cable): 1800g.
T-MOTOR AT1030 KV190 x1
