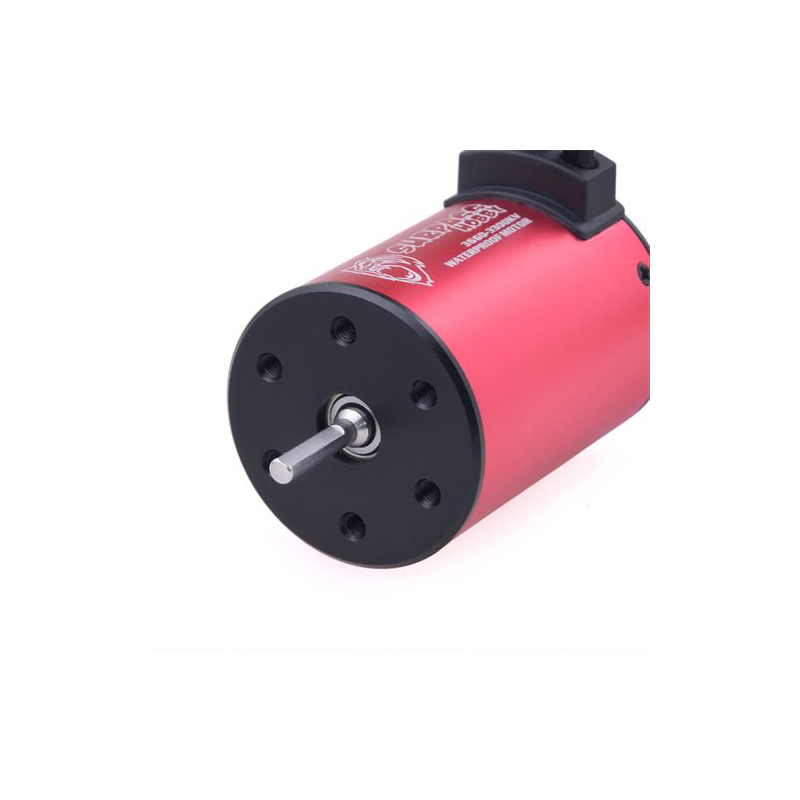

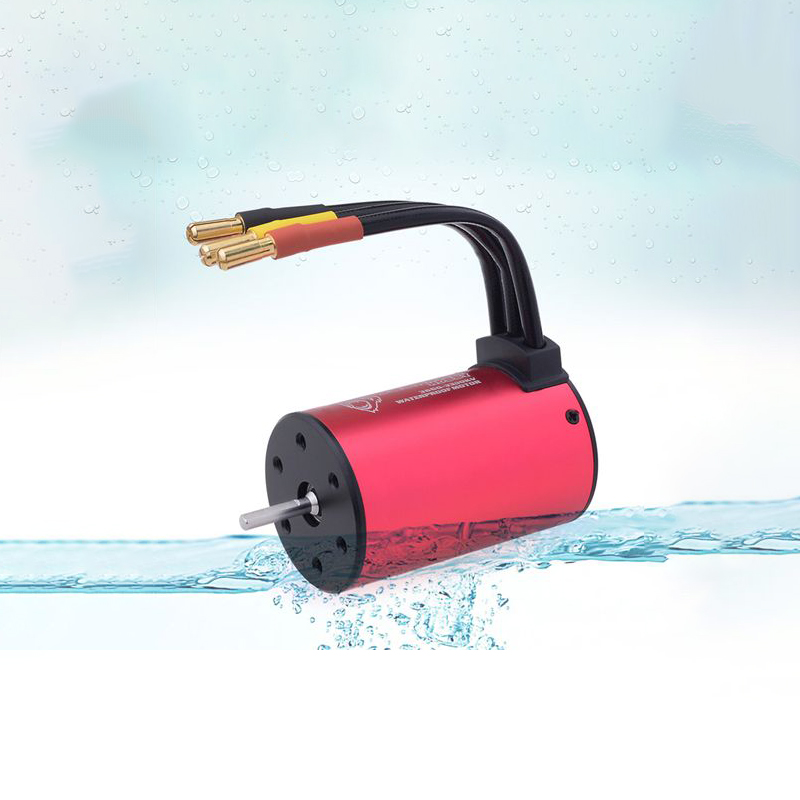

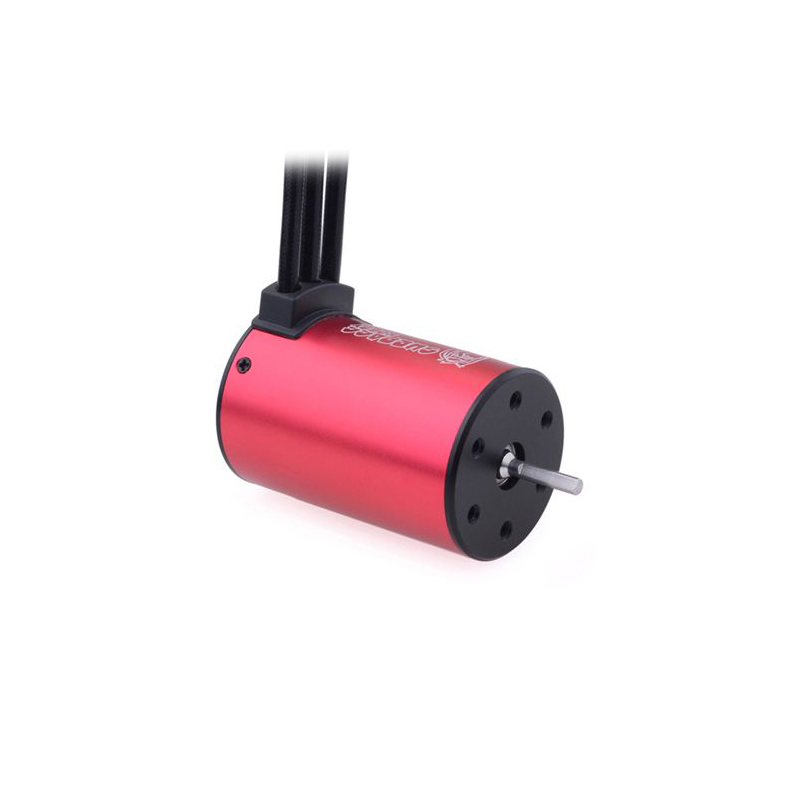

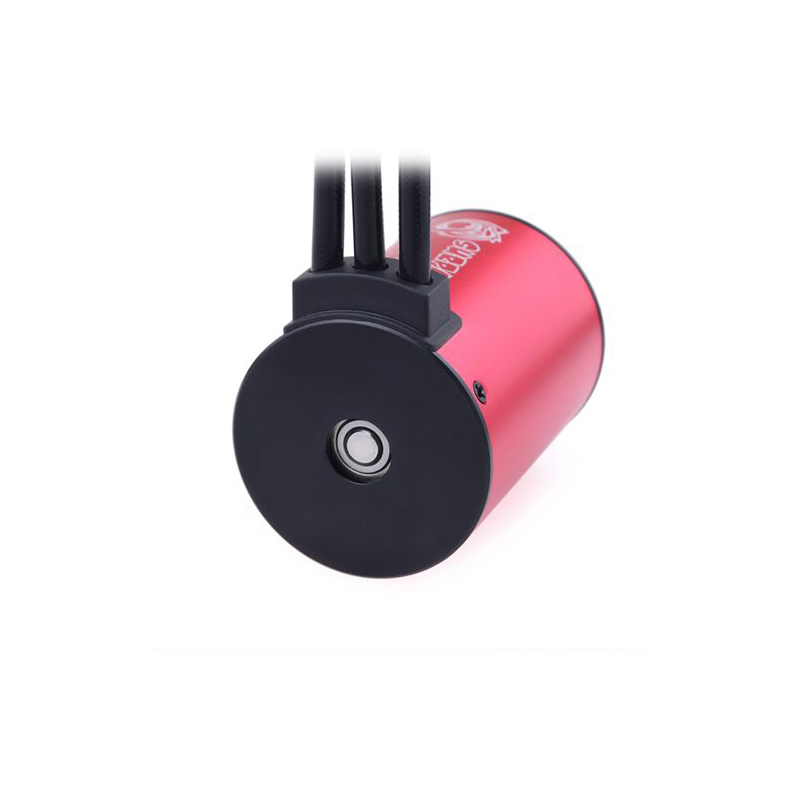

Surpass Hobby Waterproof Brushless Motor 3660 RC Car Motor For 1/8 1/10 2S 3S RC Car Drift Racing Off-Road Truck
Surpass Hobby Waterproof Brushless Motor 3660 RC Car Motor For 1/8 1/10 2S 3S RC Car Drift Racing Off-Road Truck
— 4 Pole 12 Slot Hi-torque Motor Design
— CNC Machined 6061 T6 Billet Aluminum Heatsink Can
— High Purity Copper Windings Maximizes Efficiency
— High RPM ABEC5 Oversized Bearings
— Universal Fit, Fits All 1/10 1/8 Brushless Cars-Multi-Mounting System For M3 Screws
— Precision Balanced Rotor,Smoothness For Best Reliability and maximum RPM
— Stator – Super Thin (0.35mm) Laminations
— Removable/replaceable Rotor
— Precision Enginceered For Maximum Energy Conversion
KV(RPM/Volt): 2200KV
Watt:1200
Max RPM: 50000
Max voltage: <21V
Max amps: 57A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft(mm): ø3.175 / ø 5.0 Optional
Length of extend shaft：17mm
Connector: 4.0mm gold
Weight: 228g
Packing size(mm):110 x 68 x 42
KV(RPM/Volt): 2600KV
Watt:1200
Max RPM: 50000
Max voltage: <19V
Max amps: 63A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft(mm): ø3.175 / ø 5.0 Optional
Length of extend shaft：17mm
Connector: 4.0mm gold
Weight: 228g
Packing size(mm):110 x 68 x 42
KV(RPM/Volt): 3100KV
Watt:1200
Max RPM: 50000
Max voltage: <15V
Max amps: 80A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft(mm): ø3.175 / ø 5.0 Optional
Length of extend shaft：17mm
Connector: 4.0mm gold
Weight: 228g
Packing size(mm):110 x 68 x 42
KV(RPM/Volt): 3500KV
Watt:1200
Max RPM: 50000
Max voltage: <13V
Max amps: 92A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft(mm): ø3.175 / ø 5.0 Optional
Length of extend shaft：17mm
Connector: 4.0mm gold
Weight: 228g
Packing size(mm):110 x 68 x 42
KV(RPM/Volt): 4200KV
Watt:1200
Max RPM: 50000
Max voltage: <12V
Max amps: 100A
Rotor poles: 4
Diameter: 35.5mm
Length: 59mm
Shaft(mm): ø3.175 / ø 5.0 Optional
Length of extend shaft：17mm
Connector: 4.0mm gold
Weight: 228g
Packing size(mm):110 x 68 x 42

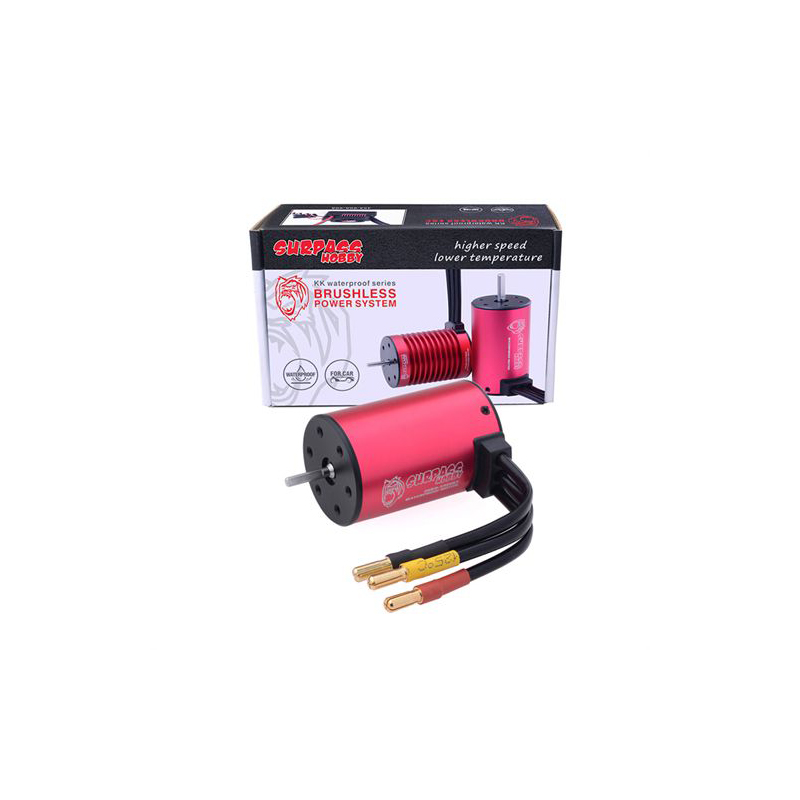

1 x SURPASS HOBBY Brushless Motor
1 x English Manual
