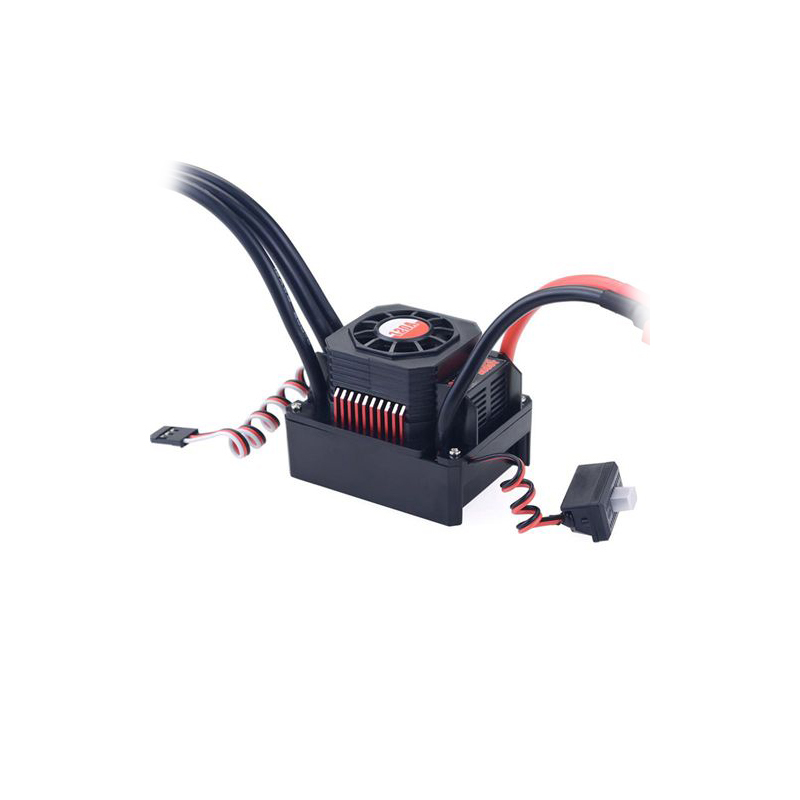

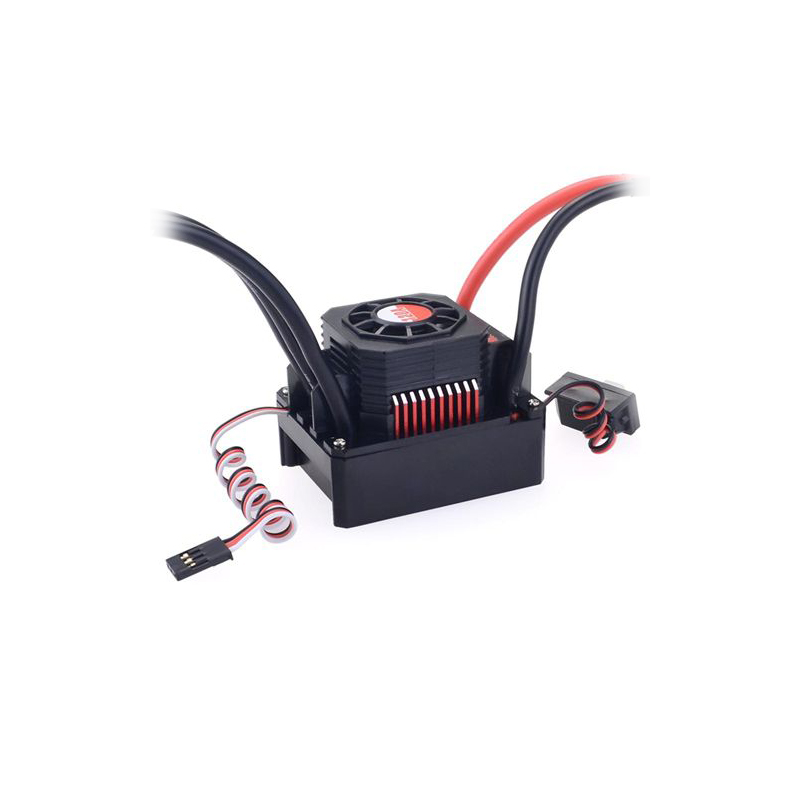

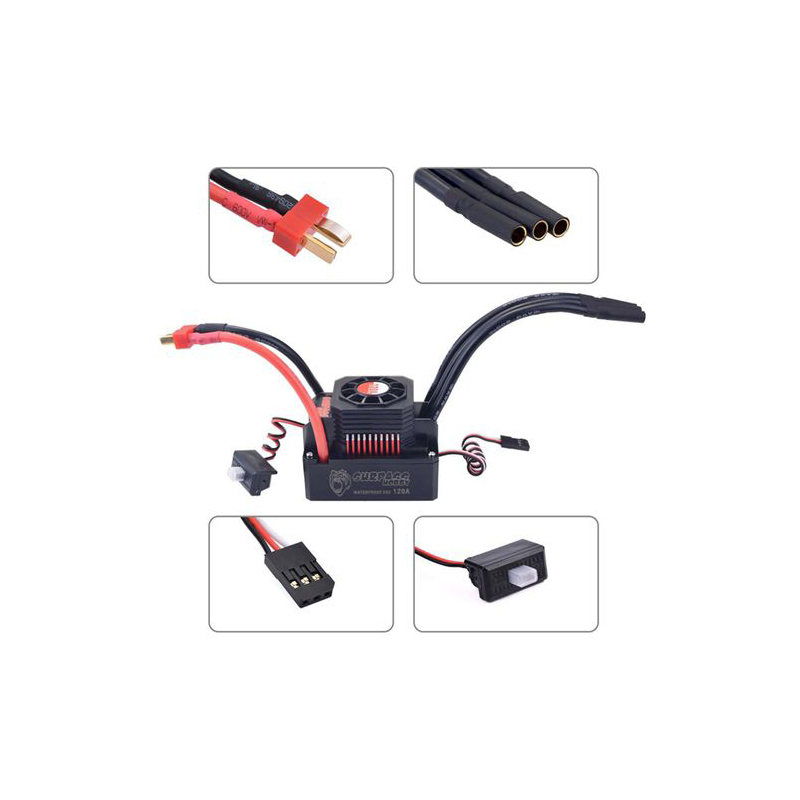

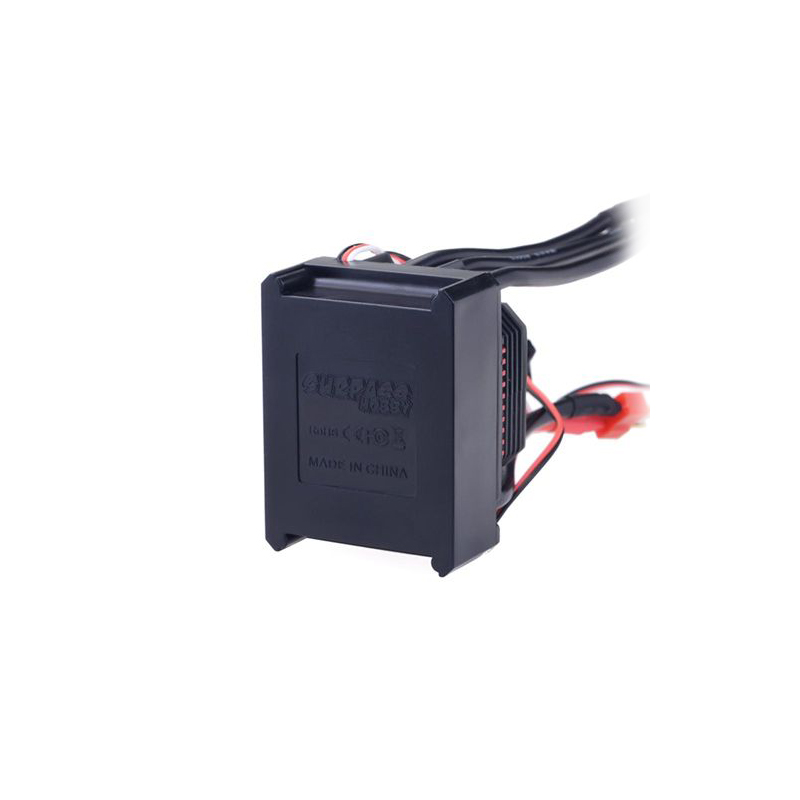

SURPASS HOBBY Waterproof Brushless ESC Speed Controller T PLUG 120A With Fan Combo For 1/8 1/10 RC Racing Car
SURPASS HOBBY Waterproof Brushless ESC Speed Controller T PLUG 120A With Fan Combo For 1/8 1/10 RC Racing Car
1.This ESC Water-proof and dust-proof for all weather races;(Note:please uninstall the cooling fan before using SC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2.Specially designed for RC car with excellent start-up,acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4.The strong resistant current capability ,excellent heat dissipation.
5.Muitiple protection features:Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle signal loss protection/Motor blocked protection.
6.Easily programmed and compatible with pocket-sized program card.
Brand: SURPASSHOBBY
Cont.Current/Burst Current: 120A/600A
Motor Type: Sensorless Brushless Motor
For 4S Lipo or 12 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<3000KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2500KV
For 6S Lipo or 18 cells NiMH :
1. on-road: 40XX-Size or smaller motor with the KV<2500KV
2. off-road/Buggy/Monster: 40XX-size or smaller motor with the KV <2000KV
Suitable Car: 1/8 Car
Resistance: 0.00035ohm
Battery: 3-6S Lipo/9-18Cells NiMH
BEC Output: 6.1V/3A (Switch mode)
Dimensions/Weight: 160x100x62mm/136g
SURPASSHOBBY 120A ESC x 1
