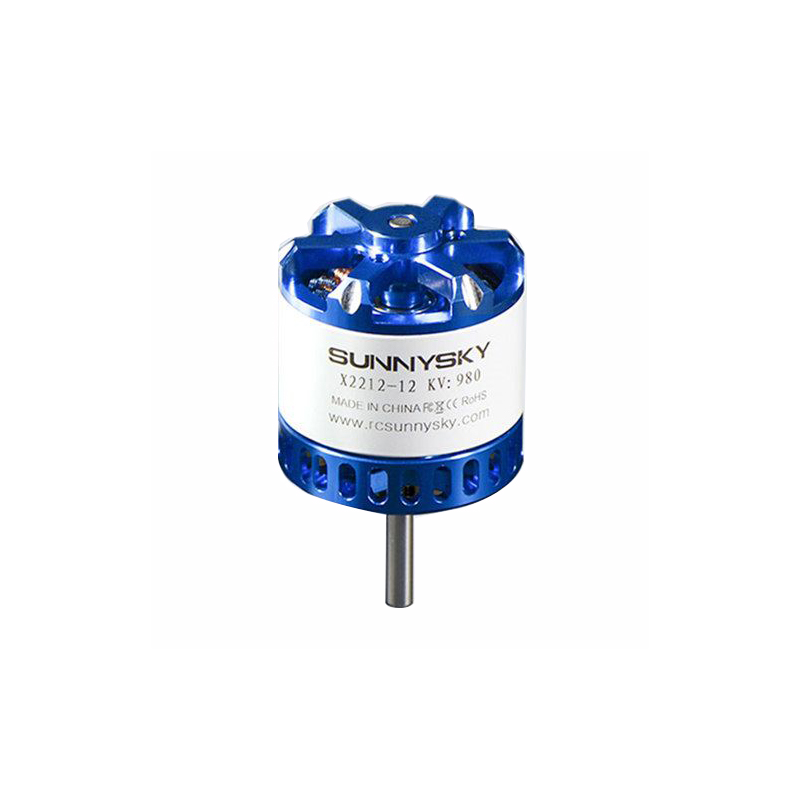

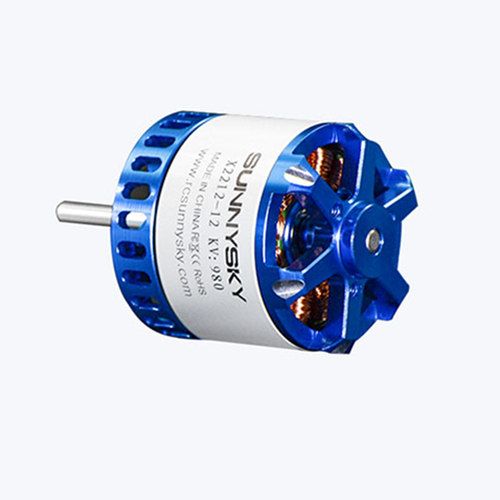

Specifications X2212
Stator Diameter 22mm
Stator Thickness 12mm
No.of Stator Slots 12
No.of Rotor Poles 14

Motor Kv 980
NO-Load Current(A/10V) 0.6A
Motor Resistance 92mΩ
Max Continuous Current 26A/30s
Max Continuous Power 385W
Weight 57g
Rotor Diameter 27.5mm
Body Length 30mm
Max Lipo Cell 3-4S
ESC 20-30A
Recommend Prop(inch) APC8038 APC1047 APC1038 APC9047 APC9045
Application recommendation:
Multicopter single rotor load 400g  3-4S 1038\1047）
Multicopter single rotor load 500g（4S 8038\8043\8045\9047)
3D airplane flight weight 550g (3S 1047)
TRAINER flight weight 750g  3S 1047

Motor Kv 1250
NO-Load Current(A/10V) 0.8A
Motor Resistance 54mΩ
Max Continuous Current 35A/30s
Max Continuous Power 518W
Weight 59g
Rotor Diameter 27.5mm
Body Length 30mm
Max Lipo Cell 3-4S
ESC 30-40A
Recommend Prop(inch) APC9047 APC9060 APC8060 APC7060
Application recommendation:
AEROBATIC airplane flight weight 750g  (3S 9047\9060\9045\8060）
3D airplane flight weight  550g (3S 9047\9045)

Motor Kv 1400
NO-Load Current(A/10V) 1A
Motor Resistance 43mΩ
Max Continuous Current 37A/30s
Max Continuous Power 560W
Weight 57g
Rotor Diameter 27.5mm
Body Length 30mm
Max Lipo Cell 3-4S
ESC 30-40A
Recommend Prop(inch) APC9047 APC9045 APC8038 APC7060 APC8060
Application recommendation:
AEROBATIC airplane flight weight 750g (3S 9047\9045\8060）(4S 7060)
