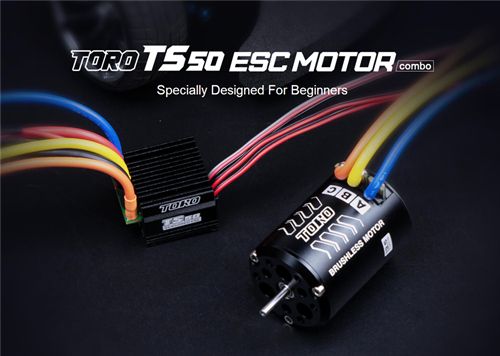

SkyRC TS50 50A Brushless Sensored ESC 13.5T 2590KV Brushless Motor Power System Combo for 1/10 Touring Car
SkyRC TS50 50A Brushless Sensored ESC 13.5T 2590KV Brushless Motor Power System Combo for 1/10 Touring Car
SkyRC TS50 50A Brushless Sensored ESC 13.5T 2590KV Brushless Motor Power System Combo for 1/10 Touring Car
Brand:SKYRC
Model:TS50 SENSORED ESC
Constant / Burst Current: 50A / 300A
Motor Compatible:Brushless Sensor&Sensorless ESC
Car Compatible:1 / 10 Touring Car
Motor Limits:4-6S NiMH or 2S LiPO–≥8.5T ( 1 / 10 Touring Car ) , ≥11. 5T ( 1 / 10 Buggy )
Resistance:0.0006ohm
Battery cell Count:6V@2A
Size:35.3×32.4×19.7mm ( LxWxH )
Weight:60g
Remark:ALL the testing results are working with 540 class motor.

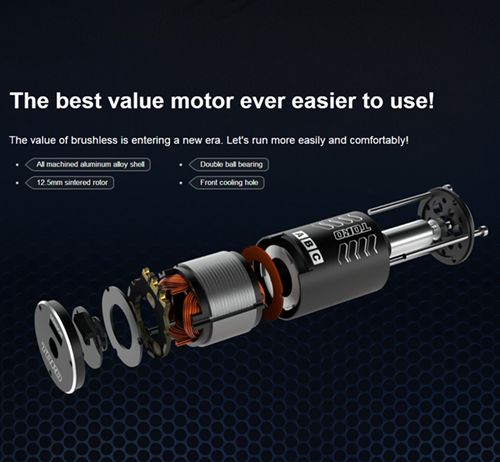

13.5T Sensored Brushless Motor Specifications
Watts:240W
Rotor:12.5mm
KV:2590KV
Weight:180g
Diameter: 36mm
Length: 50mm
Shaft:3.175mm
Shaft length:13mm
Resistance:36.1mΩ
LiPo:2-3S
Touring Car 1/10 Medium Track:4.8:1
Touring Car 1/10 Small Track:5.5:1

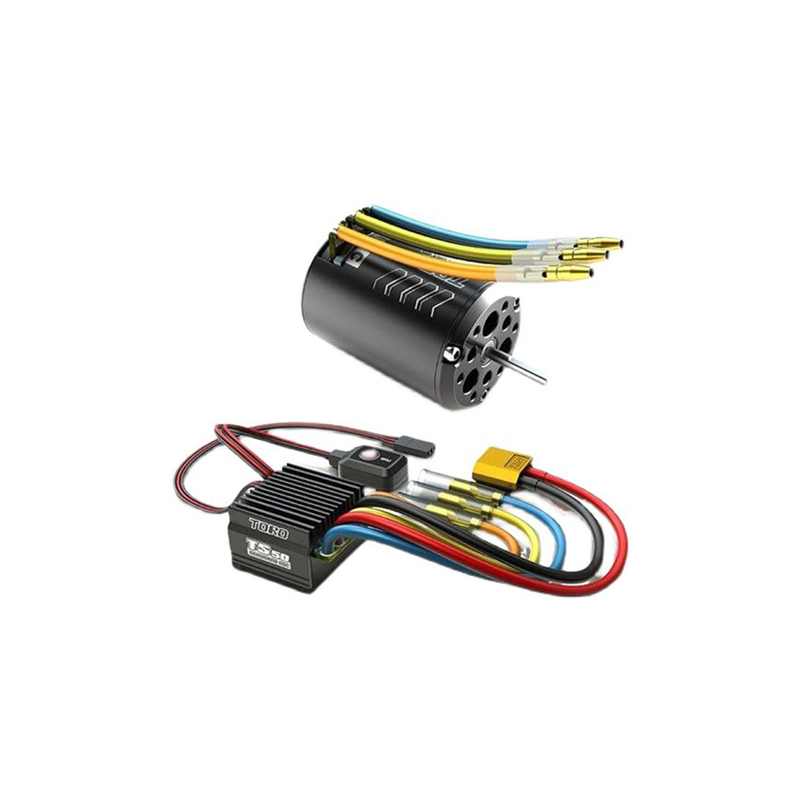

1 x TS50 50A ESC
1 x 13.5T Brushless motor
