PX4FLOW Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control System

SKU N/A Category Tag Brand:

PX4FLOW Optical Flow Sensor Smart Camera for PX4 PIXHAWK Flight Control System

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

PX4Flow is an optical flow smart camera. It has a native resolution of 752×480 pixels and calculates optical flow on a 4x binned and cropped area at 250 Hz (bright, outdoors), giving it a very high light sensitivy. Unlike many mouse sensors, it also works indoors and in low outdoor light conditions without the need for an illumination LED at 120 Hz (dark, indoors). It can be freely reprogrammed to do any other basic, efficient low-level computer vision task.

Hardware Specifications:
STM32F405, 168 MHz Cortex M4F (GFLOPS 128 + 64 KB RAM)
752×480 MT9V034 image sensor, L3GD20 3-axis Gyro

4 mm M12 lens (IR block filter)
Size: 45.5mm×35mm
Power consumption: 115mA/5V

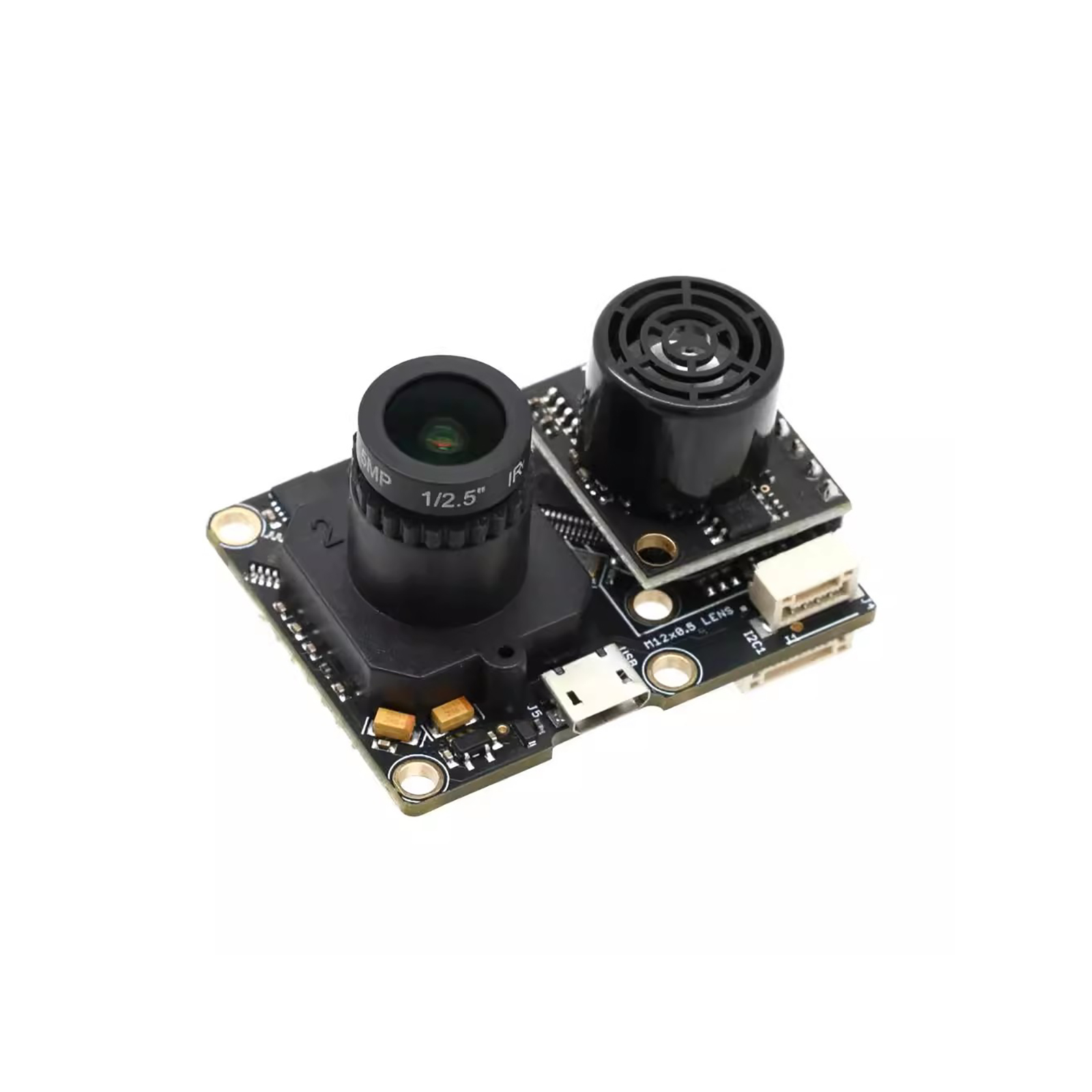

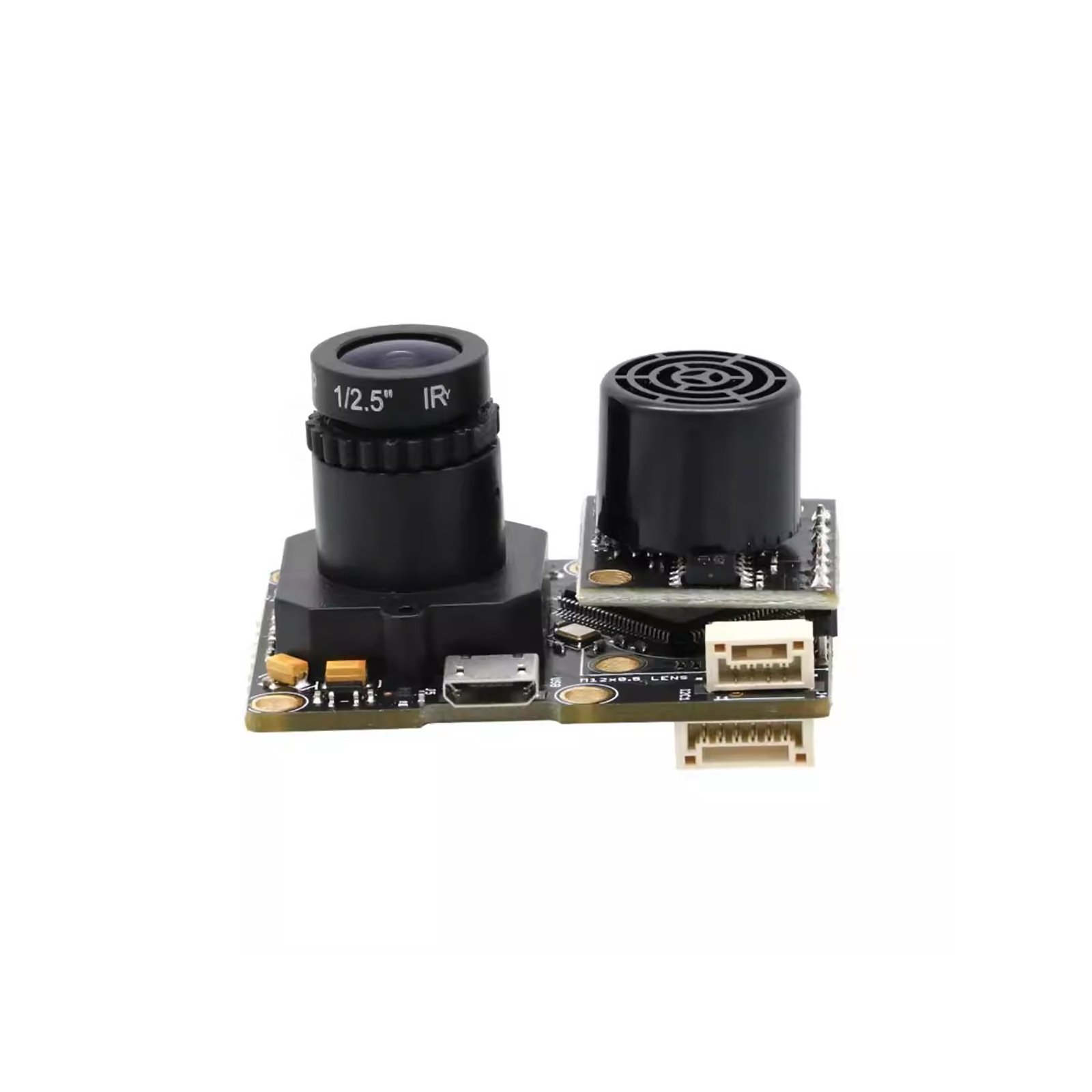

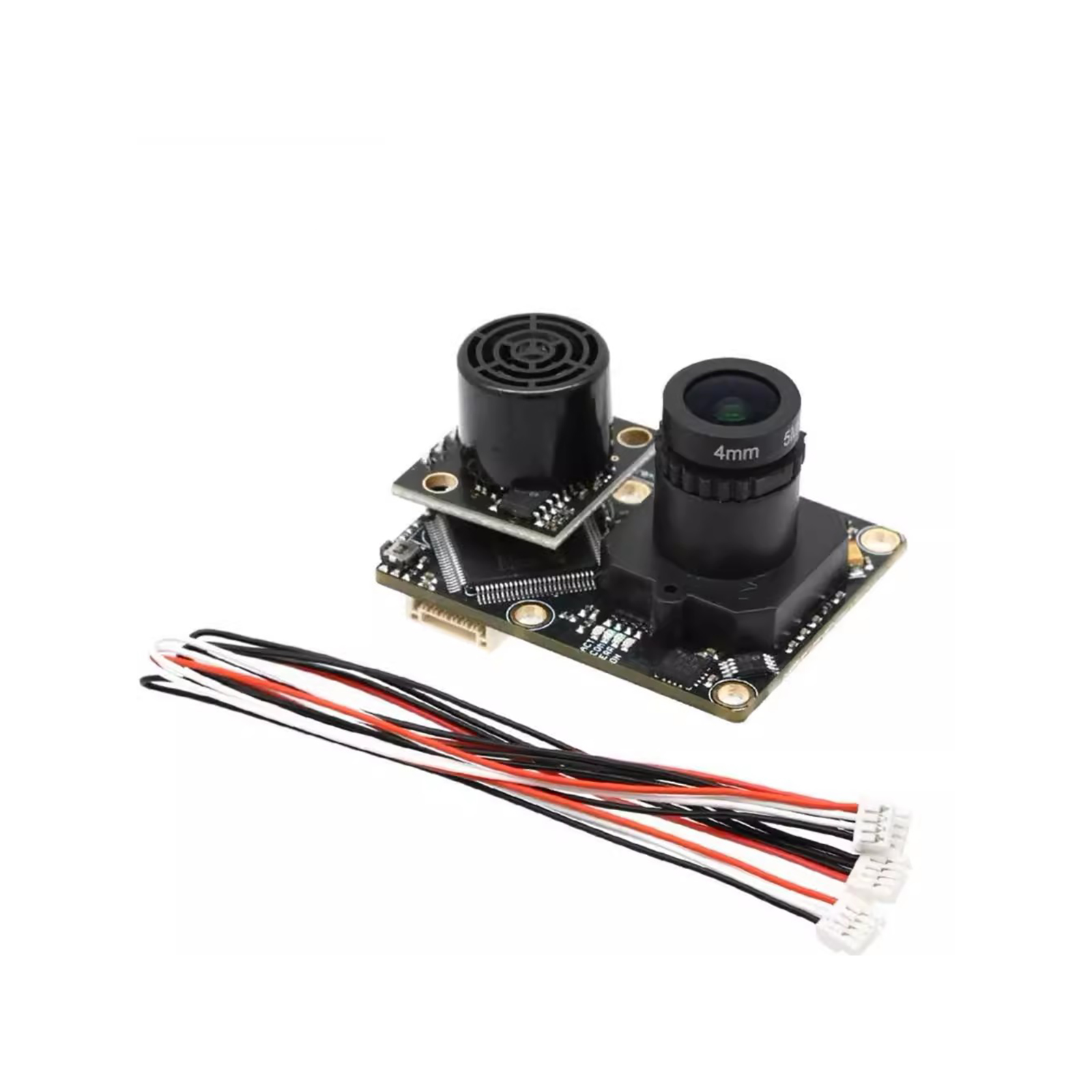

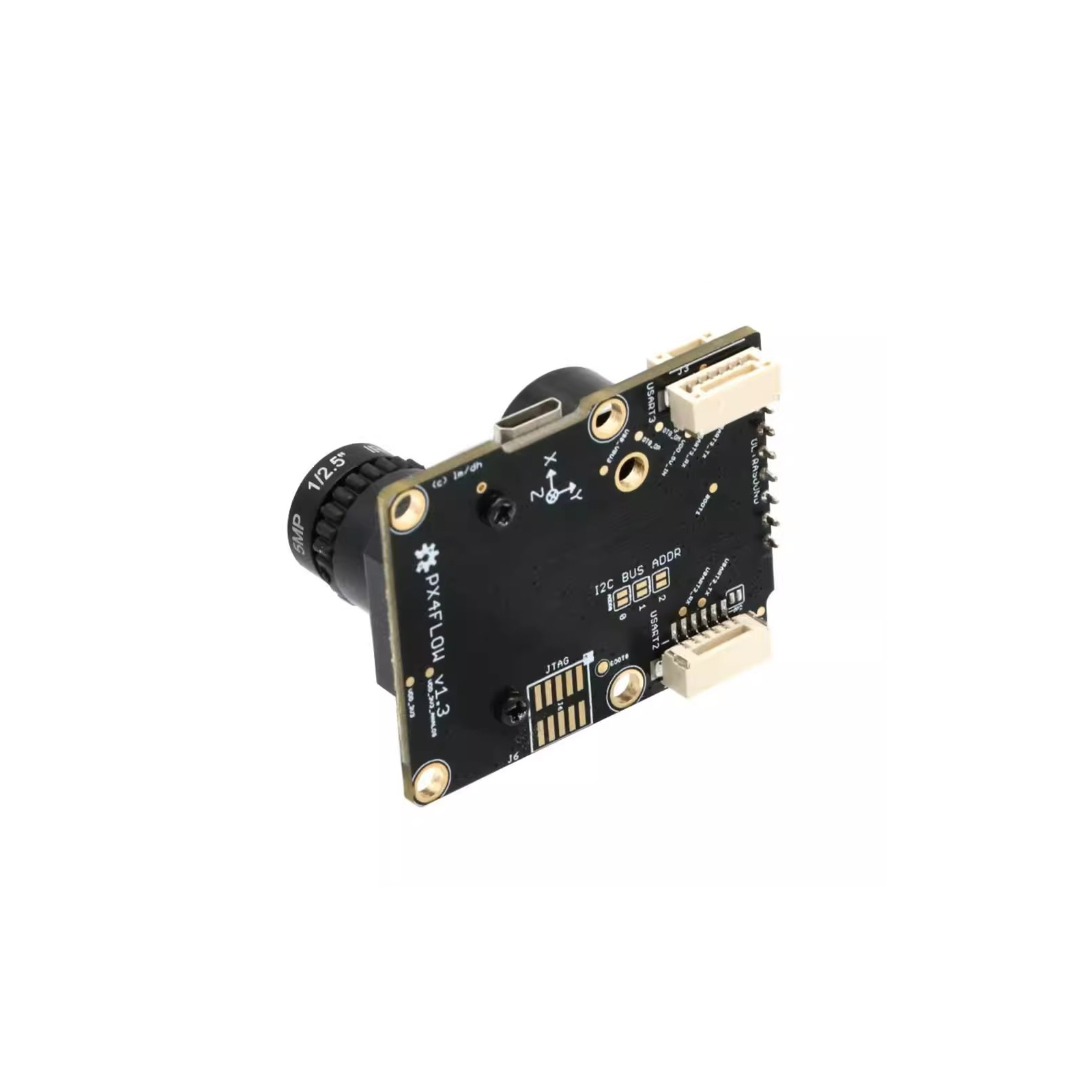

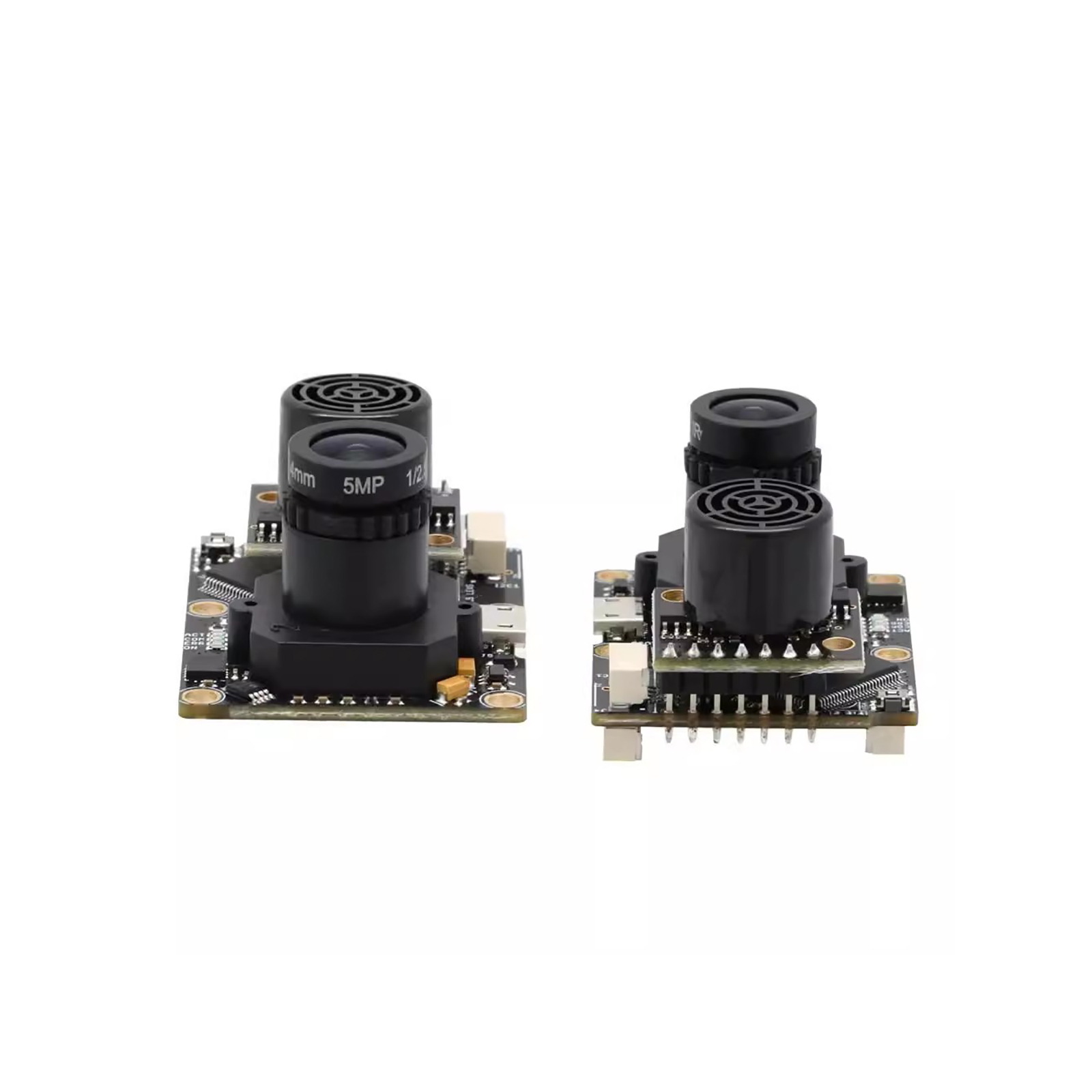

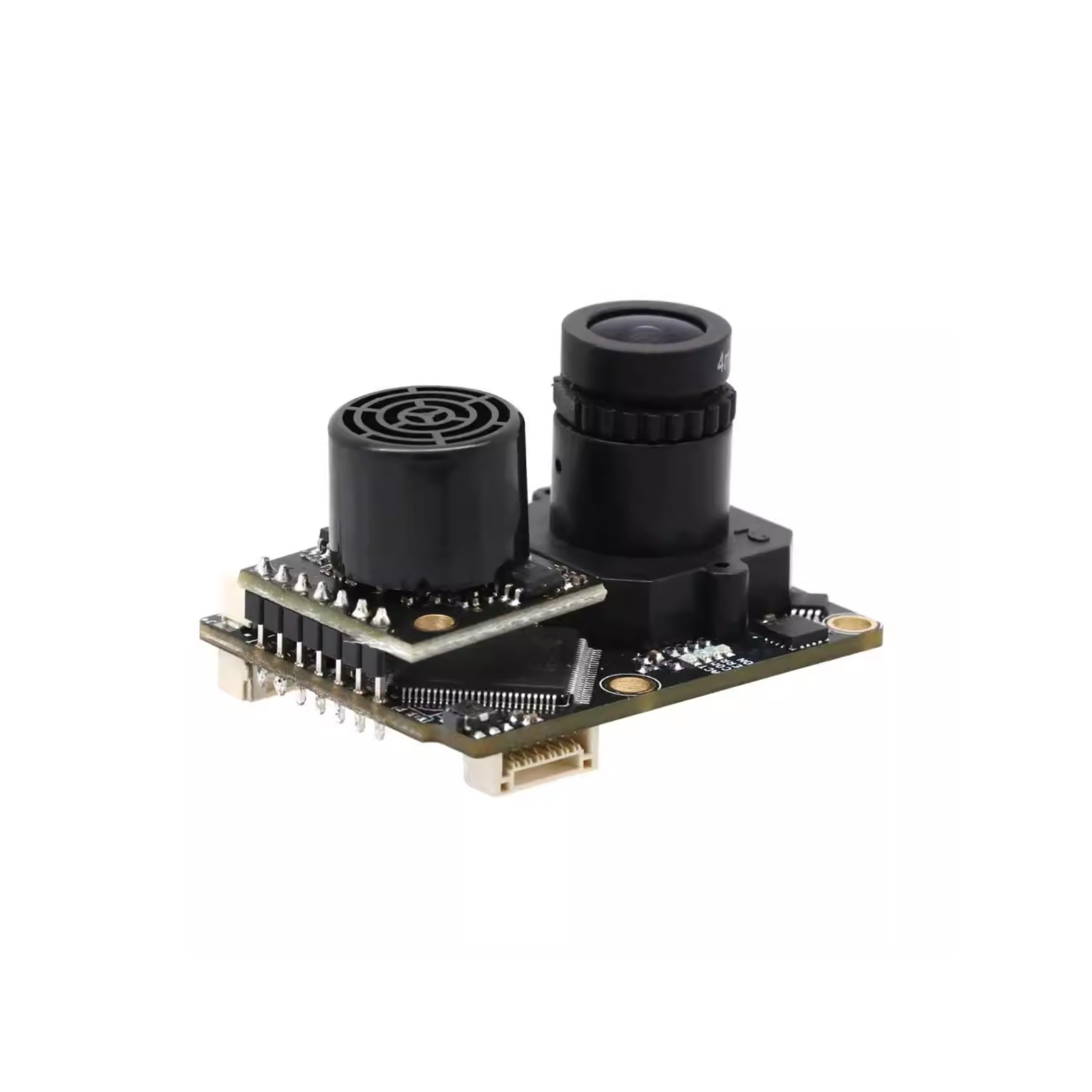

With MB1043
PX4FLOW optical olow sensor smart camera x1
MB1043 ultrasonic moudle x1
Connecting cable x1

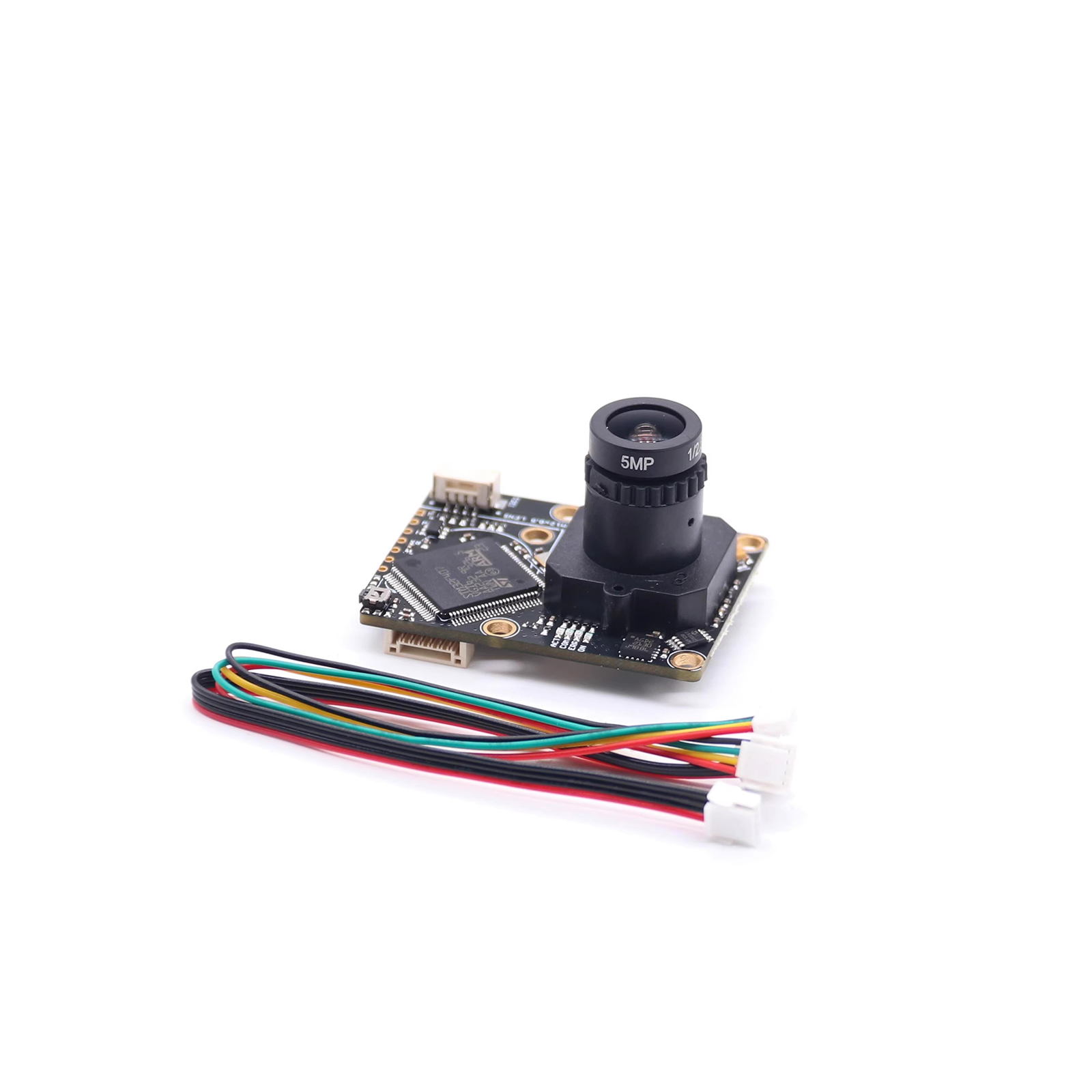

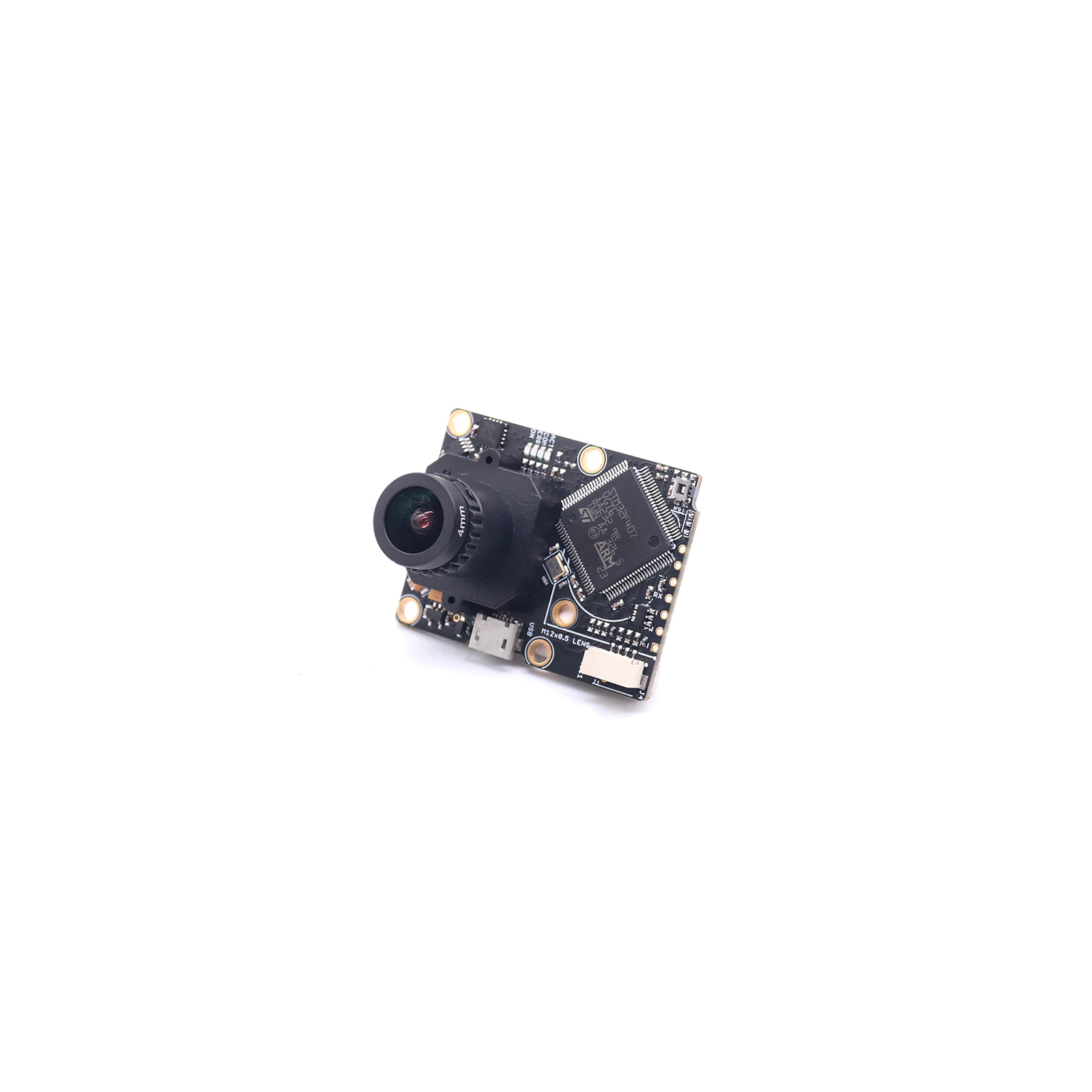

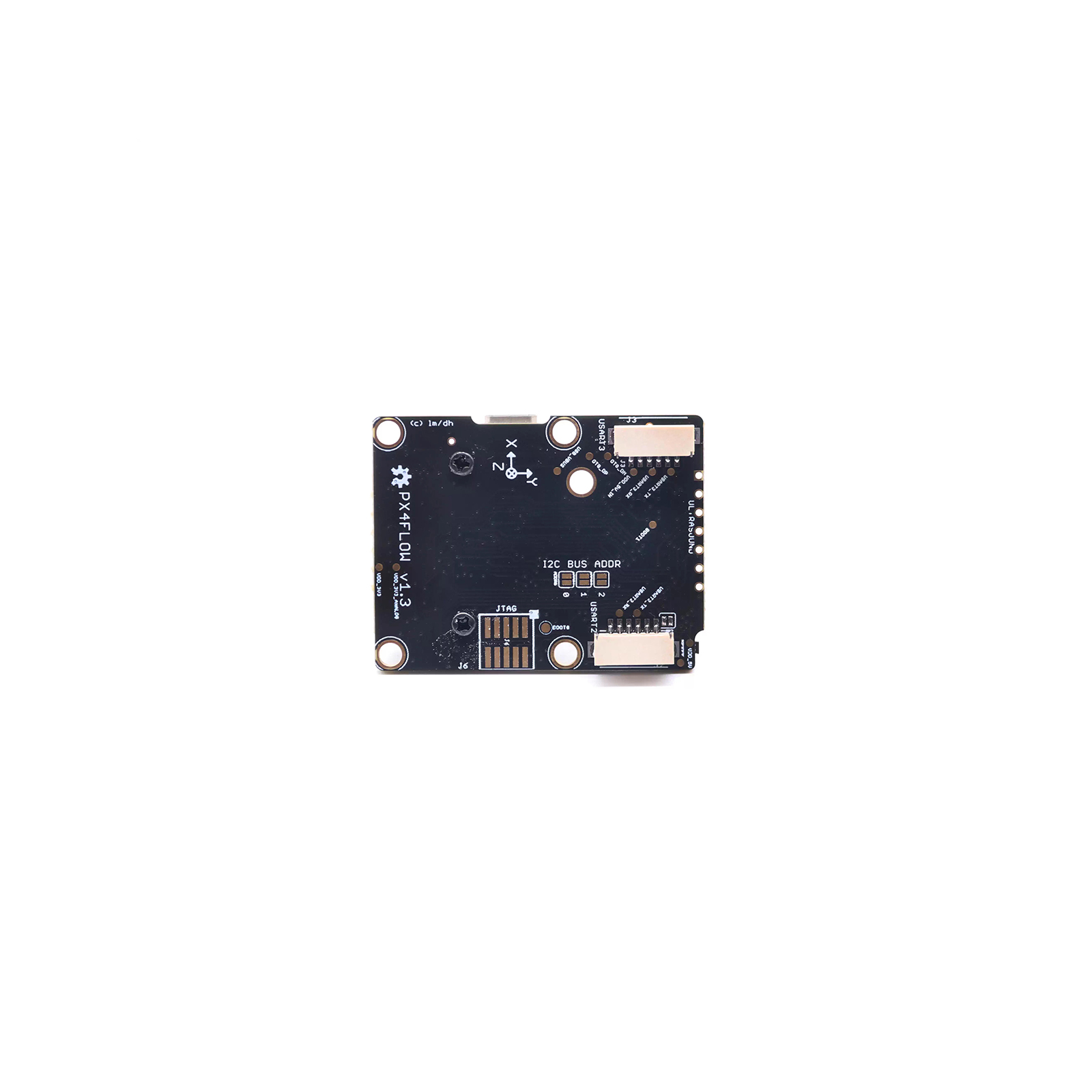

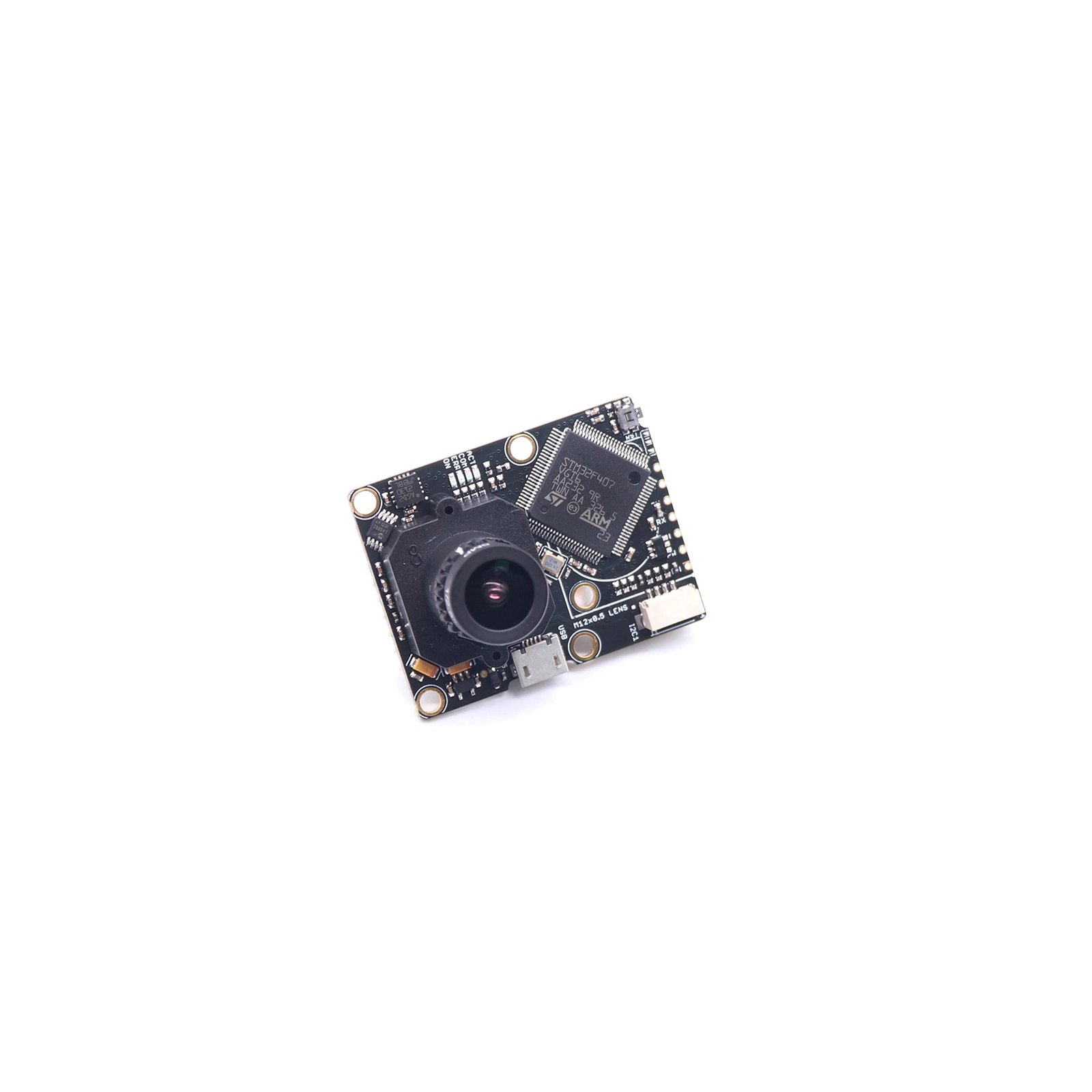

Without MB1043
PX4FLOW optical olow sensor smart camera x1
Connecting cable x1
