Pixhawk2.4.8 PX4 32 Bits Flight Controller 915Mhz Telemetry With Import M8N GPS PPM Buzzer OTG OSD Power Module Kit
Pixhawk2.4.8 PX4 32 Bits Flight Controller 915Mhz Telemetry With Import M8N GPS PPM Buzzer OTG OSD Power Module Kit
– Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
– 14 PWM/ Servo Output
– Bus interface(UART,I2C,SPI,CAN)
– Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
– Providing automatic and manual mode
– Providing redundant power supply input and failover
– Multicolor LED light
– Providing multi sound buzzer interface
– Micro SD records flying data
Processor:
– 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
– Main frequency: 168MHZ, 256K RAM
– 32 bit STM32F103 back up processor
built-in Sensor:
– L3GD20 3 axis digital 16 bit gyroscope
– LSM303D 3 axis 14 acceleration/magnetometer
– MPU6000 6 axis acceleration/magnetometer
– MS5611 high precision barometer

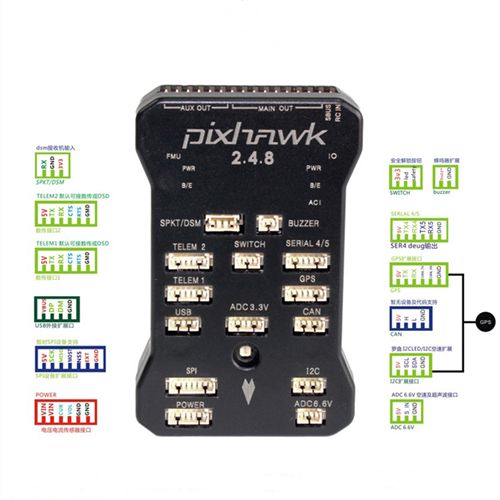

data Interface:
– 25 UART（Serial port）, one Support high power, two have hardware flow control
– Two CAN/0 Interface（One has internal 3.3 transceiver and the other is on expansion interface）
– Satellite receiver compatible input:allow use Spektrum remote control receiver
– Futaba SBUS compatible input and output
– PPM sum signal input
– RSSI(PWM or voltage) output
– I2C/SPI Serial port
– Two 3.3V and One 6.6V Voltage signal simulation input
– built-in MICRO USB interface as well external micro USB port expansion

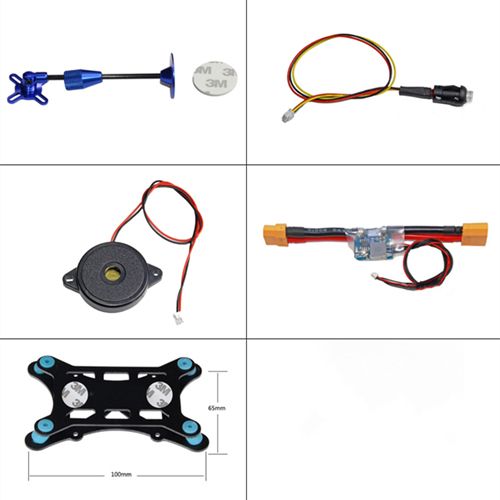

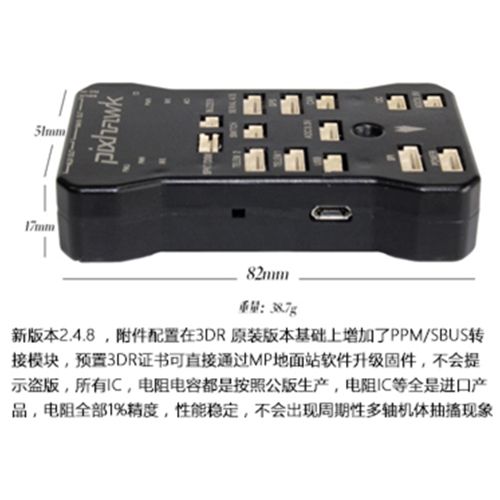

Pixhawk 2.4.8 32 bit Flight Controller x1

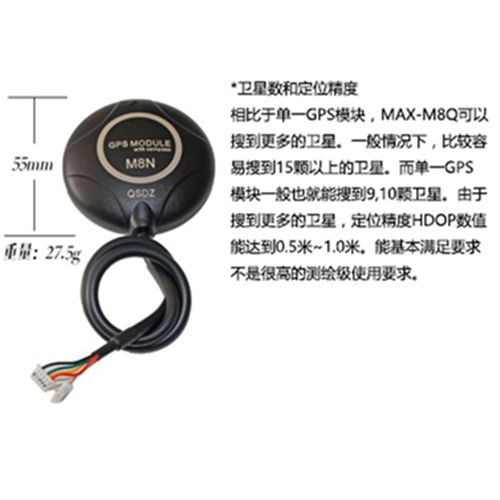

M8N GPS Module x 1
Safety button x 1
Buzzer x 1
Splitter Expand Module x 1
USB Data Cable x 1
Storage card x 1
PPM module x 1
Power Module x 1
915Mhz Data Transmission Module x 1
Data Transmission line x 1
OTG Cable x 1
Shock Absorber x 1
GPS Folding Holder x 1
Mini OSD x 1
