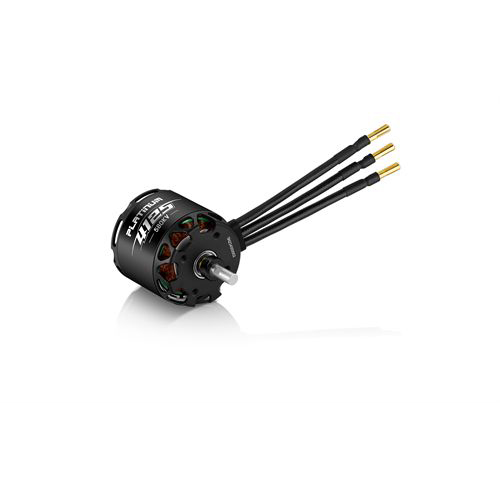

NEW Hobbywing Platinum 4125SL fixed – wing brushless motor with JNEH1200 iron core for model airplanes and drone accessories
NEW Hobbywing Platinum 4125SL fixed – wing brushless motor with JNEH1200 iron core for model airplanes and drone accessories
*It adopts the core of the top brand JNEH1200, wires resistant to high temperature up to 200°C, and bearings of international top brands to meet the requirements of users in different scenarios.
*The N53SH strong magnetic arc-shaped magnet design provides powerful torque for the motor.
*The three-phase wire outlet of the motor is equipped with a customized silicone rubber sheath, taking into account both the aesthetic appearance and insulation.
*The rotor has multiple locking designs, such as copper pads, circlips and bushing set screws, to prevent the rotor of the motor from loosening and further improve the reliability of the motor.

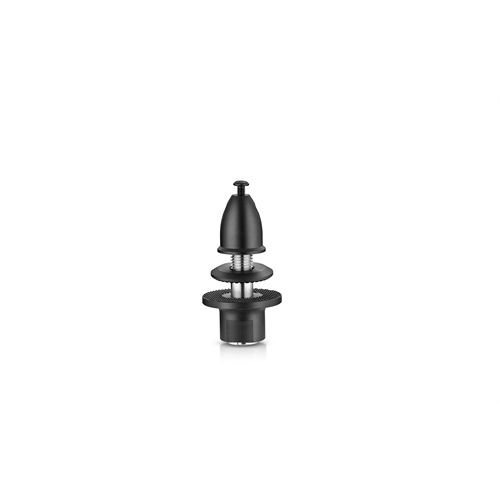

*Multi-purpose design. The optional rear shaft propeller mount can also be installed at the rear end of the motor to meet the multi-purpose requirements of different machines.
*Standard titanium alloy nuts and bracket mounting screws help reduce the overall weight.
*The motor adopts a modular and easy-to-disassemble design, which is convenient for cleaning and maintenance.
Brand Name: HobbyWing
Item Name: Platinum 4125SL 250KV
Product Number: 30416050
Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 250
Battery(LiPo): LiPo – 12S
No – load current: 1.5A/44.4V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 60.4A/49s
Max power: 2681W/49s
Max thrust: 8.25kg
Resistance: 47mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 363g
Recommended Props/ESCs
Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
Propeller: 12S: 15X6E, 15X8E, 16X6E, 16X8E
Brand Name: HobbyWing
Item Name: Platinum 4125SL 450KV
Product Number: 30416051
Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 450
Battery(LiPo): LiPo – 6S
No – load current: 2.6A/22.2V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 92.8A/1min23s
Max power: 2059W/1min23s
Max thrust: 7.47kg
Resistance: 15.5mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 362g
Recommended Props/ESCs
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Propeller: 6S: 15X8E, 16X10E, 17X8E
Brand Name: HobbyWing
Item Name: Platinum 4125SL 580KV
Product Number: 30416052
Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 580
Battery(LiPo): LiPo – 6S
No – load current: 3.9A/22.2V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 119.7A/1min17s
Max power: 2289W/1min17s
Max thrust: 7.35kg
Resistance: 9.5mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 370g
Recommended Props/ESCs
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Propeller: 5S: 15x8E, 16x8E, 6S: 14x6E, 14x7E, 15x6E
1x Platinum 4125SL Brushless Motor
