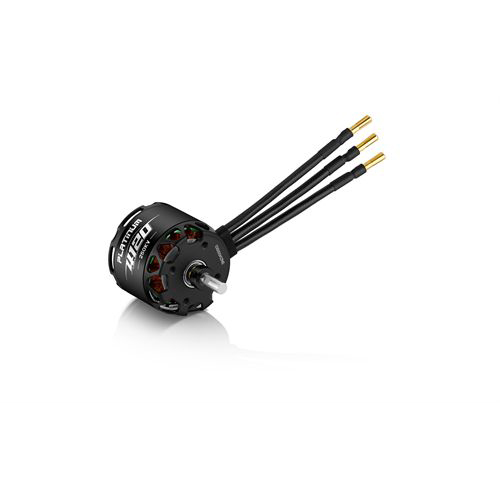

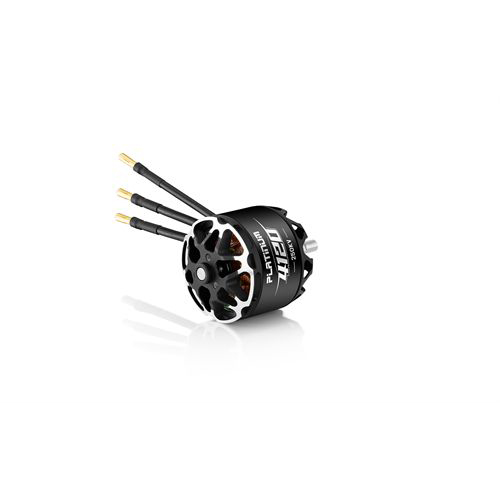

NEW Hobbywing Platinum 4120SL fixed – wing brushless motor with JNEH1200 iron core for model airplanes and drone accessories
NEW Hobbywing Platinum 4120SL fixed – wing brushless motor with JNEH1200 iron core for model airplanes and drone accessories
*It adopts the core of the top brand JNEH1200, wires resistant to high temperature up to 200°C, and bearings of international top brands to meet the requirements of users in different scenarios.
*The N52SH strong magnetic arc-shaped magnet design provides powerful torque for the motor.
*The three-phase wire outlet of the motor is equipped with a customized silicone rubber sheath, taking into account both the aesthetic appearance and insulation.
*The rotor has multiple locking designs, such as copper pads, circlips and bushing set screws, to prevent the rotor of the motor from loosening and further improve the reliability of the motor.
*Multi-purpose design. The optional rear shaft propeller mount can also be installed at the rear end of the motor to meet the multi-purpose requirements of different machines.
*Standard titanium alloy nuts and bracket mounting screws help reduce the overall weight.
*The motor adopts a modular and easy-to-disassemble design, which is convenient for cleaning and maintenance.
Brand Name: HobbyWing
Item Name: Platinum 4120SL 250KV
Product Number: 30416000
Motor Size: Φ49.5 *72.3mm
Stator Size: Φ40.6*20mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 250
Battery(LiPo): LiPo – 12S
No – load current: 1.4A/44.4V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 55.3A/30s
Max power: 2452W/30s
Max thrust: 7.69kg
Resistance: 64mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 309g
Recommended Props/ESCs
Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
Propeller: 12S: 15X6E, 15X8E, 16X6E, 16X8E
Brand Name: HobbyWing
Item Name: Platinum 4120SL 500KV
Product Number: 30416001
Motor Size: Φ49.5 *72.3mm
Stator Size: Φ40.6*20mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 500
Battery(LiPo): LiPo – 6S
No – load current: 2.6A/22.2V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 102.7A/42s
Max power: 2276W/42s
Max thrust: 7.41kg
Resistance: 17mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 310g
Recommended Props/ESCs
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Propeller: 6S: 15X6E, 15X8E, 16X6E, 16X8E
Brand Name: HobbyWing
Item Name: Platinum 4120SL 610KV
Product Number: 30416002
Motor Size: Φ49.5 *72.3mm
Stator Size: Φ40.6*20mm
Stator process: High standard silicon steel sheet, 180℃ high temperature resistance paint – coat
Enamelled wire: 200℃
Props mounting dimensions: Φ15mm – 3*M3
Motor mounting dimensions: Φ30mm – 4*M4
Slot & Pole: 12N14P
Dynamic balance: ≤10mg
Bearing: 696ZZ
Motor axle diameter: Φ6mm
Isolation test: 500V AC high voltage resistance test
Specification
KV: 610
Battery(LiPo): LiPo – 6S
No – load current: 3.7A/22.2V
Maximum current (Non – hermetic Ambient Temperature ≤ 25℃): 121.9A/59s
Max power: 2252W/59s
Max thrust: 7.21kg
Resistance: 12mΩ
Wire Size: Enamelled Wire Output
Wire length: 90mm
Weight（With wire）: 317g
Recommended Props/ESCs
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Propeller: 5S: 15X8E, 16X8E, 6S: 14X6E, 15X6E
Platinum 4120SL Brushless Motor x1
