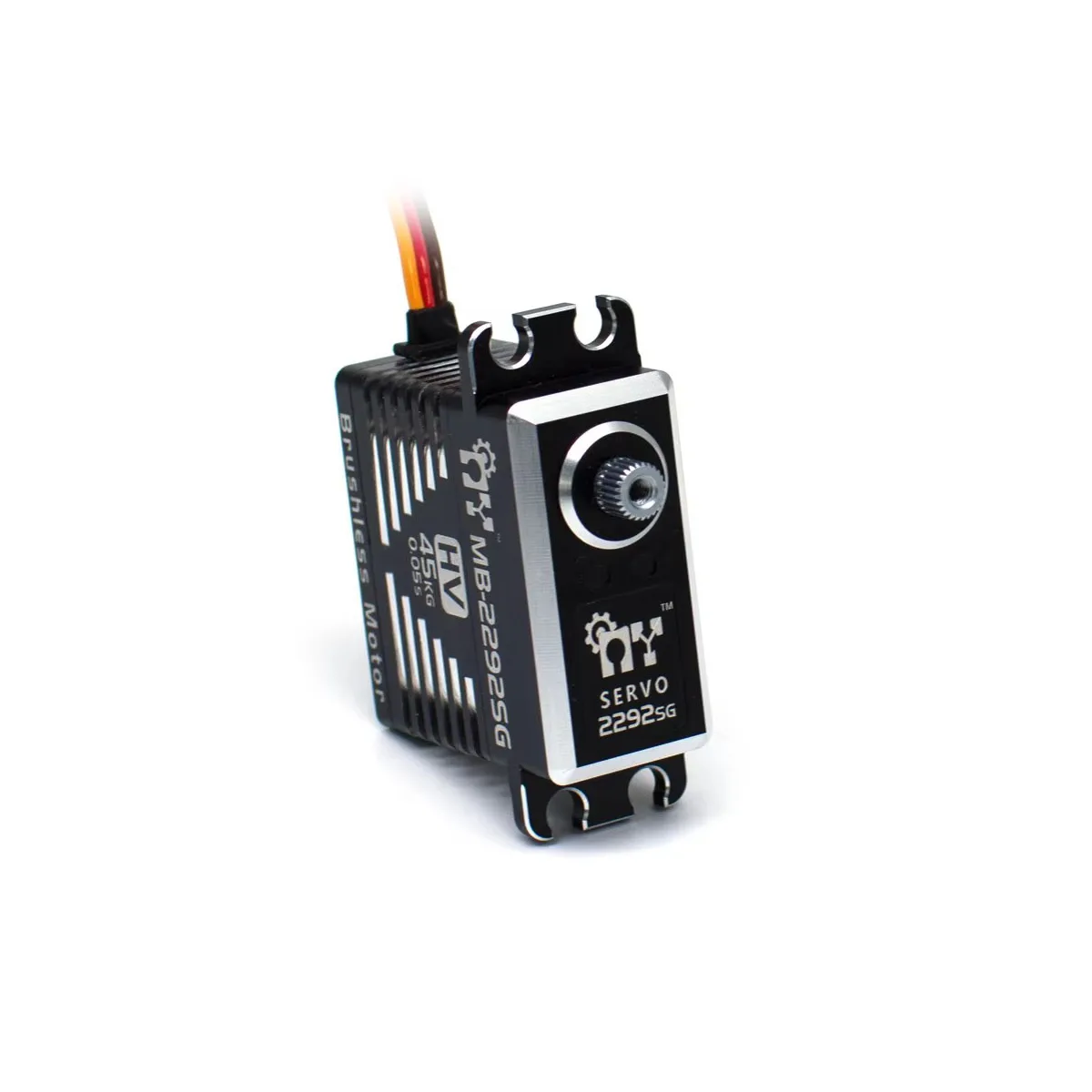

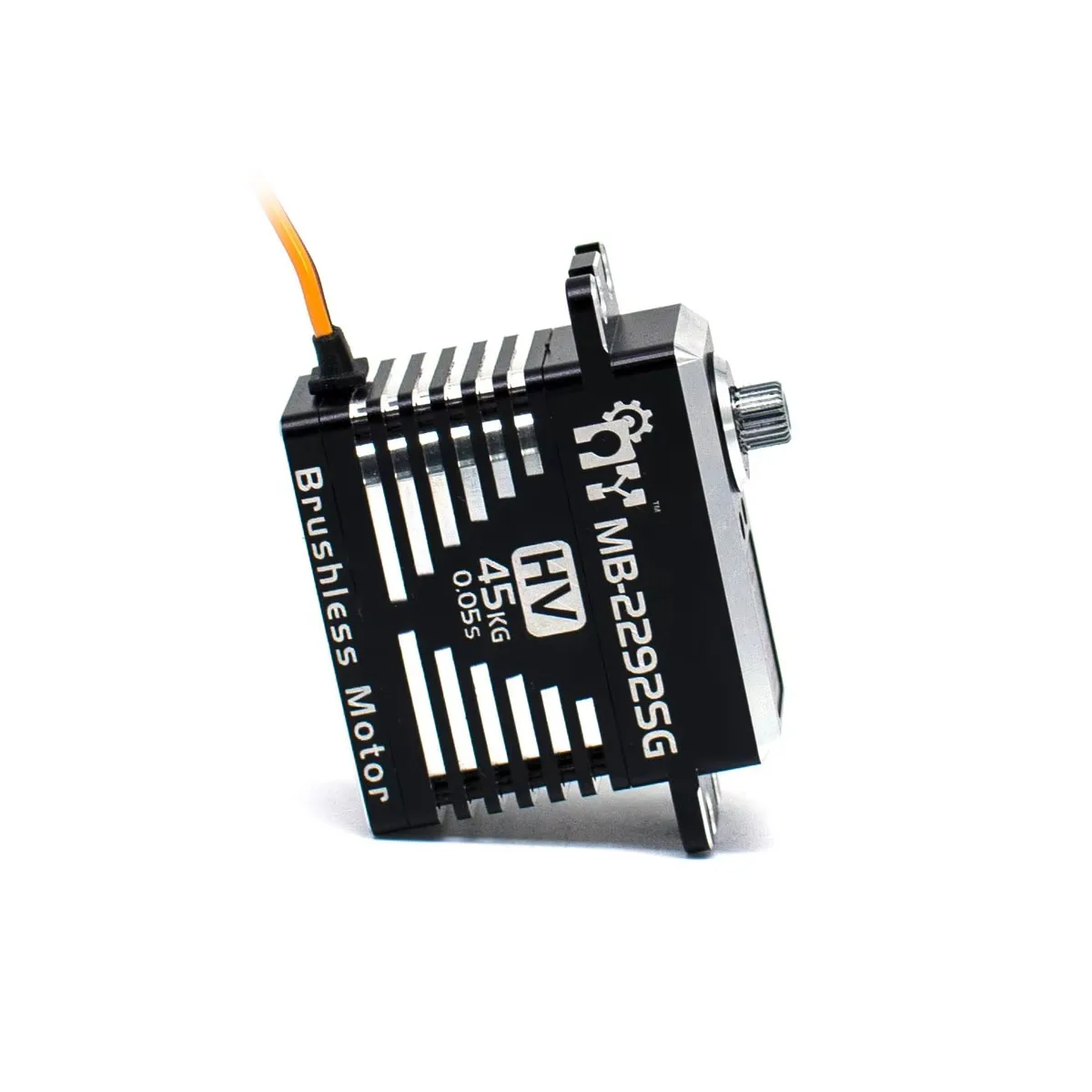

MY Servo MB-2292SG 8.4V 45kg Brushless Motor Aluminium Case High Speed Waterproof Digital Servo
















MY Servo MB-2292SG 8.4V 45kg Brushless Motor Aluminium Case High Speed Waterproof Digital Servo
The heart of the MB-2292SG is its advanced brushless motor system, which operates with exceptional efficiency and remarkable smoothness. This technology, governed by a sophisticated digital processor, provides instantaneous torque response, superior resolution, and unparalleled holding power. The result is precise, responsive control that gives users a definitive competitive edge, whether navigating complex robotic movements or steering a heavy-scale RC vehicle at high speeds.
full aluminium case
high performance digital standard servo
high precision metal gears
double ball bearings
Model: MB-2292SG
Dead band: 3μs
Working frequence: 1520μs / 330hz
Motor: Brushless Motor
Operating Speed 7.4V): 0.07sec/60°
Operating Speed (8.4V): 0.05sec/60°
Stall Torque (7.4V): 31.0kg.cm
Stall Torque (8.4V): 45.0kg.cm
Dimensions: 40.3×20.2×38.7mm
Weight: 79g
Connector Wire Length: JR 265mm
Bearing: 2BB
Output Gear Spline: 25T

MB-2292SG Servo x1
Pack of Accessories x1
Related products
-
JX Servo
JX CLS6336HV 35kg Aluminium Shell Metal gear High Voltage Coreless Digital Servo
Rated 0 out of 5 -
JX Servo
JX servo PDI-HV2070MG 70KG 180 degree Metal gear Core Digital Servo for 1/5 RC Car Baja
Rated 0 out of 5 -
JX Servo

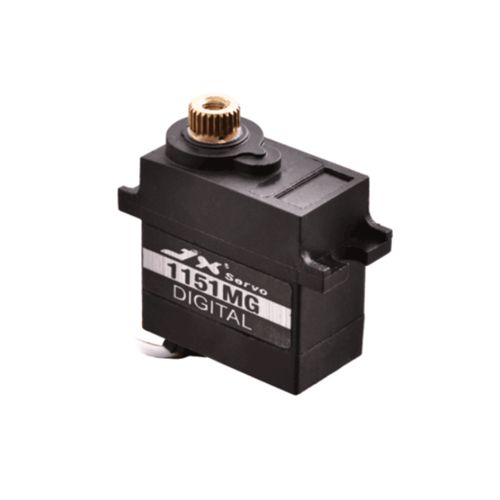

JX PDI-1151MG 3.6KG Mini Coreless Waterproof 120° Digital Servo For RC Models Car Boat
