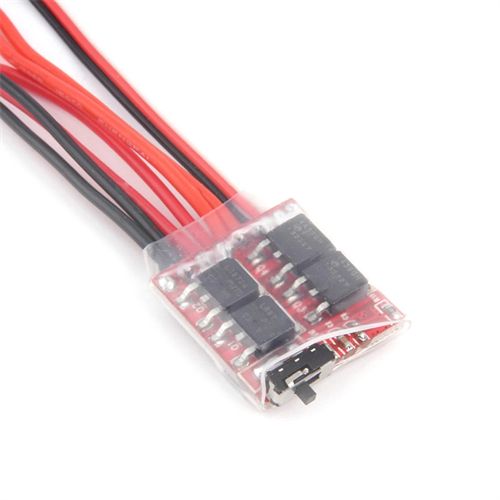

Micro ESC 20A 30A Brushed ESC RC ESC Electric Speed Controller Boat Tank w/Brake 2S 4~8v for DIY Mini 1/16 1/18 1/24 RC Car
Micro ESC 20A 30A Brushed ESC RC ESC Electric Speed Controller Boat Tank w/Brake 2S 4~8v for DIY Mini 1/16 1/18 1/24 RC Car
*Micro ESC: Compact and lightweight in design, it is easy to install and use. This is a bidirectional 20A/30A miniature brushed electronic speed controller (ESC) with brake function, ideal for DIY mosquito or mini-z cars. Specifically designed for receiver and steering SERVO.
*Brushed ESC 2S: Suitable battery type: 2S Li-ion (7.4V) (not included).
*Brushed ESC 1/24: Applicable for 1/16, 1/18, 1/24 RC cars, boats, tanks, RC quadcopters, helicopters, multicopters and airplanes. Function: forward, reverse, and brake.
*Brushed Motor ESC: The 20A ESC can work with 130/180/260/280/380 brushed motors.

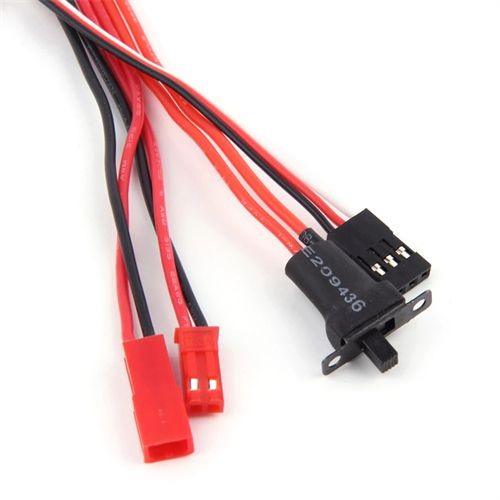

*RC ESC Connecting Rod: The short red (positive) and black (negative) wires are for connecting to the battery; the long red and black wires (the positive or negative is random) are for connecting to the motor; the black, red, and white three-in-one line is for connecting to CH2 of the receiver.
Name: 20A brush speed controller(Red Main Board)
Function: Forward, Reverse, Brake
Working voltage: 4.8V-8.4V
Dimensions(L*W*H): 35.0*22.0*6.0mm
Current(A): 20A
Driver frequency: 2KHz
Input: Li-Po 2S / Ni-Mh/Ni-cd 4-7cell
Constant current 20A Max 25A< 30s Pulsed 50A< 5s
Brake On / with brake
This ESC can work with 130/180/260/280/380 Brush Motor
Size: 20*20 MM
Name: 30A brushed speed controller(Red)
Material: Synthetic Material
Current Parameters:
Forward 30A
Instantaneous peak: 40A
Back: 20A
Brake: 40A
UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)
Voltage support: 4.8~ 8.4v can be directly on the 2s lithium (7.4V)
Function: forward, reverse, brake
Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2″
Weight: Approx.13g (with line)
1×Micro ESC Brushed ESC
