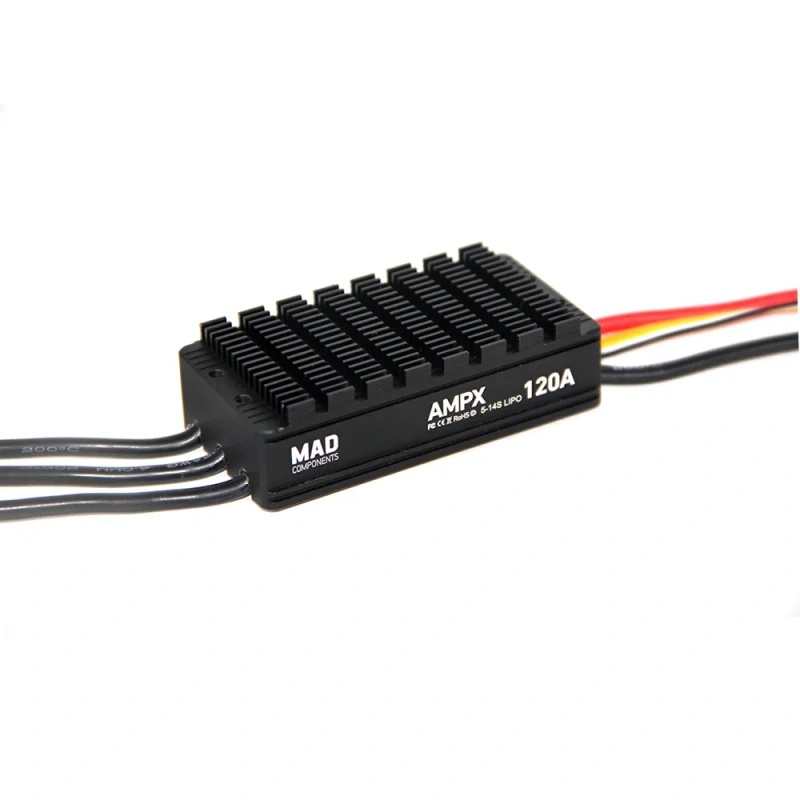

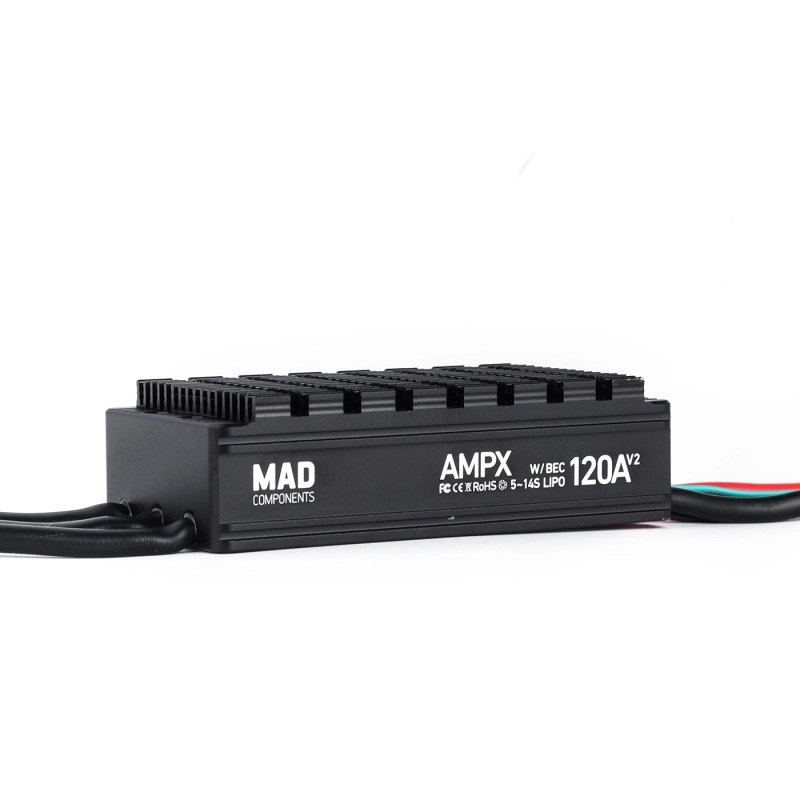

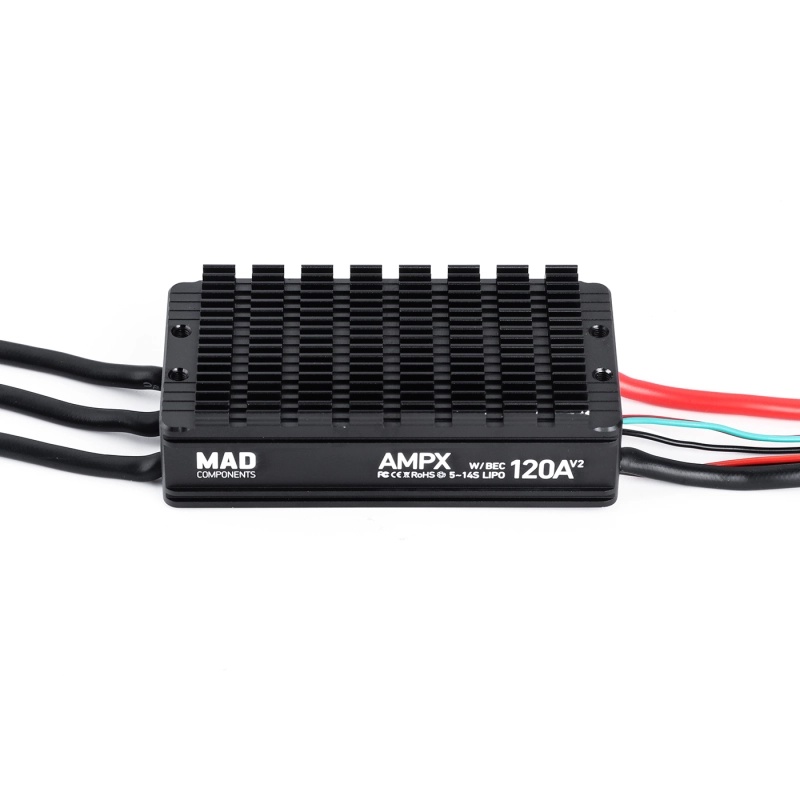

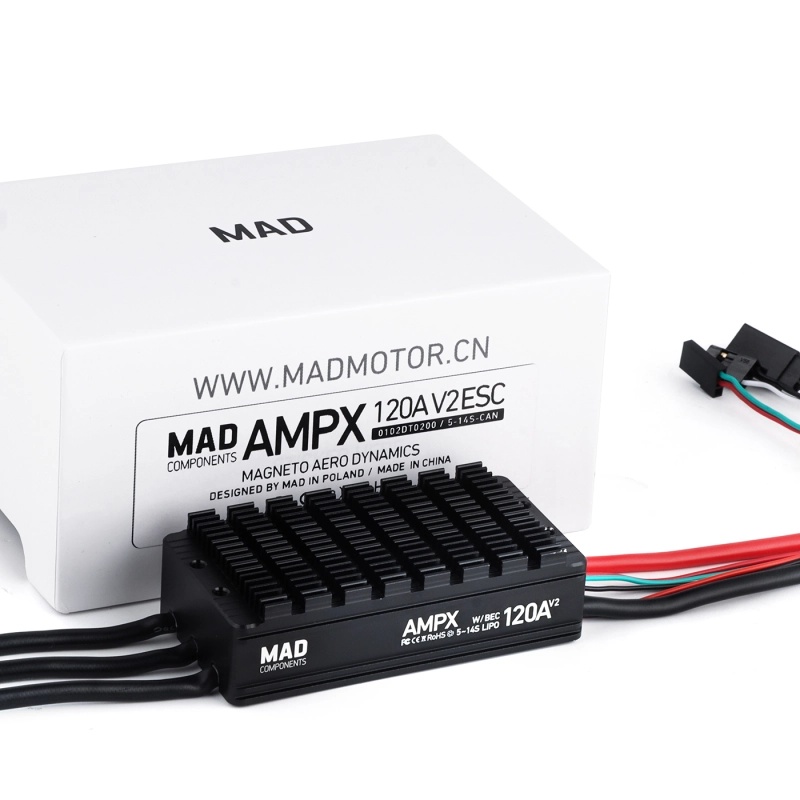

Model: AMPX 120A ESC
Supported Lithium Cell Count: 5-14S
BEC: 5V/200MA output
Throttle Pulse Width: Default 1050us-1940us, supports throttle calibration
PWM Input Signal Voltage: 3.3V/5V (compatible)
Dimensions (LWH): 81.8*41.2*23.2mm
Online Update: Supported
Protection Level: IP67
Throttle Loss Protection: Supported
Phase Short Circuit Protection: Supported
Error Signal Output: Not Supported
CAN communication: Supported
Voltage Protection: Supported
Weight (excluding wires): Approximately 140g
Motor stall protection: Supported
Operating Environment Temperature: (-20-65°C)
RPM Signal Output: Not Supported
Continuous Current: 120A (Requires good heat dissipation conditions)
Temperature Detection: Not Supported
Current Limit: 120A
Power Wire/Wire Length: 12AWG/800mm
Motor Wire/Wire Length: 12AWG/150mm
Signal Wire Length: 1000mm
