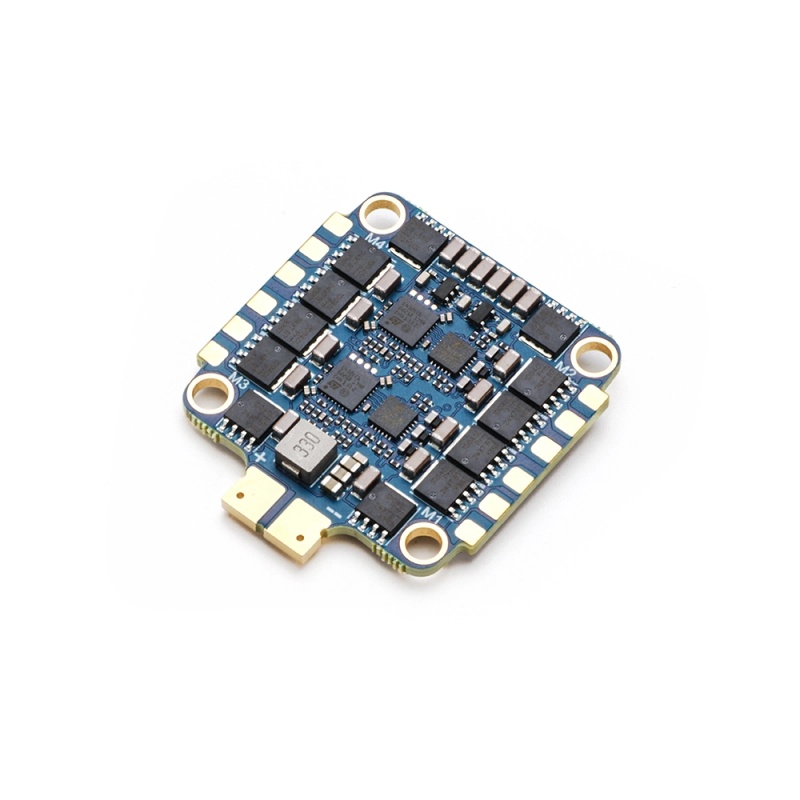

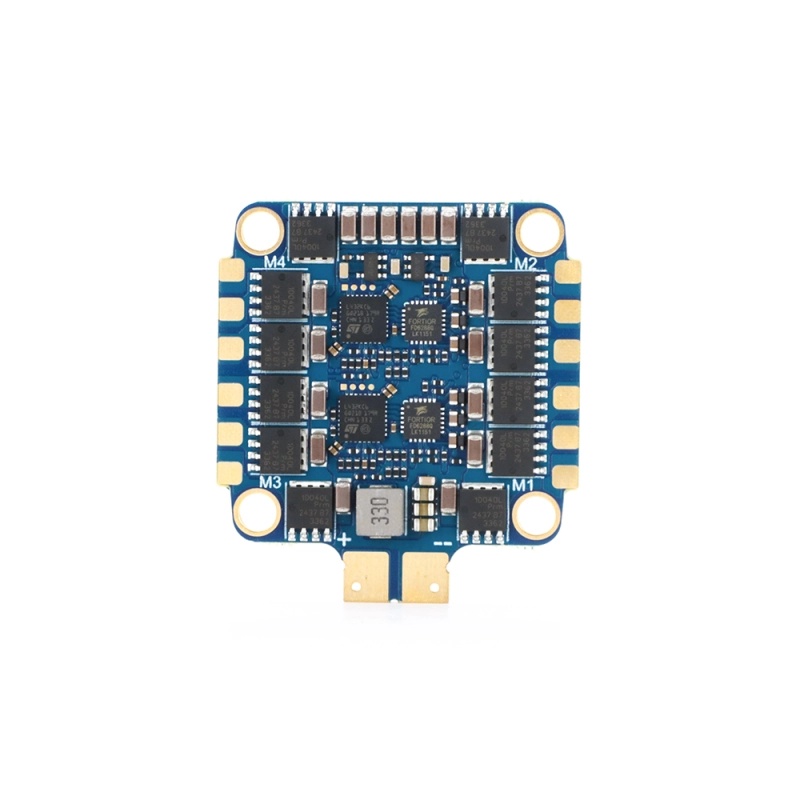

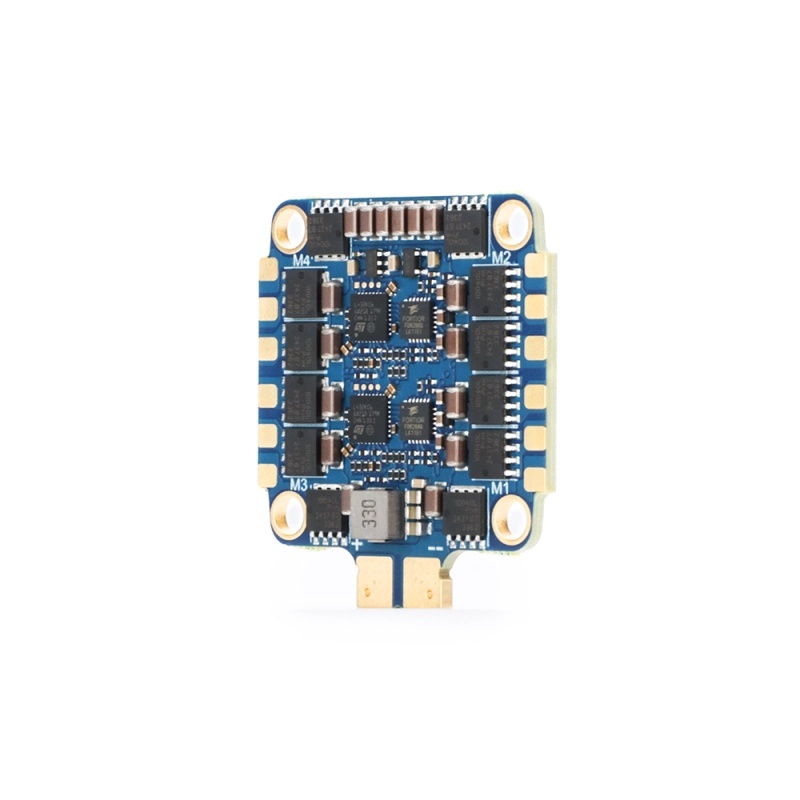

MAD AM32 70A 3-12S 4in1 ESC Light Weight Electronic Speed Control for FPV Drone
Each ESC integrated with a 3 in1 H-bridge driver;
Four independent current and voltage detection (flight control settings require opening TELEMETRY&power&battery selection electric control sensors);;
Imported TDK 35V22uF high-voltage high capacitance MLCC capacitor on board;
Onboard high-voltage BEC,with a maximum input voltage of 100V (only the BEC can withstand it,the overall operating voltage of the ESC varies depending on the MOS);
8P gold-plated socket,easy to connect with FC ribbon cable
Model: AM32 70A 3-12S 4in1 ESC
Input Voltage: 3-12S Lipo
Size: 40×43×7mm
Screw Hole Spacing: 30.5mm
Weight: 14.2g (Excluding wiring)
Firmware: AM32
4in1(continuous working current of each circuit of ESC): 70A
Support: PWM,Dshot150/300/600/1200, Oneshot125/42,Multishot
Processor: STM32L431/432 CorteX-M4kernel48M

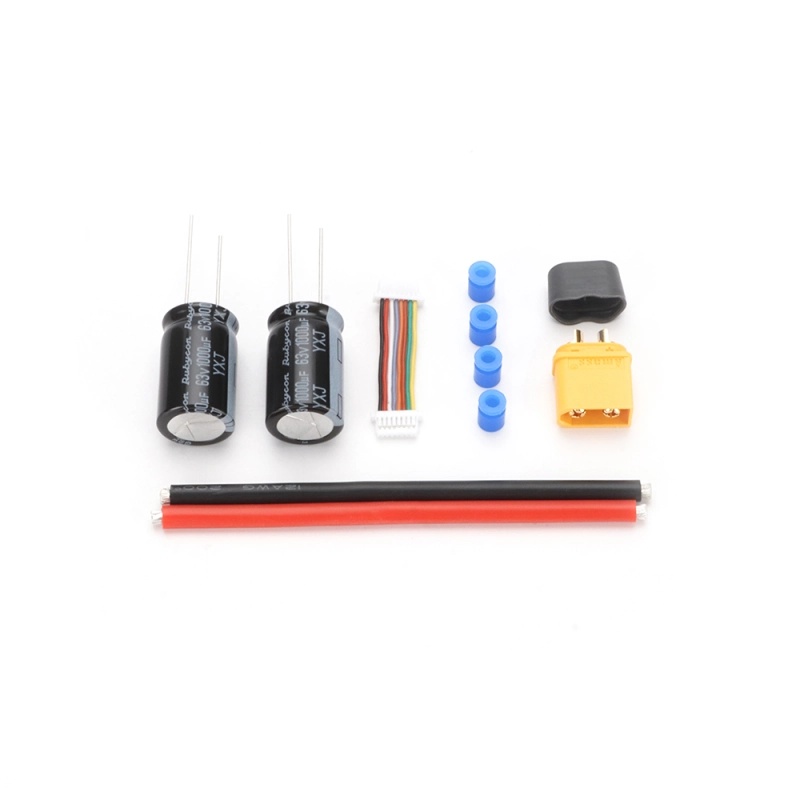

AM32 70A 3-12S 4in1 ESC x1
