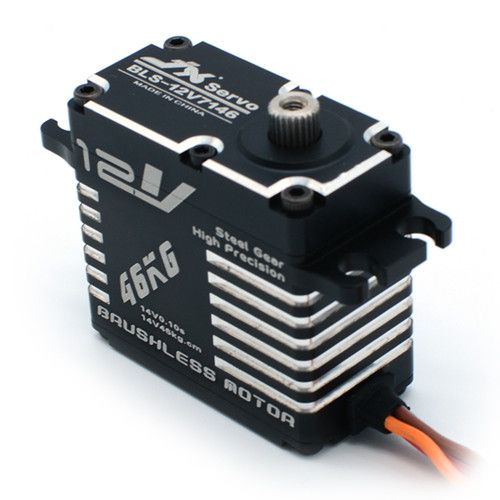

JX servo BLS-12V7146 46KG 12V High Precision Steel Gear Full CNC Aluminium Shell Structure Digital Brushless Standard Servo
JX servo BLS-12V7146 46KG 12V High Precision Steel Gear Full CNC Aluminium Shell Structure Digital Brushless Standard Servo
12V High voltage
High performance programmable digital brushless standard servo
High-precision Taiwan-made steel gears with hard anodizing
Full CNC aluminium Shell structure
Dual ball bearings
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (11.1V): 0.12sec/60°
Operating Speed (14V): 0.10sec/60°
Stall Torque (11.1V): 38kg.cm
Stall Torque (14V): 47kg.cm
Dimensions: 40X20X37mm
Weight: 71 g
Connector Wire Length: JR 265 mm
Bearing: 2BB

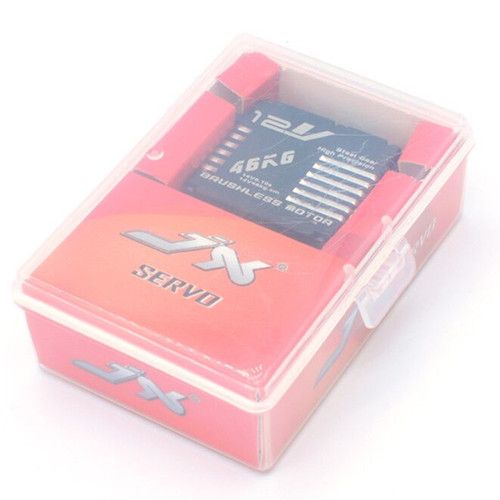

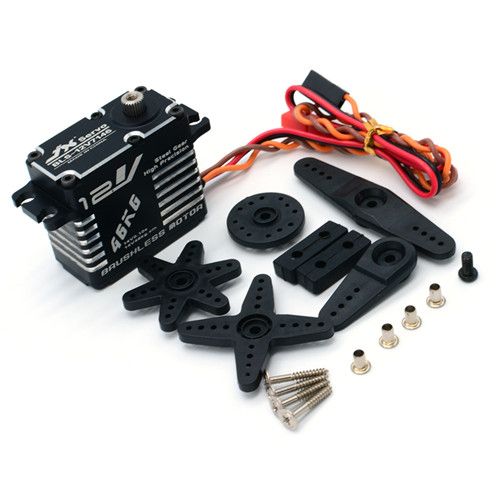

BLS-12V7146 Servo x1
