JX RD-B7640MI-360 40kg.cm brushless 360° Magnetic inductiom full CNC aluminium hulls and structure Robot servo
JX RD-B7640MI-360 40kg.cm brushless 360° Magnetic inductiom full CNC aluminium hulls and structure Robot servo
– Magnetic induction potentiometer
– High performance robot servo

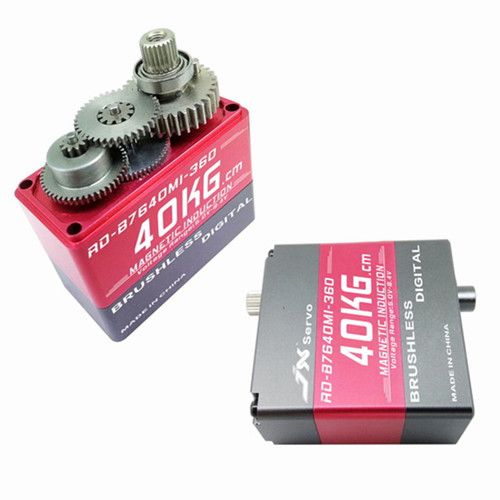

– High-precision metal gears with hard anodizing
– Full CNC aluminium hulls and structure
– High quality brushless motor
– Dual ball bearings
Dead band: 2μs
Neutral point: 1500μs
Pulse width：500μs-2500μs
Motor: Brushless
Max angle：360°±2°
Working frequence: 330hz
Voltage：5.0V/7.2V/8.4V
Speed(5.0V/7.2V/8.4V): 0.15/0.13/0.11sec/60°
Stall torque(5.0V/7.2V/8.4V): 33/35/40 kg.cm
Demension: 40X20X40mm
Weight: 76 g
Connector Wire Length: JR 265mm
Spline Count: 25T

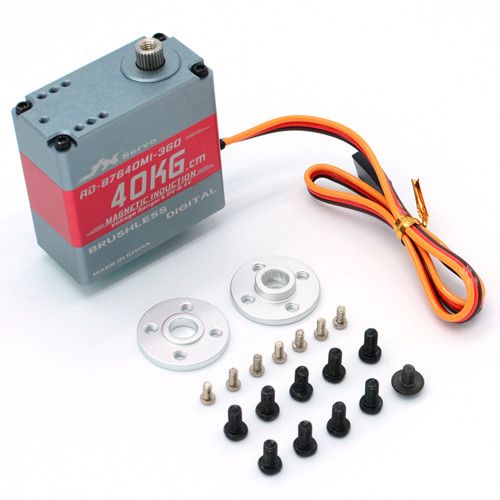

RD-B7640MI-360 servo x1
