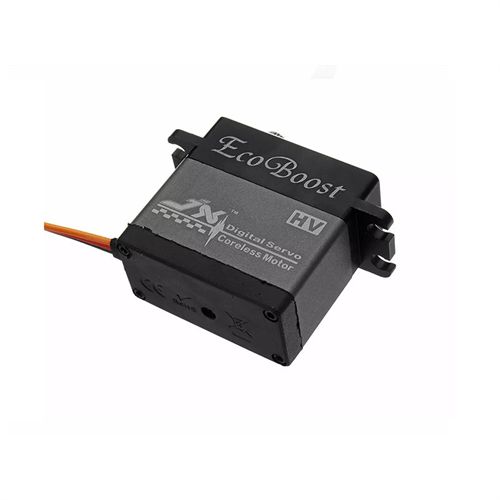

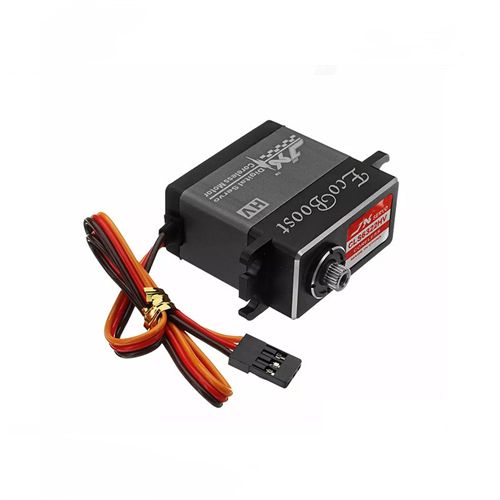

JX CLS6322HV 21kg Large Torque Aluminium Shell Metal Gear High Voltage Hollow Cup Servo For RC Car Robot Drone Parts
JX CLS6322HV 21kg Large Torque Aluminium Shell Metal Gear High Voltage Hollow Cup Servo For RC Car Robot Drone Parts
— High-performance 22KG large torque hollow cup servo
— High precision gear Made in Taiwan
— All metal high voltage servo
— Double ball bearing
Working voltage: 6.0-7.40V
Working temperature: -20 ~ + 60 ℃
Deadband setting: 2μs microseconds
Pulse width: 500-2500μs
Angle: 180 °
Working frequency: 1520μs / 300Hz
Motor: Hollow Cup Motor
Operating speed (6.0V): 0.09sec / 60 °
Operating speed: 7.4V): 0.07sec / 60 °
Torque (6.0V): 17.21 kg.cm (238.98oz / in)
Torque (7.4V): 21.06kg.cm (292. 44oz / in)

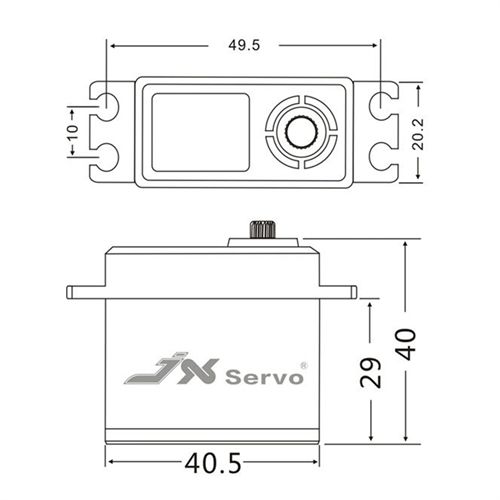

Size: 40 5X20.5X40mm /1.59X0.81X1.57in
Weight: 63g (2.22oz)
Cable length: JR 265 mm (10.43in)

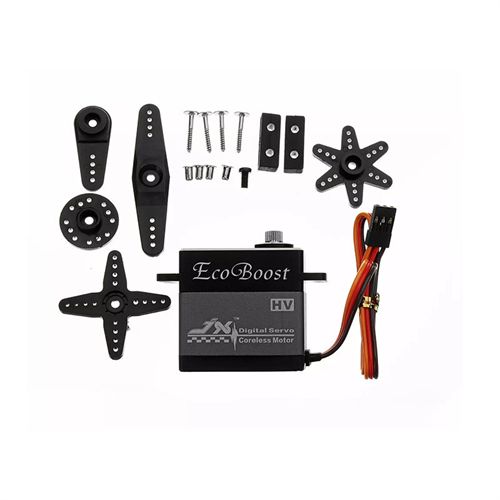

CLS6322HV Servo x1
Servo Accessories x1
