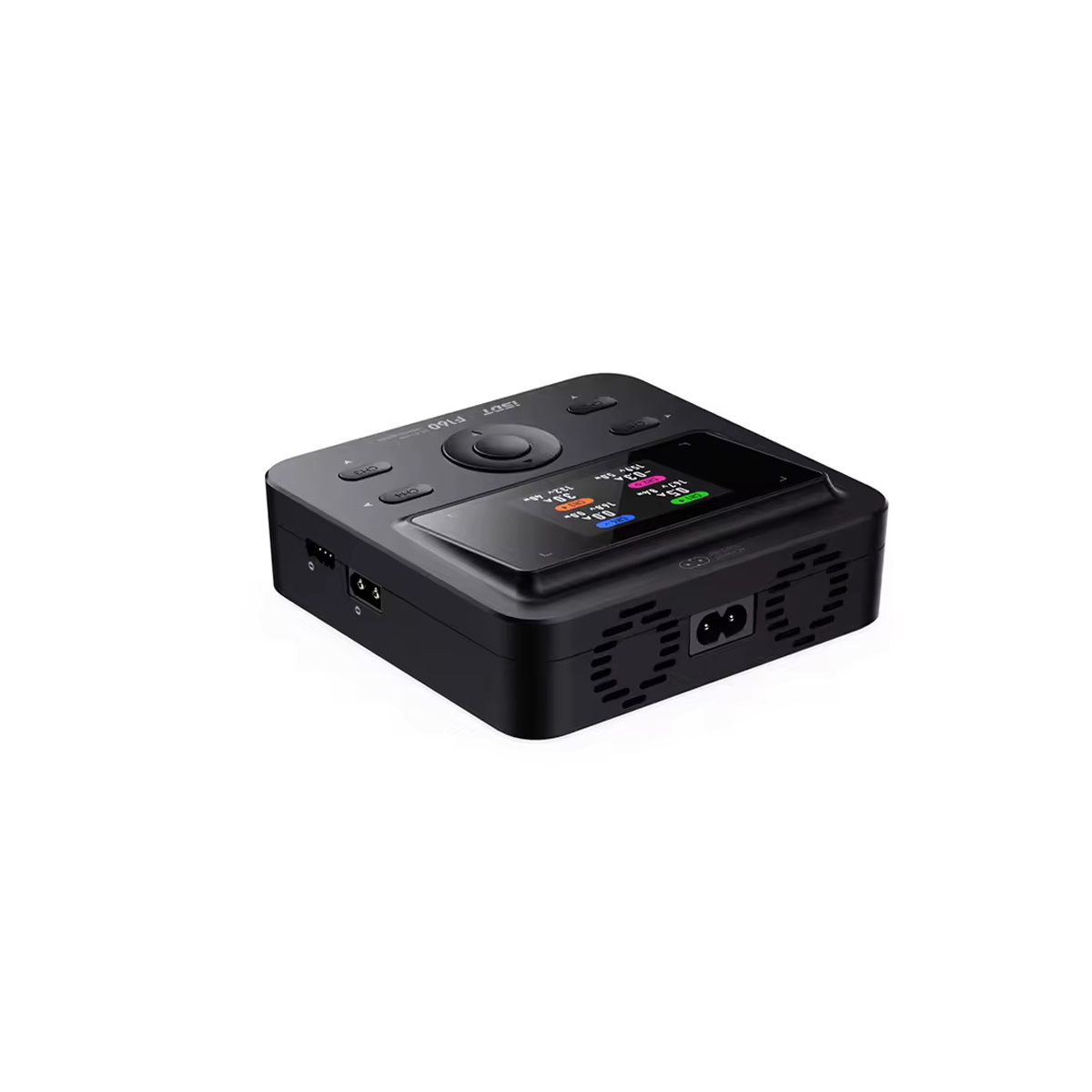

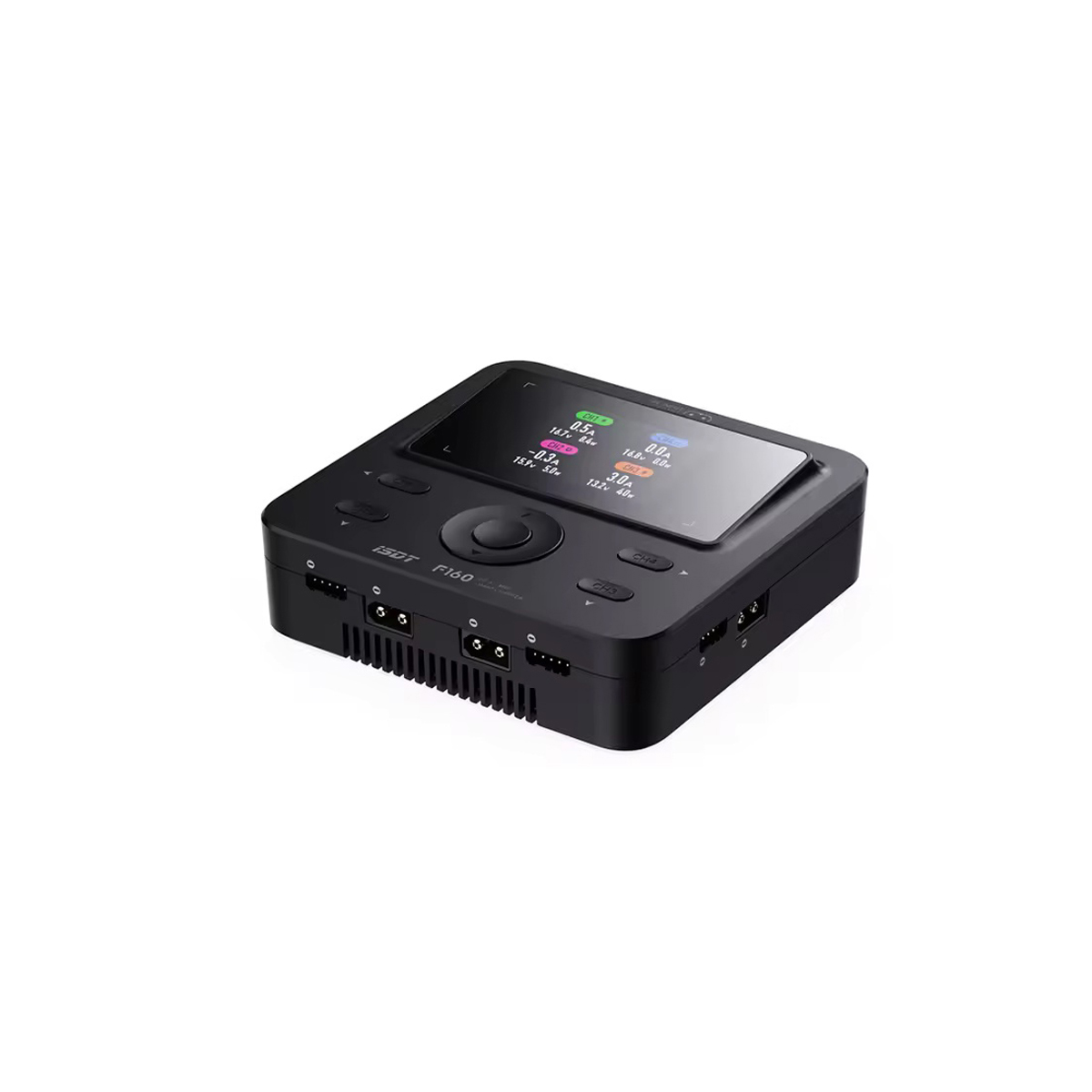

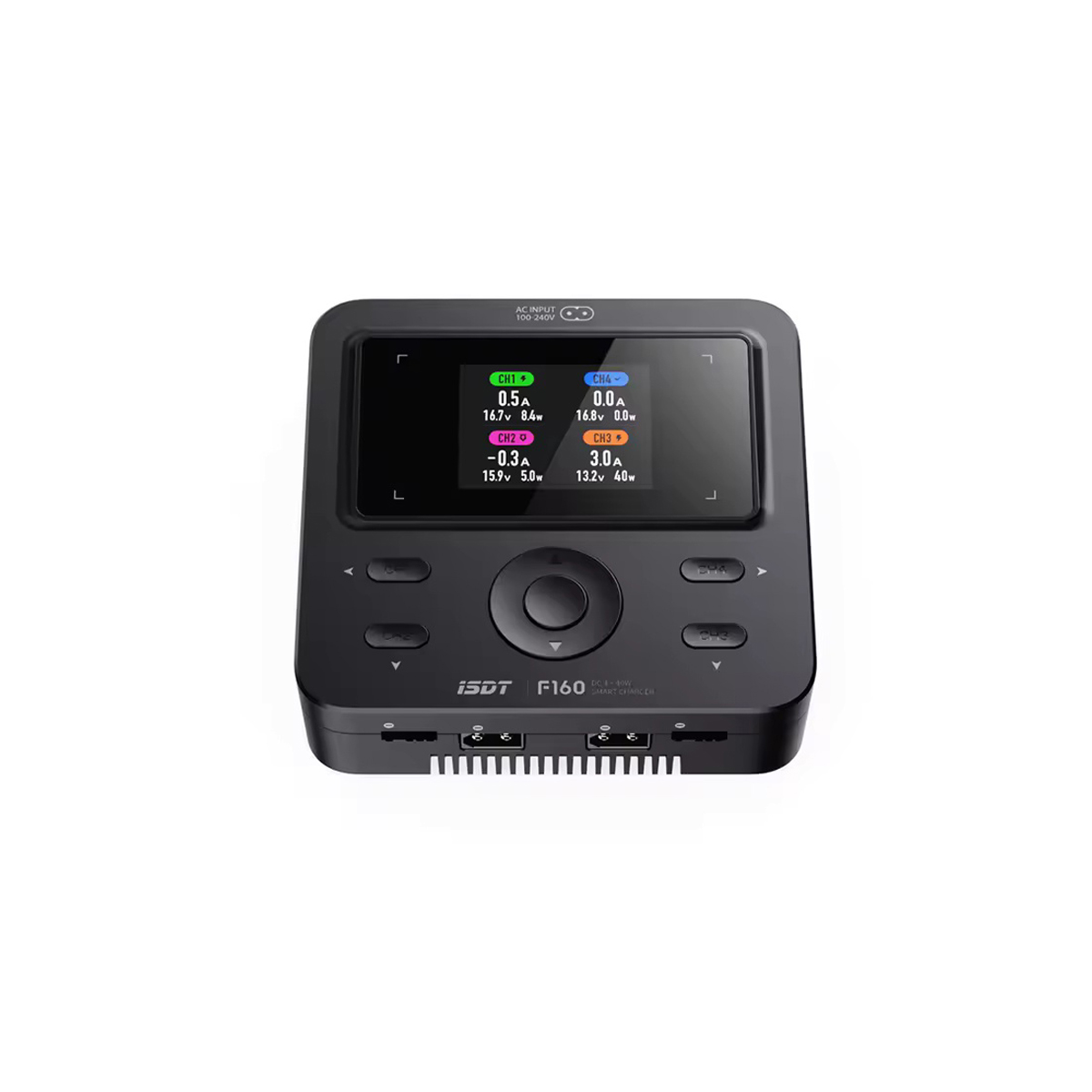

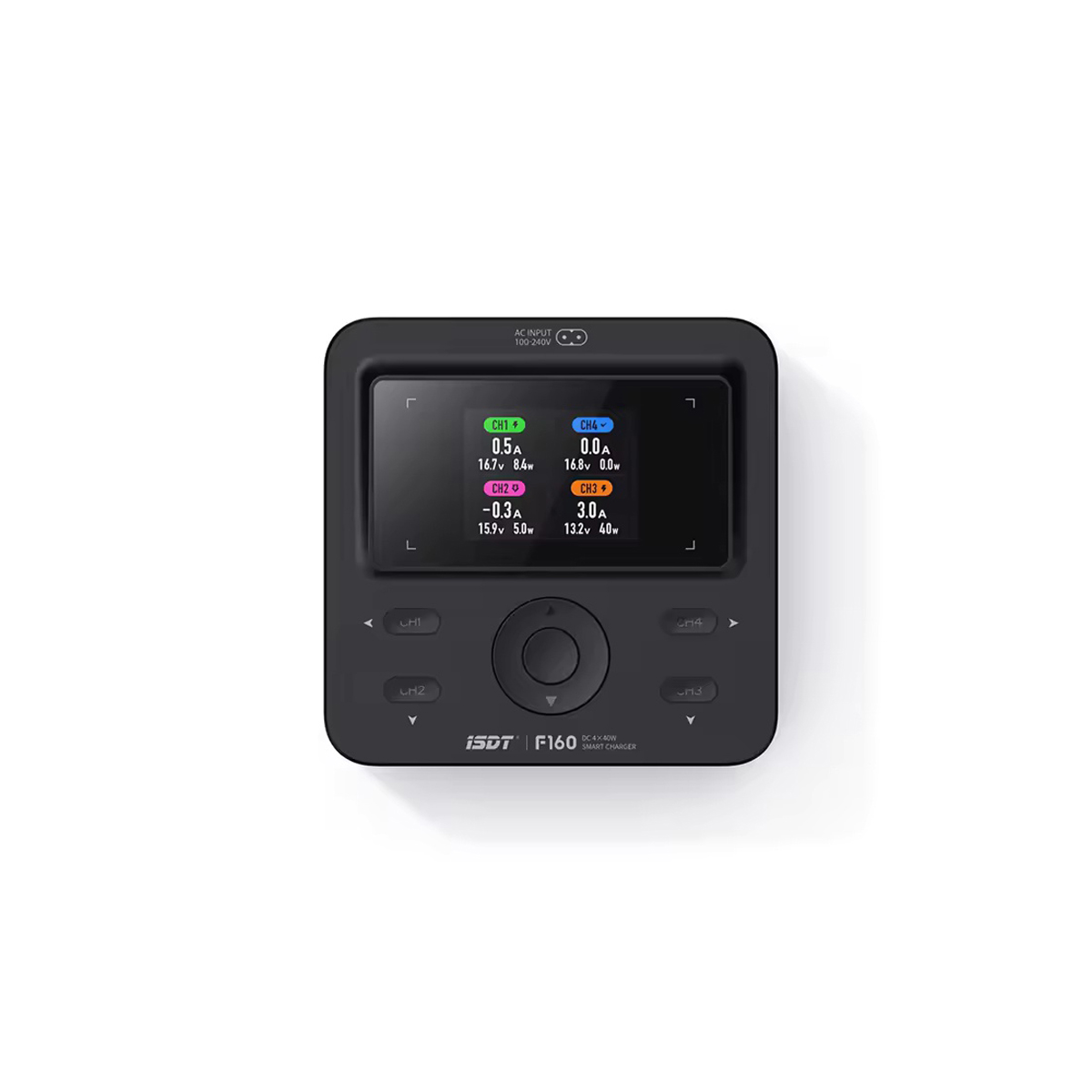

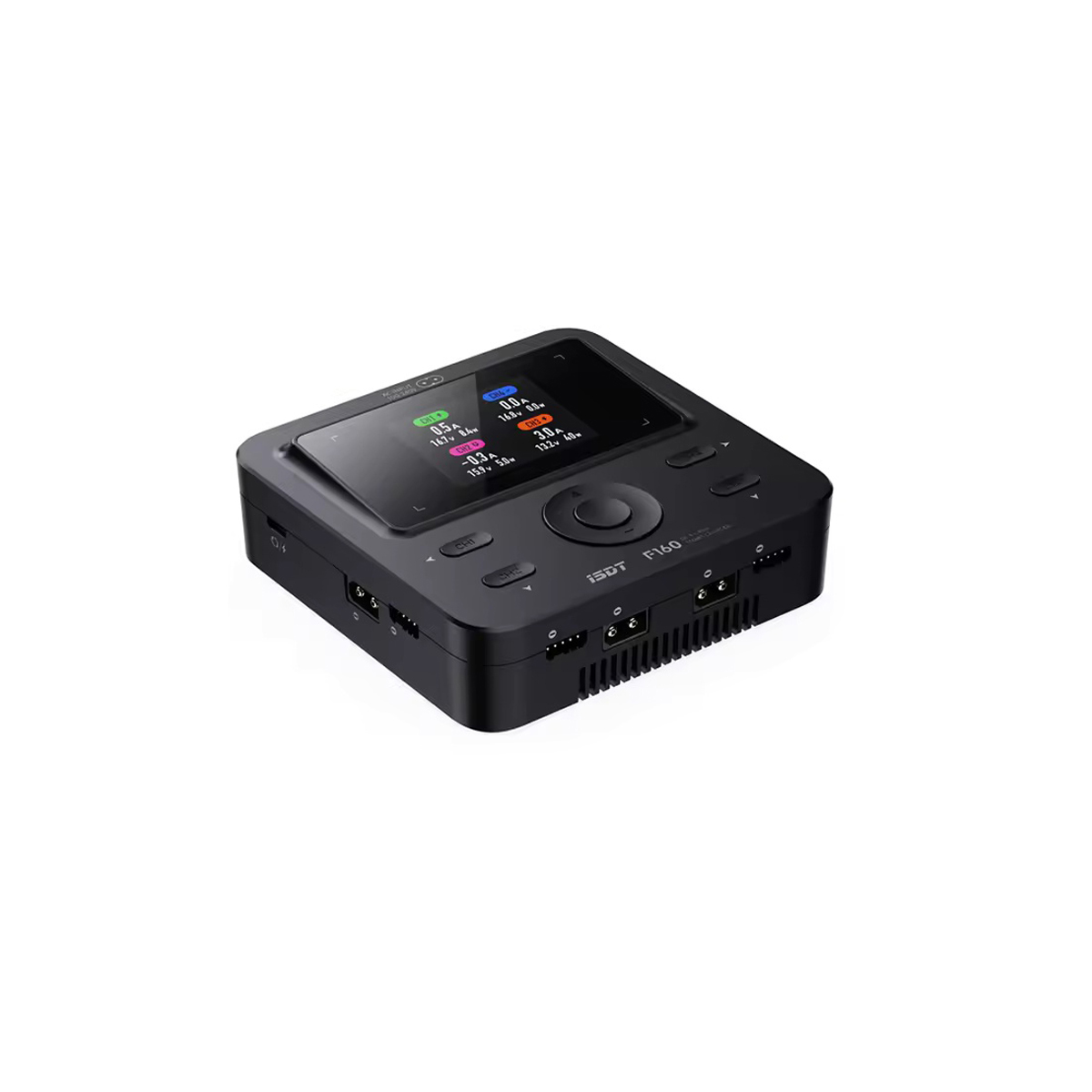

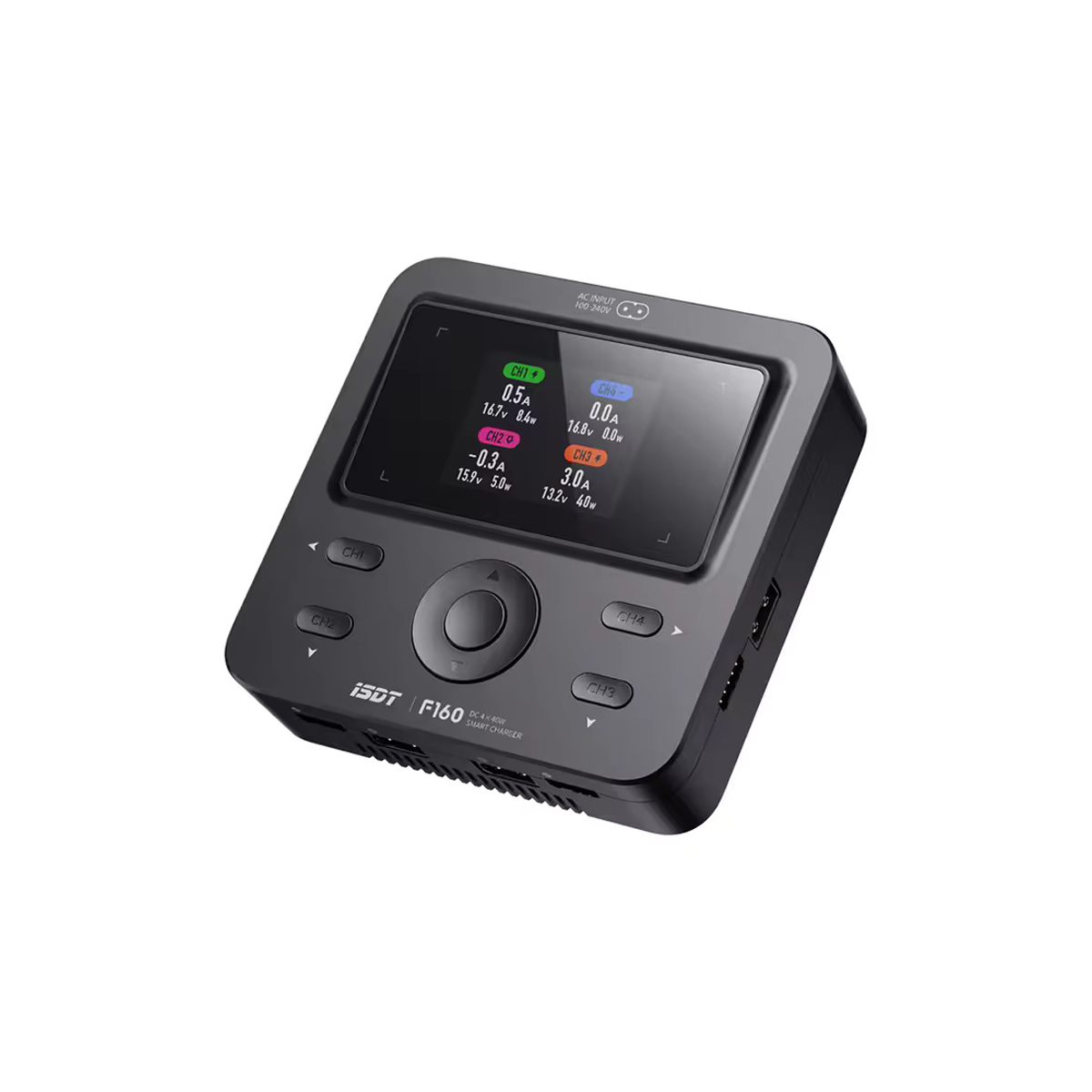

ISDT F160 AC/DC Quad Smart Charger GaN Technology Simultaneous Charging for Multiple Devices
4-Channel Independent Fast Charging：Equipped with advanced GaN technology, each of the 4 channels delivers 40W independent output without power sharing, enabling fast, balanced, and simultaneous charging for multiple devices.
Global Compatibility & Efficient Safety：Works with 100-240V input worldwide, ensuring fast, safe, and energy-efficient charging performance.
Model: F160
Input Voltage Range:
200-240V~ 50Hz 2.5A (EU);
110-130V~ 60Hz 4A (US)
Output Voltage:
Channel 1: 5-18.5V;
Channels 2-4: 2.5-18.5V
Charging Current: 0.1~5.0A ×4
Discharging Current: 0.1~1.0A ×4
Maximum Charging Power: 40W ×4
Maximum Discharging Power: 5W ×4
Supported Battery Types and Cell Counts:
LiFe, Li-Ion, LiPo, LiHv, ULiHv 1~4S
| Pb 2~7S | NiCd/MH 4~12S
Balancing Current: 0.5A / Cell (Max)
USB Output Power: 5V/2A (only when Channel 1 is idle)
Operating Temperature: 0℃~40℃
Storage Temperature: -20℃~60℃
Dimensions: 130×128×41mm
Weight: 380g
F160 AC/DC Quad Smart Charger x1
